LCZ-203ALoad Cells
Longlv LCZ-203A weighing sensor diaphragm box tension pressure high-precision automation equipment force measurement corrosion resistance
- Rated load：0~20KN
USD： 61
ablity：Monthly Output1000
- Product Description
- Product Params
Product Description
LCZ-203A membrane box sensor has compact structure, high comprehensive accuracy, good long-term stability, and is made of stainless steel. It is widely used in automotive press-fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing, automation equipment and testing fields.
Product Overview

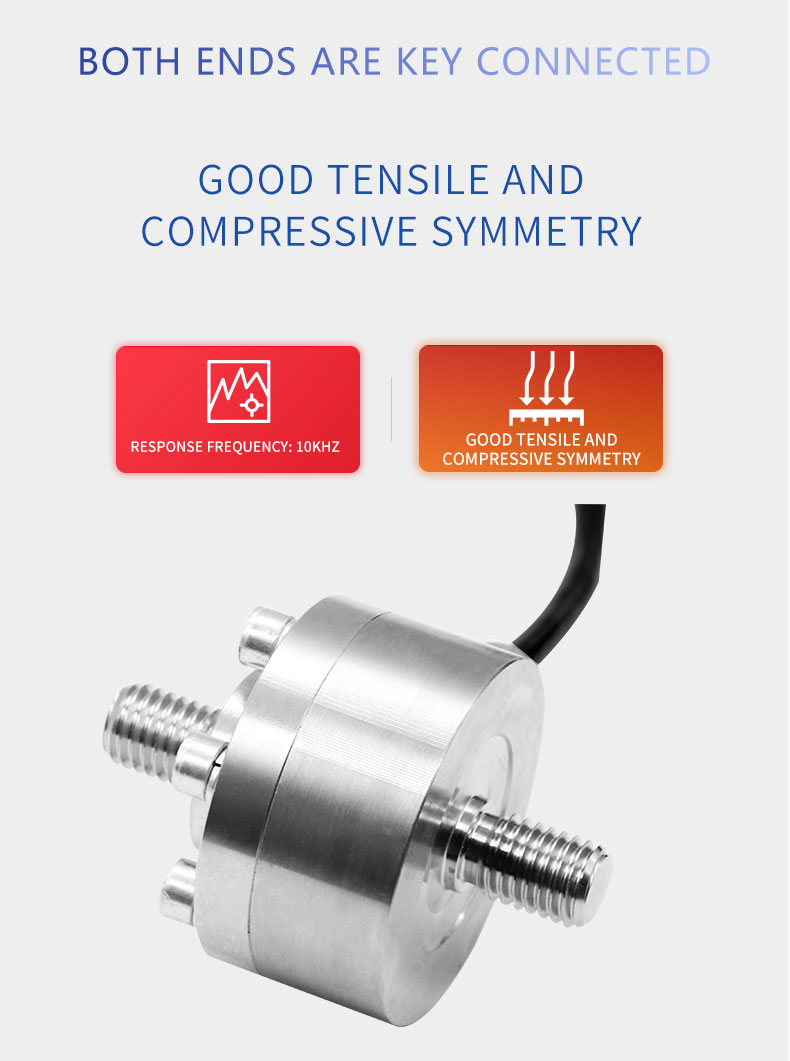

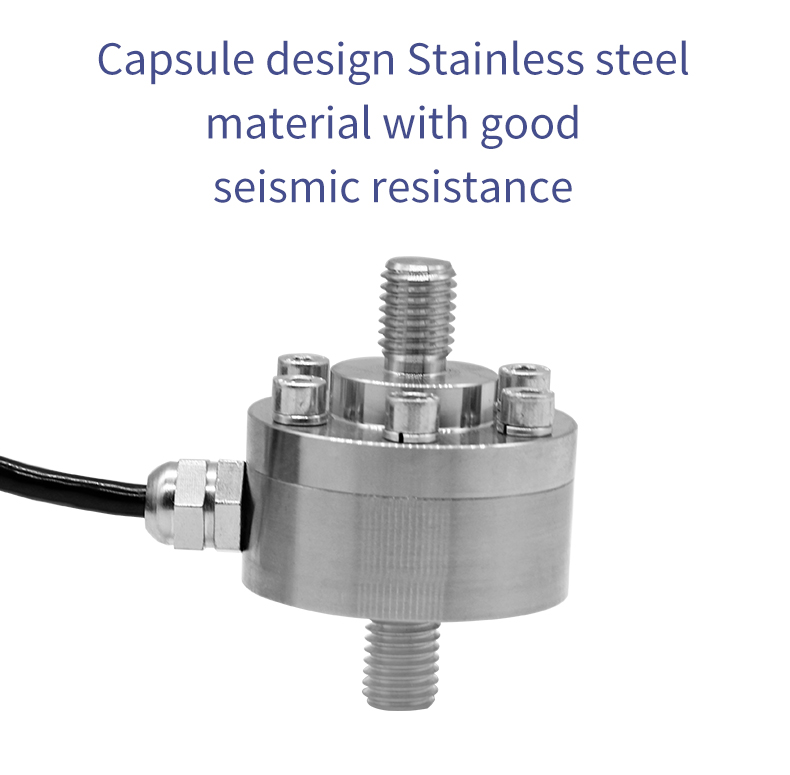

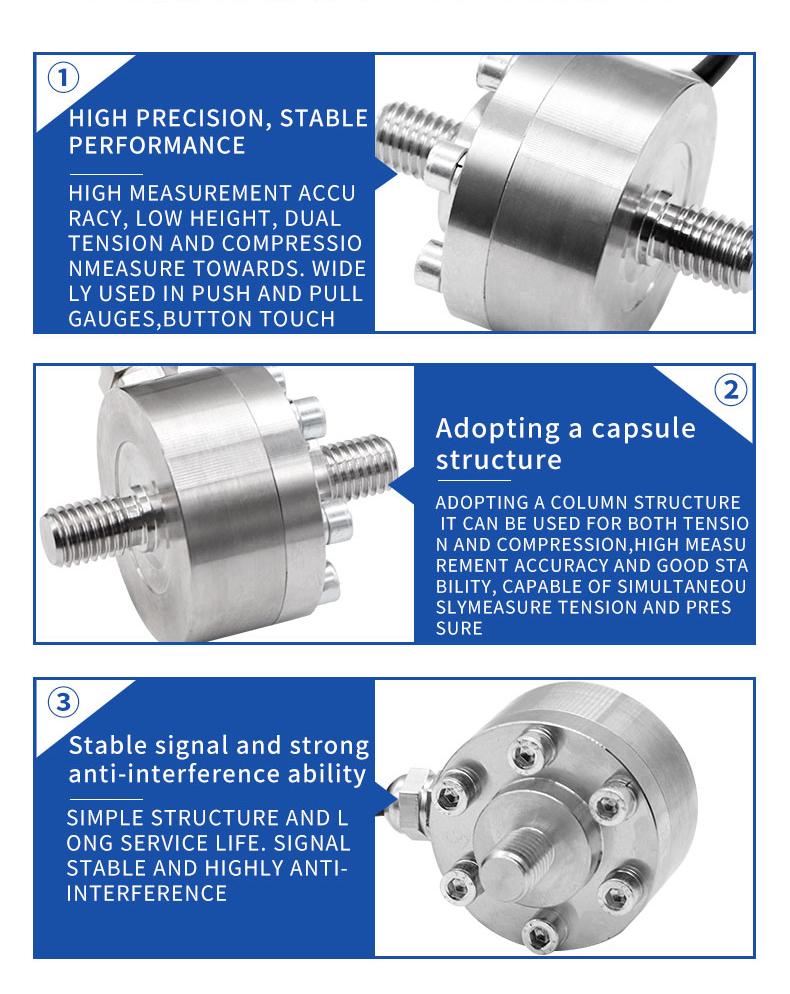

 | LCZ-203A Diaphragm type tension and pressure sensor Compact structure High precision and sensitive response Stable performance and good shock resistance |
Product Details

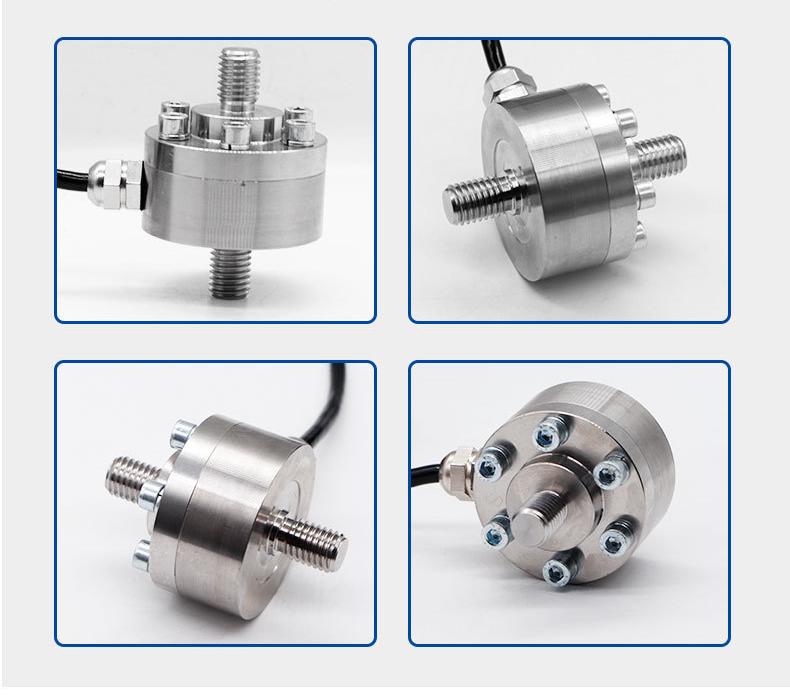

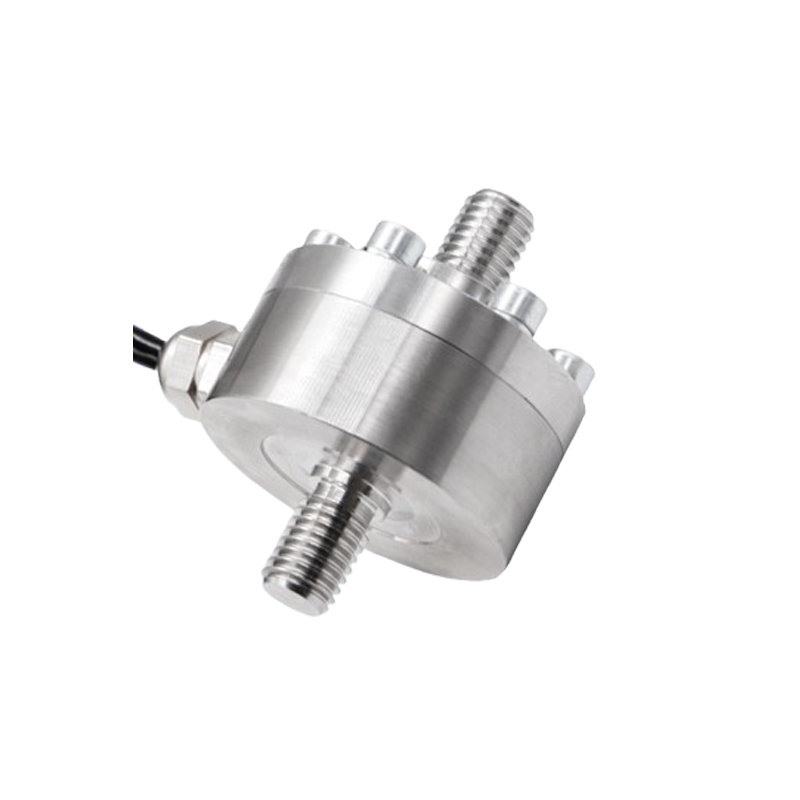

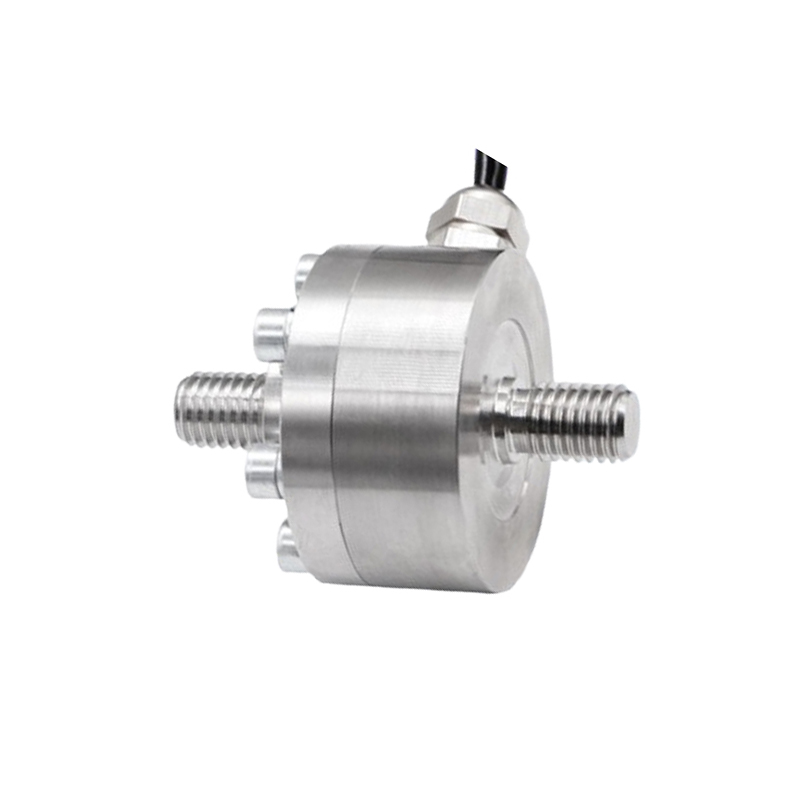

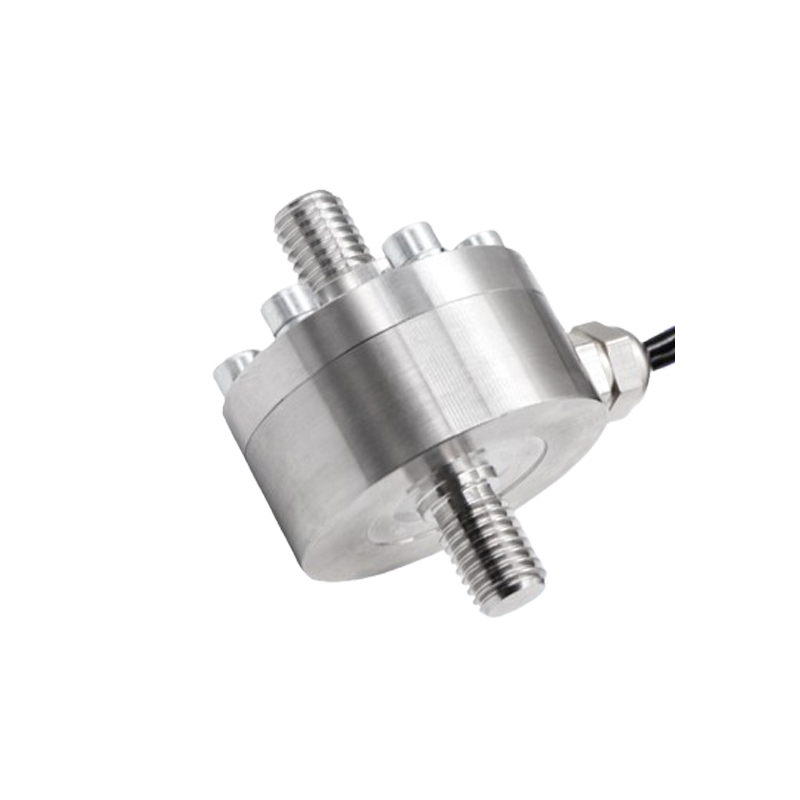

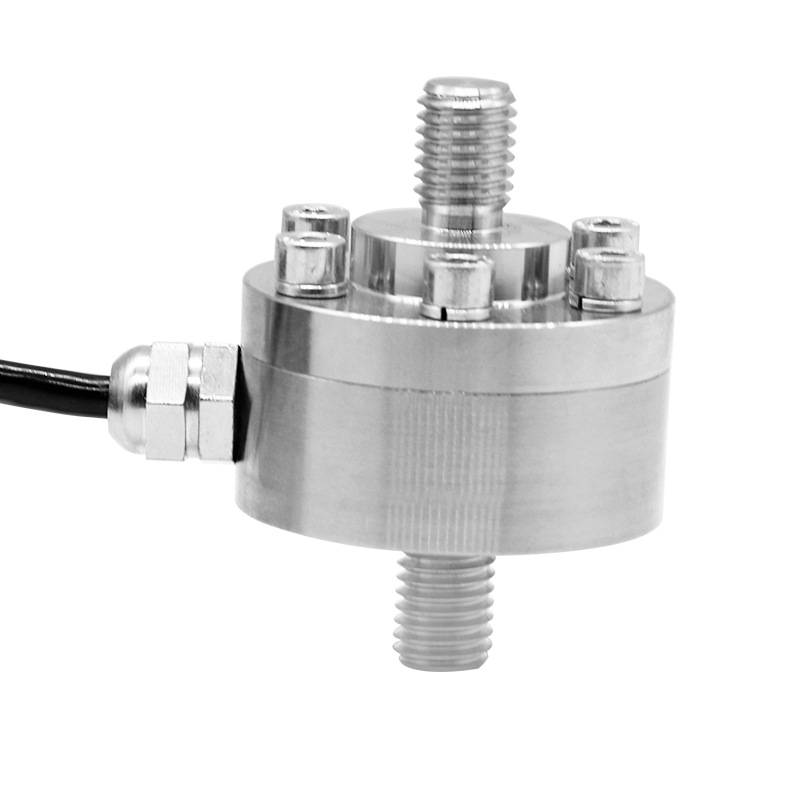

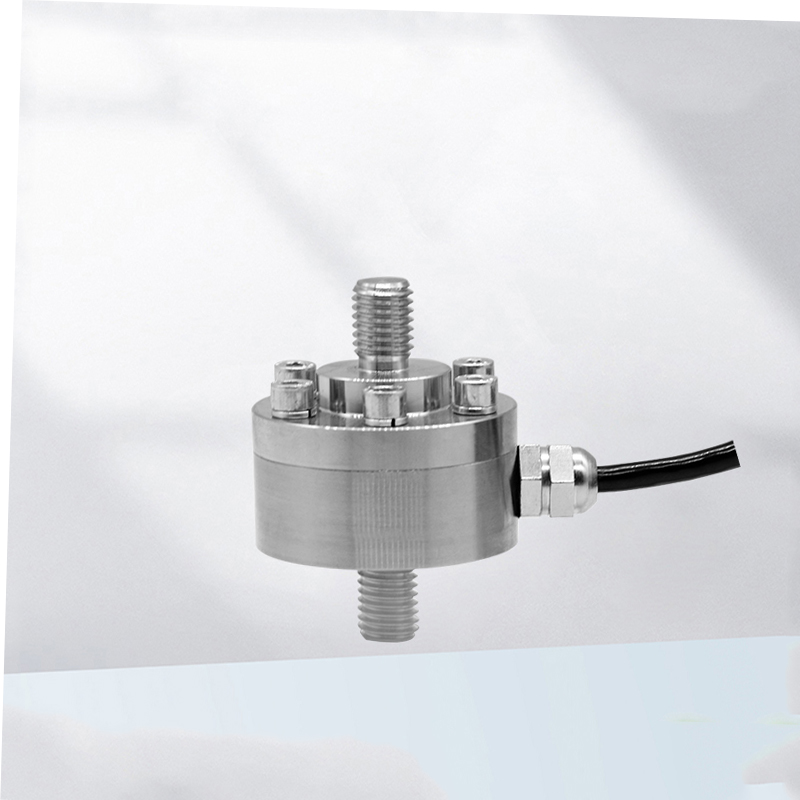

Product images
Specifications
| Rated load | 0~20KN |
| Sensitivity | 1.5~2.0mV/V |
| Zero output | ±2%F·S |
| Nonlinear | 0.5%F·S |
| Hysteresis Error | 0.5%F·S |
| Repeatability error | 0.5%F·S |
| Creep | 0.5%F·S |
| Zero temperature coefficient | 0.05%F·S/10°C |
| Sensitivity temperature coefficient | 0.05%F·S/10°C |
| Response frequency | 10kHz |
| Material | Stainless steel |
| Impedance | 350/700Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Operating voltage | 5~15V |
| Operating temperature range | -20~65°C |
| Safety overload | 150%F·S |
| Extreme overload | 200% |
| Cable Specifications | ф5x2m |
| Cable ultimate tension | 10kg |

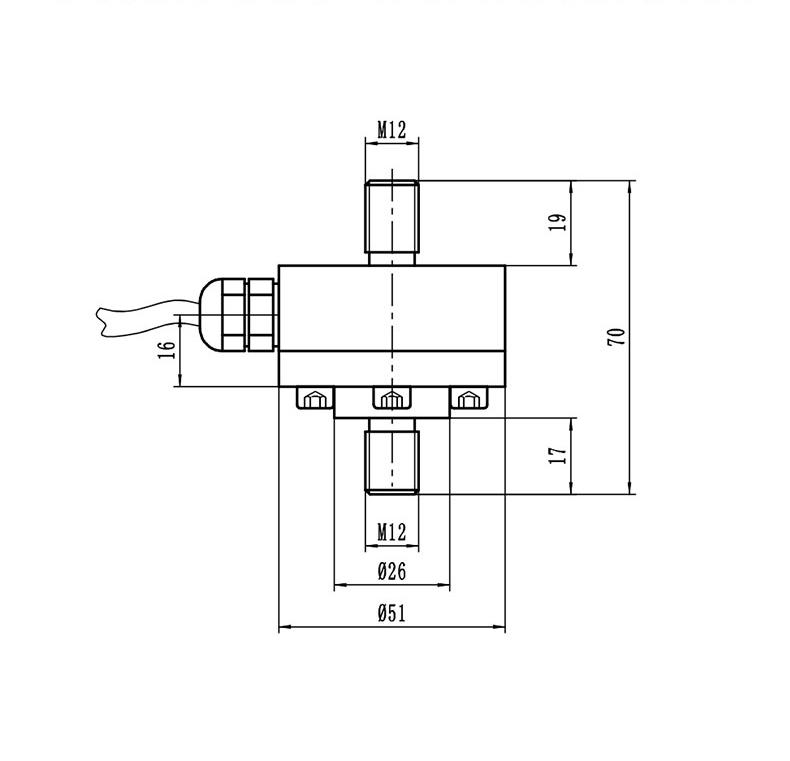

Dimensions

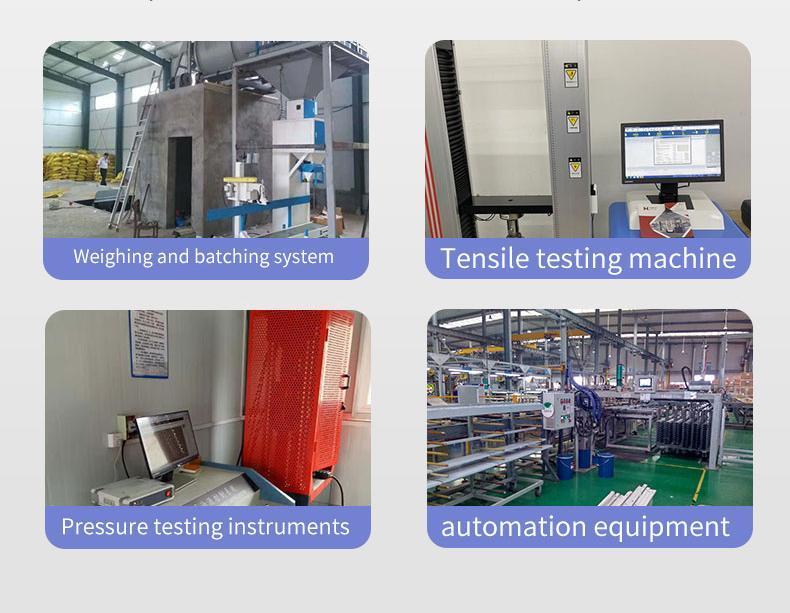

Application Areas
