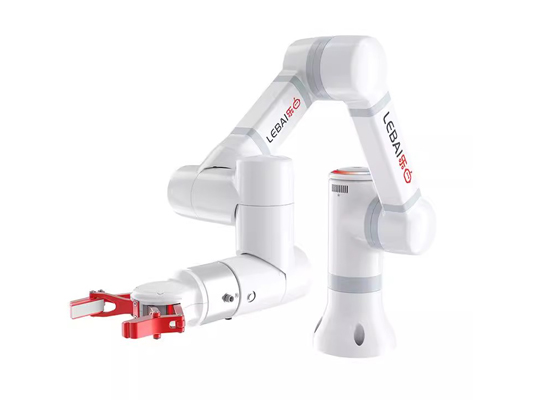

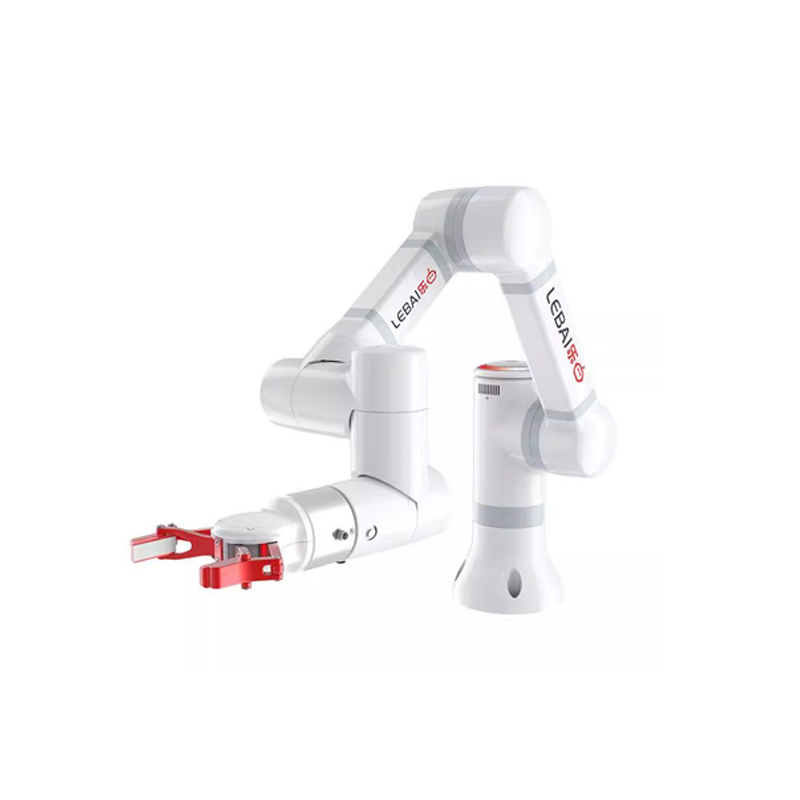

LMG-90 Robot Gripper

Large stroke force controlled electric gripper LMG-90 mechanical arm gripper robot hand

  • Recommended load:3 kg
  • Weight:0.46 kg
  • Route:0-90 mm
  • Communication:RS485

USD: 190

ablity:Monthly Output1000

contact shop

Product Description

LMG-90 Electric Gripper


The large-stroke force-controlled electric gripper can grab objects of different sizes and shapes. It is equipped with 2DI/2DO interfaces and 1 U-ART sensor interface. The suction cup and photoelectric sensor components can be selected according to user needs to detect objects and realize the composite functions of suction and gripping.

Product parameters

Recommended load3 kg
Weight0.46 kg
Clamping force10-35 N
Power supply24 V (DC)
Route0-90 mm
CommunicationRS485
ControllerBuilt-in
Self-lockingNo
IO2 DI / 2 DO
Sensor interface1 UART

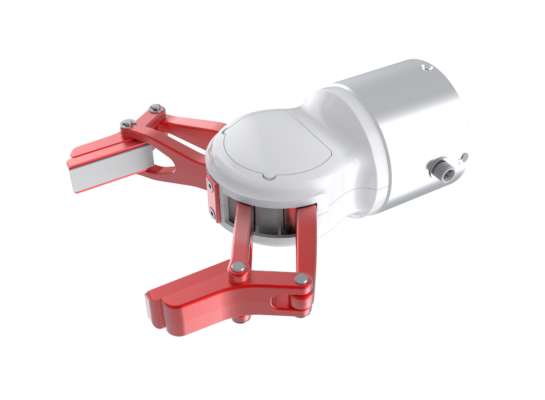

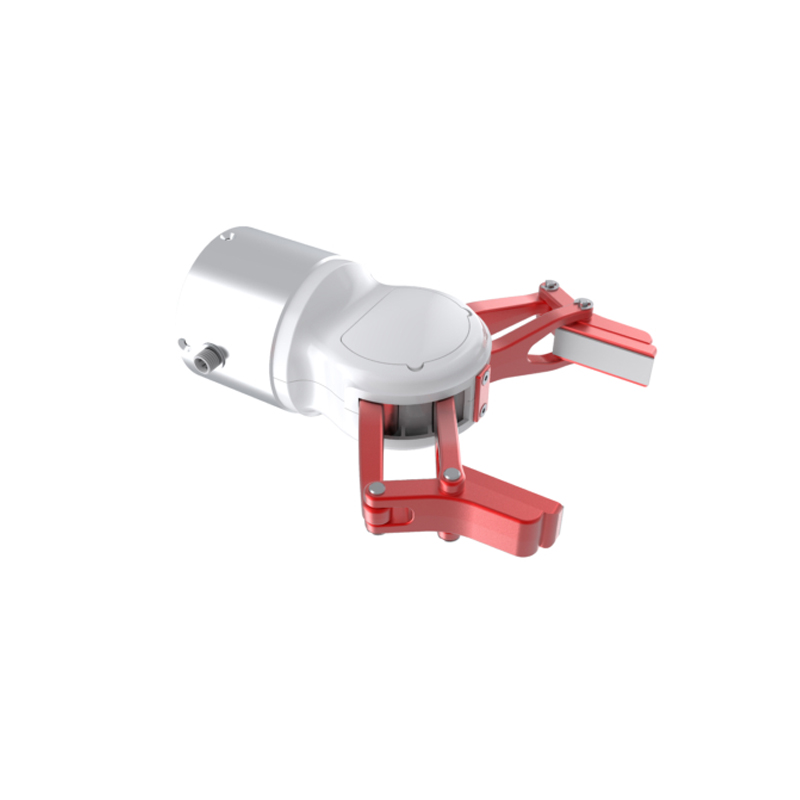

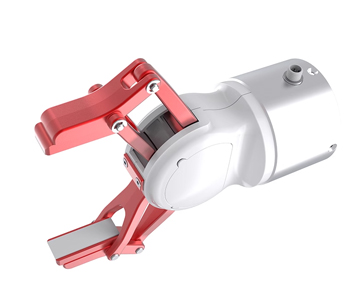

Product Display

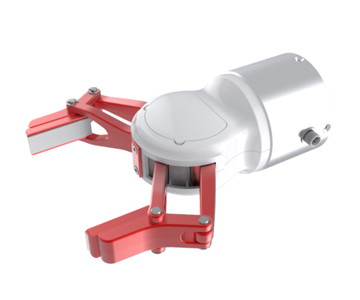

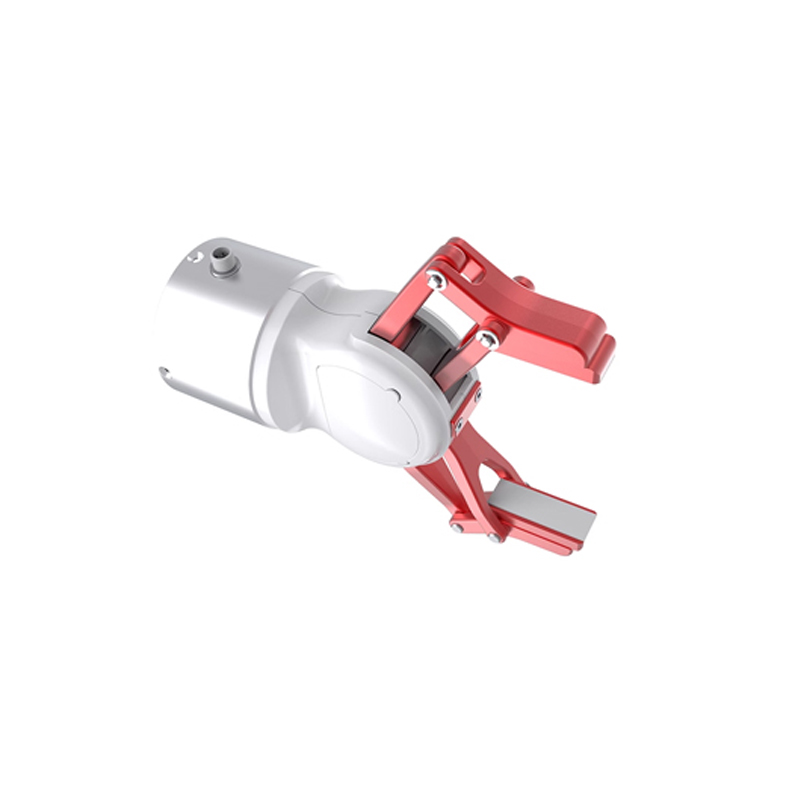

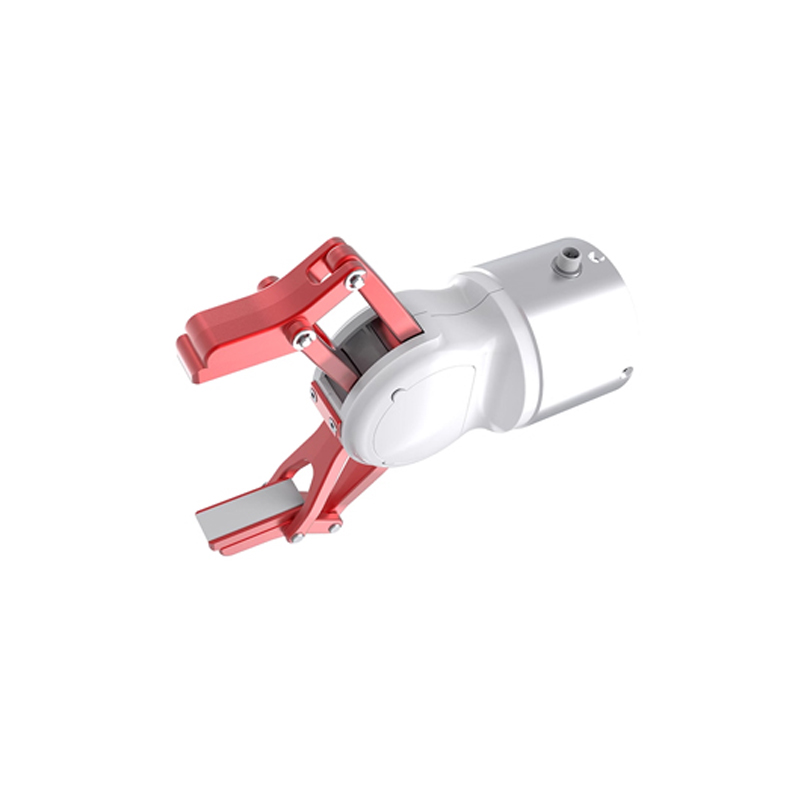

LMG-90


Long-stroke force-controlled electric gripper that can grasp objects of different sizes and shapes


The gripper has an IO port. According to user needs, the suction cup and photoelectric sensor components can be selected to detect objects and realize suction and clamping combination.

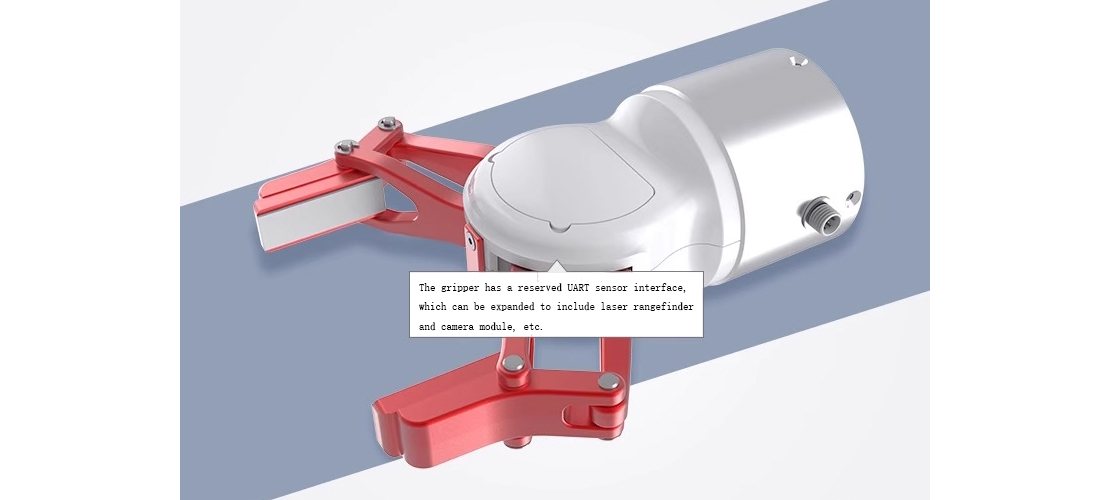

The gripper has a reserved UART sensor interface, which can be expanded with laser rangefinder and camera module, etc.

Schematic Diagram

Application Cases

Robot grippers are widely used in many fields such as industrial manufacturing, precise assembly of parts, efficient handling and palletizing of goods in logistics and warehousing, gentle sorting and packaging of food ingredients in food processing, and fine operation of medical surgery, which effectively promote the automation process of various industries.

Company Introduction

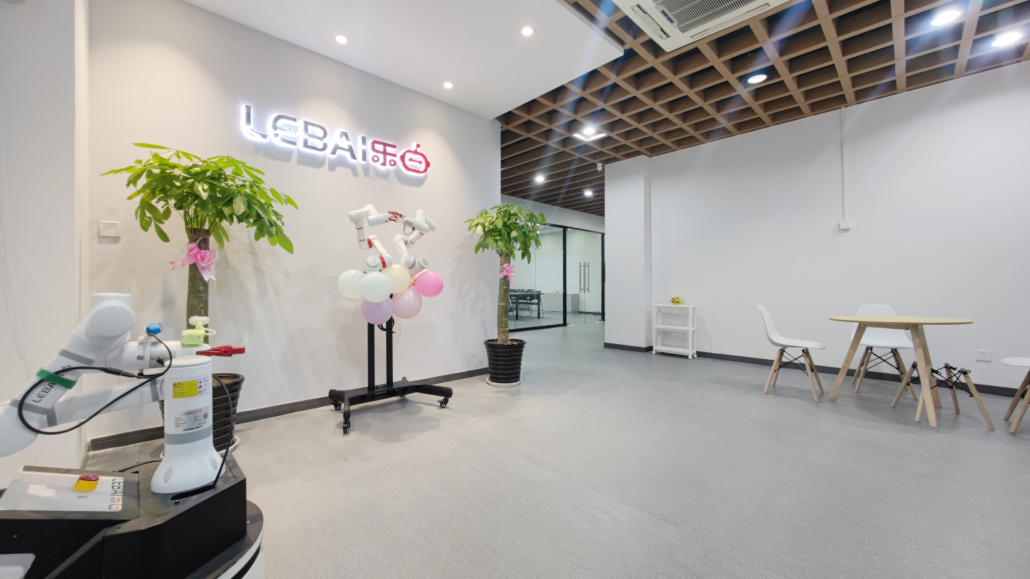

Shanghai Lebai Robot Co., Ltd. was established in 2017. It is an innovative collaborative robot product and solution provider. It is a technology-based enterprise initiated and established by a group of professionals who have been deeply engaged in the fields of robots, machine vision, and Internet software for many years. 2/3 of the team are R&D personnel, covering the technical fields of "robot hardware", "software products" and "robot application products" design and development, providing strong guarantees for product introduction and the implementation of innovative projects.

Cooperative partner

Accessory products

Service

1. Respond promptly to customer needs

2. Ensure product quality and durability from the source

3. Provide after-sales technical support

Recommended products

Open Source Composite Robot S300

Open source composite robot S300 Lebai LM3 collaborative robot arm automatic charging ROS navigation

collect:0

LMG-90 Robot Gripper

Large stroke force controlled electric gripper LMG-90 mechanical arm gripper robot hand

collect:0

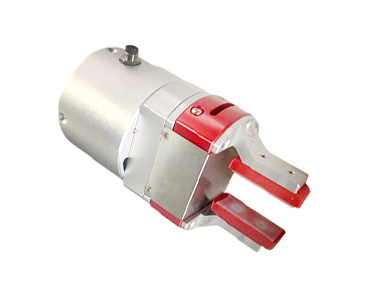

LMG-40 Robot Gripper
