Product Description

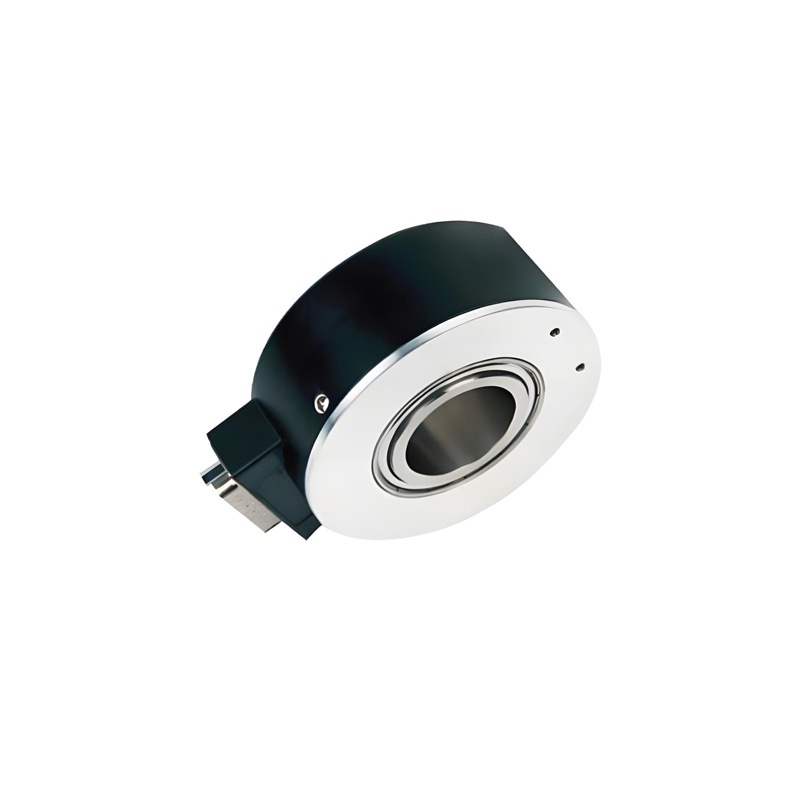

Hollow shaft incremental encoder
Product parameters

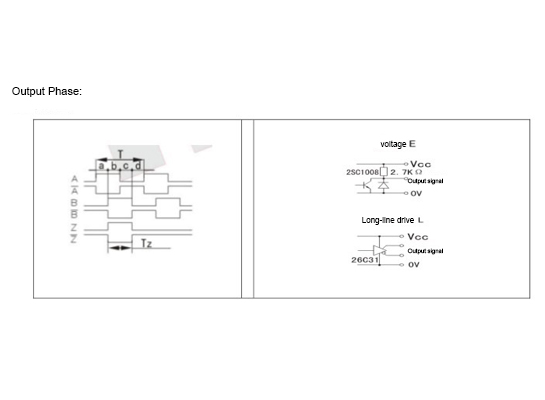

Electrical Characteristics
| Output Circuit | Open collector | Voltage output | Complementary output | Long line drive output |
|---|---|---|---|---|
| Power supply voltage Vcc | 5~26 | 5~26 | 5±0.25 5~26 | 5±0.25 5~26 |
| Current consumption | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
| Load current | 40mA | 40mA | 40mA | 60mA |
| Output H high level | Minimum Vcc*70% | Minimum Vcc - 2.5V | Minimum Vcc - 1.5V | Minimum 3.4V |
| Output low and high level | 0.4V max | 0.4V max | 0.8V max | 0.4V max |
| Rise time Tr | MAX 1us | MAX 1us | MAX 1us | MAX 200ns |
| Fall time Tf | MAX 1us | MAX 1us | MAX 1us | MAX 200ns |
| Highest frequency response | 300kHz | 300kHz | 300kHz | 300kHz |
Mechanical properties
| Maximum speed per minute r/min | Starting torque | Maximum shaft load | Shock resistance | Vibration resistance |
| 6000 | <1Nm | Radial 50N Axial 20N | 50G/11ms | 10G 10~2000HZ |
| Moment of Inertia | Operating temperature | Storage temperature | Protection level | Weight |
| 4×10-8 | -30~85℃ | -35~95℃ | IP51 | 650g |
Wiring parameters
| Signal | A | B | Z | A- | B- | Z- | Vcc | GND |
| Color | Green | White | Yellow | Brown | Grey | Orange | Red | Black |
| No inverted signal | Green | White | Yellow | – | – | – | Red | Black |

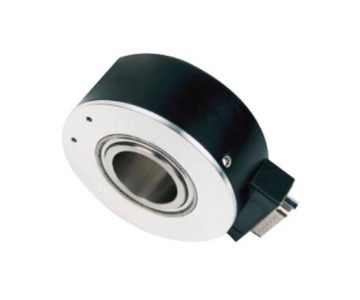

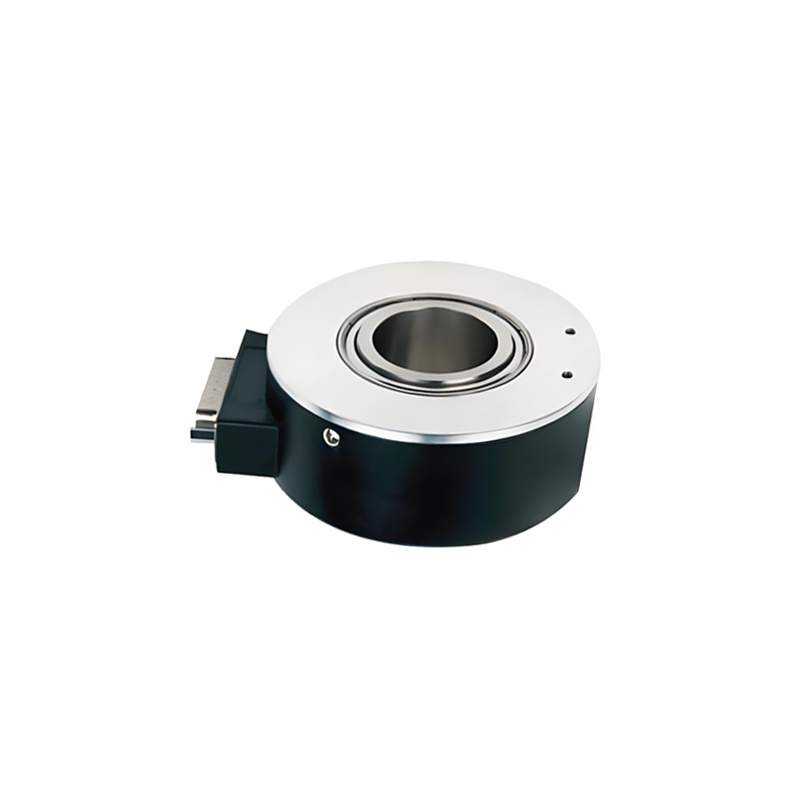

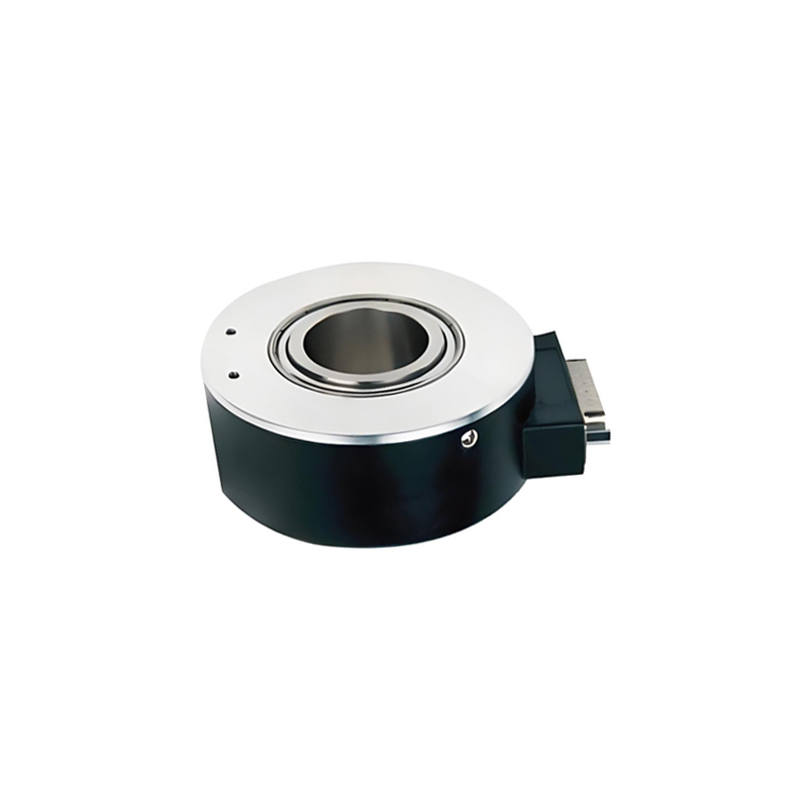

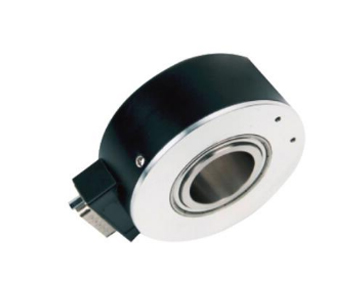

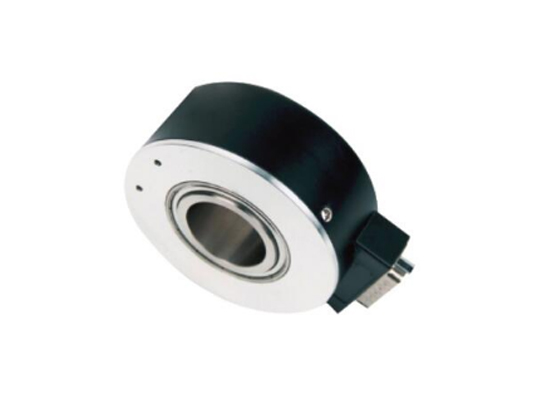

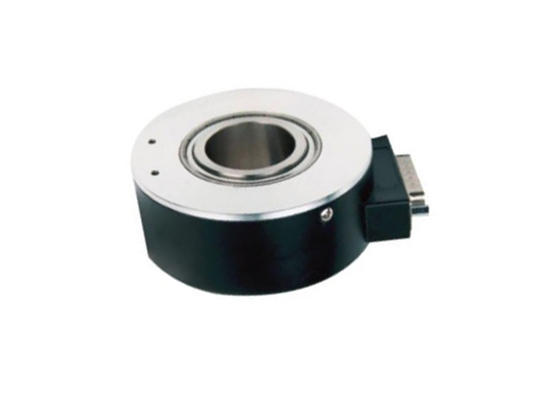

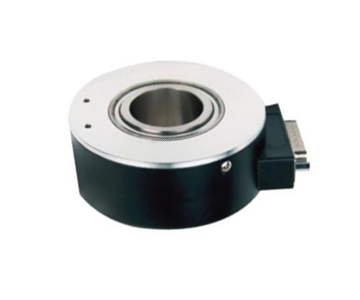

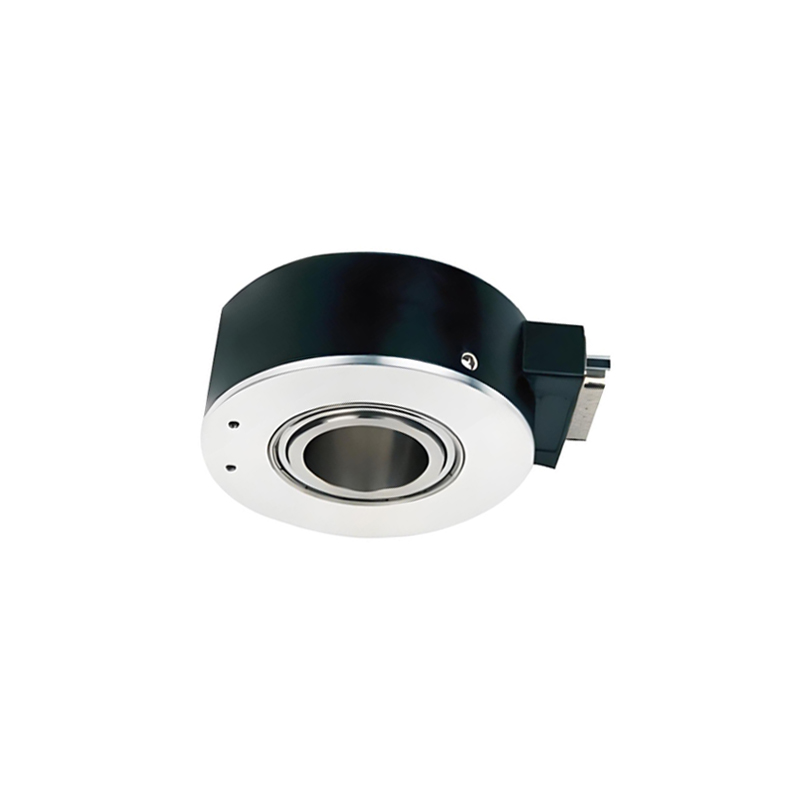

Product Views
Output mode: incremental value
Output signal: pulse
Application industry: industrial automation
Product structure: hollow shaft
Outer diameter (mm): 90
Aperture/shaft diameter (mm): 20-40mm
Resolution (CPR): 100~7200
Operating voltage: 10~30V or 5V
Output circuit: voltage output, push+pull, open collector, RS422 (line driver)

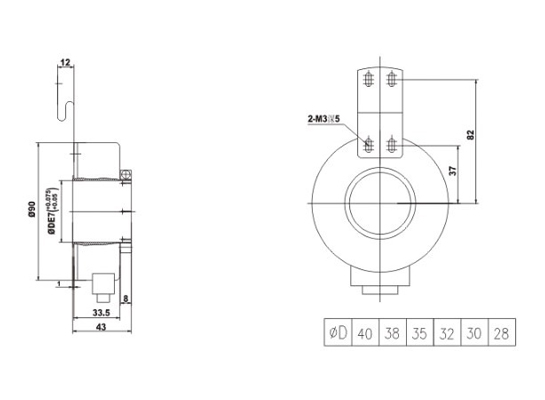

Size & Interface

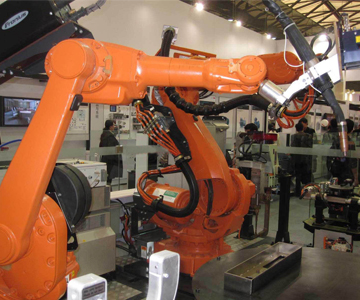

Application Cases
The products can be widely used in my country's vehicle control systems, metallurgical control systems, port machinery control systems, ships, aerospace, textile machinery, petroleum machinery, mining machinery, elevators, machine tools, water conservancy, precision machinery, automobile and motorcycle industries, as well as other factory automation and process control related industries.
