Description

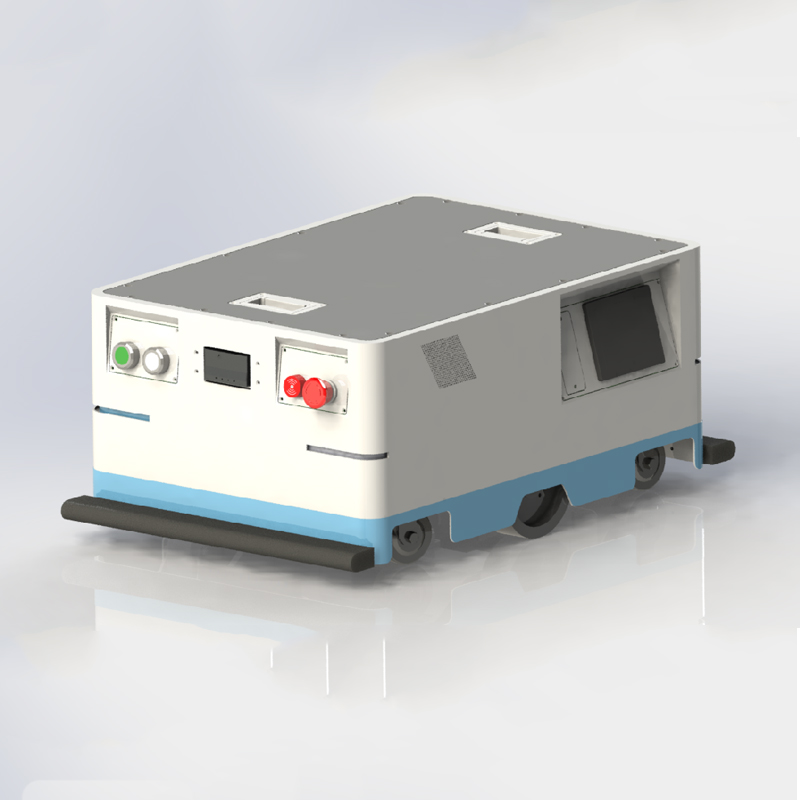

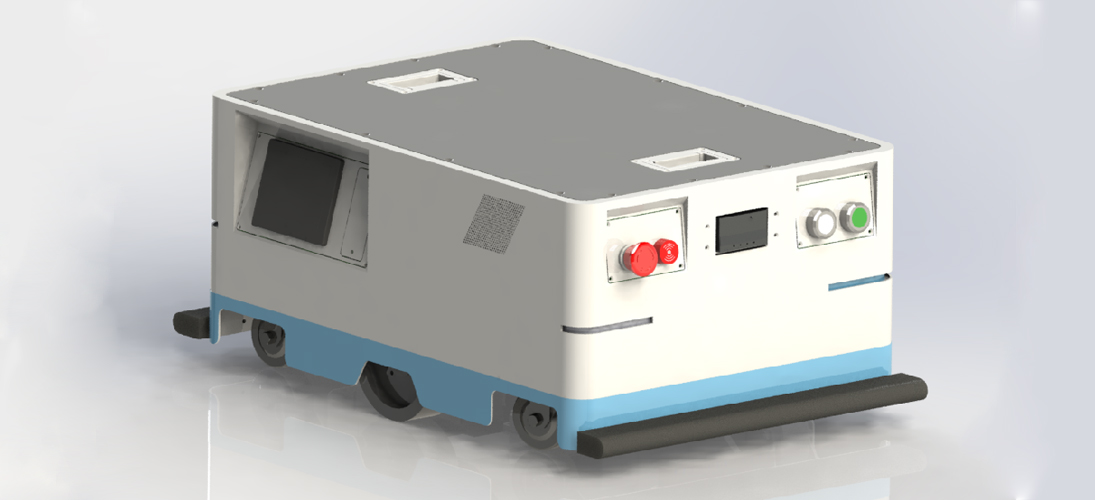

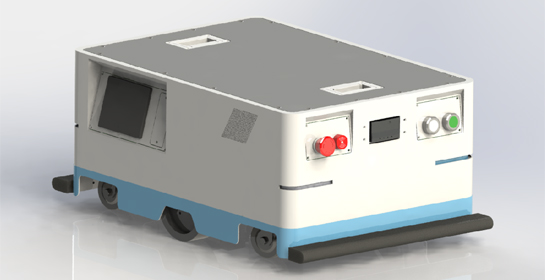

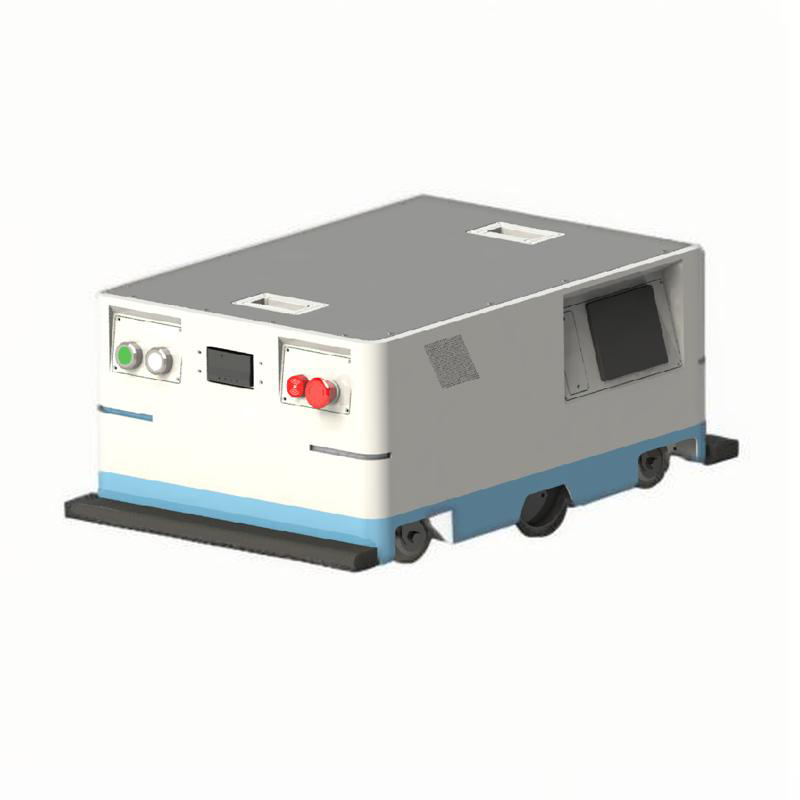

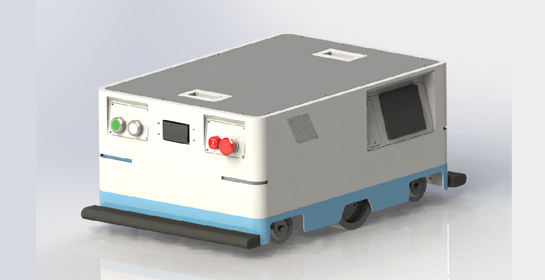

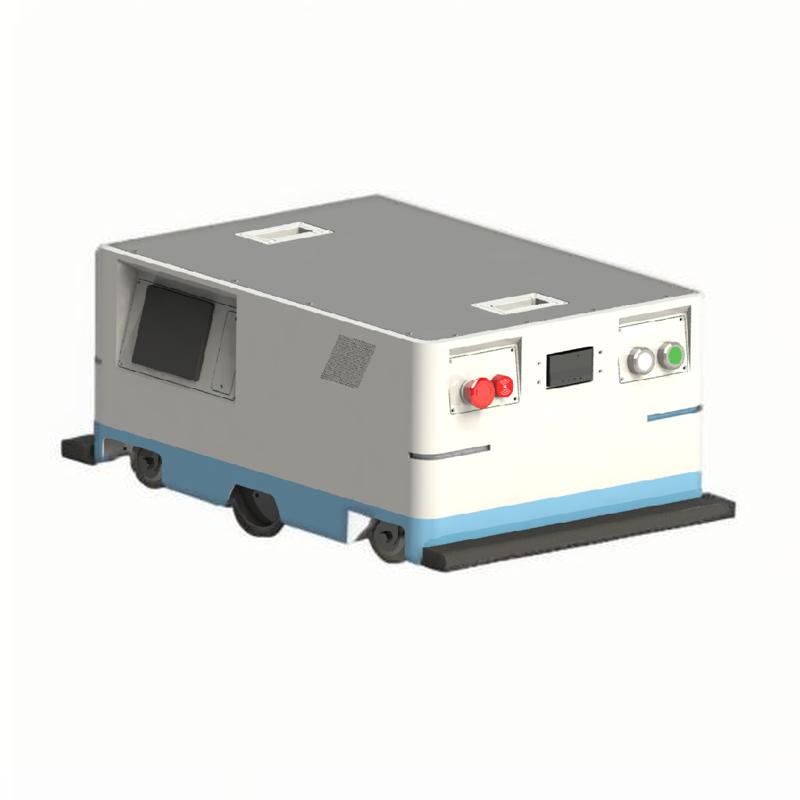

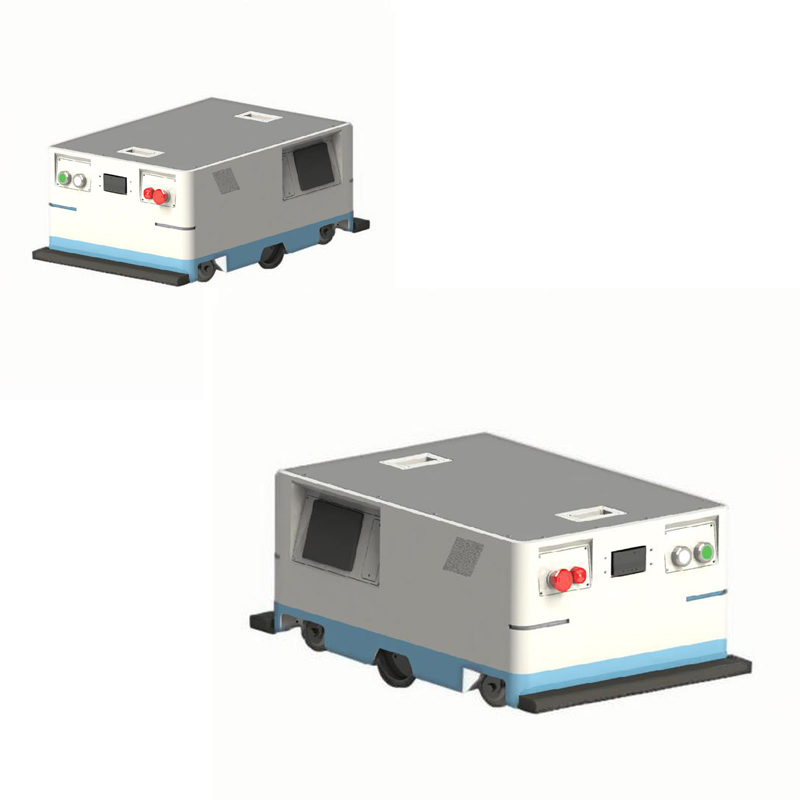

The PT100 backpack AGV robot is a backpack series product specially designed according to the needs of many users. The PT100 has a small body with powerful skills, and can move forward, backward, and rotate on the spot. There are three power supply modes to choose from: automatic charging/battery replacement/wireless charging. It is suitable for indoor environments with no oil, no water, and no slope on the ground. It is widely used in the transportation of thousands of workshops, production lines and warehouses.
Product Features
Safety protection
Safe operation: laser safety sensor + mechanical anti-collision strip + sound and light alarm
Charging method
Automatic charging / battery replacement
Product Params
| Load | 100KG |
| Deadweight | 80KG |
| dimension | L774mm W480mm H320mm |
| Accuracy | ±10mm |
| speed | 40m/min |
| Battery Type | Lithium battery 24V 30AH (lithium iron phosphate) |
| Battery life | 8 hours |
| Safety protection | Photoelectric + sound and light + edge touch |
| Communication | WIFI |
| Power supply mode | Automatic charging/battery replacement/wireless charging (optional) |
| Navigation | Magnetic navigation/QR code navigation/laser navigation (optional, different navigation systems have different appearances) |
| Human Machine Interface | 4.3-inch touch screen |
| Usage Environment | Indoors, the ground is oil-free, water-free, and has no slope |
| Motor function | Forward, backward, rotate on the spot (magnetic navigation can turn in an arc) |
| Drive mode | Dual wheel differential |
| Hill-crossing capability | ≤3° |
| Wheel Material | Polyurethane |
Custom Case

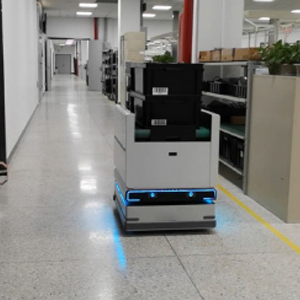

3C electronics assembly workshop
Production Engineering

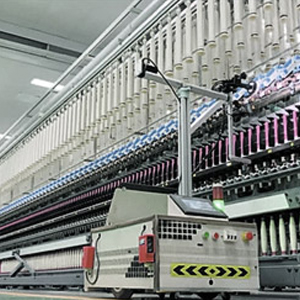

Textile industry manufacturing workshop
Company Introduction
Dongguan Xinghua Robot Automation Technology Co., Ltd. was established in 2018. It is a national high-tech enterprise focusing on the research, development, production and sales of AGV unmanned transport vehicles, warehouse robots, and overall logistics solutions. It has rich experience in the research and development and customization of AGV products, and is committed to providing high-end AGV automated logistics equipment and systems for the industry.
Since its establishment, the company has started from a high starting point with European and American technical quality standards, and has successively introduced internationally advanced AGV technologies and solutions, and invested heavily in building a complete technical and R&D team.
