Product Description

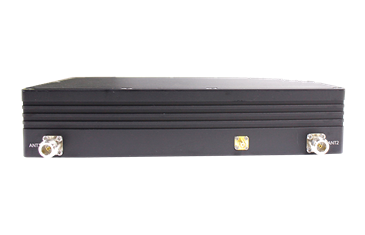

This robot intelligent communication system onboard transmitter is a robot transmitter and specifically for firefighting robots, which integrates functions such as image merging and transmission, bidirectional data transmission, etc. It has powerful functions and stable performance. Adopting the leading MESH self-organizing network technology, images and data are encrypted during transmission, and can be used in conjunction with handheld remote controls to form an intelligent communication system for robots
Product parameters
RF parameters
| Item | Argument |
|---|---|
| Working frequency band | 1.4GHz，Customizable |
| Working bandwidth | Customizable, 20MHz (typical) |
| RF Channel | 2T2R |
| Transmission power | 36dBm |
Interface parameters
| Item | Argument |
|---|---|

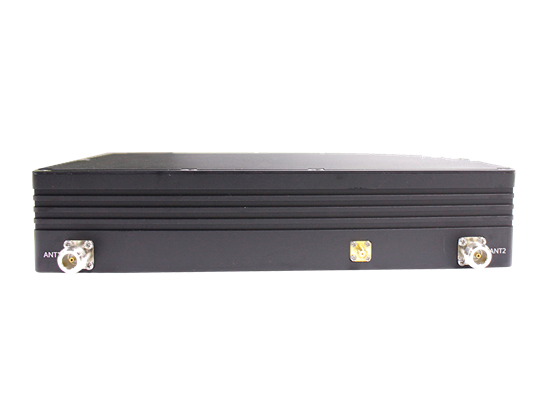

| Radio Frequency Interface | N*2，SMA*1 |
| Video access | Supports ONVIF protocol network camera, analog/AHD/CVI video input |

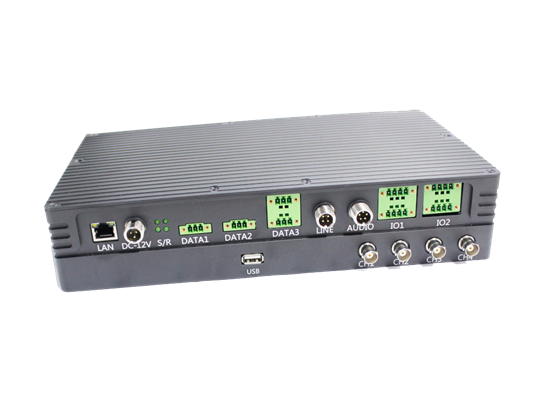

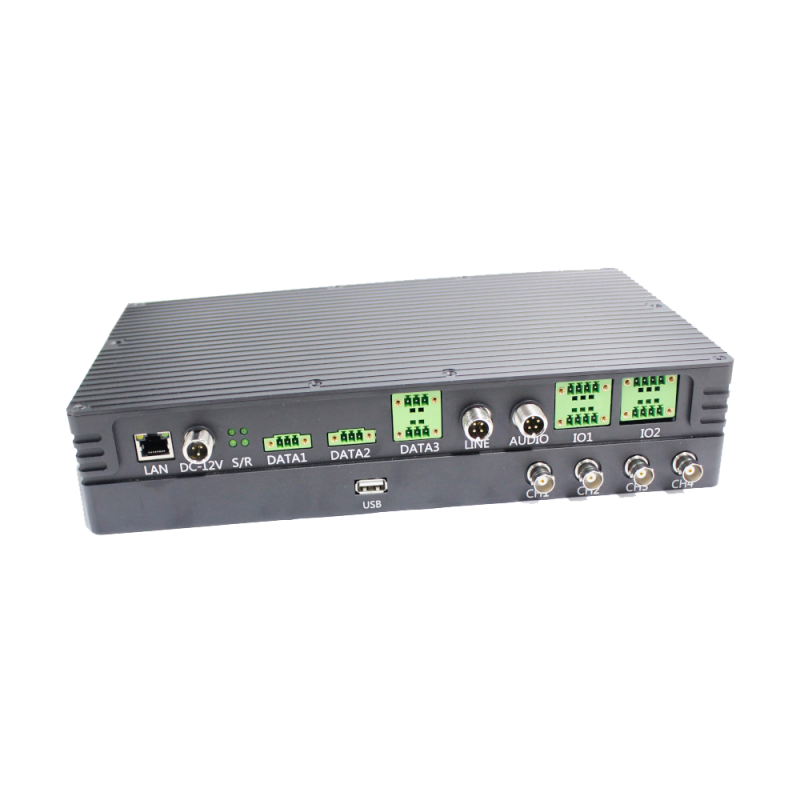

| Network interface | RJ45 interface |

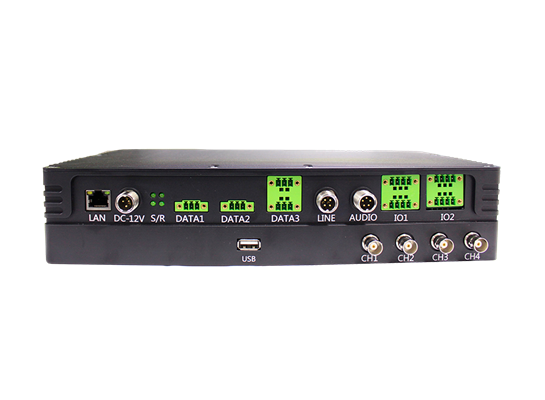

| Data interface | DATA1、DATA2、DATA3、IO1、IO2 |
| Intercom interface | Five core aviation head |
| Power interface | Three core aviation head |
Network parameters
| Item | Argument |
|---|---|
| Networking capability | The number of hops in the self-organized network shall not be less than 9, and the number of nodes in the self-organized network shall not be less than 64 |
| Distance | Ground to ground distance greater than 1.5km |
| Throughput rate | 82Mbps(Max) |
| Encryption algorithm | AES256 |
Product Display
Long transmission distance: The ground to ground line of sight transmission distance can reach more than 1.5 kilometers, and the air to ground transmission distance can reach 5 kilometers. It has strong resistance to multipath interference and is suitable for remote transmission.
Remote control: It can remotely adjust parameters such as frequency, bandwidth, power, encryption, etc., with a wider range of applications, and power and frequency can be customized according to customer requirements.
Remote control: It can remotely adjust parameters such as frequency, bandwidth, power, encryption, etc., with a wider range of applications, and power and frequency can be customized according to customer requirements.
Advanced technology: Adopting MESH self-organizing network technology, supporting multi hop relay, stable transmission of images and signals in complex environments

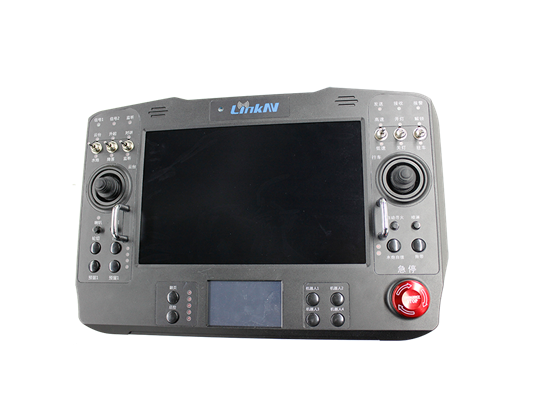

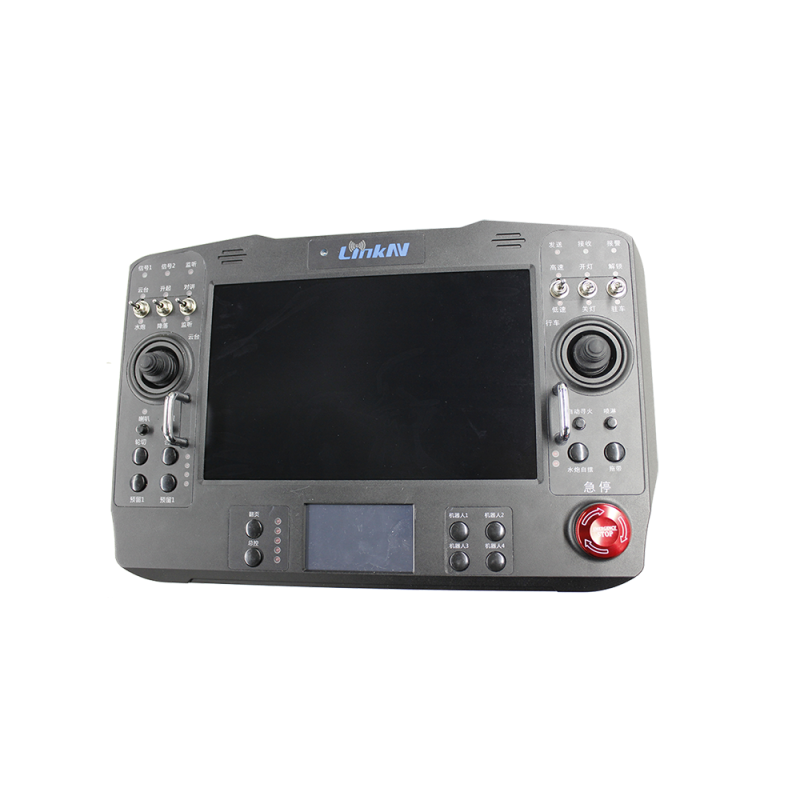

Bidirectional transmission: The front-end can connect to 4 image inputs, of which 1 video can be controlled by pan tilt. The collected images and information are transmitted to the back-end through a transmitter. The back-end robot remote controller can send control instructions to the robot, achieving bidirectional data transmission of the robot's intelligent communication system

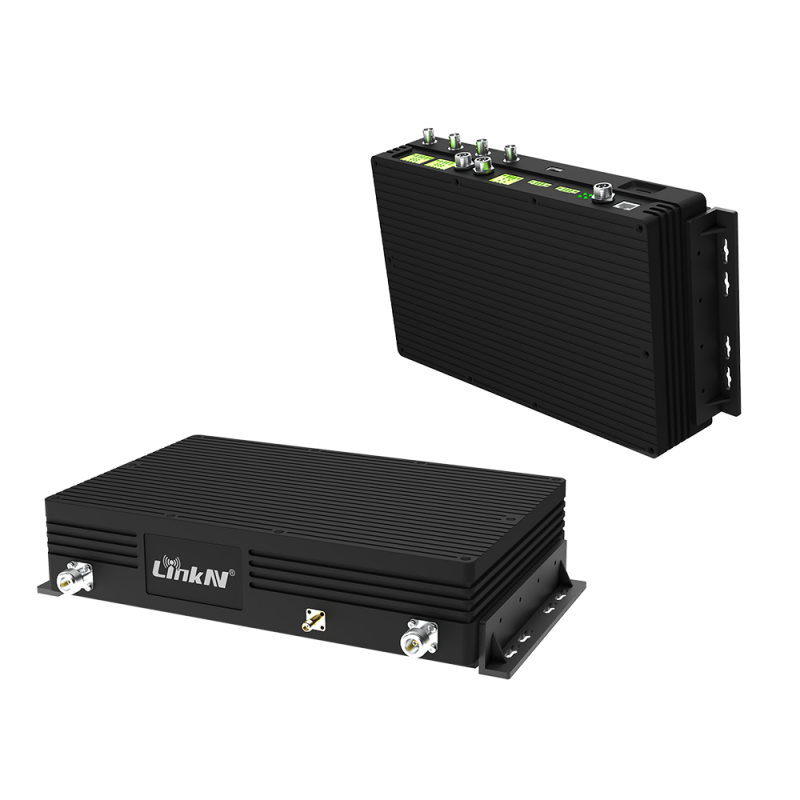

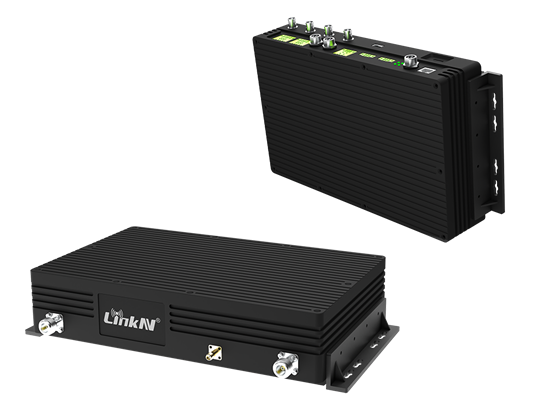

Working environment: The shell is made of aluminum alloy material with good thermal conductivity and has waterproof function, which can work in harsh environments such as high temperature, high humidity, and extreme cold for a long time
Application Cases
The vehicle-mounted base station is equipped with LTE/5G modules, supports rapid deployment covering an area of 5 square kilometers, and connects 2000+ terminal devices at the same time. It serves as a temporary communication hub in disasters such as earthquakes and rainstorms to ensure rescue command, calls and data transmission for people in disaster areas, and meet the needs of emergency rescue and post-disaster reconstruction.
