Visual command foldable portable three screen command box

remote control unmanned vehicle

Class of protection :
IP66
Endurance time :
3-4hour
Graph frequency band :
200-860MHZ
Transmission distance :
1.5km

USD: 19800

ablity:Monthly Output100

contact shop

Product Description

It is a portable three screen command box developed for on-site command. The product integrates MESH self-organized network, 5G public network, WIFI, and wired network, integrating various services such as voice, video, location, and data information at the accident scene. It has unified presentation, management, and provides three screen display function, achieving visual command. The host screen image can be projected to the front command center's large screen system, and linked with the rear command center to achieve communication and issuance.

Product parameters

Host characteristics


ItemArgument
Operating system WIN10/64 bit
CPUIntel(R) Core(TM) i7-12700F 210 GHz
Display screen15.6 inches * 3
Internal memoryDDR4-64G memory
Hard disk1TB solid-state drive
Operating modeEmbedded mouse and keyboard


RF parameters

ItemArgument
Working frequency band1.4GHz
Working bandwidth5/10/20/40MHz,20MHz(Typical)
RF Channel2T2R
Transmission power20W

Network parameters

ItemArgument
Nodes64 units
Throughput rate82Mbps
Encryption algorithmAES
Public network4G/5G All network connectivity
WIFI2.4GHz
Transmission distance10-20km  (Sight distance)

Physical/Environmental

ItemArgument
Size577*353*211mm
Weight 22kg (including batteries)
Operation temperature-20℃〜+65℃
Protection gradeIP65

Electrical Characteristics


ItemArgument
Power supply19~24V
Battery capacity42Ah


Product Display

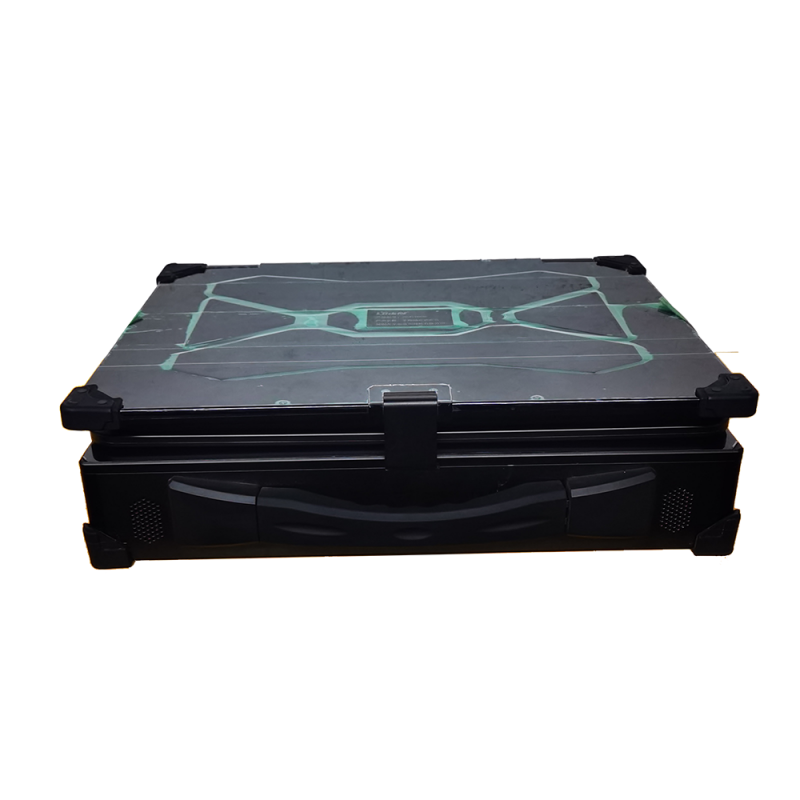

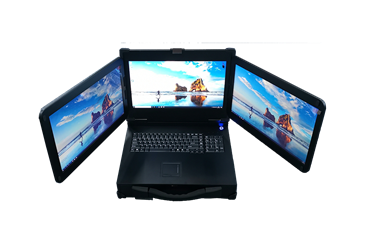

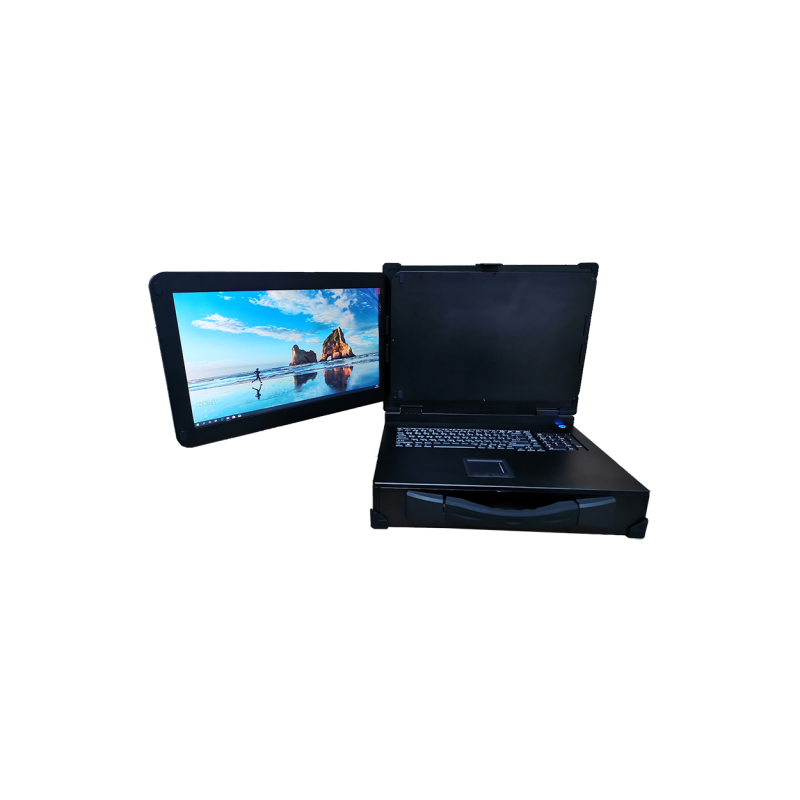

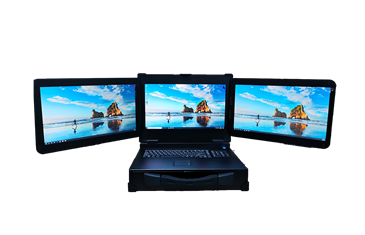

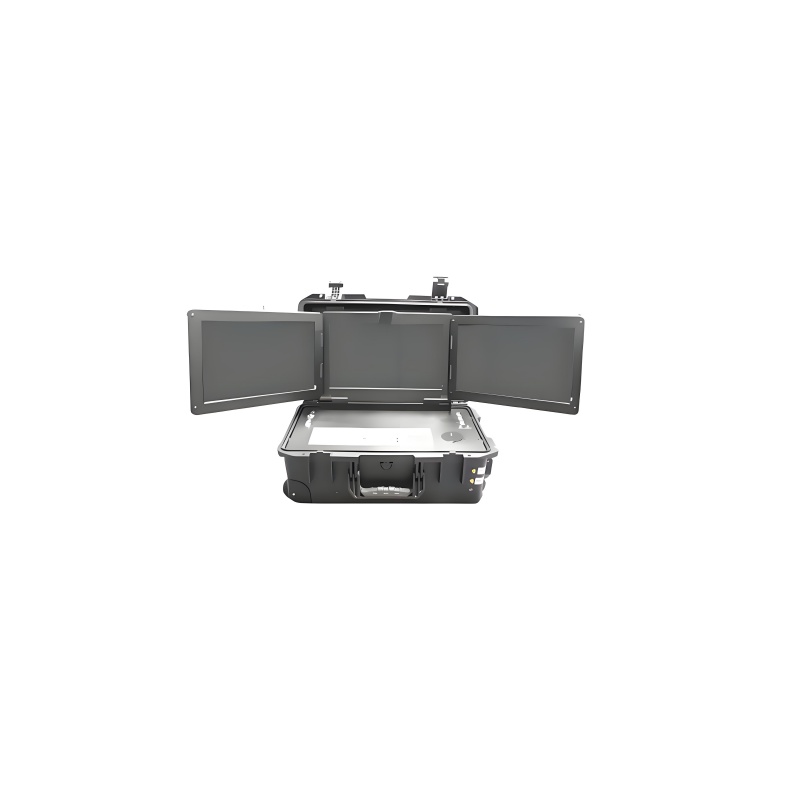

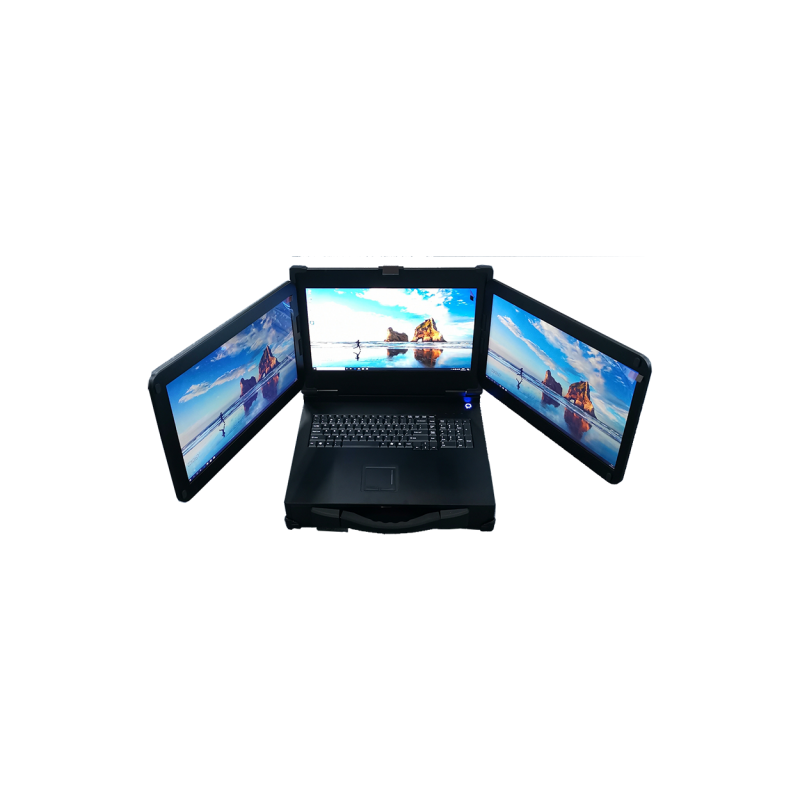

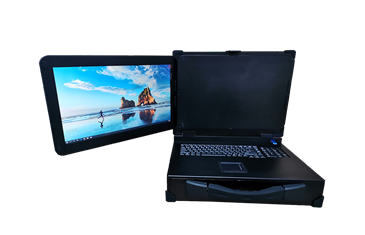

Three screen design, foldable, size 15.6 inches * 3, resolution 1080P, middle screen with high-definition camera

Support 5G public network data backhaul

Supports HDMI video output

Capable of video monitoring and real-time voice intercom




Supports HDMI video output

     Capable of video monitoring and real-time voice intercom

Supports external MIC and headphones, and supports multiple voice input and output options

   Flexible networking and rapid deployment

Application Cases

The industrial remote control box supports multi-channel synchronous operation, controls the welding robot cluster through the CAN bus, and adjusts the welding parameters and paths in real time. The anti-electromagnetic interference design ensures stable operation in complex workshop environments, supports offline programming and online teaching, and improves the efficiency of automated production lines.
