Description

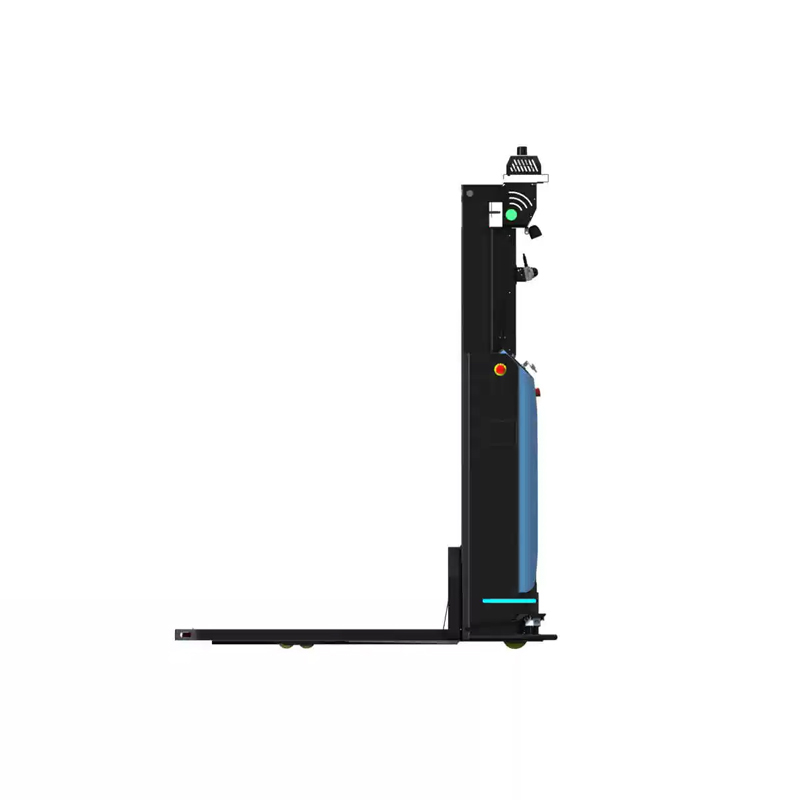

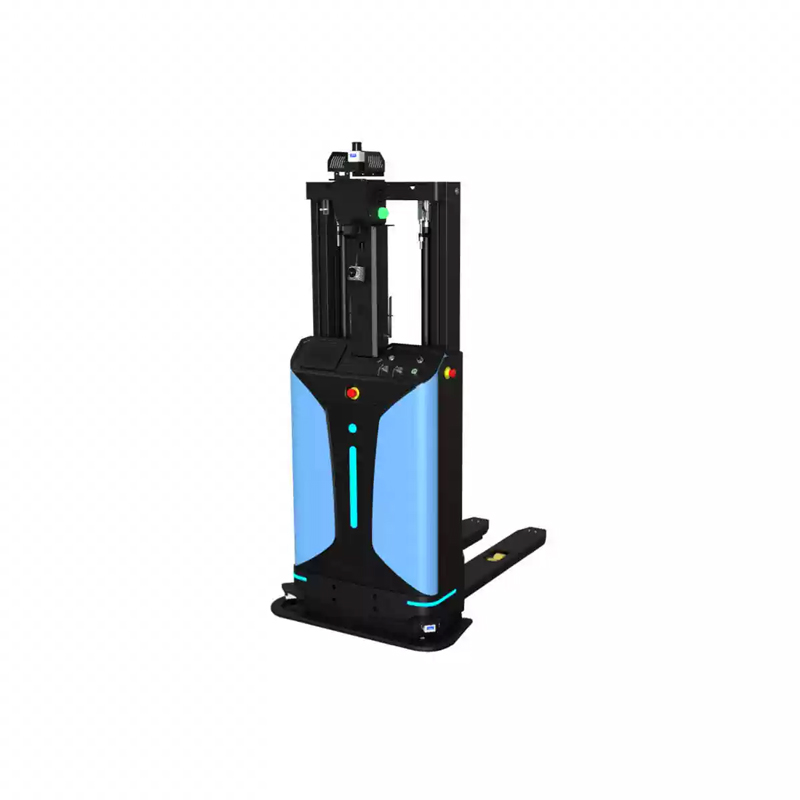

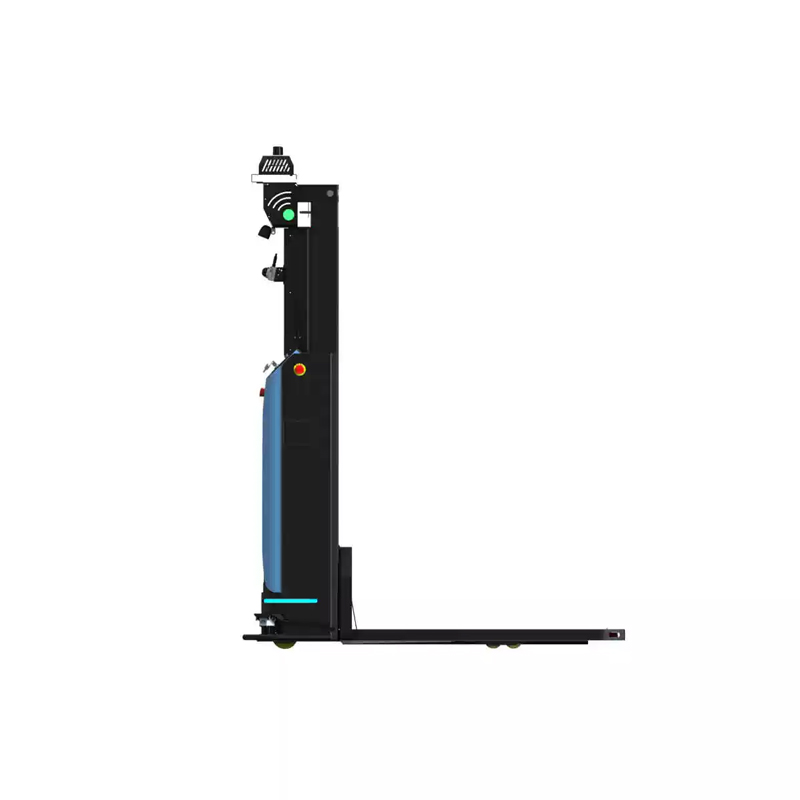

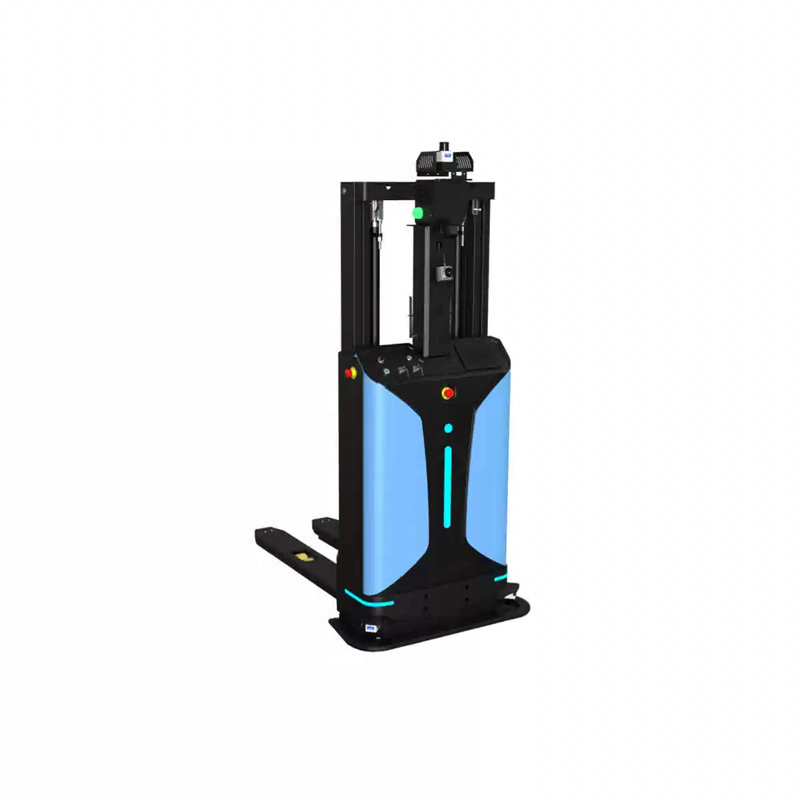

AGV-CDD14 Stacker Autonomous Forklift
Intelligent unmanned forklift is a logistics handling equipment that integrates advanced technologies such as artificial intelligence, automatic control, and laser navigation. It extends the management system to the intelligent forklift through the Internet of Things technology and data collection technology, realizing the intelligentization and automation of warehousing operations.
Product Features
Automated operation
Smart forklifts can work 24 hours a day, reducing human intervention and improving the continuity, stability and accuracy of warehousing and logistics operations.
Reduce operating costs
Replace traditional manual forklift operations, maximize the use of space and equipment resources through intelligent scheduling and optimized path planning, save costs and improve efficiency.
Enhanced operational safety
It can effectively avoid the risk of injury to personnel due to carrying heavy objects, contact with hazardous substances or being in dangerous areas, and can also automatically avoid collisions with personnel and equipment.
Flexible and scalable
Smart forklifts can adapt to different warehouse layouts, cargo types and operational requirements. Through software upgrades and function expansion, they can meet the diverse needs of customers.
Structure Diagram
Product Params
| Product model | AGV-CDD14 | |
| Basic parameters | Product name | Laser SLAM Small Stacker Autonomous Forklift |
| Operation type | Automatic navigation, by manual control device | |
| Navigation type | Laser SLAM | |
| Pallet type | Open pallet | |
| Rated load capacity | 1400 kg | |
| Load centre distance | 600 mm | |
| Weight (with battery) | 680 / 740 kg | |
| Standard lifting height | 1600 / 3000 mm | |
| Forklift dimensions: L x W x H | FREE / P+F: 1710 x 989 x 1998 / 1710 x 989 x 2247 mm | |
| Fork dimensions: L x W x H | 1220 x 180 x 70 mm | |
| Fork outer width | 570 / 680 mm | |
| Minimum turning radius | 1227+200 mm | |
| Ambient temperature and humidity range | TEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation |
| Performance parameters | Driving speed: full load / no load | 1.2 / 1.5 m/s |
| Passability (slope / step / gap) | <5% / 5 mm / 15 mm | |
| Navigation position accuracy | ±10 mm | |
| Navigation angle accuracy | ±0.5° | |
| Battery parameters | Battery specifications | 24 V / 210 Ah (lithium iron phosphate) |
| Comprehensive battery life | 10 h | |
| Charging time (10% to 80%) | 2 h | |
| Charging method | Manual / Automatic |
