Product Description
OMRP 600 (Robotic Motion Platform) is a mature robot mobile platform that is economical, simple and reliable. The four-wheel independent suspension gives the platform good shock absorption and passing performance; the large-capacity battery and high-efficiency wheel hub motor give the chassis high load capacity and long endurance. It provides ideal motion capabilities for indoor and outdoor logistics distribution and inspection.
Product parameters
| Category | Parameter | Index |
|---|---|---|
| Basic parameter | Package size | 630mm x 590mm x 520mm |
| Max weight | 40KG | |
| Product size | D500mm x H310mm | |
| Product weight | 35KG（Optionally add 10kg counterweight） | |
| No load working time | 12H | |
| Charging time | 4H | |
| Max load | 50KG | |
| Battery capacity | 24V 20AH | |
| Chassis form | 2* drive wheel +4* universal wheel +1* directional wheel | |
| Hardware configuration | Laser radar | TOF20m*1 |
| Hub motor | 6.5 "servo hub motor (with odometer) *2 | |
| RGBD Depth Camera | RGBD Depth Camera (0.6-8m) *1 | |
| Ultrasonic ranging sensor | Ultrasonic ranging sensor (0.3-1.2m) *1 | |
| Attitude sensor | IMU six-axis attitude sensor *1 | |
| Industrial computer | High-performance X86 industrial computer *1 | |
| Maneuvering parameter | Maximum navigation speed | 0.8m/s |
| Maximum speed | 1.5m/s | |
| Angle of climb | 5° | |
| Obstacle height | 10mm | |
| Ditch width | 40mm | |
| Turning radius | 0mm | |
| Maximum rotation speed | 60°/s | |
| Positioning accuracy | ±5cm | |
| Map area | 10000㎡ | |
| Navigation accuracy | ±5cm | |
| Extension interface | Power interface | 24V (Power 200W) |
| USB | reserved peripherals x 2 | |
| Network interface | RJ45, communication or routing | |
| Physical mounting interface | Structural mounting hole | |
| Other interface | System switch, emergency stop switch | |
| Charging pile parameter | Charging mode | Contact charging |
| Input | AC 110-240V | |
| Output | 29.4V / 7A | |
| Protection mechanism | Short circuit, overcurrent, etc | |
| Environmental requirement | Working environment | 5℃-40℃ |
| Storage environment | -10℃-60℃ |
Product Display
Precision motion control uses high-precision servo motors with smaller precision errors
Hydraulic damping suspension, more stable body
Multiple load expansion, no need to worry about chassis performance, focus on secondary development

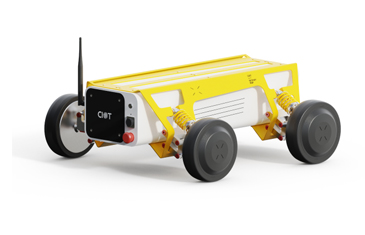

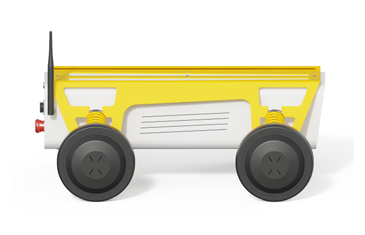

Four-wheel independent suspension
The robot chassis features a four-wheel independent suspension system, which enhances maneuverability and adaptability on various terrains.
Excellent traction
The advanced suspension design ensures excellent traction, providing stable and reliable performance in both indoor and outdoor environments.
Adaptable to various conditions
The chassis is carefully designed to operate in various complex road conditions
Size & Interface
Quality Control
Standardized production of intelligent mobile robots
System certification: ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007

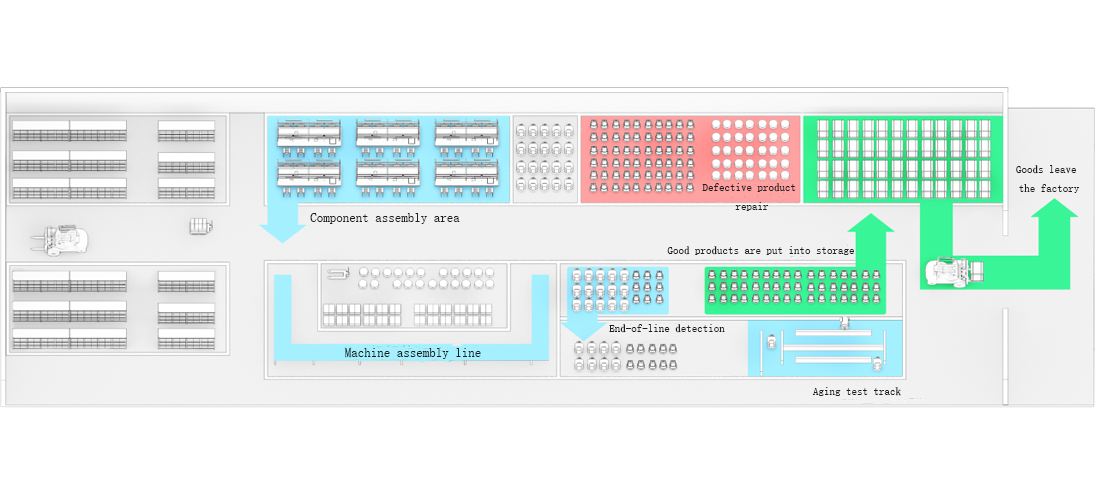

Production line settings: 3 fully automatic assembly lines, 6 component assembly lines, 1000㎡ Class 1000 dust-free workshop, 3 full-state detection lines for sports robots
Production capacity: daily average capacity of 400 units, monthly full capacity of workshop of 10,000+ units, annual full capacity of factory of 100,000+ units
Application Cases
In a complex environment with frequent traffic of vehicles and pedestrians, the outdoor robot chassis equipped with CIOT intelligent navigation, as a key part of the logistics and transportation robot platform, can quickly plan the optimal route, flexibly shuttle through it, and deliver the goods to the designated location on time, effectively optimizing the logistics and transportation process.
