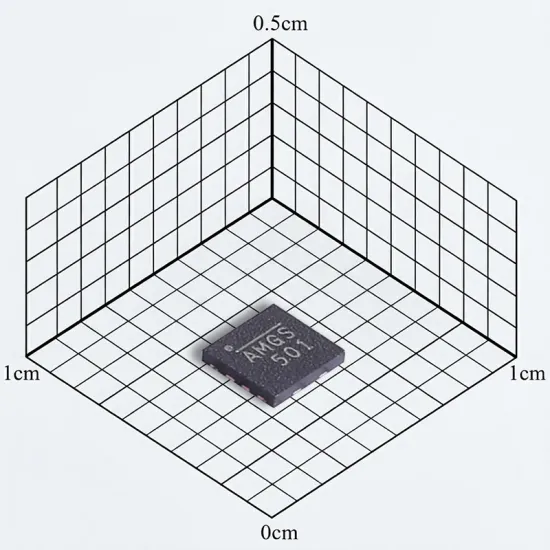

MP9943GQ-Z
MP9943GQ-Z IC is a 3A synchronous buck DC-DC converter with 4V-36V input, integrated MOSFETs, 410kHz switching and adjustable 0.8V output in QFN-8.
- Operating Input Voltage Range： 4V~36V
- Output Voltage Range：800mV~28.5V
- Output Current：3A
- Switching Frequency：410kHz；200kHz~2.2MHz
- Operating Ambient Temperature Range： -40℃~+125℃@(TJ)
- Package Type：QFN-8(3x3)
- Packing：Tape&Reel
USD 2.55
600
Supplier Information
Email：[email protected]
Tel：15670610275
