Description
- Applied to workshop handling, turnover buffering, automated matching, etc.;
- Lifting material frames and cartons to improve transportation efficiency and reduce labor;
- Combined with the system and dispatching system, it realizes automatic transfer of on-site production logistics and achieves intelligent fully automatic transportation
Product Features
It has the function of 90-degree turning and arc turning
It has the function of 90-degree turning and arc turning on the spot, and can also move forward and backward, which can be used in a variety of narrow space environments.
Applicable to various scenarios
It is suitable for a variety of industry application scenarios, a variety of environmental factors, and a variety of driving roads, and has strong adaptability.
Adjustable movement speed
Dual-wheel differential drive, adjustable speed (0-45m/min)
Multiple devices operate synchronously and autonomously
Multiple AGVs operate synchronously, operate autonomously according to dispatch instructions, set control procedures, and no manual intervention is required during the production process.
Fault self-diagnosis and recovery function
It has a complete fault self-diagnosis function and remote fault diagnosis and recovery function.
Equipped with radar detection sensor
Equipped with radar obstacle detection sensor, mechanical anti-collision device and sound and light alarm system to ensure safe operation

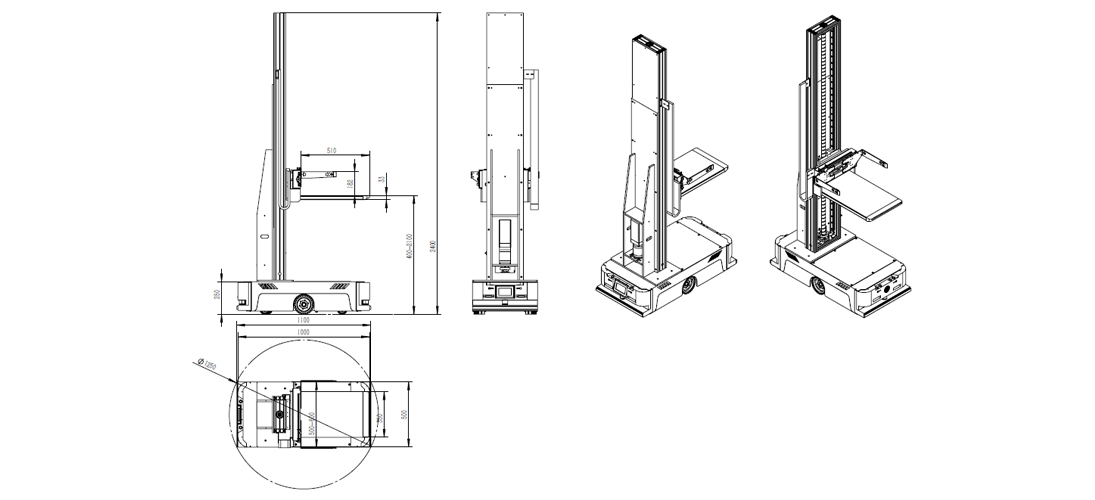

Structure Diagram
Product Params
| Project | Parameter | Unit | Remarks/Instructions |
|---|---|---|---|
| Product Series | Loading and unloading forklift AGV | / | |
| Navigation | Magnetic stripe navigation | / | Ground laying |
| Control method | All-in-one controller | / | Customization |
| Drive motor | Brushless Motor | W | 200*2 |
| Drive mode | Dual wheel differential | / | |
| Load mode | Lifting, fork picking | / | Fork + Clamp (customized) |
| Maximum load | 30 | KG | |
| Running direction | Bidirectional operation | / | Forward + Backward + Arc Turn |
| Top speed | 0-45 | m/min | |
| Turning Radius | 700 | mm | |
| Safety protection | Front and rear laser obstacle avoidance | / | Mechanical anti-collision + emergency stop |
| Node Identification | RFID | / | |
| Communication | WIFI（2.4G、5G) | / | Optional |
| Stop accuracy | ±10 | mm |

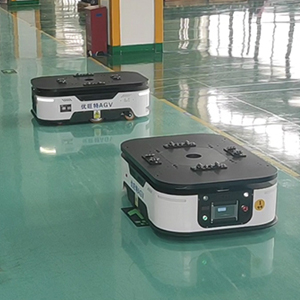

Custom Case
A mold factory in Hubei
A plastic factory in Zhejiang
An electronics factory in Heyuan
Our Factory
Service
About pricing: Due to the large fluctuations in raw material prices in the industry to which our company's products belong, and the wide variety of product models and materials, it is difficult to stipulate the current prices. The prices in this store are for reference only. If you need to place an order, please contact the merchant for consultation.
About receiving goods: returns and exchanges are not supported, and the warranty period is one year. If you have any questions, please contact customer service in time, and a technician will be responsible for solving the problem and provide assistance.
Transport
During transportation, we put the safety of the goods first. Each product is packed with high-quality packaging materials, which have good cushioning, shockproof and moisture-proof properties, and can effectively protect the goods from damage during long-distance transportation and complex environments.
