Description

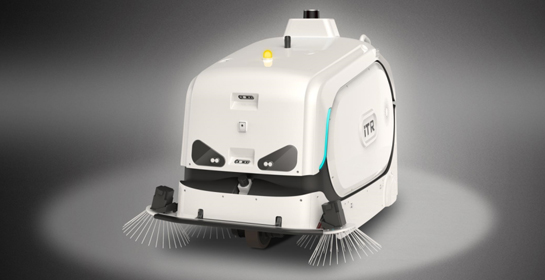

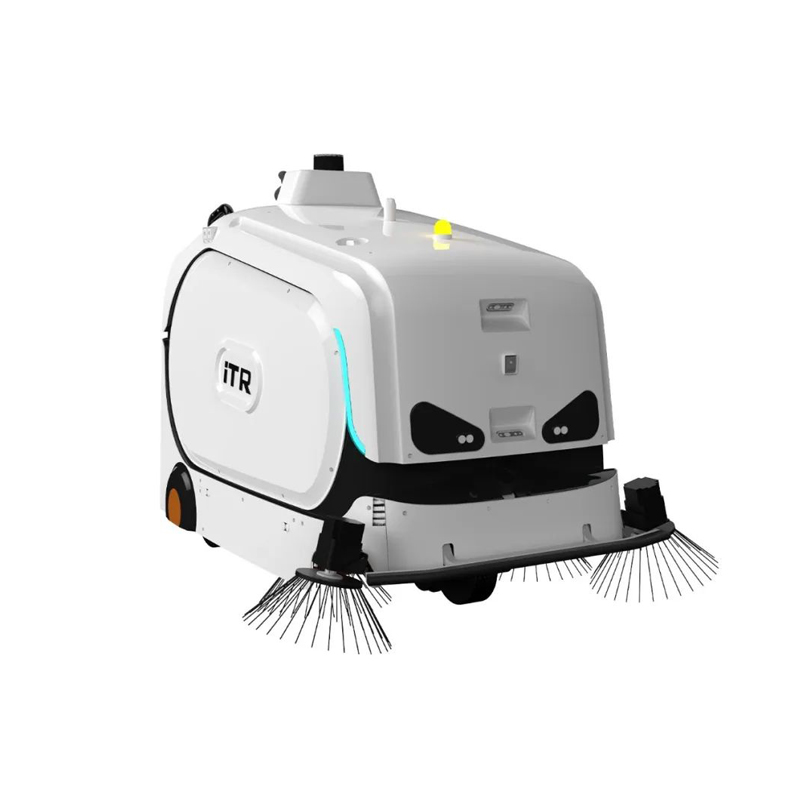

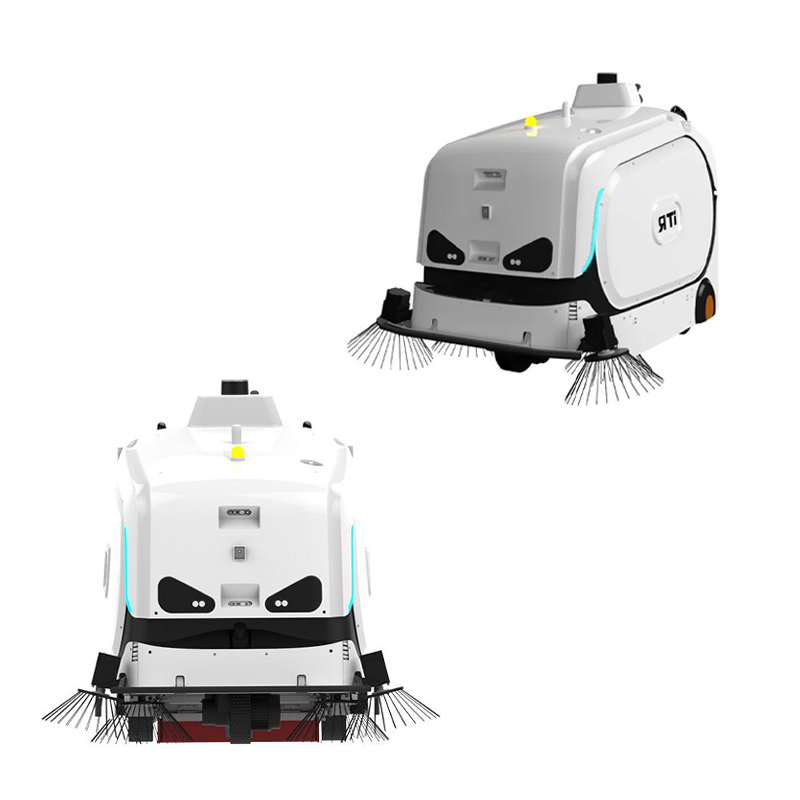

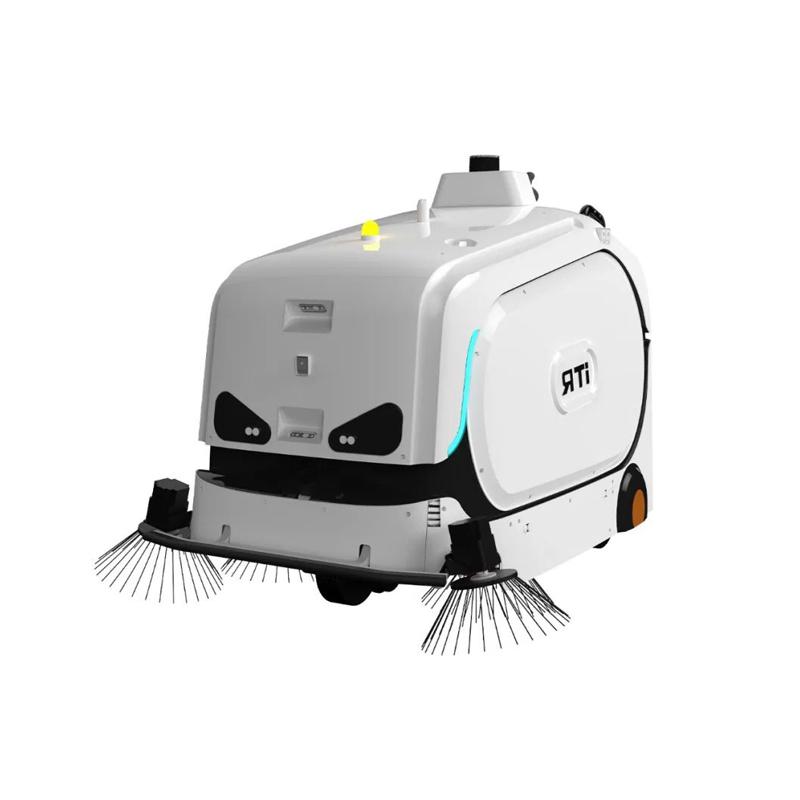

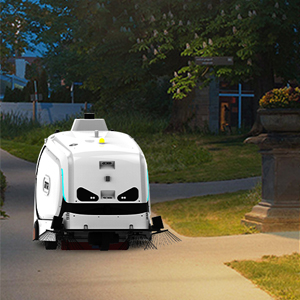

Sweeper W1 integrates sweeping, dust collection and ash reduction, meets the cleaning needs and intelligent management of large and medium-sized indoor and outdoor scenes such as industrial / smart parks, commercial squares, park scenic spots, parking lots, campuses, factory workshops, etc., and helps the intelligent upgrading of environmental sanitation in the park.
The appearance is made of engineering plastics, light and high-strength, with excellent weather resistance; The shell and exposed parts reach IP54 level, with high protection level; In order to prevent water storage on the surface of the machine, a guide trough is added on the surface to help the water flow down the surface of the machine quickly in case of rain, so as to avoid ponding outside the machine, etc.
Sweeper W1 can identify and clean common litter such as fallen leaves, peel paper scraps, mineral water bottles, milk tea cups, plastic bags, cigarette butts, cigarette boxes, napkins, etc.
Applicable ground: cement, asphalt, epoxy resin, rubble ground, plastic and other ground materials.
Product Features
Intelligent unmanned driving and convenient manual mode switching
Intelligent indoor positioning and navigation system, autonomous environment identification, path navigation, good human-computer interaction interface,Manual mode and automatic mode can be switched arbitrarily.
Both brush disc and roller brush

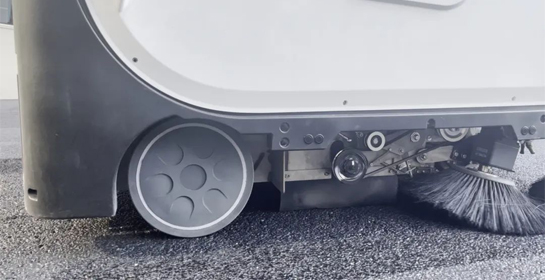

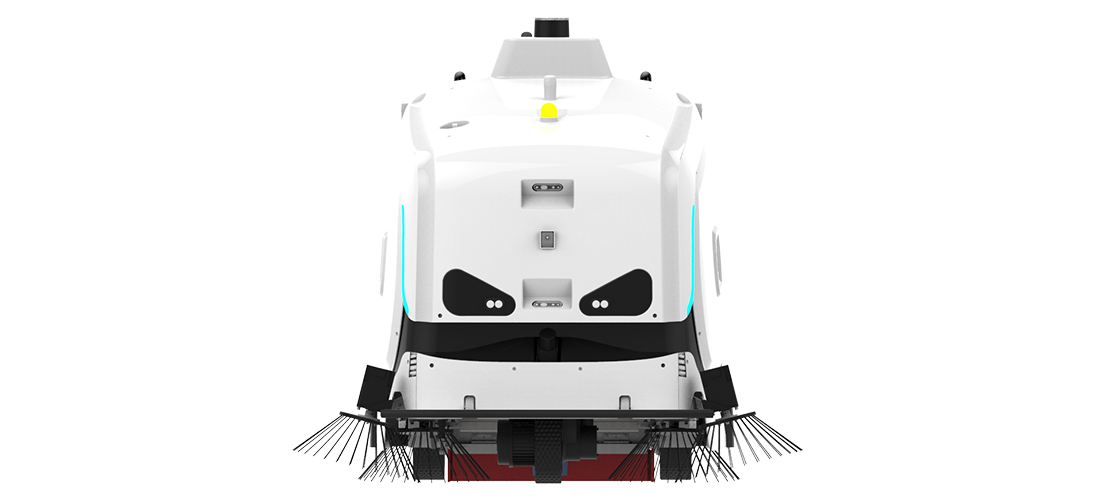

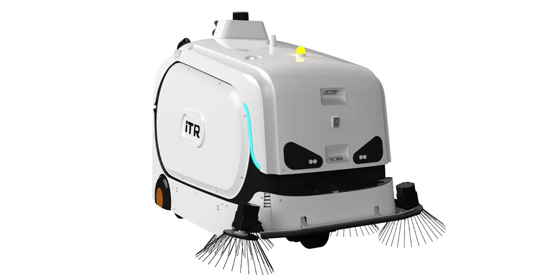

Sweeper W1 sweeps the floor through edge brush parts and roller brush parts. During operation, fine outlet water spray can reduce dust generated during cleaning; The brushes on both sides rotate inward to sweep the garbage to the middle; The roller brush rotates at high speed to push the garbage into the dustbin.
Stable and reliable! Multiple security guarantees
It is equipped with multiple sensors such as front laser, 3D laser, depth vision, ultrasonic radar and collision sensor as standard device, 360 degree full angle pedestrian protection, automatic obstacle avoidance, stair detection function, anti fall,anti collision, easy to deal with people or obstacles in complex environment.
Super long battery life, high power and efficient propulsion

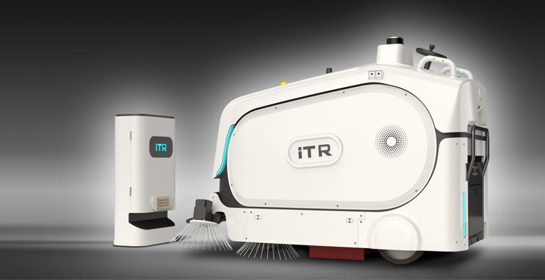

Automatically start tasks and charge independently, 7x 24 unattended, effectively liberating manpower.
The maximum working efficiency of W1 can reach 5000-6000㎡/h, and it can run for up to 6-8 hours on a full charge. The construction area can reach 1,000,000㎡, which greatly improves cleaning efficiency, reduces labor costs, and makes cleaning work more intelligent.
Product Params
| Name | Parameter |
|---|---|
| Overall dimensions (length × wide × High) | 1.86×1.56×1.26 m |
| Maximum working efficiency | 5600 m²/h |
| Sweeping width | 1.55 m |
| Maximum endurance | 5-7 h |
| Charging time | 8-9 h |
| Battery (lithium battery) | 48 V/240 Ah |
| Maximum air suction | 1 m³/min |
| Weight | 480 kg |
| Sensor Configuration | Lidar, depth vision, ultrasonic, tachograph, electronic anti-collision strip, 3D lidar |
| Charging mode | Manual charging/automatic charging (optional) |
| Maximum speed | 1 m/s |
| Noise | ≤72 dB |
| Gradient | 12° |
| Maximum drawing area | 1000000 m ² |
Custom Case

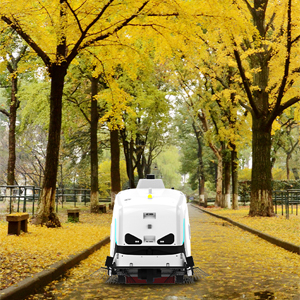

Park
Scenic spot
Industrial zone

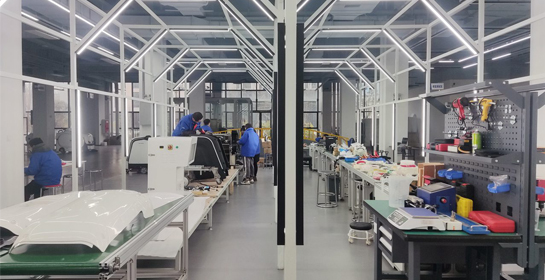

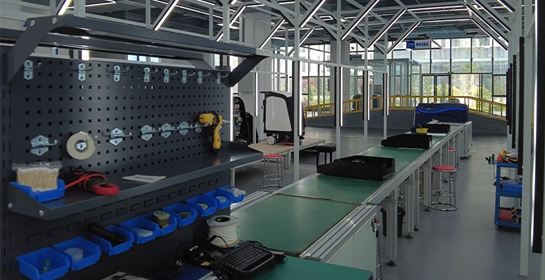

Our Factory
Exhibition & Strength
FAQ
Q1: How to choose a suitable cleaning robot?
A1: First of all, please make sure the application environment, ground type, size, and requirements, then ask the supplier to recommend you according to the specification, function etc.
Q2: What is the warranty period for the iTR robot?
A2: The product quality warranty is one year.
Q3: After purchase, how to install the sweeping robot?
A3: When you receive the goods, iTR's engineers will guide you on how to use the product and operate it.
