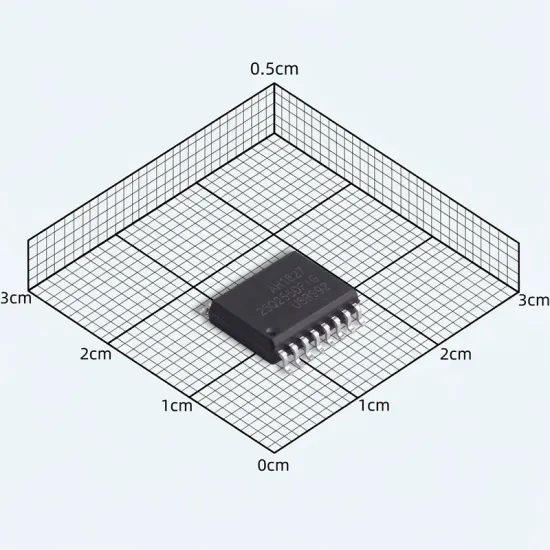

GD25Q256DFIGR
GD25Q256DFIGR is a 256M-bit 3.3V serial NOR Flash memory IC with dual/quad SPI, 133MHz read, uniform sectors, low standby current, and advanced security for embedded storage.
- Storage Capacity： 256Mbit
- Clock Frequency (fc)： 104MHz
- Operating Voltage： 2.7V~3.6V
- Standby Current：12u
- Interface Type：ASPI
- Package Type：SOP-16-300mil
- Packing：Tape&Reel
