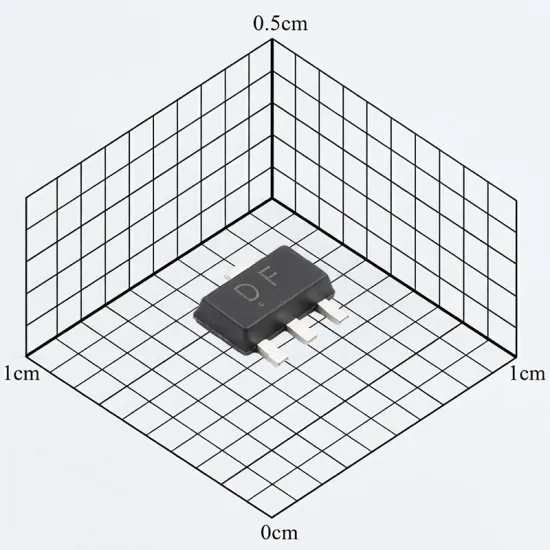

2SD1898(RANGE:180-390)
2SD1898 is an NPN transistor featuring high breakdown voltage, high current capability, excellent DC gain linearity, low VCE(sat), and complementarity with 2SB1260.

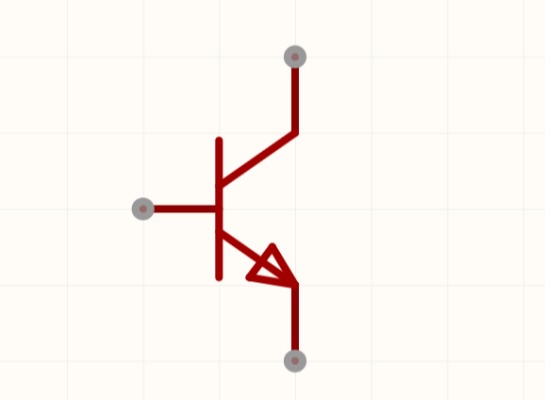

- Transistor Polarity：NPN
- Collector Current (Ic)：1A
- Collector-Emitter Breakdown Voltage (Vceo)：80V
- Power Dissipation (Pd)：500mW
- DC Current Gain (hFE)：180
- Transition Frequency (fT)：100MHz

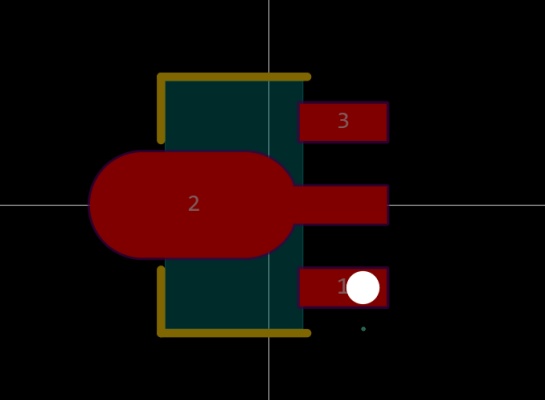

- Package：SOT-89-3L
- Packaging Type：Tape&Reel
USD 0.07
11500
