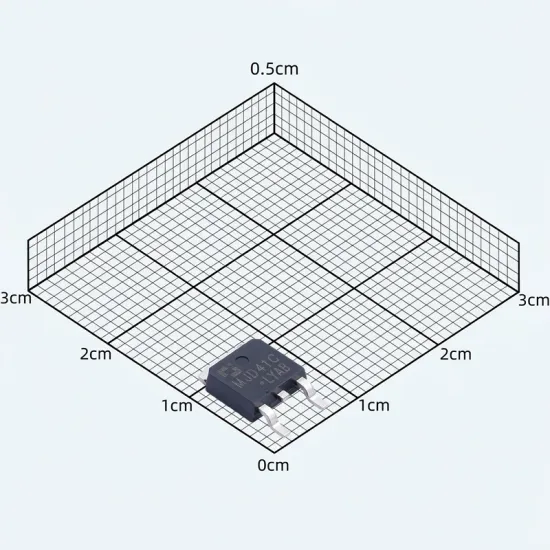

MJD41C
MJD41C is a monolithic transistor for general-purpose amplification and low-speed switching, featuring an integrated base-emitter resistor and TIP41/TIP42-like characteristics.

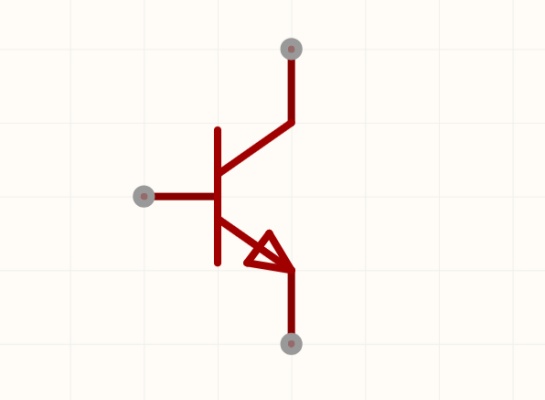

- Transistor Polarity：NPN
- Collector Current (Ic)：9A
- Collector-Emitter Breakdown Voltage (Vceo)：100V
- Power Dissipation (Pd)：1.25W
- DC Current Gain (hFE)：30
- Transition Frequency (fT)：3MHz

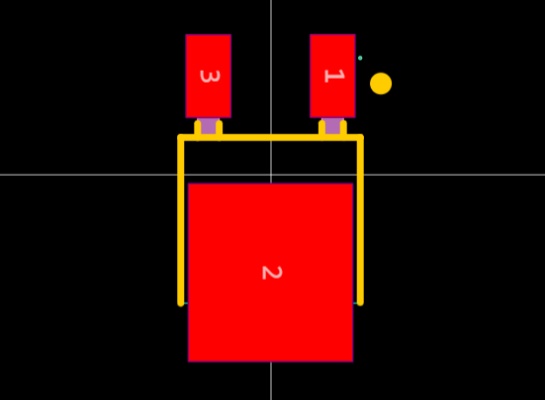

- Package：TO-252-2L
- Packaging Type：Tape&Reel
USD 0.25
4400
