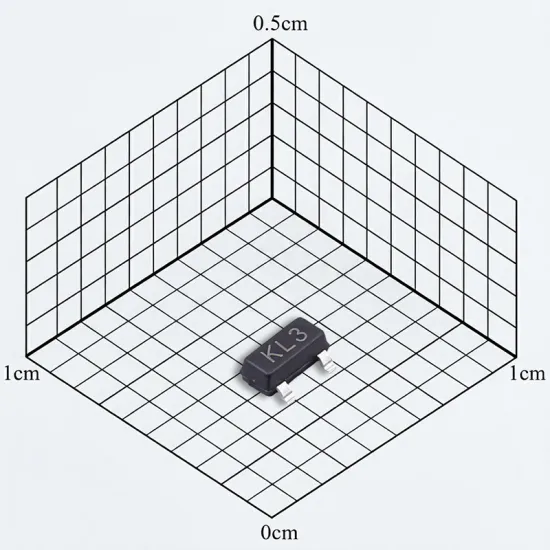

BAT54C
BAT54C is a 30V/200mA dual Schottky diode array with common-cathode configuration, low 320mV forward voltage, and SOT-23 for high-speed switching applications.
- Positive pressure drop (Vf) ：1V@100mA
- DC reverse withstand voltage (Vr) ：1V@100mA
- Rectified current ：200mA
- Reverse current (Ir) ：2uA@25V
- Non repetitive peak surge current (Ifsm)：600mA
- Product packaging ：SOT-23
- Packing Method ：Tape & Reel
- Gross Weight ：0.0321(g)
USD 0.0081
12000
