产品概述

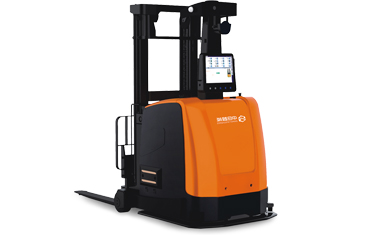

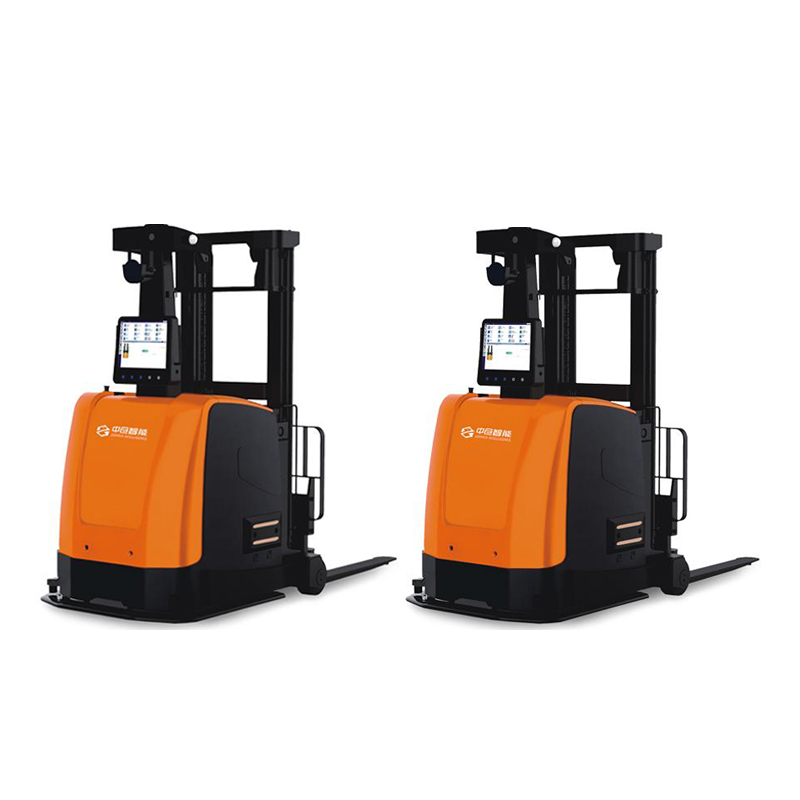

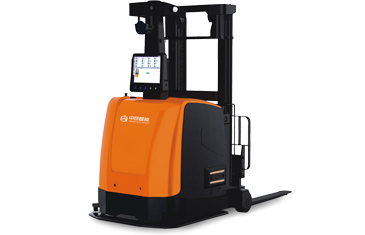

Counterbalanced AGV
The solid and wide base greatly enhances the stability of the vehicle body and can carry a larger load. Based on the original automatic forklift AGV system, we independently developed a deep visual recognition system to make automation more intelligent. AGV can automatically identify obstacles, and can intelligently identify and correct errors according to different environments to achieve unmanned and fully automated operations.
产品展示
Function: material detection, automatic weighing, side shift, rotation, clamping
Features: visual detection device and fork distance adjustment and side shift functions can realize secondary positioning of goods
Application: suitable for pallet material handling of various specifications, automatic loading and unloading vehicles
AGV forklifts are equipped with a variety of safety systems to ensure the safety of personnel and equipment during operation. The following are some common AGV forklift safety systems:
Obstacle detection system: AGV forklifts are usually equipped with lidar, infrared sensors, ultrasonic sensors, etc. to detect obstacles in the surrounding environment to avoid collisions.
Emergency stop button: AGV forklifts are usually equipped with an emergency stop button. Once an emergency occurs, the operator can press the button to immediately stop the vehicle movement.
产品参数
| Parameter name | Parameter Value | Parameter name | Parameter Value | Parameter name | Parameter Value |
|---|---|---|---|---|---|
| Drive form: | Electric | Load Center: | 600mm | Loading wheel size: | Ф250x85mm |
| Overall height (when the fork is at its lowest): | 2725mm | Total length: | 3450mm | Distance adjustment range: | 300~1000mm |
| Lifting speed (full load/no load): | 175/300mm/s | Weight: | 2800kg | Rated load: | 2000kg |
| Number of wheels: | 1x-2 | Fork size: | 120/50/1200mm | Driving style: | Laser guidance |
| Tires: | Polyurethane wheels | Side shift range: | ±100mm | Hoisting height: | 2000mm (customizable) |
| Overall width (with touch device): | 1230mm | Turning Radius: | 1700mm | Lowering speed (full load/no load): | 324/190mm/s |
| Drive size: | Ф343x123mm | Fork height from ground (lowest): | 45mm | Travel speed (full load/empty load): | 10/12km/h |
Custom Case
A material project in Anhui
A food project in Shanghai
A manufacturing plant project in Shanghai
Certificate Honor
Service
Professional team
Mobile robot core algorithm with independent intellectual property rights
Rich experience in unmanned project in the automation industry
Peace of mind service
1. 24-hour service hotline
2. Reasonable price of accessories, public complaint hotline, and public service standards
3. 100% free of charge for services that meet the three guarantees, reasonable charges for services beyond the warranty period
4. Time-limited guarantee for troubleshooting
5. Regular free inspection and maintenance during the three-guarantee period
6. Lifelong maintenance of the product
