MMSZ5240BS

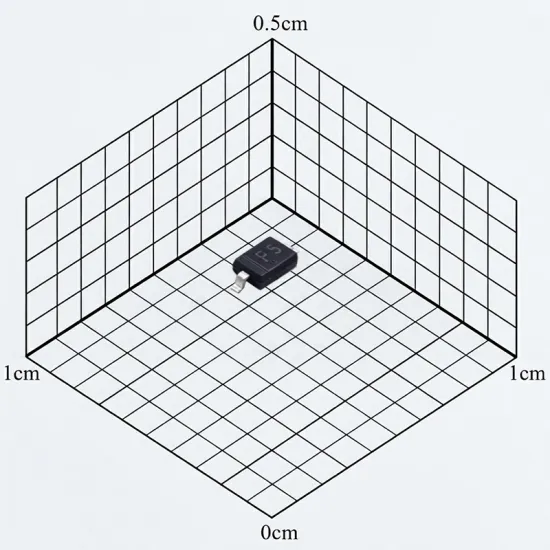

The MMSZ5240BS is a discrete 10V surface-mount Zener diode featuring planar die construction in a compact package, optimized for medium-current automated assembly applications.
- Diode Configuration：Single
- Nominal Zener Voltage (Vz)：10V
- Reverse Current (Ir)：3uA
- Zener Voltage Range：9.5V~10.5V
- Power Dissipation (Pd)：200mW
- Package：SOD-323
- Packaging Type：Tape&Reel
USD 0.03
34000
