Product Description
Rubber-track intelligent lifting robot with electric remote control and all-terrain mobility, about 700KG load capacity, 360° pivot and 30° slope climbing, IP55 waterproof, customizable.
Functional Features
1. Electric Remote Control & Smart Operation
Dual-drive controller supports CAN/PWM/232/485 interfaces for precise, safe remote control.
2. All-Terrain Track & Powerful Drive
Grade A natural rubber tracks with Kevlar fiber handle mud, paddy, swamps and snow; 48V brushless motor with RV50-40 reducer, strong and smooth power.
3. High Load & Flexible Steering/Climbing
About 700KG load capacity, customizable; 360° pivot in place and 30° slope climbing, flexible in tight spaces.
4. Durable & Well-Protected
IP55 waterproof rating, carbon steel/aluminum body with powder coating, built for harsh outdoor environments.
Product Views

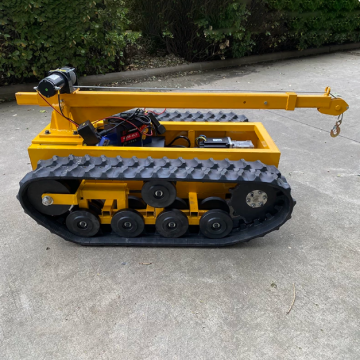

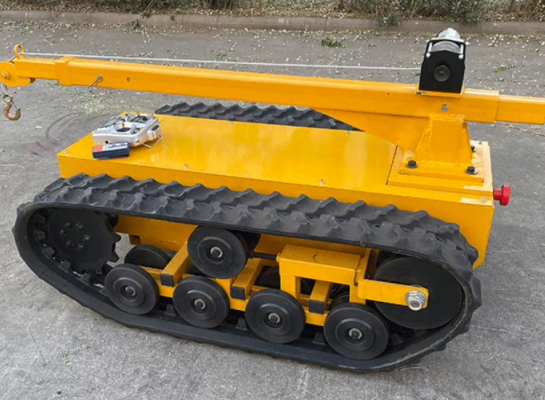

Side view. Rubber track with multi-wheel system, top lifting arm with winch motor, built-in battery and dual-drive controller, compact layout.

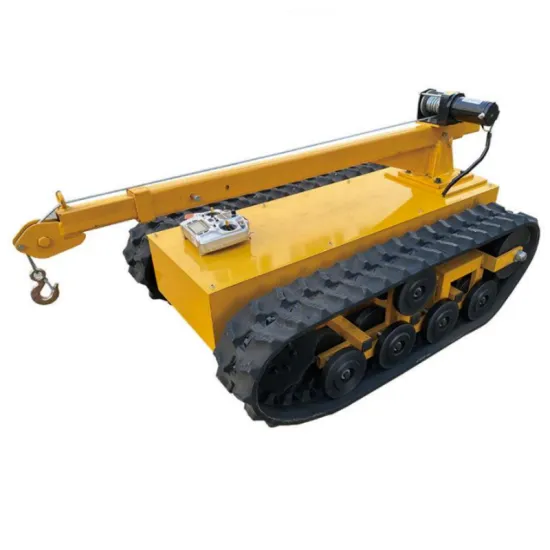

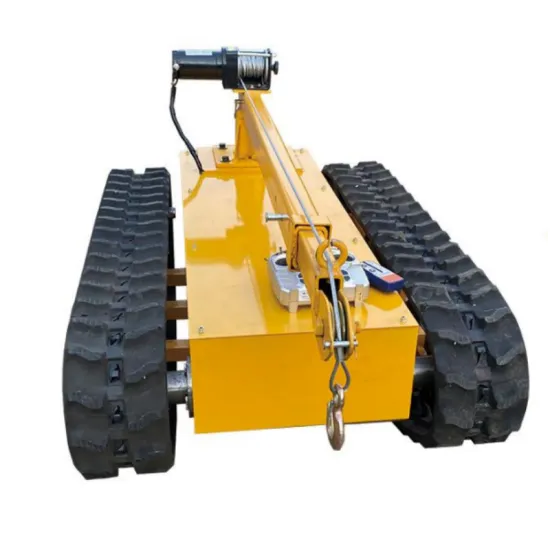

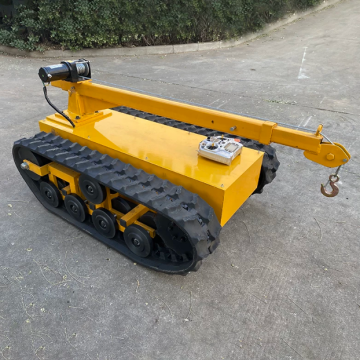

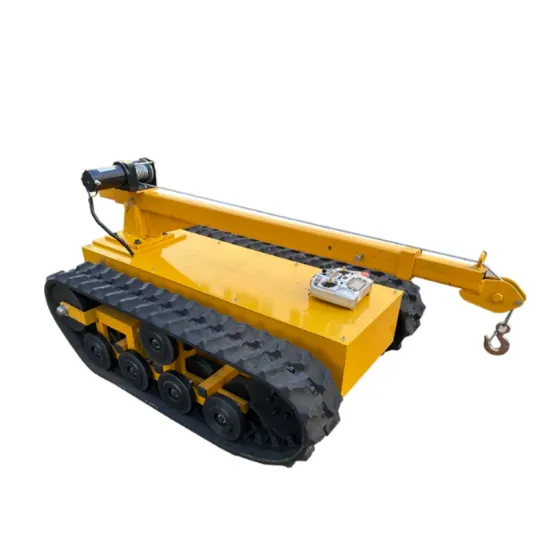

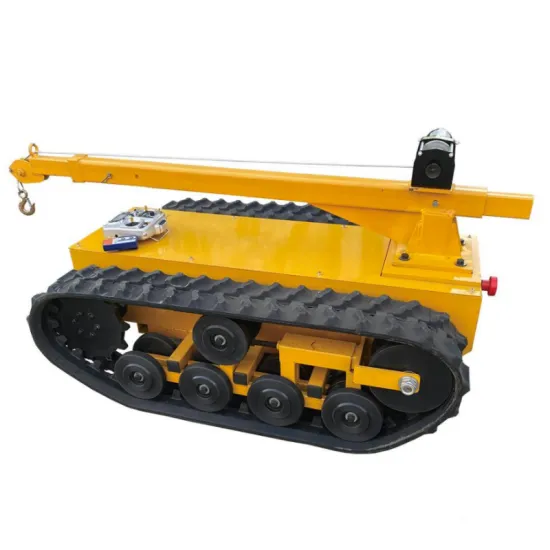

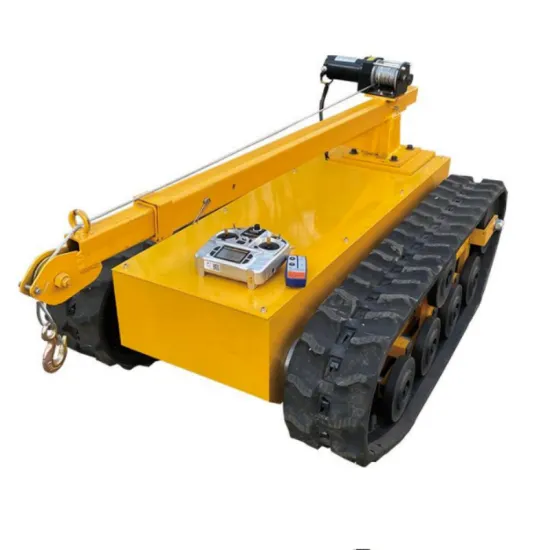

Full exterior view. Yellow powder-coated body, lifting arm with hook, flexible remote control, rear emergency stop button for safety, suitable for various lifting tasks.
Real shooting

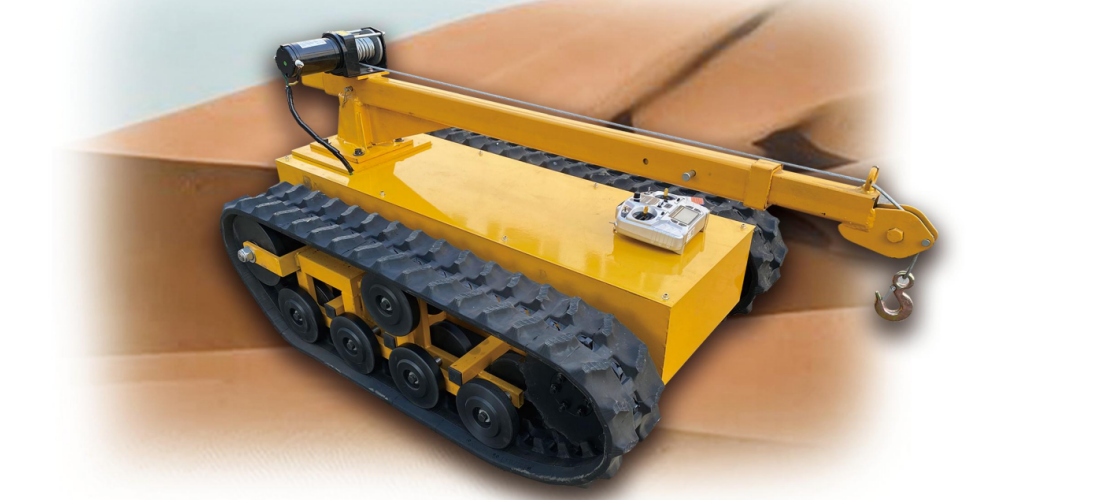

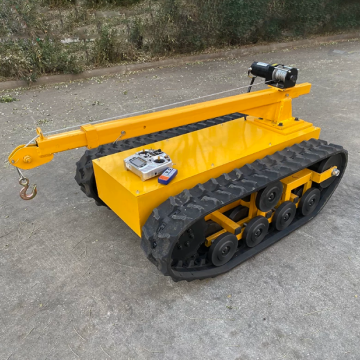

Electric remote-controlled crawler lifting robot, all-terrain mobility, intelligent lifting with high load capacity, customizable.
Grade A natural rubber track with embedded Kevlar fiber, strong grip, travels on mud, paddy fields, swamps and snow, stable lifting operation.

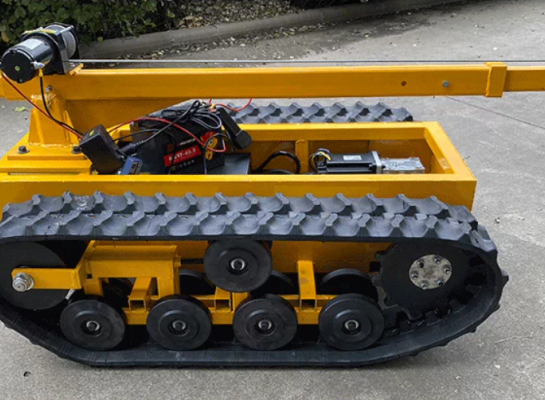

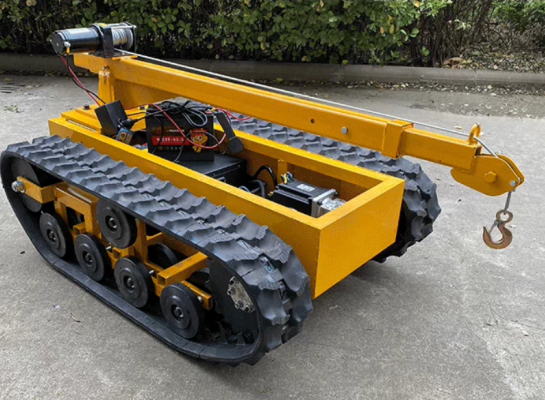

48V brushless DC motor with RV50-40 worm gear reducer, strong and smooth power, dual-drive controller with multiple interfaces for secondary development.

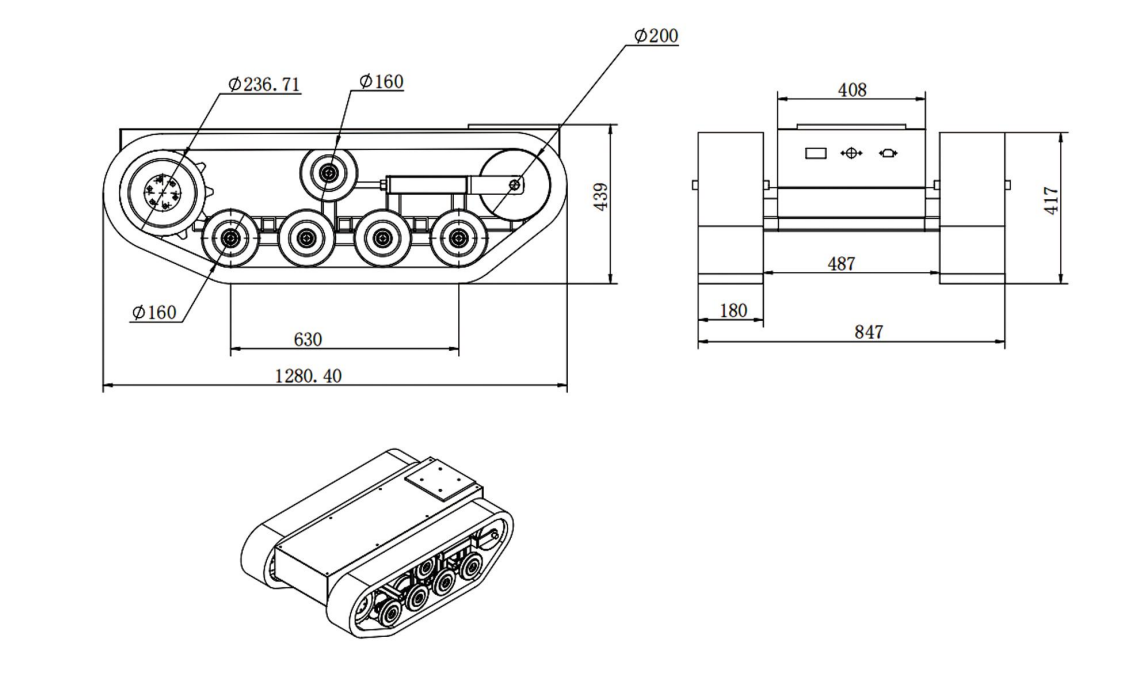

Dimensional Drawin
Product parameters
Parameter | Specification |
Chassis Model | ZDDP-GJX-180 |
Chassis Dimensions | 1200MM*850MM*360MM (L*W*H) |
Load Capacity | About 700KG |
Surface Treatment | Powder Coating |
Main Material | Carbon Steel/Aluminum |
Braking Mode | Motor Braking |
Waterproof Rating | IP55 |
Climbing Ability | 30° Slope |
Running Speed | 0~3KM/H (Normal), Customizable |
Turning Radius | 360° Pivot in Place |
Reducer Parameters | RV50-40 (Worm Gear Reducer) |
Motor Parameters | 48V 1.5KW 3000RPM (Brushless DC Motor) |
Control Interface | Dual-Drive Controller (CAN/PWM/232/485) |
Track | Rubber Track (Grade A Natural Rubber, Embedded Kevlar Fiber) |
Track Pitch | 72MM |
Track Width | 180MM |
Certificate
Service
We have a highly professional service team.
Team members are the elites in their respective fields, they have gone through strict selection and systematic training, have a wealth of professional knowledge and superb skills.
Whether facing complex technical problems or daily service needs, they can quickly understand your needs with keen insight and provide the perfect solution with efficient action.
Company Introduction
Zhengding Machinery Co., Ltd. in Dezhou is a leading manufacturer in the all terrain walking industry, specializing in the research and production of all terrain rubber tracks and track chassis, intelligent robot chassis, and track assemblies. It is a group style military enterprise.
The product supports customization and is sold globally with quality assurance.
