Automated docking and conveying
TL-TB-850SX-002

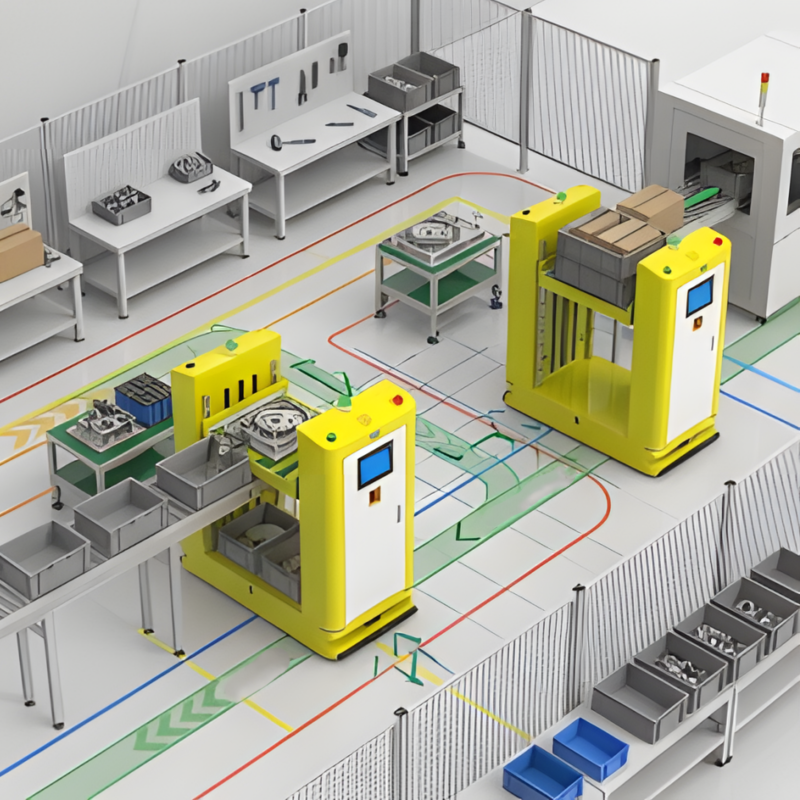

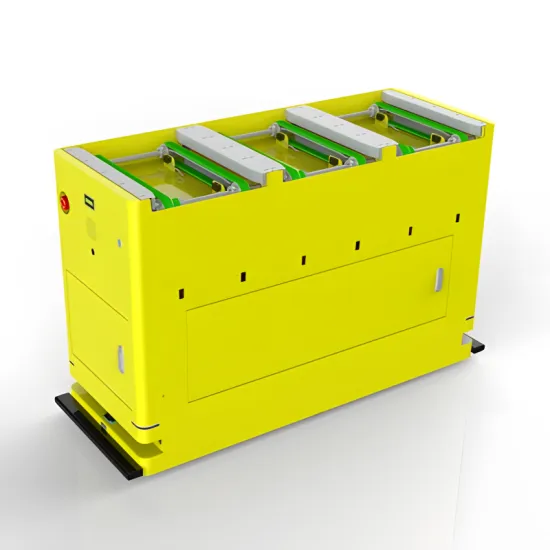

Product Introduction: Ø SMT synchronous belt double-layer docking type, capable of forward, backward, 90°/180°/360° rotation, arc turning, acceleration, deceleration, branching turns, timed stops, and reversing operation; Ø The top of the AGV can be equipped with conveyor platforms such as rollers, conveyor belts, and synchronous belts; it can automatically dock with conveyor lines or production lines, automatically transferring materials carried on the AGV to the conveyor line, or automatically recovering materials from the conveyor line to the AGV's conveyor platform, and then the AGV automatically docks and transports the materials to the next docking conveyor line, completing the automatic feeding of the production line.
Product Features

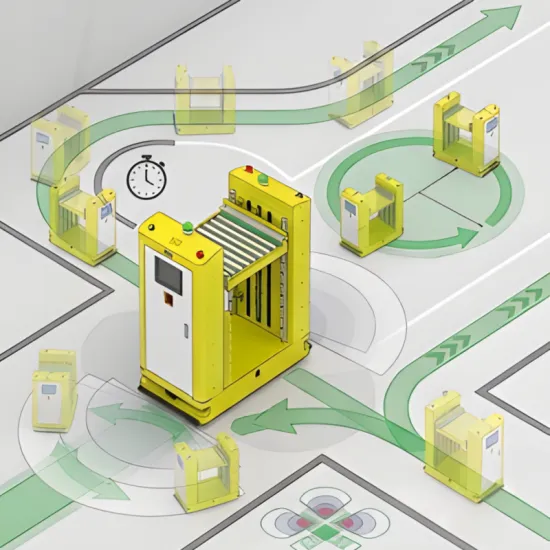

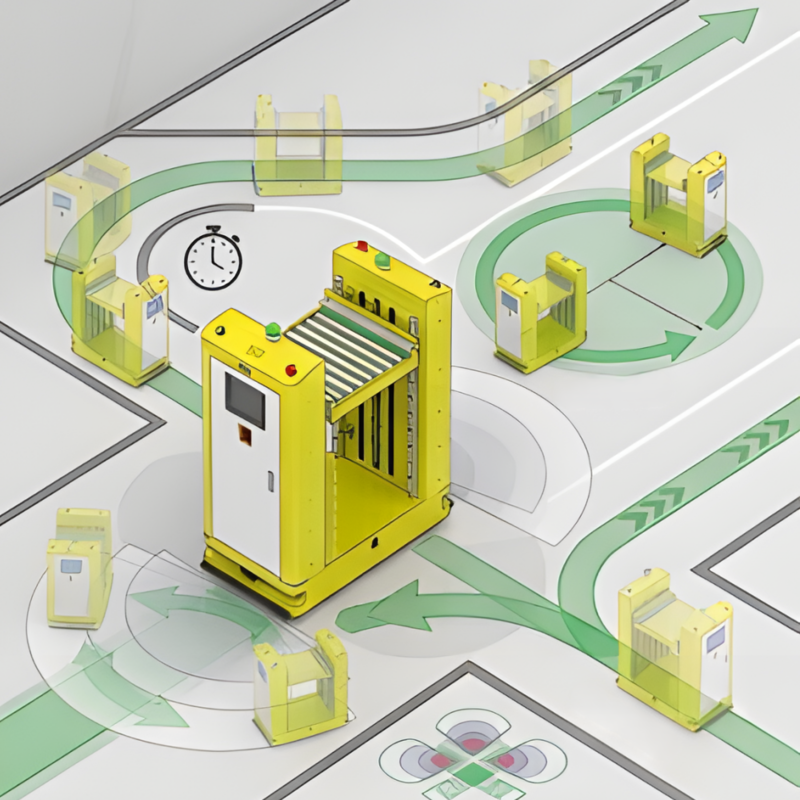

| Two-way plate chain docking system, capable of forward and backward movement, 90°/180°/360° rotation, arc turning, acceleration, deceleration, branching turns, timed stops, and reversing operation, offering multiple functions. |

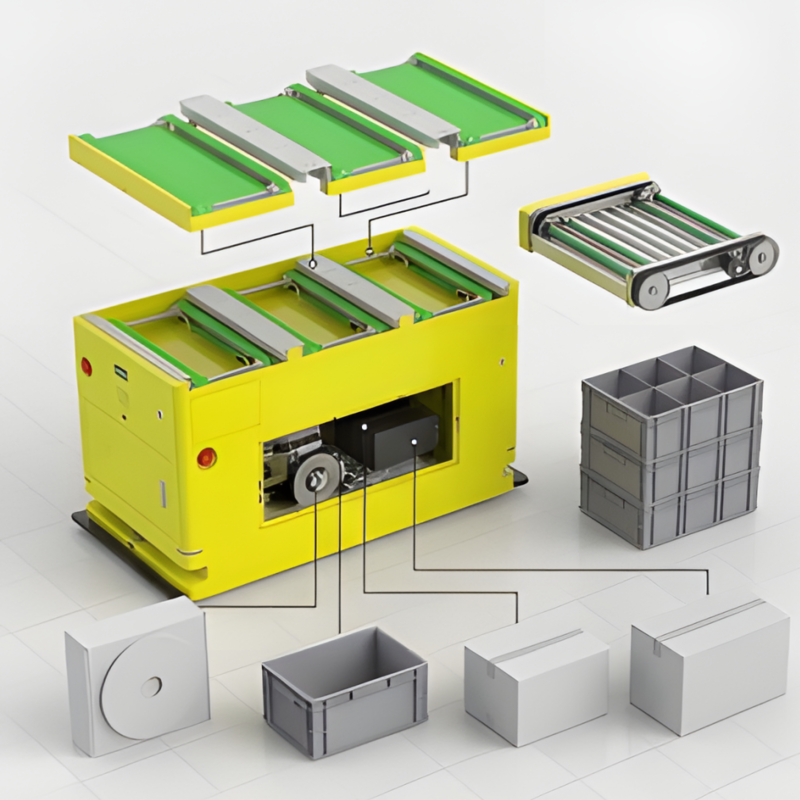

The AGV's top can be equipped with conveyor platforms such as rollers, conveyor belts, and synchronous belts; it can automatically dock with conveyor lines or production lines, automatically transferring materials carried on the AGV to the conveyor line, or automatically recovering materials from the conveyor line back to the AGV's conveyor platform, then automatically docking and conveying the materials to the next docking conveyor line, completing the automatic loading and unloading of the production line. |
|

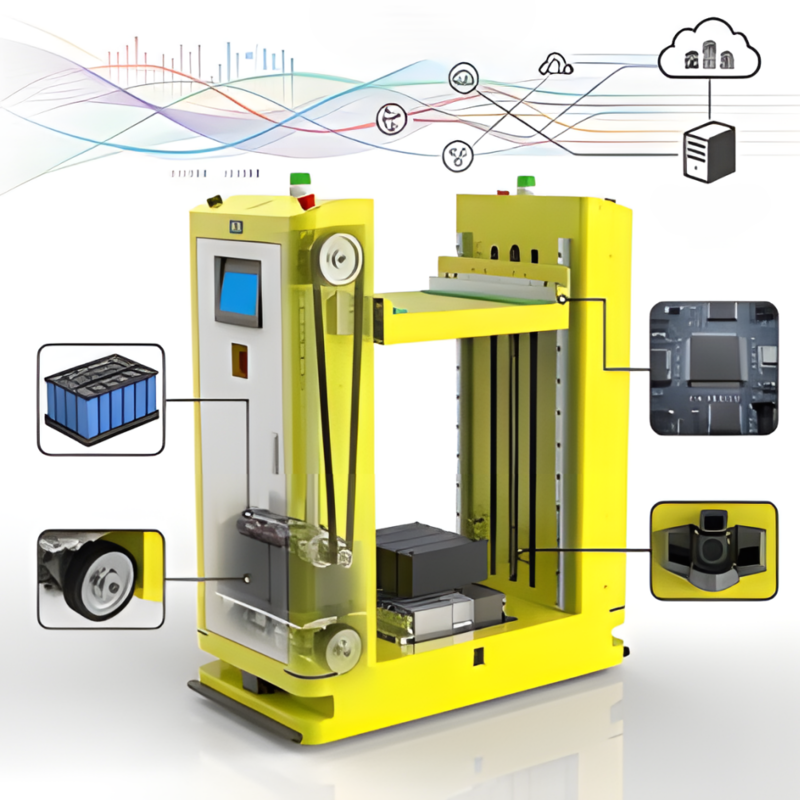

| Multi-sensor fusion navigation ensures safety and reliability, flexibility and efficiency, achieving full automation without human intervention, automatic handling reduces manual labor intensity, intelligent scheduling seamlessly integrates with MES/WMS/ERP systems, improves logistics efficiency, and quickly and flexibly adapts to different complex scenarios, efficiently completing automated transportation work. |
Product Parameters
Performance Parameters | Description |
| Product Model | TL-TB-850SX-002 |
| Dimensions | Standard L1400mm*W500mm*H875mm / Ground Clearance 850mm (or customized) |
| Navigation Type | Magnetic Strip Navigation |
| Drive Type | Differential Drive |
| Travel Mode | Forward, Reverse, Rotation, Fork Turn, Timed Stop, Reversing Operation, and other multi-functional travel |
| Travel Speed | 0~40m/min (or customized) |
| Rated Load | 100KG (or customized) |
| Climbing Ability | ≤2 degrees |
| Turning Radius | 500mm or 90°/180°/360° rotation in place |
| Stop Accuracy | ±10mm |
| Navigation Accuracy | ±10mm |
| Battery Life | 8-12H (or customized) |
| Charging Method | Manual charging/Automatic charging (optional) |
| Human-Machine Interface | 4.3-inch touchscreen |
| Alarm Type | Audio and visual alarm |
| Communication Network | WIFI network/RF network |
| Power Battery | 40Ah lead-acid battery |
| Safety Protection | Obstacle sensor + contact bumper + emergency stop button |
| Design Life | >80000H |
