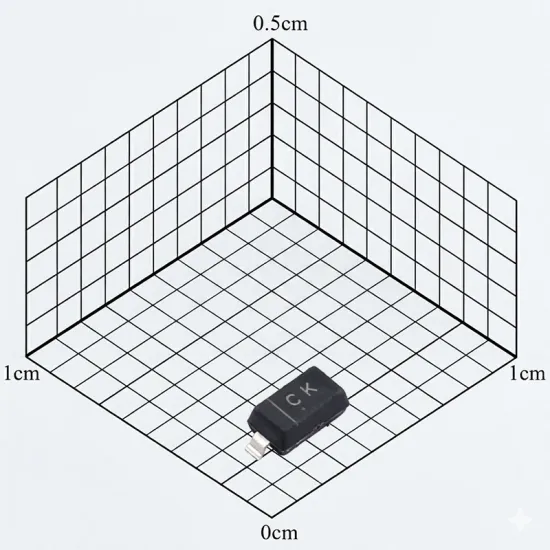

MMSZ4684
MMSZ4684 3.3V Zener diode with 7.5µA reverse leakage, designed for voltage regulation, reference and overvoltage protection in compact electronic circuits.
- Diode Configuration：Single
- Nominal Zener Voltage (Vz)：3.3V
- Reverse Current (Ir)：7.5uA
- Zener Voltage Range：3.13V~3.47V
- Power Dissipation (Pd)：350mW

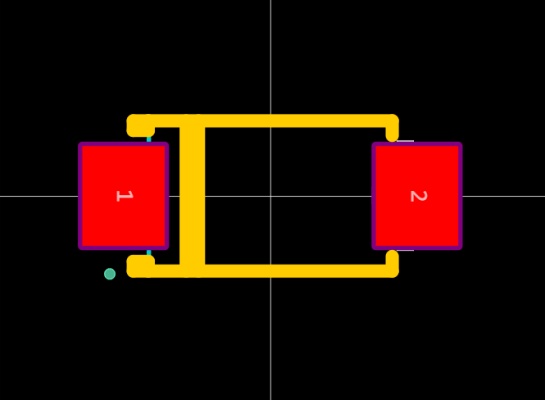

- Package：SOD-123
- Packaging Type：Tape&Reel
USD 0.04
10000
Supplier Information
Email：[email protected]
Tel：15670610275
