Product Description

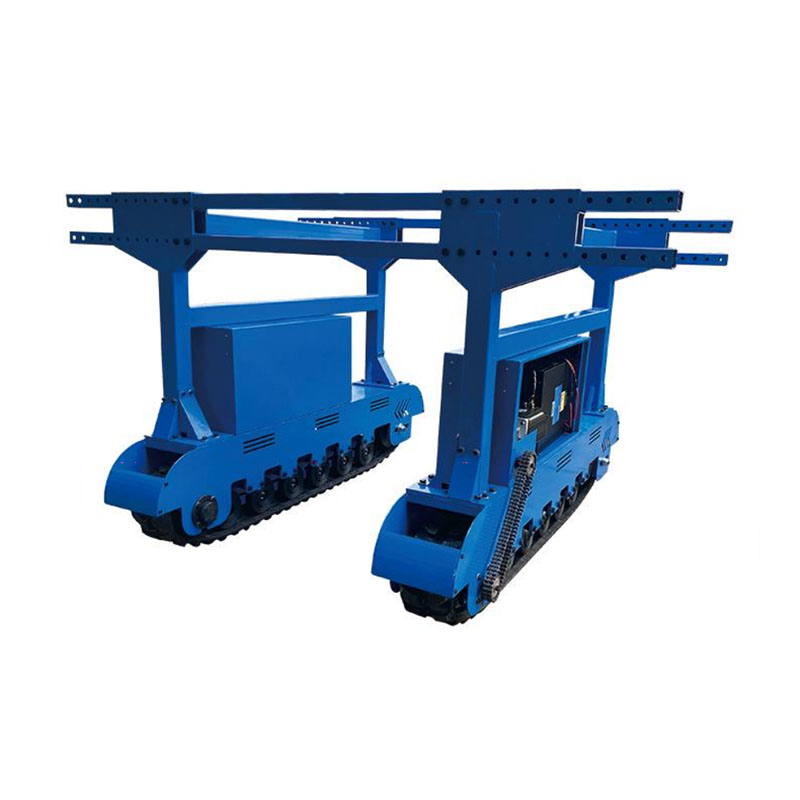

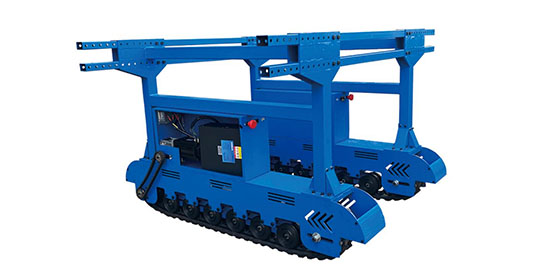

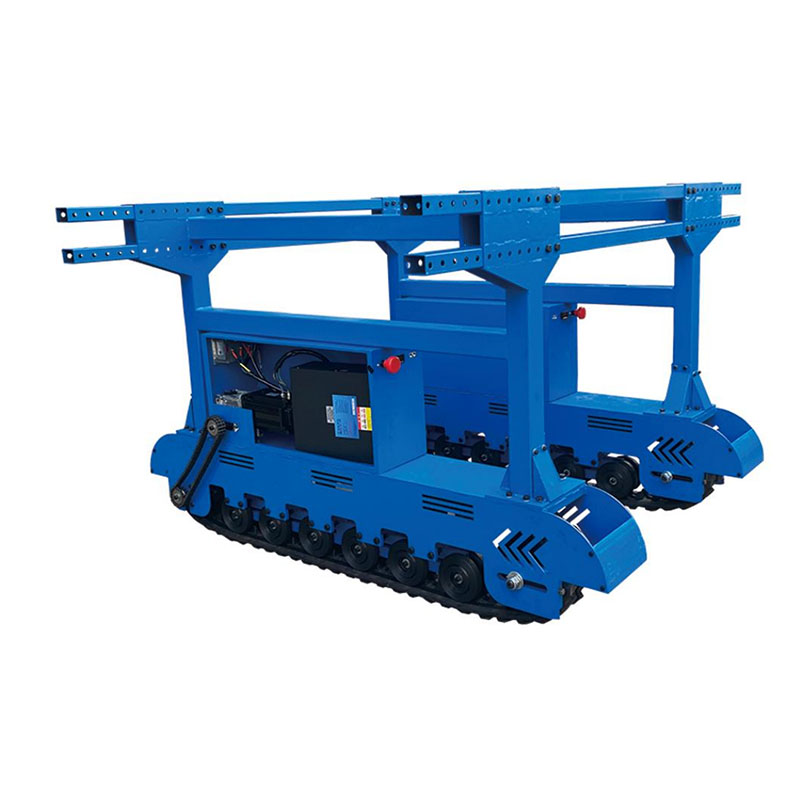

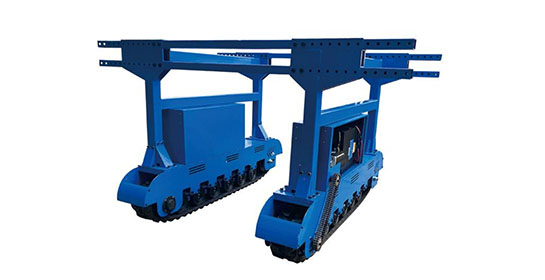

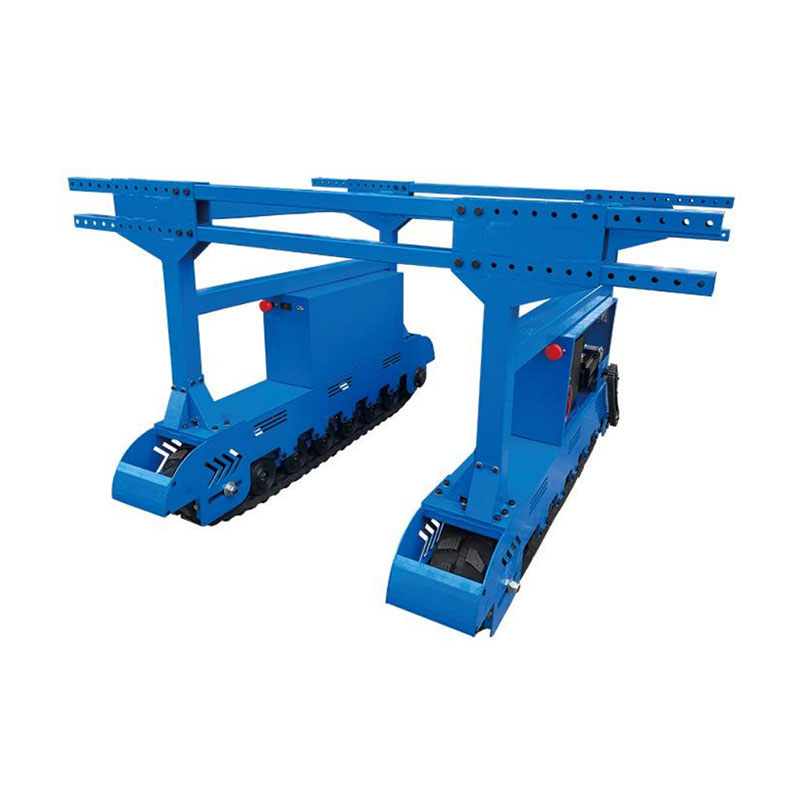

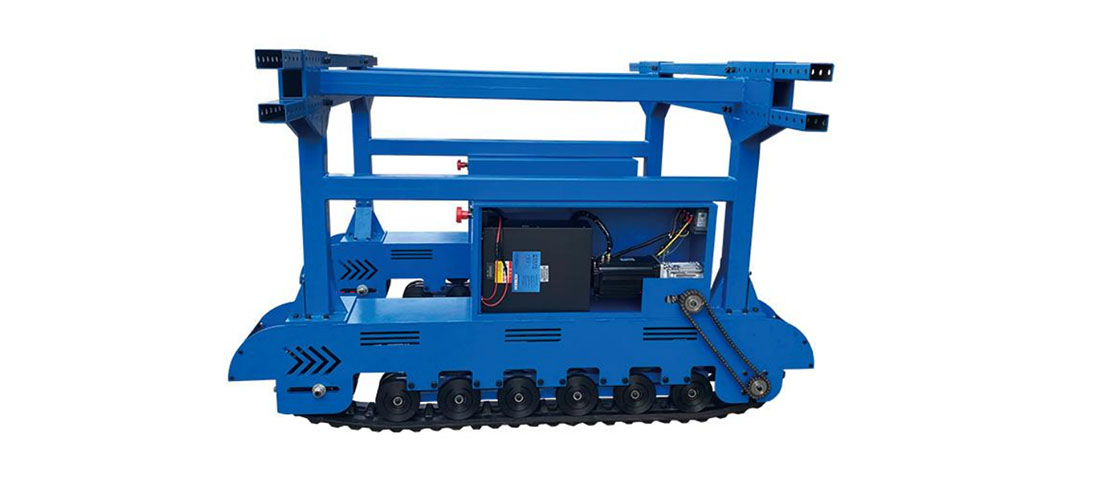

ZDDP-ZJLG-180 Gantry type track chassis is a special track chassis structure. Gantry crawler chassis usually has a higher frame structure and is shaped like a gantry. This design allows the chassis to have a large space in the direction of height to accommodate a variety of equipment and devices. Double track layout - with a double track design, located on either side of the gantry. This layout provides more stable support and greater load carrying capacity. Dual track can evenly share the weight of the equipment, reduce the pressure on the ground, so as to adapt to a variety of complex terrain. Adjustable track tension - gantry track chassis are usually equipped with an adjustable track tension device. The operator can adjust the tension of the track according to different working conditions and terrain to ensure good contact between the track and the drive wheel, improve transmission efficiency and reduce wear of the track.
Product Features
High stability - the gantry structure and dual track layout give the chassis extremely high stability. During operation, even if subjected to large external impact or unbalanced load, it can maintain the balance of the equipment and reduce the risk of tipping. This is critical for some equipment that needs to work at high altitudes or perform precise operations.
Strong load carrying capacity - Due to its robust construction and reasonable design, the gantry crawler chassis is able to withstand large weights. This allows it to carry a variety of heavy equipment and tools to meet the needs of different industries.
Adaptable - Gantry crawler chassis can adapt to a variety of complex terrain and harsh environments. Whether it is muddy soil, rugged mountain roads or soft sand, it can pass smoothly. In addition, it can also work in narrow Spaces, with high flexibility.
Easy maintenance - The structure of the gantry crawler chassis is relatively simple, and the individual components are easy to disassemble and replace. This makes maintenance and repair work more convenient and faster, reducing equipment maintenance costs and downtime.

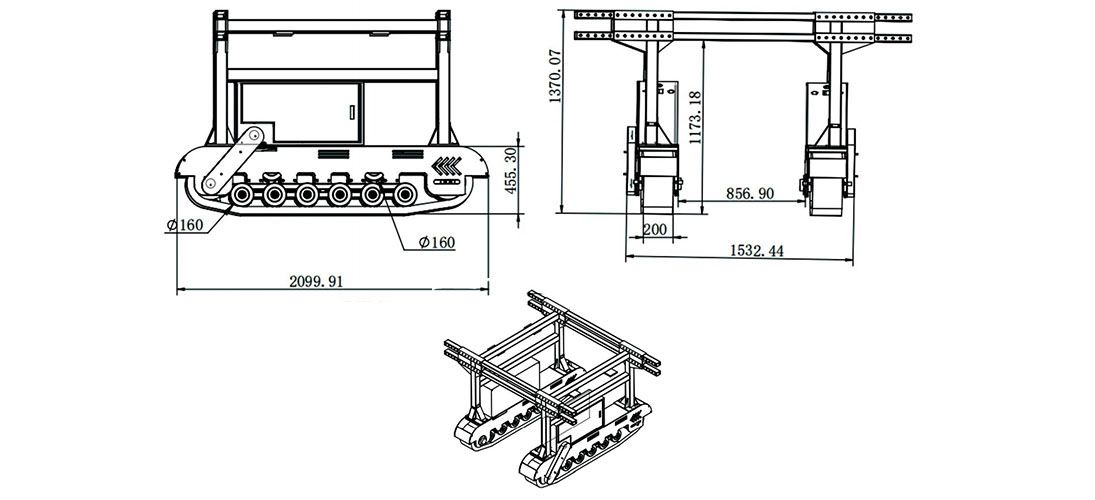

Structure Diagram
Product parameters
| name | argument | name | argument |
|---|---|---|---|
| Chassis length | 2300mm | Chassis width | 2300mm |
| Chassis height | 1250mm | Track width | 180mm |
| Travel speed | Conventional 0-3km/h or so, can also be customized | Track pitch | 72mm |
| Climbing ability | 30° slope | Track material | Grade A natural rubber embedded with Kevlar fiber |
| Waterproof class | IP55 | Motor power | 60V2KW-3000 RPM (DC brushless motor) |
| Braking mode | Motor braking | Reducer parameter | RV63-40 (Worm gear reducer) |
| Chassis load | 150kg | Battery parameter | 60V70AH lithium battery |
| Gear train material | Special synthetic polymer materials | Surface/main material | Spray treatment/carbon steel, aluminum |
| Turning radius | Continuous 360 degree turn in place | Communication mode | CAN communication or 485 |
