Product Description
INTELLIGENT INTEGRATED POWER SYSTEM
XP6 KV180
Agricultural plant protection · Small payload delivery

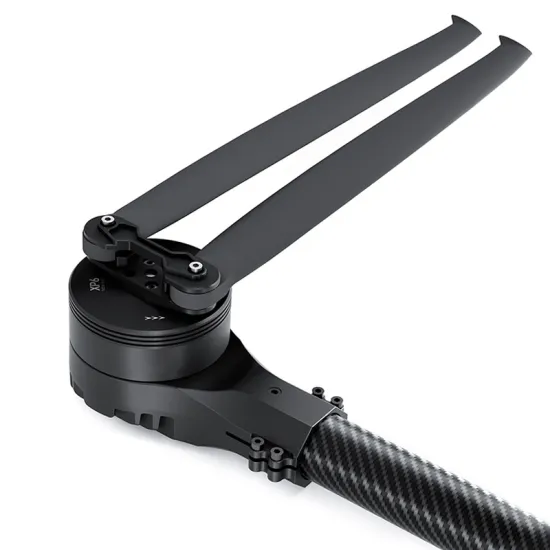

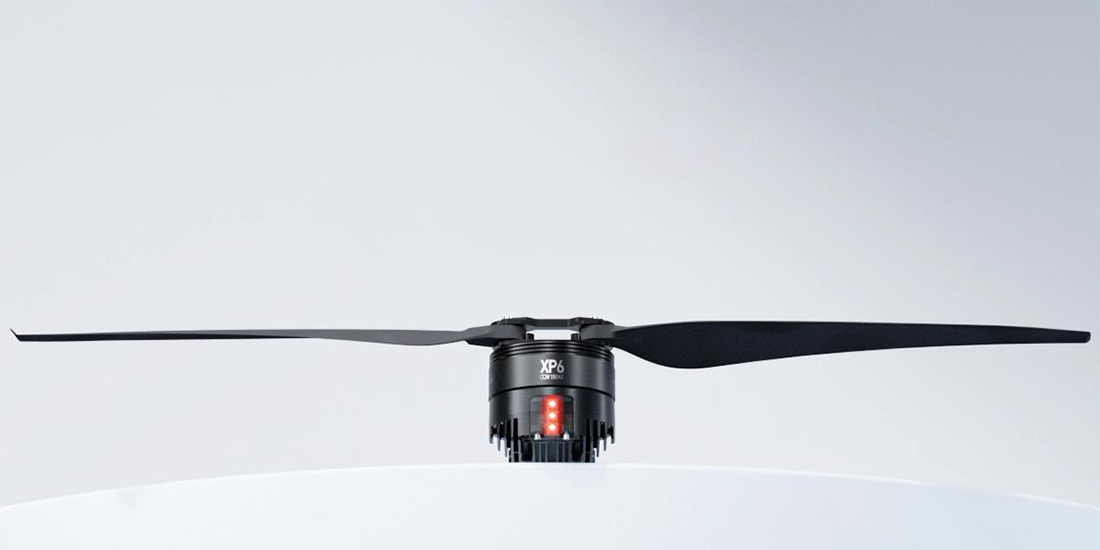

An intelligent integrated power system assembly built for agricultural plant protection and small payload delivery. It integrates motors, ESCs, propellers and motor mounts, and comes with built‑in high‑brightness LED navigation lights for a more reassuring flight control experience. Featuring a plug‑and‑play design, it can be installed in one step and eliminates complicated wiring and installation procedures.
Functional Features
Modular design FOC vector control
It not only improves assembly efficiency and speed, but also reduces It enables precise regulation of motor
the possibility of errors, allowing users to complete assembly faster speed and torque,delivers a
and start flight missions. smoother flight experience
and reduces energy loss.
IPX6 protection rating
Waterproof and dust‑resistant design
adapts to a variety of complex weather
and terrain conditions to ensure
uninterrupted plant‑protection operations.
PWM + CAN dual throttle Automatic fault storage
For safer flight performance Enables fault location and repair
without specialists
Take‑off weight Take‑off weight Payload capacity Payload capacity
12~20kg 18~30kg 5L 10L
Quadcopter multi‑rotor drone Hexacopter Multi‑Rotor Drone Quadcopter agricultural Hexacopter agricultural
plant‑protection drone plant‑protection drone
SERVICE SUPPORT
Product Manuals 3D Model Drawings Engineering Dimension Drawings
Please contact customer service to receive the files.
Application
This power system meets a wide range of agricultural requirements:
Pesticide Spraying | Fertilizer Spreading | Field Plant Protection
The XP6 integrated motor‑ESC‑propeller solution eliminates complex matching and debugging. It can be directly installed on plant‑protection drone frames for plug‑and‑play use. Featuring high reliability, heavy‑load capacity and excellent endurance for long‑duration continuous operation, it is an ideal power option for intelligent agricultural drones.

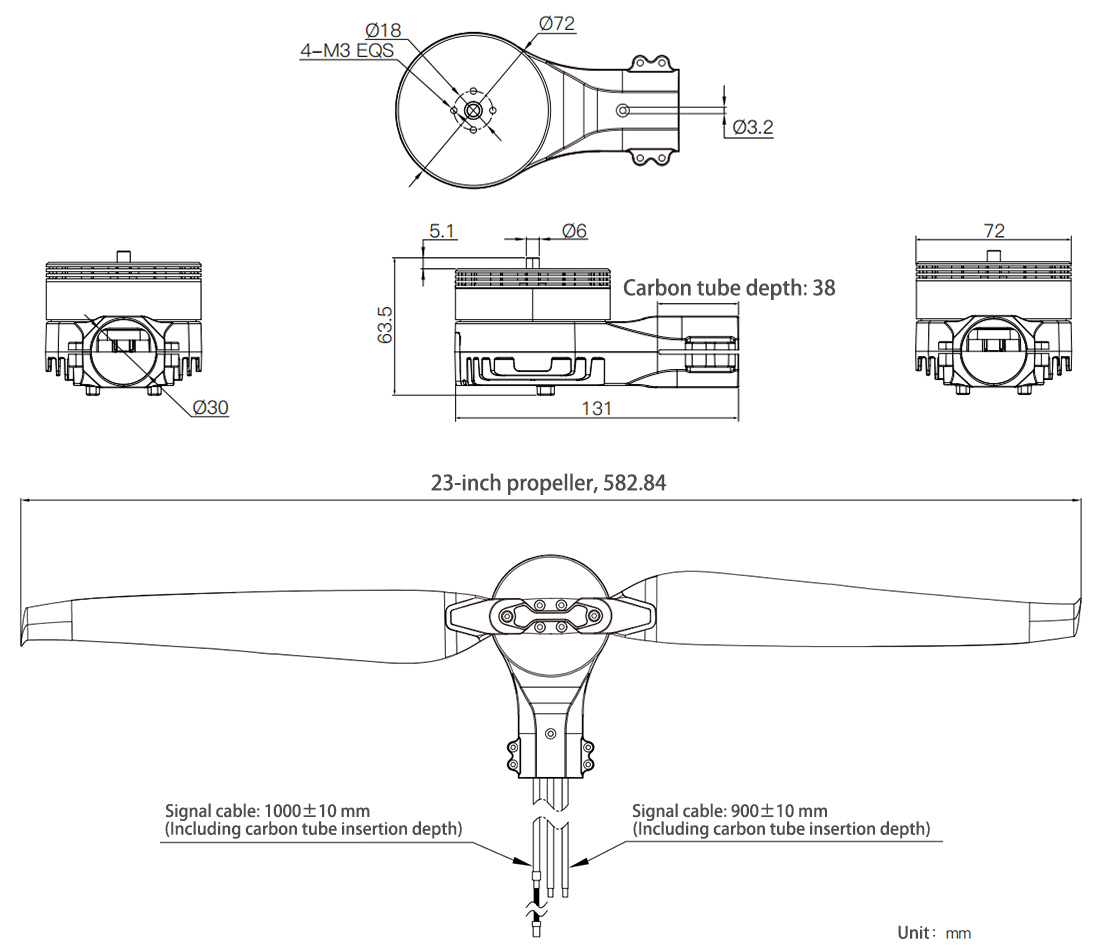

Dimensional Drawin
Product parameters
Product Specifications | XP6 | XP6 KV180 |
Maximum tensile force | 10 kg/shaft (46V, sea level) | |
Recommended takeoff weight | 3-5 kg/shaft (46V sea level) | |
Recommended battery | 12-14S （Lipo） | |
Environmental temperature for use | -20~50℃ | |
Weight of powertrain (individual) | 695 ± 10g (including propeller blades) | |
Protection level | IPX6 | |
Use carbon pipe diameter | 30mm | |
Power cord | 12AWG black and red (wire length: 900 ± 10mm) | |
Signal line | Teflon wire (wire length: 1000 ± 10mm) | |
Propeller | Diameter/Pitch | 23*7.0(Folding) |
Weight | 67g/tube | |
Motor | Stator size | 64*12mm |
Weight | 283g | |
ESC | Maximum allowable voltage | 61V |
Maximum allowable current (continuous) | 80A | |
Working pulse width | 1050-1950us (curing) | |
Supports the highest signal frequency | 50 -500 Hz | |
Battery | 12-14S（LIPO) |
Test Data
XP6 180KV 12S | ||||||||
Propeller | Throttle | Voltage | Current | Input Power | Torque | Speed | Thrust | System Thrust Efficiency |
23*7.0 | 30 | 46.52 | 2.84 | 132 | 0.41 | 2355 | 1541 | 11.7 |
35 | 46.48 | 3.98 | 185 | 0.53 | 2655 | 1999 | 10.8 | |
40 | 46.46 | 5.37 | 249 | 0.66 | 2956 | 2506 | 10.1 | |
45 | 46.37 | 6.92 | 321 | 0.78 | 3236 | 3041 | 9.5 | |
50 | 46.34 | 8.93 | 414 | 0.95 | 3528 | 3633 | 8.8 | |
55 | 46.3 | 11.17 | 517 | 1.1 | 3800 | 4227 | 8.2 | |
60 | 46.23 | 13.66 | 631 | 1.25 | 4075 | 4958 | 7.9 | |
65 | 46.14 | 16.36 | 755 | 1.42 | 4326 | 5526 | 7.3 | |
70 | 46.11 | 19.14 | 882 | 1.56 | 4591 | 6106 | 6.9 | |
75 | 46.01 | 22.73 | 1046 | 1.76 | 4837 | 6832 | 6.5 | |
80 | 45.92 | 27.11 | 1245 | 1.98 | 5082 | 7739 | 6.2 | |
85 | 45.83 | 31.48 | 1443 | 2.18 | 5308 | 8507 | 5.9 | |
90 | 45.73 | 36.52 | 1670 | 2.39 | 5546 | 9285 | 5.6 | |
95 | 45.65 | 40.63 | 1855 | 2.53 | 5771 | 9840 | 5.3 | |
100 | 45.55 | 44.3 | 2018 | 2.64 | 5973 | 10399 | 5.2 | |
