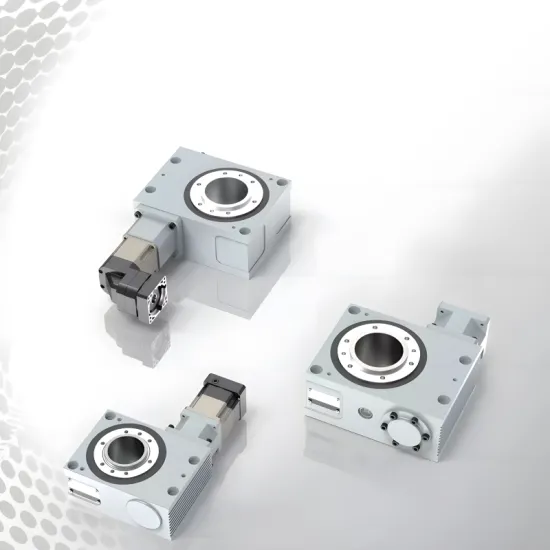

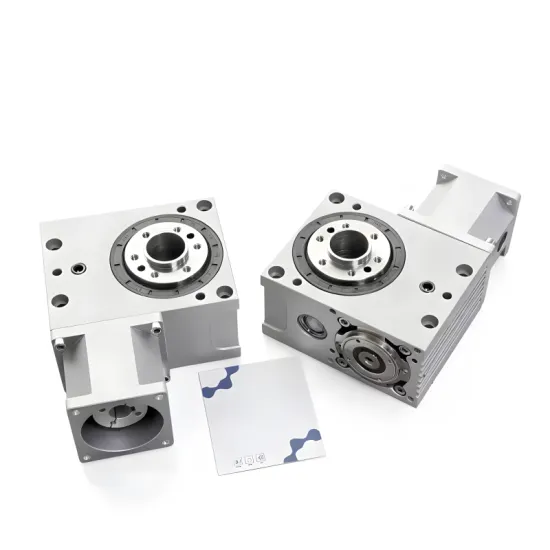

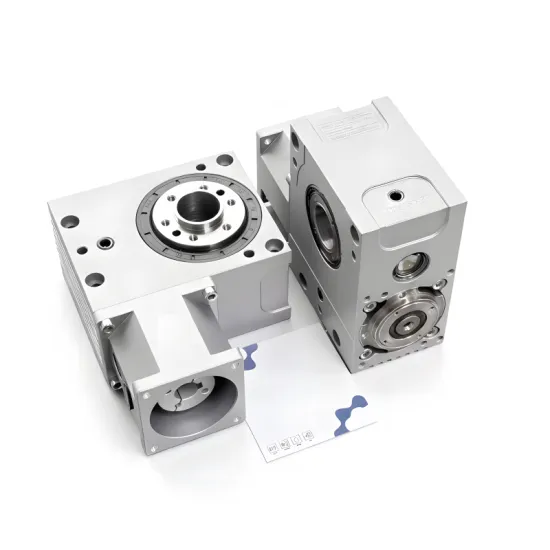

TAU-30R-15

TAU-45R-15

TAU-60R-20

TAU-80R-20

A planetary gear reducer is needed.

USD 100

Monthly Output100

contact shop

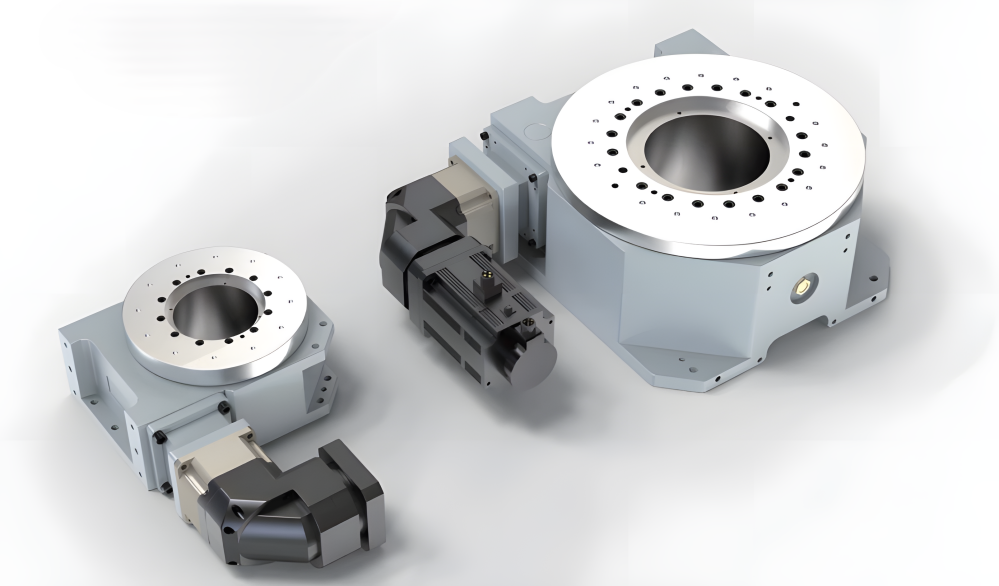

Precision hollow rotary indexing table

Indexing table

TAUR Corner

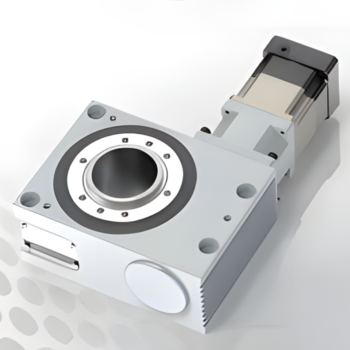

TAU Single Platform

TAUM Direct Connection

Platform installation

Installation method selection

1.Installation method of precision hollow rotary indexing table

Z-side installation

D-Horizontal Installation

U-ceiling installation

BD-wall mount installation

BP-wall-mounted ceiling installation

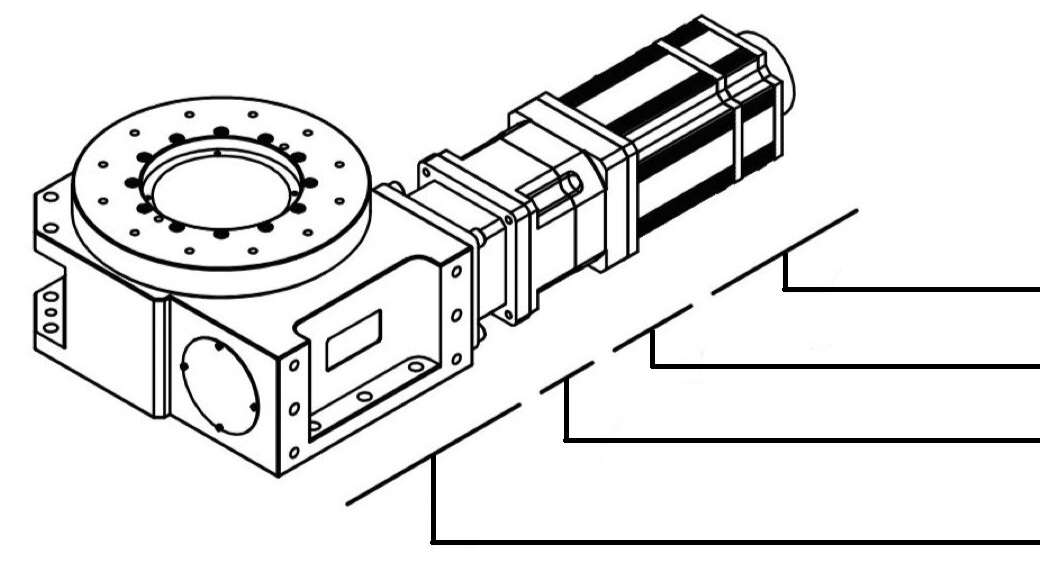

2.Names of components of a precision hollow rotary indexing table

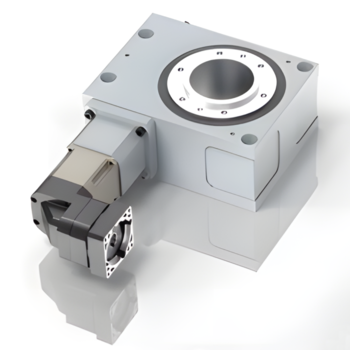

	1.Servo motor
	2. ·Planetary gear reducer * Planetary gear reducer increases speed ratio according to operating conditions 3.-The input flange * The planetary reducer is connected to the rotating platform via a coupling. The coupling is selected directly based on the output end of the planetary reducer.

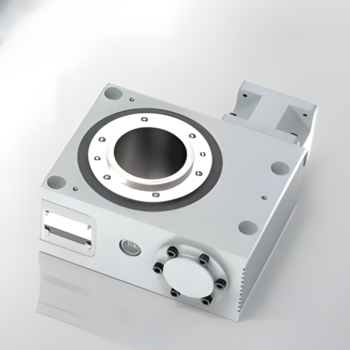

	4. Hollow Rotary Platform Main Body

Note: The standard is D-level installation. Please consult our company or distributor for other installation methods.

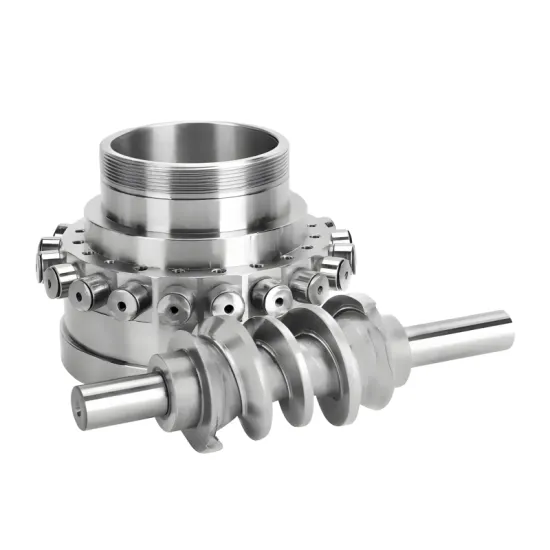

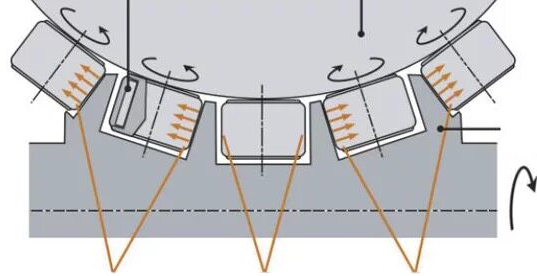

Mechanism characteristics of cam rollers

needle roller bearings

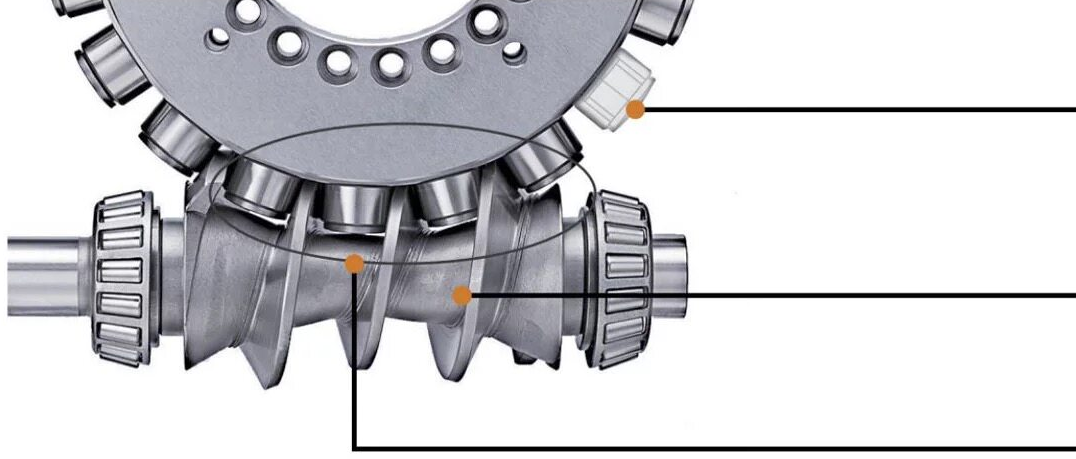

Precision Cam

Pre-compression state

Preload status diagram

Zero gap, high precision

1. The cam profile and needle roller bearing mesh perfectly 2.The mechanism is constantly preloaded, eliminating backlash, ensuring perfect surface finishing even when rotating in the same direction during machining (zero backlash in both directions).	needle roller bearings Turret (output)
		Cam, (input)
	Contact to the left The two sides Contact to the right do not touch
	The left and right sides are interlocked to ensure zero gap between forward and reverse rotation.

Performance Parameters

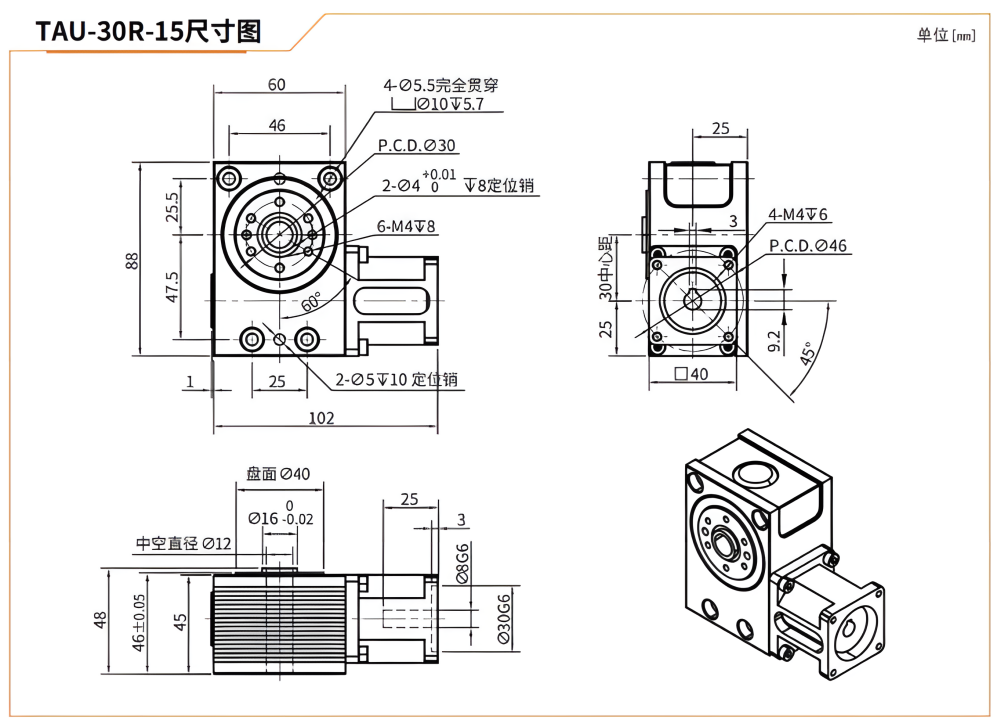

TAU-30R-15

Platform Reduction Ratio	15
Compatible Motor	Servo Motor
Compatible Servo Motor Power (KW)	0.05/0.1
Permissible Disc Speed (r/min)	<40
Permissible Load Torque (N.m)	12
Permissible Overturning Moment (N.m)	9
Permissible Axial Load - Dynamic (N)	465
Permissible Radial Load - Dynamic (N)	233
Moment of Inertia (kg.m²)	0.74x10⁻⁴
Indication Accuracy (arcsec)	±40
Repeatability (arcsec)	±10(0.0026⁰)
Rotary Table Parallelism (mm)	±0.005
Rotary Table Concentricity (mm)	±0.01
Service Life (h)	20000
Protection Class	IP54
Weight (excluding motor)	0.95 kg

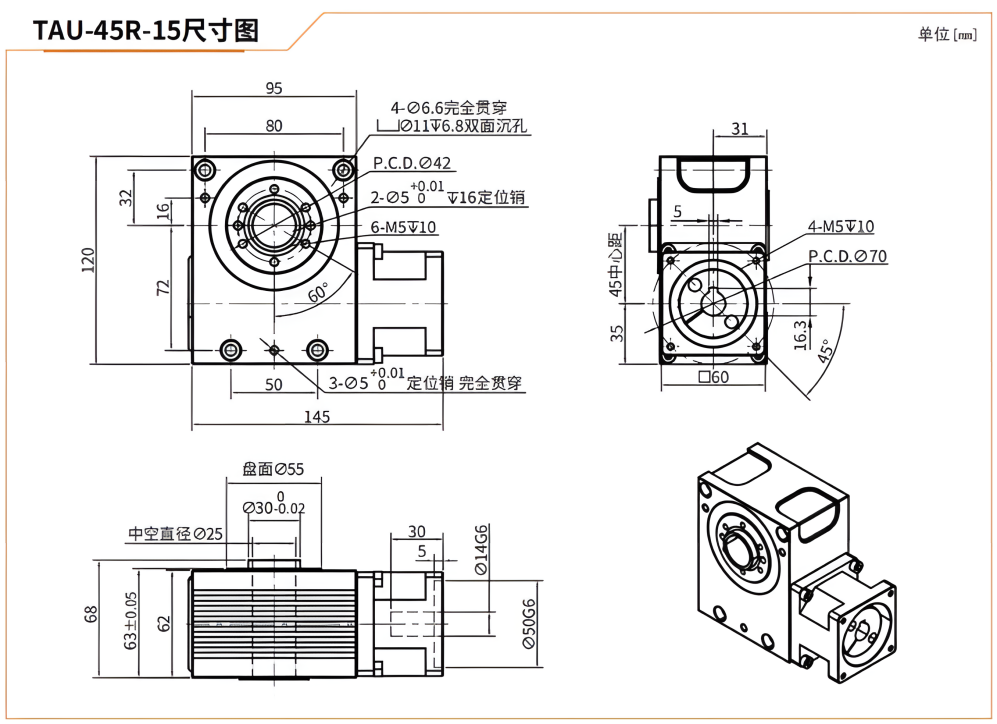

TAU-45R-15

Platform Reduction Ratio	15
Compatible Motor	Servo Motor
Compatible Servo Motor Power (KW)	0.2/0.4
Permissible Disc Speed (r/min)	<60
Permissible Load Torque (N.m)	31
Permissible Overturning Moment (N.m)	22
Permissible Axial Load - Dynamic (N)	1140
Permissible Radial Load - Dynamic (N)	570
Moment of Inertia (kg.m²)	3.03x10⁻⁴
Indication Accuracy (arcsec)	±25
Repeatability (arcsec)	±10(0.0026⁰)
Rotary Table Parallelism (mm)	±0.005
Rotary Table Concentricity (mm)	±0.01
Service Life (h)	20000
Protection Class	IP54
Weight (excluding motor)	2.6kg

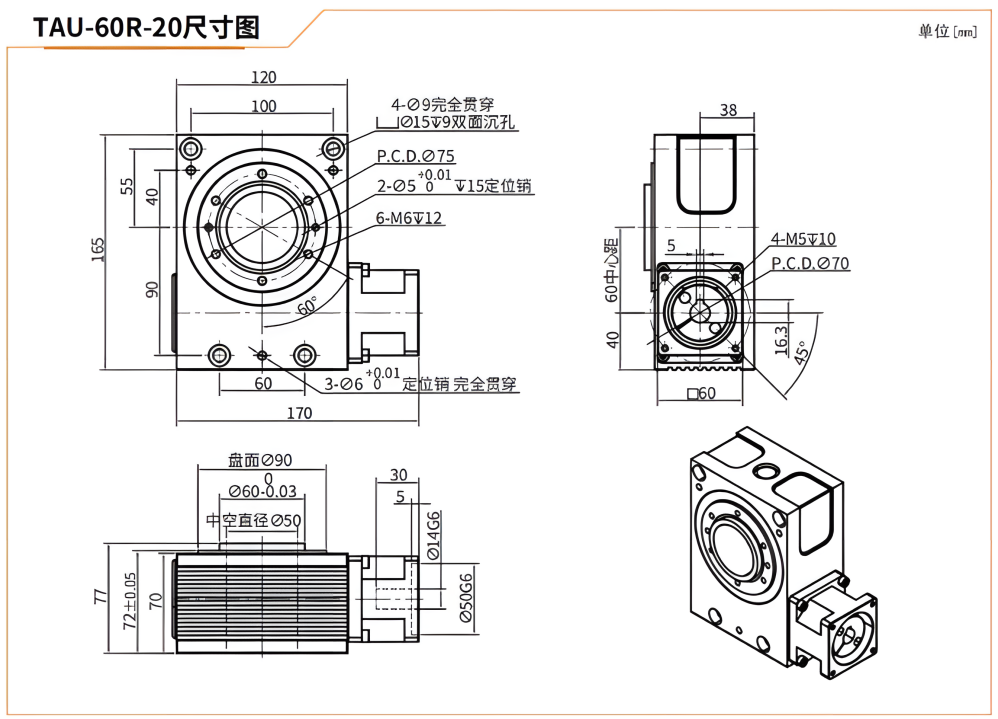

TAU-60R-20

Platform Reduction Ratio	20
Compatible Motor	Servo Motor
Compatible Servo Motor Power (KW)	0.2/0.4
Permissible Disc Speed (r/min)	<50
Permissible Load Torque (N.m)	127
Permissible Overturning Moment (N.m)	89
Permissible Axial Load - Dynamic (N)	2820
Permissible Radial Load - Dynamic (N)	1410
Moment of Inertia (kg.m²)	17.52x10⁻⁴
Indication Accuracy (arcsec)	±20
Repeatability (arcsec)	±5(0.0013⁰)
Rotary Table Parallelism (mm)	±0.005
Rotary Table Concentricity (mm)	±0.01
Service Life (h)	20000
Protection Class	IP54
Weight (excluding motor)	4.8kg

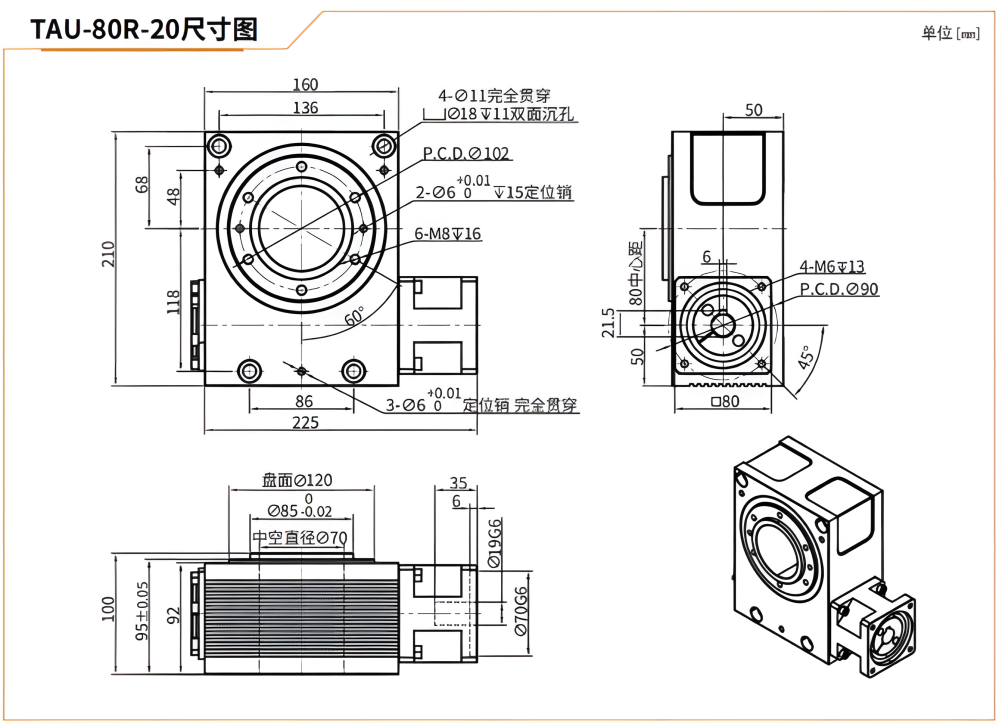

TAU-80R-20

Platform Reduction Ratio	20
Compatible Motor	Servo Motor
Compatible Servo Motor Power (KW)	0.75/1.0
Permissible Disc Speed (r/min)	<50
Permissible Load Torque (N.m)	289
Permissible Overturning Moment (N.m)	202
Permissible Axial Load - Dynamic (N)	4815
Permissible Radial Load - Dynamic (N)	2408
Moment of Inertia (kg.m²)	67.32x10⁻⁴
Indication Accuracy (arcsec)	±20
Repeatability (arcsec)	±5(0.0013⁰)
Rotary Table Parallelism (mm)	±0.005
Rotary Table Concentricity (mm)	±0.01
Service Life (h)	20000
Protection Class	IP54
Weight (excluding motor)	9kg
