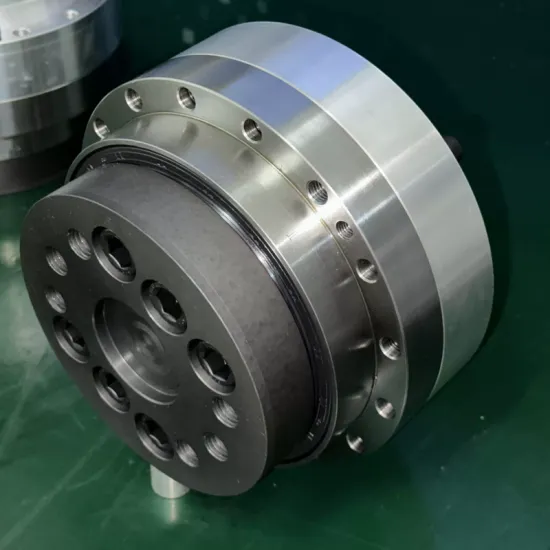

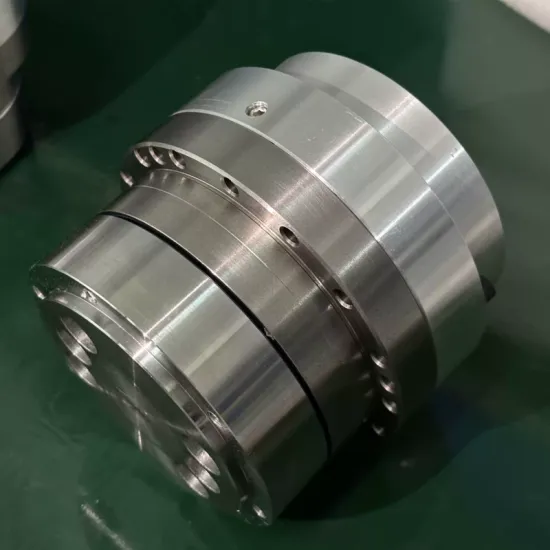

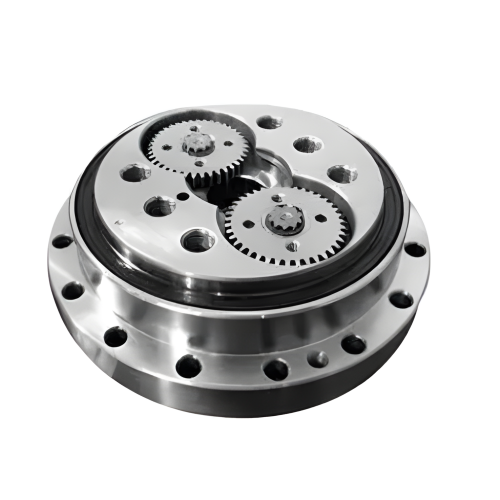

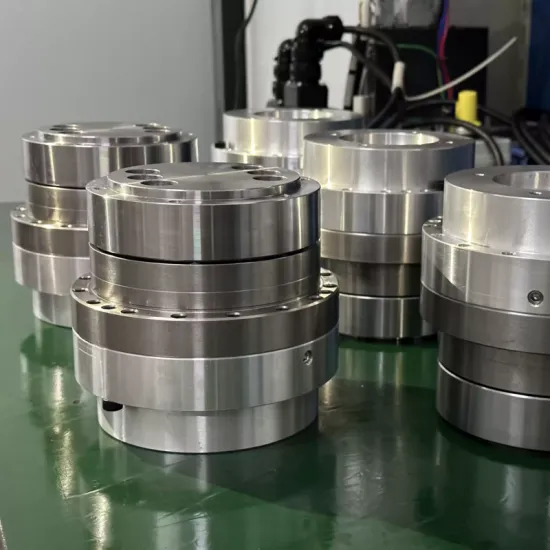

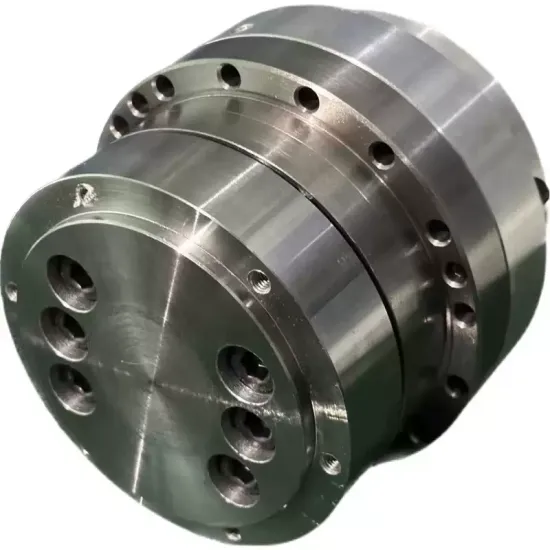

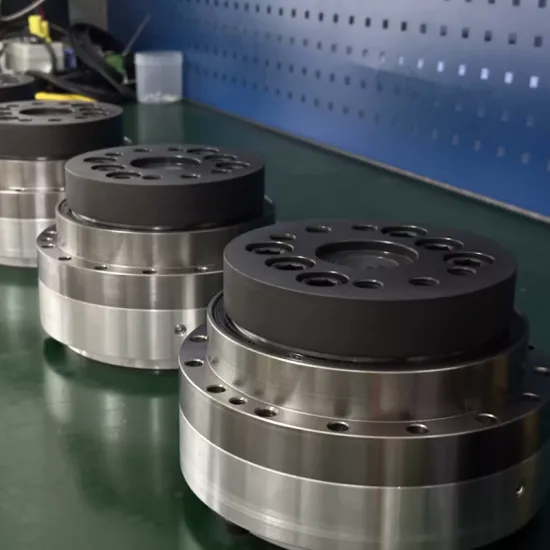

Eriksen - RV reducer, HANMAJESN cycloidal pinwheel reducer, KRA-20E/40E with flange integrated unit + output

Dongguan Ruike Precision Technology Co., Ltd.

Cooperative Supplier 8 Years

RV reducer, HANMAJESN cycloidal pinwheel reducer, KRA-20E/40E with flange integrated unit + output

sort by color：

KRA-20E Integrated Machine with Flange

KRA-40E with integrated flange

RE.00 Oils (one kilogram)

USD 100

Monthly Output100

contact shop

E Series - Output Torque and Efficiency

Output / Speed	5 r/min		18 r/min			25 r/min		30 r/min		Maximum permissible output speed (r/min)
Output / Speed	Output torque (N.m)	Input power (kW)	Output torque (N.m)	Input power (kW)	Output torque (N.m)	Output torque (N.m)	Input power (kW)	Output torque (N.m)	Input power (kW)	Maximum permissible output speed (r/min)
20E	245	0.16	170	0.4	80	153	0.5	153	0.6	75
40E	612	0.4	425	1	80	367	1.2	382	1.5	70
80E	1146	0.75	743	1.75	80	673	2.2	637	2.5	70
110E	1528	1	934	2.2	80	978	3.2	892	3.5	50
160E	2292	1.5	1571	3.7	80	1437	4.7	1274	5	45
320E	4584	3	2972	7	80	2903	9.5	2802	11	35
450E	6112	4	3905	9.2	80	/	/	/	/	25

Note 1: Rated torque refers to the output torque at an output speed of 18 r/min. The input power takes into account the efficiency of the reducer.

Note 2: Torque calculation formula: 1 = 9549pxm/N (T: torque m, P: power ka, speed r/min, efficiency s).

Technical Specifications

Project / Model	Reduction Ratio		Allowable torque (Nm)	Torsional stiffness (Nm/Arcmin)	Allowable time Maximum torque Nm	Transmission accuracy Arcmin	Gear backlash Arcmin	Lifespan h	Weight kg
	Precision Output	Shell Output
20E	81	80	880	49	820	1	1	6000	4.7
	105	104
	121	120
	141	140
	161	160
40E	81	80	1600	108	2000	1	1	6000	9.3
	105	104
	121	120
	153	152
80E	81	80	2000	196	3600	1	1	6000	13.1
	101	100
	121	120
	153	152
110E	81	80	2900	294	5380	1	1	6000	17.4
	111	110
	161	160
	175.28	174.28
160E	81	80	3900	392	7800	1	1	6000	26.4
	101	100
	129	128
	145	144
	171	170
320E	81	80	7000	980	15600	1	1	6000	44.3
	101	100
	118.5	117.5
	129	128
	141	140
	171	170
	185	184

Product Applications

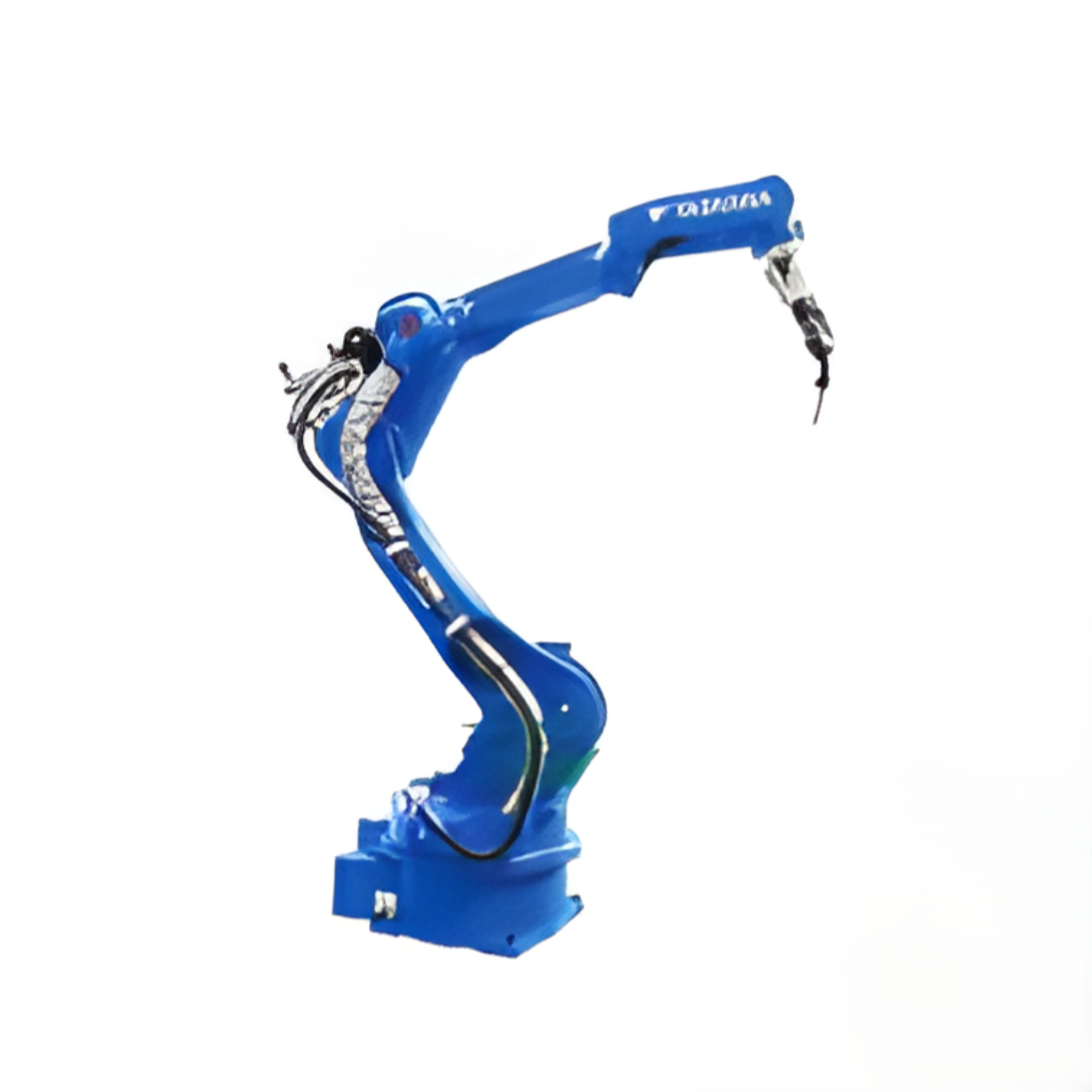

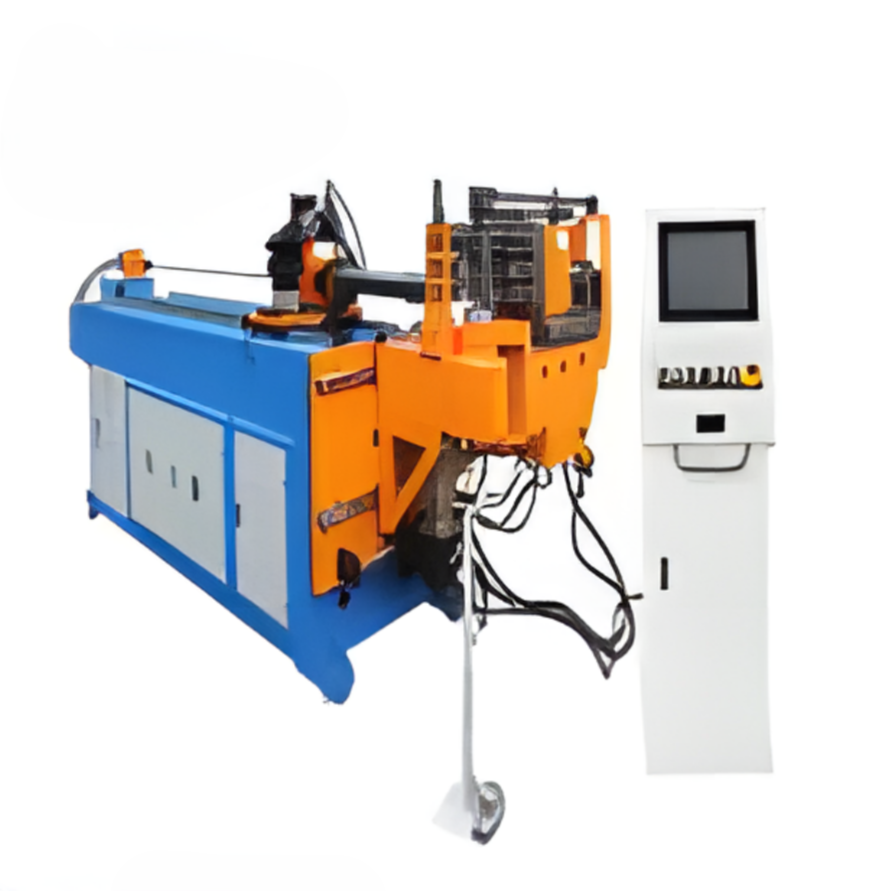

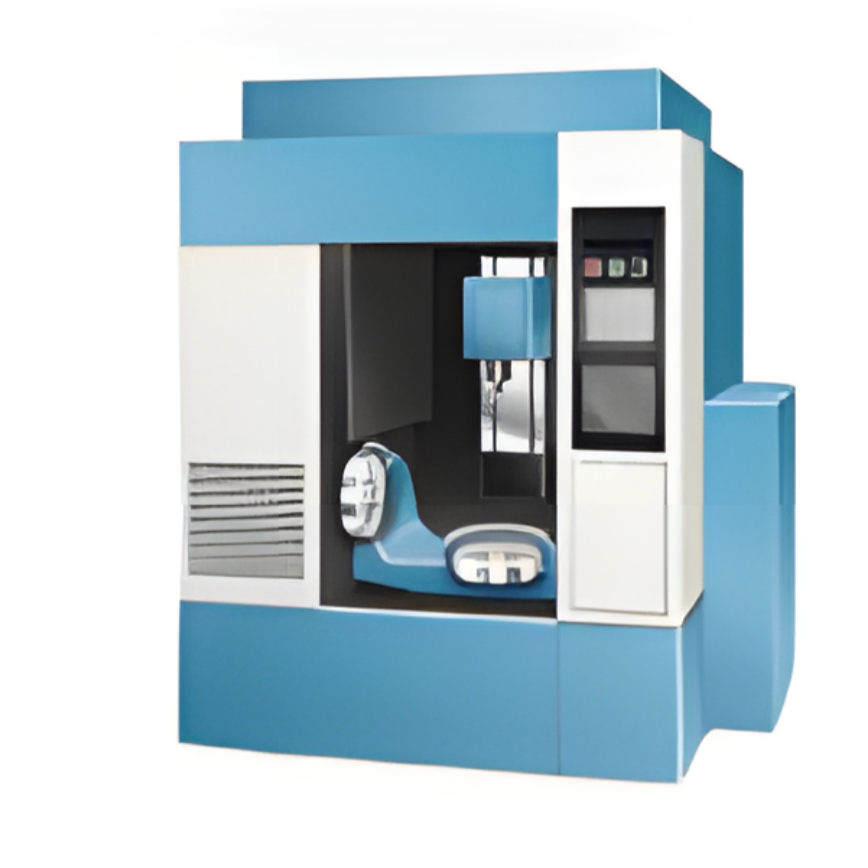

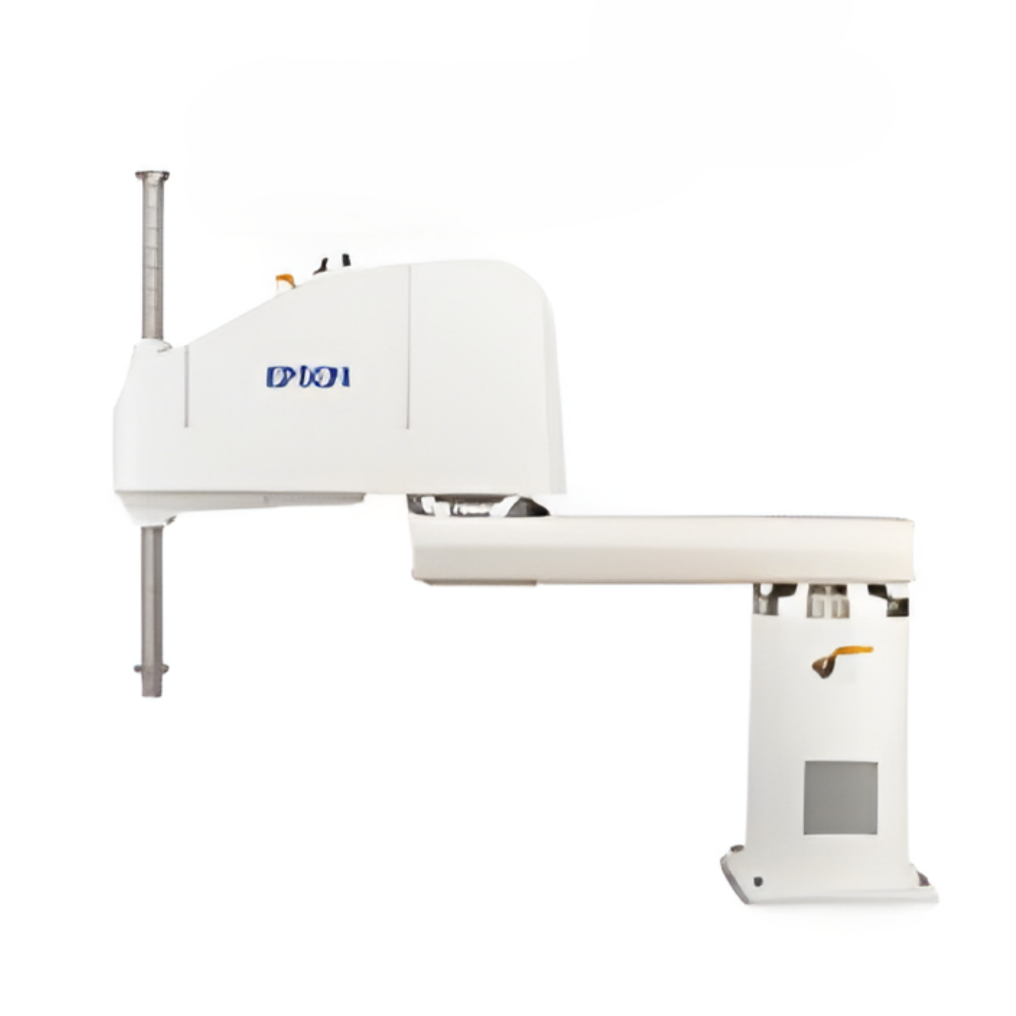

Pipe Bending Machine	Robot Arm	Scara Robot	CNC machine center

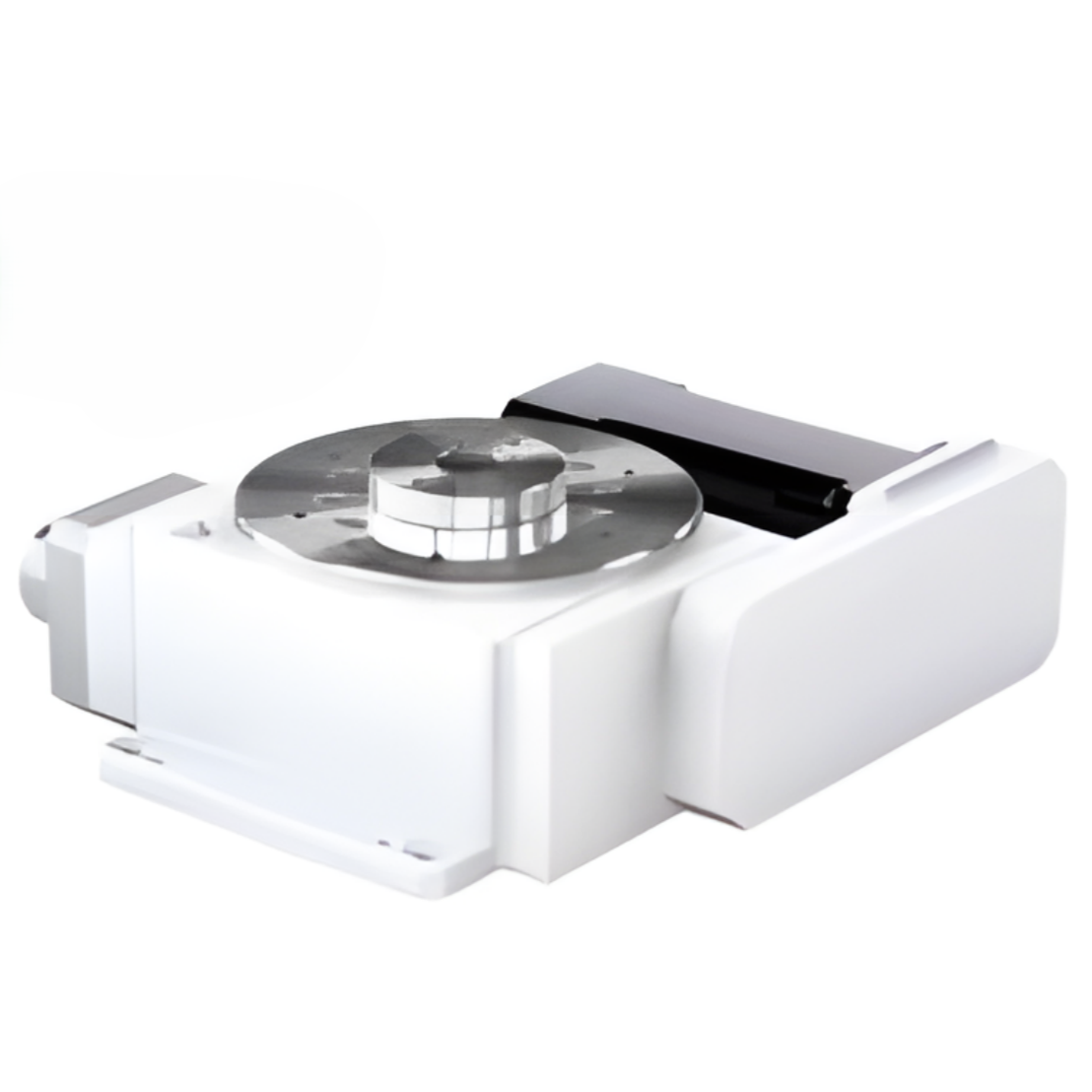

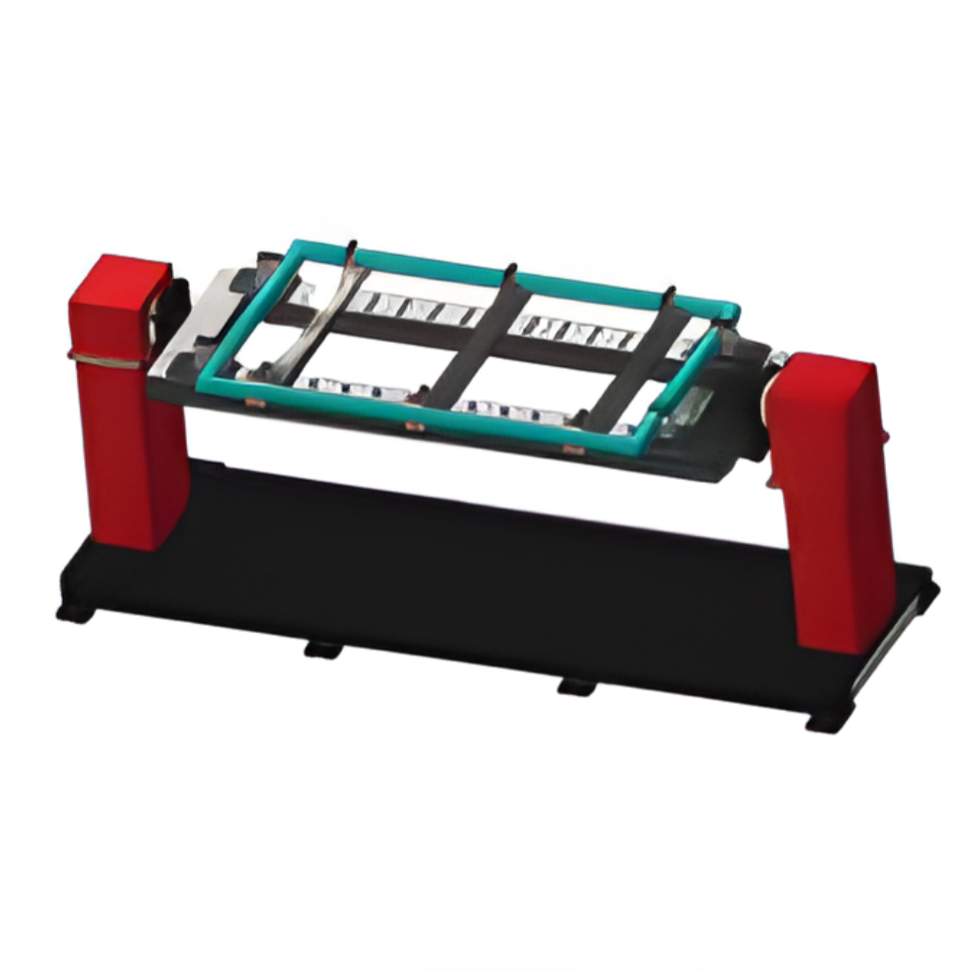

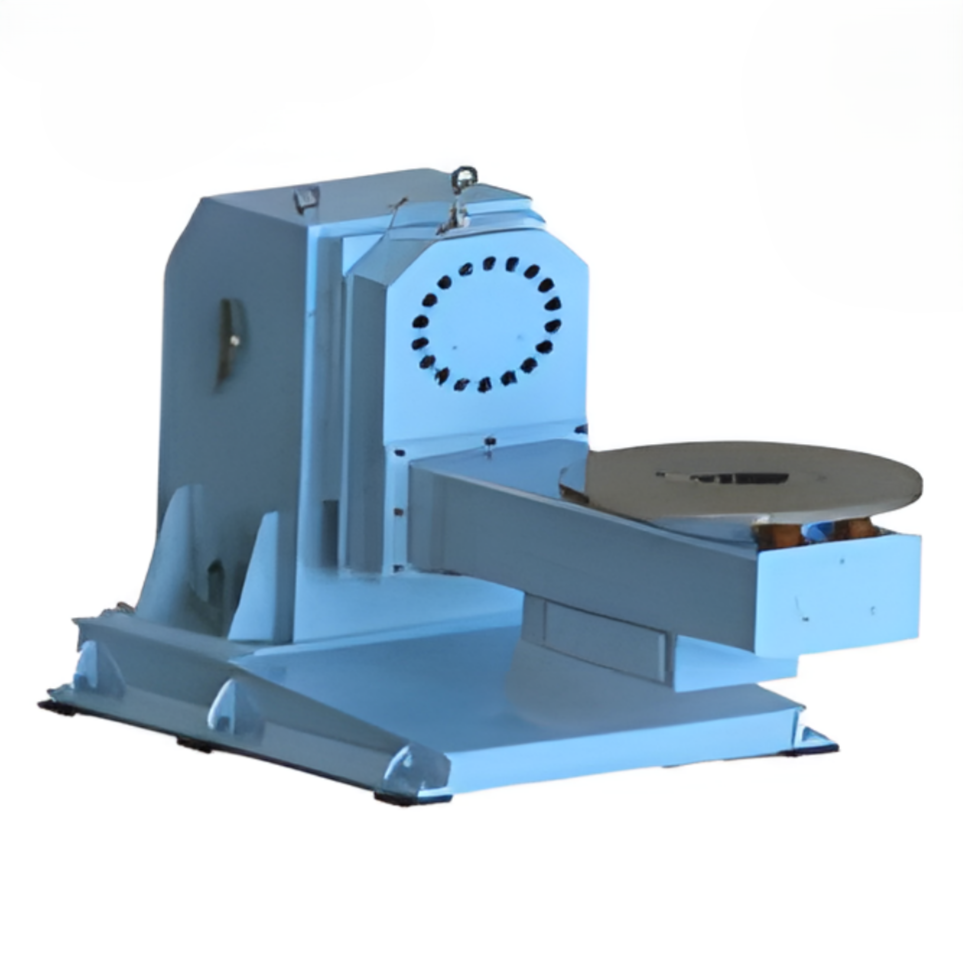

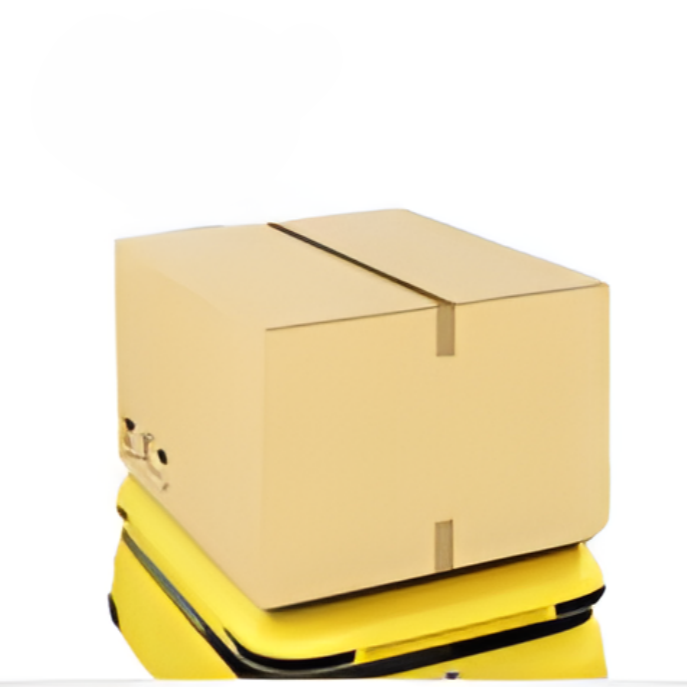

Positioner	Positioner	AGV	Indexing table

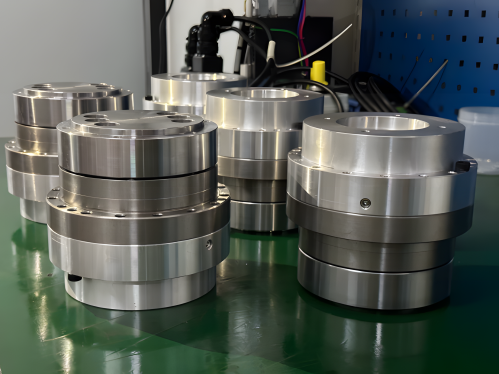

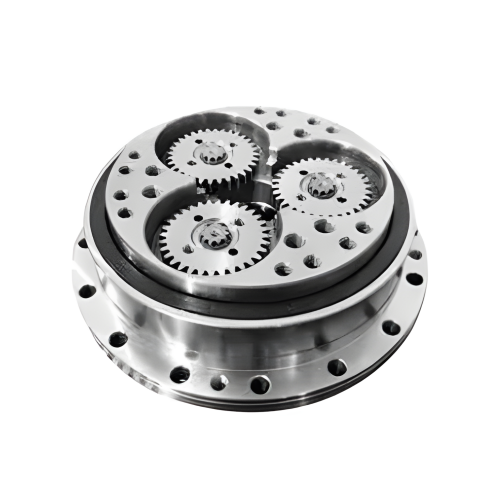

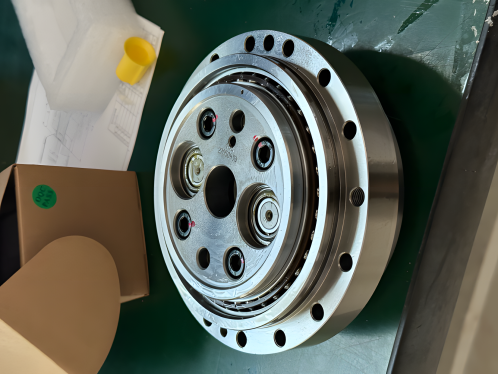

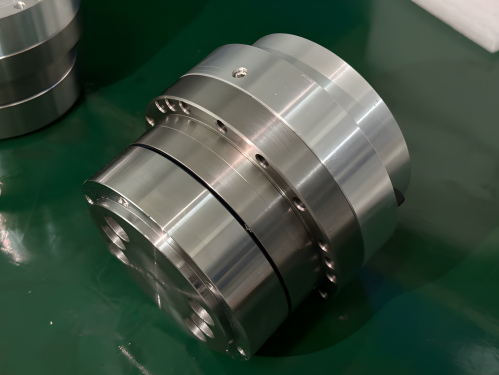

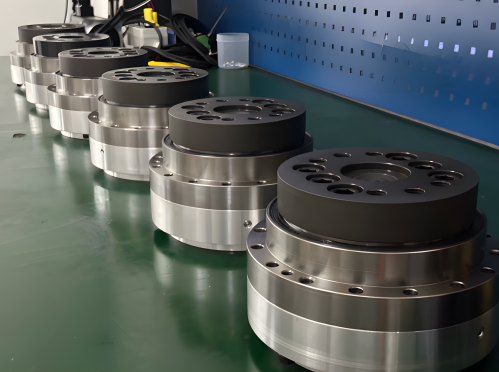

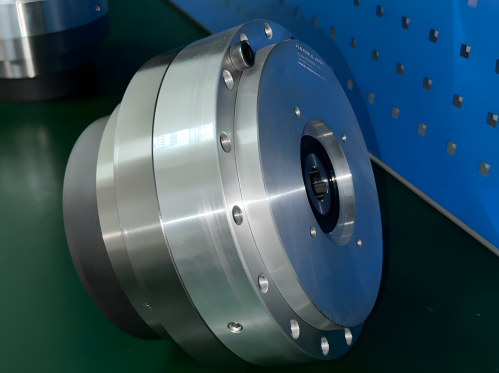

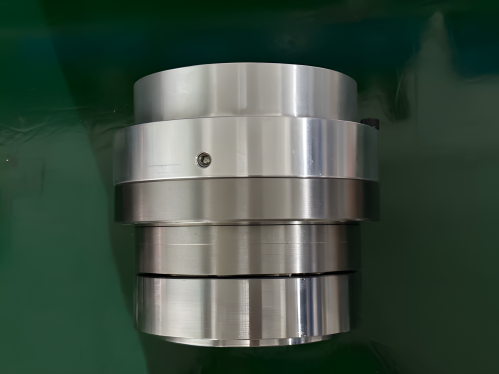

Product Display

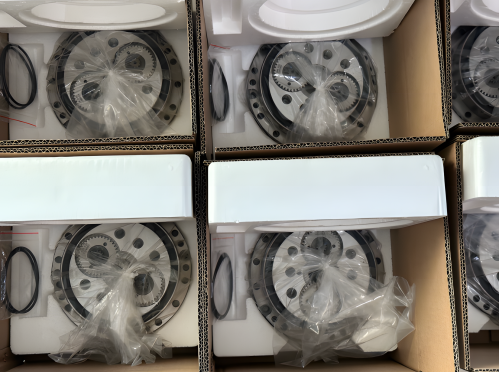

Packaging & Transportation
