Product Description

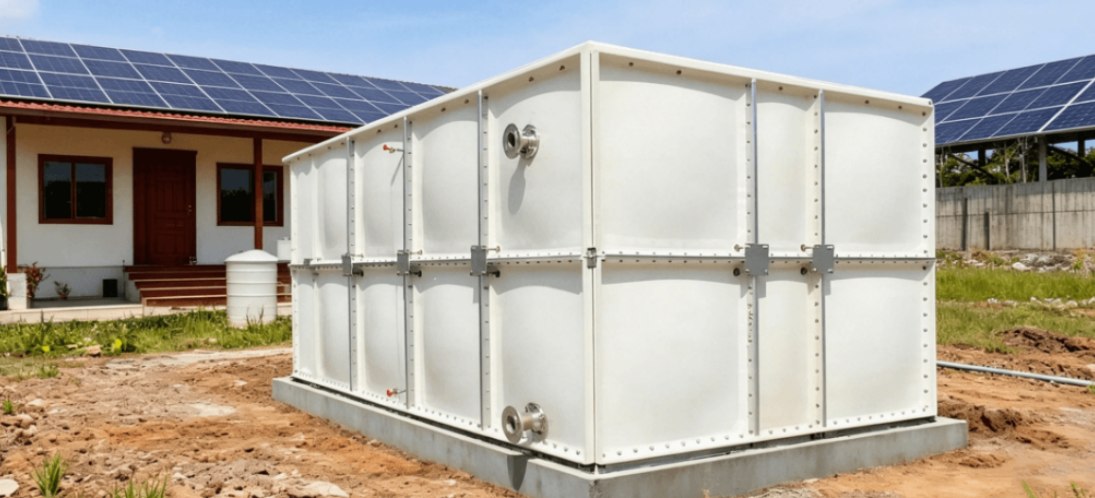

Fabricated with premium‑grade fiberglass and resin, this modular tank delivers reliable sealing, stable structure and zero‑leak performance. Lightweight, corrosion‑resistant, easy‑to‑maintain and long‑lasting. All panels are field‑assembled to accommodate flexible project requirements. Suitable for water storage across residential, commercial, agricultural and industrial projects, such as prefabricated villas, container homes and houseboats.

Product Features

Effective sealing

Full‑light‑blocking design delivers superior sealing performance, inhibits algae growth and keeps water quality clean.

Easy to assemble

Modular‑panel design enables quick on‑site assembly. Various capacities can be customized to meet different project requirements with neat appearance.

Strong pressure‑bearing capacity

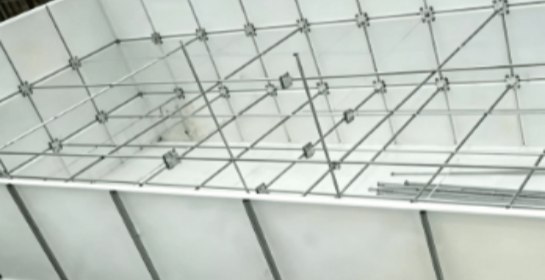

High‑strength molded panels plus evenly distributed internal stainless‑steel reinforcements realize stable and uniform pressure resistance for the tank.

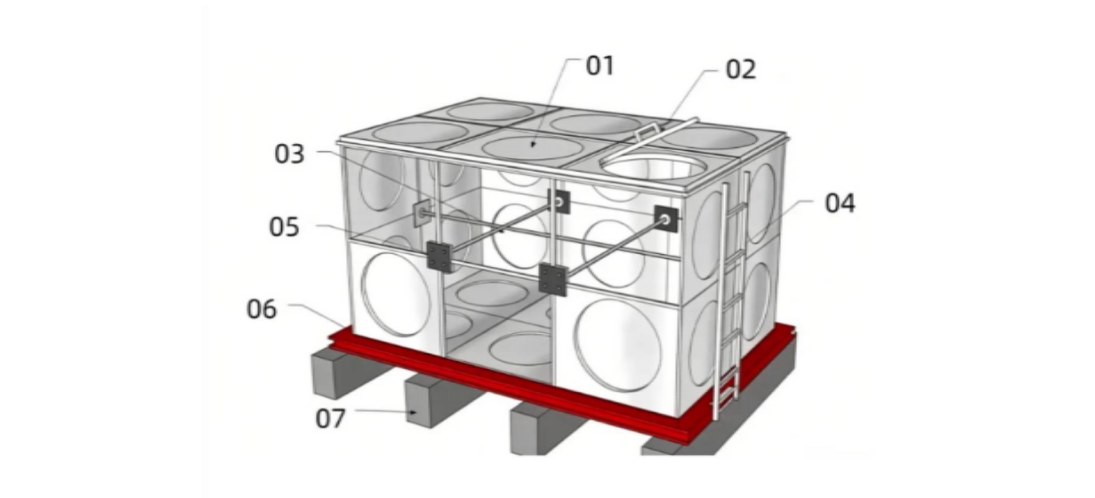

Structure Diagram

① Panel                                                 ② Manhole                                                 ③ Tie Rod

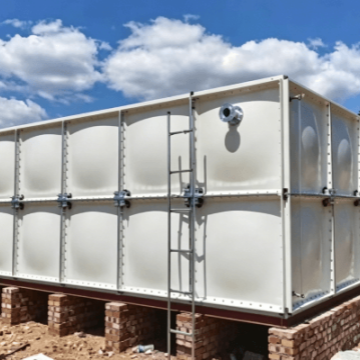

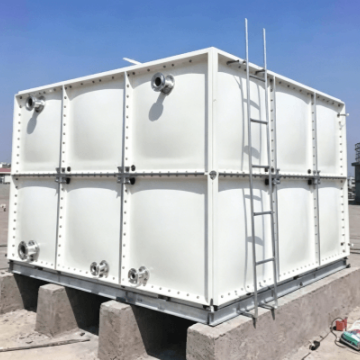

④ Ladder                                               ⑤ Lacing Board                                         ⑥ C-Channel Base
⑦ Concrete Foundation

SMC water tanks consist of four components:
(1) Panels (bottom panel, side panels, roof panel, and manhole);
(2) Internal components (internal ladder, tie rods, brackets, flanges, and rubber seals);
(3) External components (external ladder, angle iron, steel plates, bolts, and nuts);
(4) U-channel steel base (surface treatment options include painting, hot-dip galvanizing, or stainless steel).

Product parameters

Material	Fiberglass / SMC / Stainless Steel
Dimensions	2×1m, 1.5×1m, 1×1m, 1×0.5m, 0.5×0.5m
Panel Shape	Spherical
Thickness	6-20 mm
Note	Thickness tolerance: ±0.2 mm
Volume	0.125-5000 m³
Color	White, blue, etc.
Compressive Strength (MPa)	≥ 60
Flexural Strength (MPa)	≥ 100
Flexural Modulus (GPa)	≥ 7.0
Pap Hardness	≥ 60
Water Absorption Rate	≤ 1.0%
Glass Fiber Content	≥ 25%
Leakage	No leakage when filled with water
Water-Filled Deformation	After filling with water, maximum wall deformation does not exceed 1.0%. Maximum deformation at the center height of the tank bottom does not exceed 10 mm.

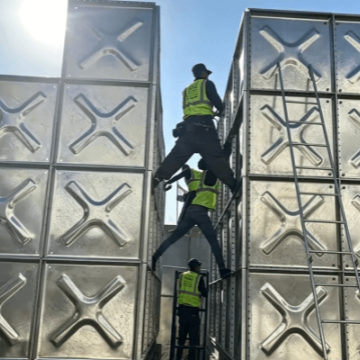

Customer Case
