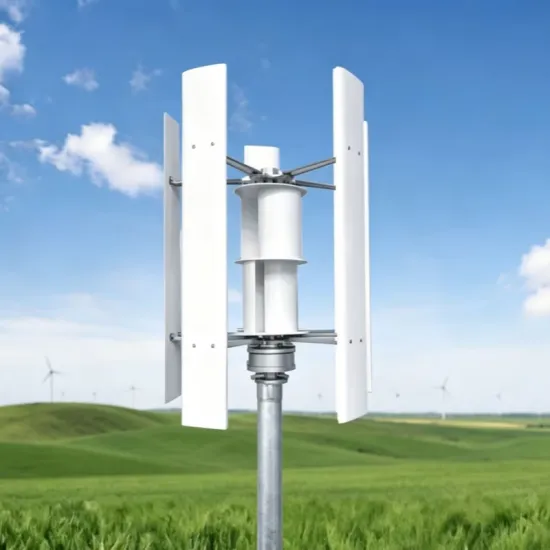

Product Description

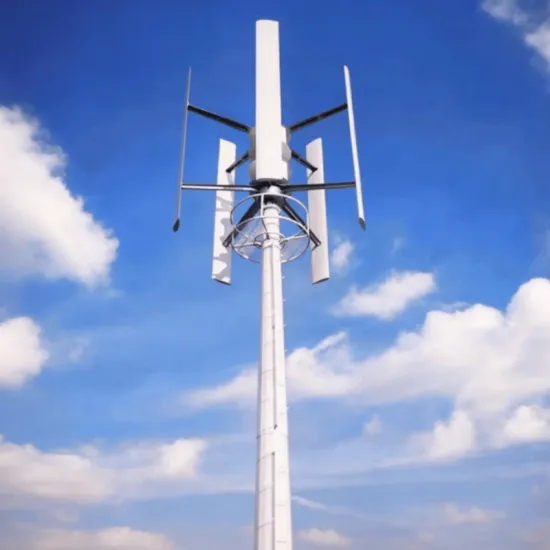

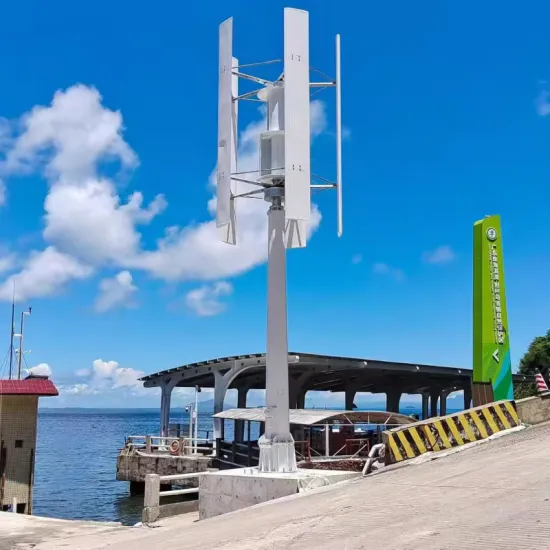

The VH Series vertical axis wind turbine (VAWT) delivers compact, high-efficiency renewable energy solutions, available in power ratings from 100W to 5KW and voltage configurations ranging from 12V to 380V.

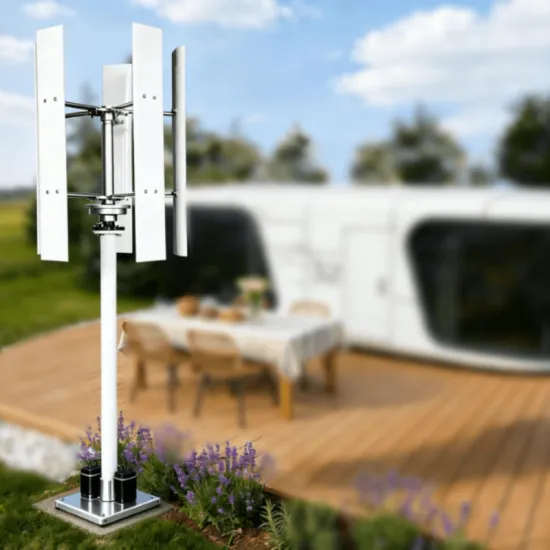

Engineered for residential, outdoor and off-grid applications, this turbine can be integrated with solar panels and battery storage systems to build robust hybrid solar-wind power systems. It works well for houses, cabins, container homes and remote off-grid locations.

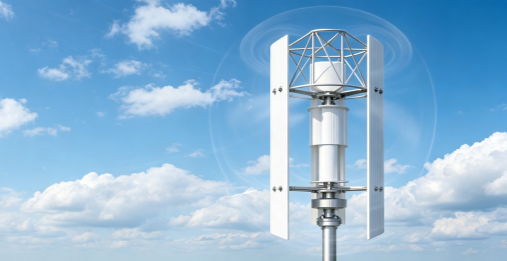

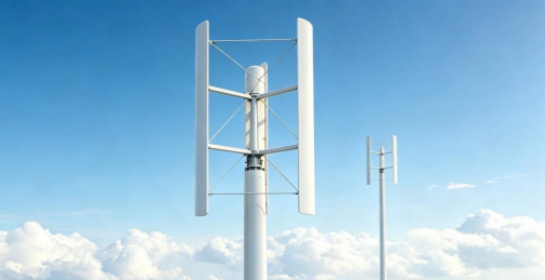

Thanks to its vertical-axis design, the turbine features low start-up wind speed and maintains stable performance under winds from all directions. The VH Series vertical wind generator serves as an excellent solution for off-grid residential power supply and other small-scale clean energy projects.
Product Features
Low Start-Up Wind Speed
It starts power generation at a wind speed as low as 2.5m/s, making it well-suited for residential power supply and various small-scale renewable energy projects.
Quiet Operation for Residential Use

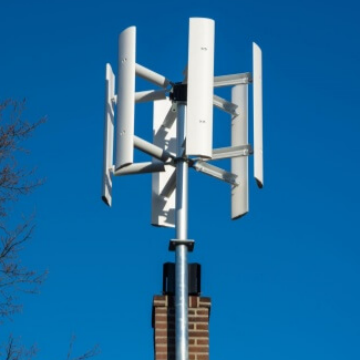

Featuring ultra-low noise operation, this turbine can be installed near residences, cabins and campsites. It brings no noise interference for outdoor living scenarios.
Durable Outdoor Construction

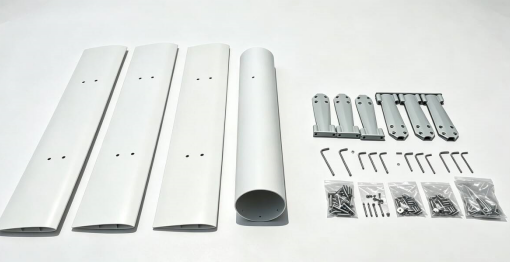

Built with an aluminum alloy housing and carbon steel structure, this turbine delivers reliable corrosion resistance and waterproof performance for long-lasting outdoor service.

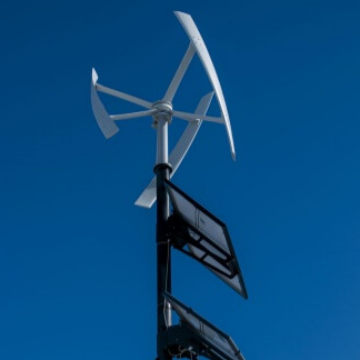

Easy Integration with Solar Energy

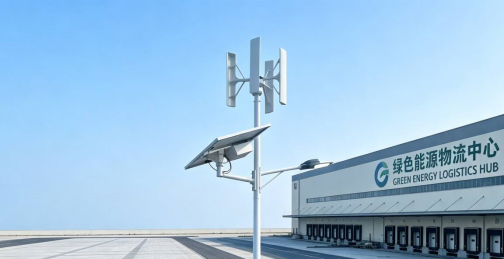

Compatible with photovoltaic panels and battery storage systems, it supports off-grid hybrid power solutions and integrated wind-solar off-grid generation systems.
Product parameters
Model | VH100 | VH200 | VH300 | VH500 | VH600 | VH800 | VH1000 | VH2000 | VH5000 |
Rated power | 100W | 200W | 300W | 500W | 600W | 800W | 1000W | 2000W | 5000W |
Maximum power | 150W | 250W | 350W | 550W | 650W | 850W | 1500W | 2500W | 6000W |
Rated voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 24V/48V | 24V/48V | 24V/48V | 24V/48V/96V | 24V/48V/96V/220V/380V |
Start-up wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s |
Rated wind speed | 13m/s | 13m/s | 13m/s | 13m/s | 13m/s | 13m/s | 13m/s | 13m/s | 13m/s |
Survival wind speed | 40m/s | 40m/s | 40m/s | 40m/s | 40m/s | 45m/s | 45m/s | 45m/s | 45m/s |
Number of blades | 3 pieces | 3 pieces | 3/5 pieces | 3/5 pieces | 3/5 pieces | 3/5 pieces | 3/5 pieces | 3/5 pieces | 3/5 pieces |
Body material | Aluminium alloy | ||||||||
Generator | Three-phase AC permanent magnet generator / maglev generator | ||||||||
Control system | Electromagnetic brake | ||||||||
Yaw mode | Automatic windward angle | ||||||||
Lubrication mode | Self-lubrication | ||||||||
Tower form | Guyed tower / independent tower | ||||||||
Working temperature | -40℃ ~ 80℃ | ||||||||
Application
home backup power systems
off-grid houses
wind-solar hybrid system
