Product Description

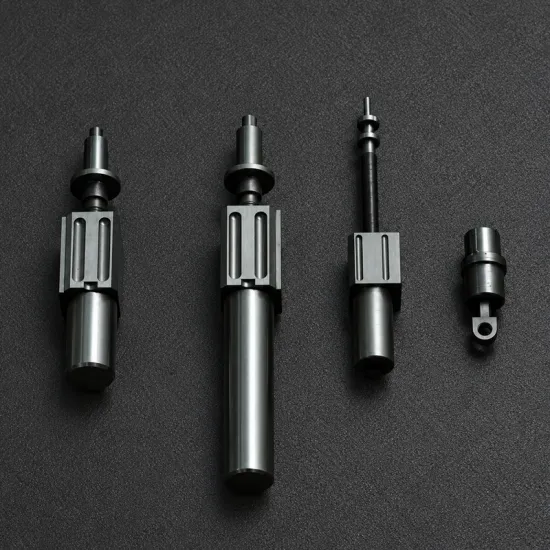

Miniature Planetary Roller Screw
Product parameters
Supermicro PWG differential planetary roller screw | ||||||||
Model | Diameter (mm) | Lead (mm) | Basic static load rating
| Maximum axial clearance (mm) | Theoretical efficiency | Minimum nut diameter (mm) | ||
Co (N) | Coa(N) | n1 | n2 | |||||
PWG
| 2.5 | 0.23 | 300 | 500 | 0.02 | 0.81 | 0.76 | 6.5 |
0.45 | 320 | 530 | 0.02 | 0.85 | 0.80 | 6.5 | ||
0.67 | 350 | 550 | 0.02 | 0.88 | 0.83 | 6.5 | ||
3.5 | 0.37 | 800 | 1200 | 0.02 | 0.81 | 0.76 | 8.5 | |
0.73 | 830 | 1250 | 0.02 | 0.85 | 0.80 | 8.5 | ||
1.46 | 850 | 1280 | 0.02 | 0.88 | 0.83 | 8.5 | ||
5.5 | 0.37 | 1000 | 1600 | 0.02 | 0.81 | 0.76 | 13.5 | |
1.1 | 1200 | 1700 | 0.02 | 0.88 | 0.83 | 13.5 | ||

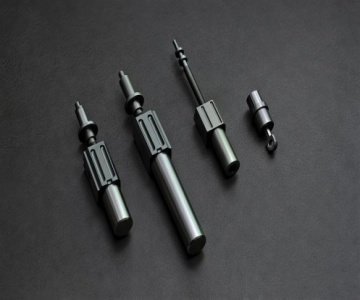

Product Display

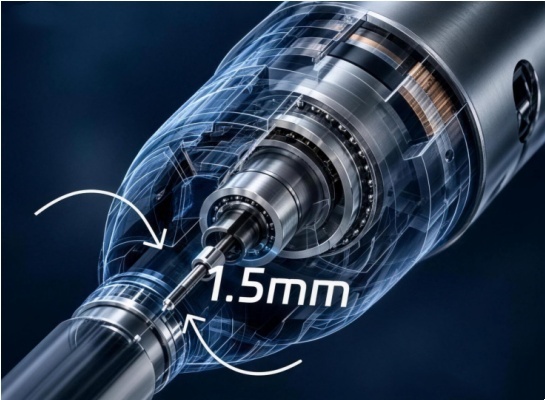

This tiny component, just 1.5 mm in diameter, could be a critical bottleneck in the trillion-dollar humanoid robotics ecosystem.

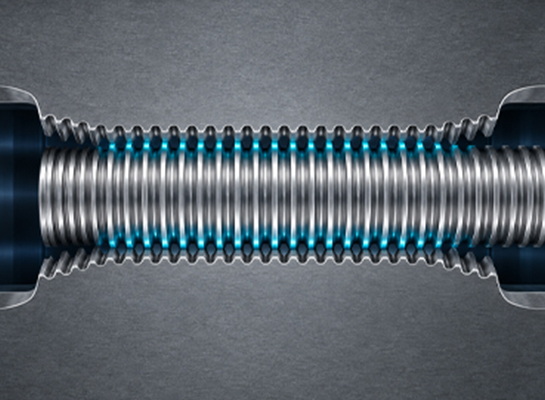

From point contact to line contact.
It’s like a row of hands working together to distribute the load, ensuring more uniform pressure and delivering significantly

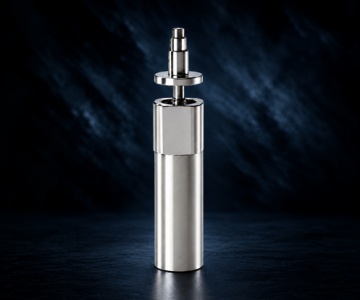

Smaller. Stronger. More Precise.

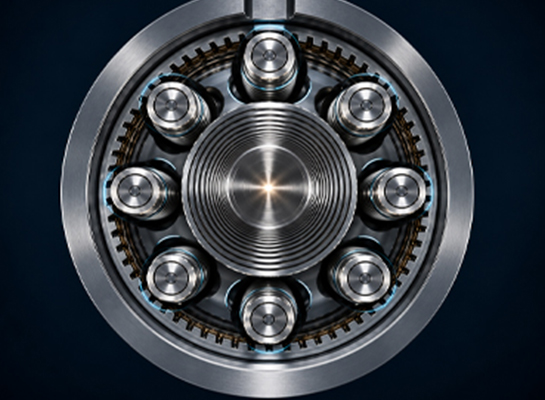

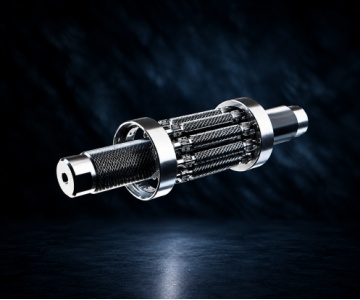

Inside, the main shaft is like the Sun, while the threaded rollers surrounding it are like planets, rotating on their own axes
It is the dense engagement between these threads that transforms rotational motion into smooth, precise linear thrust.
Application Cases
Planetary roller screws provide lightweight, high-performance motion transmission solutions for humanoid robots, with broad applications in industrial automation, medical equipment, consumer electronics, and the low-altitude economy.
Surgical Robotics
Robotic Facial Expressions
3C Electronics
Company Introduction
Avatar Intelligent Equipment Co.,Ltd. specializes in the R&D and supply of robotic prod-ucts and mobile solutions for robot platforms. Its core product line covers various robot application related products such as wall finishing robots, cleaning robots, grippers, and robotic arms. The company has built an integrated service system from R&D, quality inspection,production to sales and after sales service, providing customers with reliable intelligent equipment support through independent technical strength.
Service
Q1. who are we?
A:We are based in Henan, China, start from 2012,sell to South America(40.00%),Southeast Asia（30.00%),Eastern
Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
Q2. how can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3.what can you buy from us?
A: Robot Application and parts products.
Q4. what services can we provide?
A: Accepted Delivery Terms: FOB,EXW;Accepted Payment Currency:USD; Accepted Payment Type: T/T,Western Union; Language Spoken:English,Chinese.
Q5. How does your factory do the quality control?
A: There is system to control the quantity from IQC to production process to OQC.
