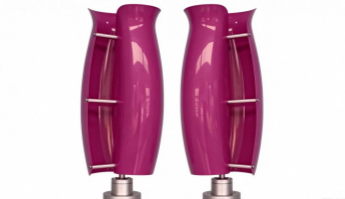

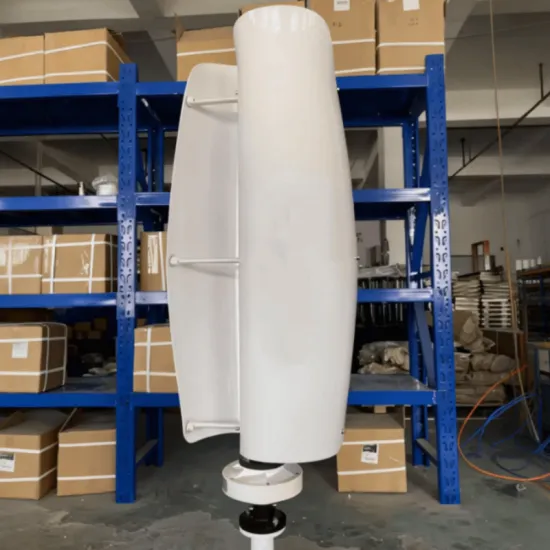

Product Description

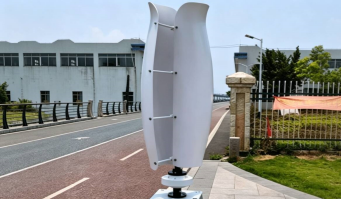

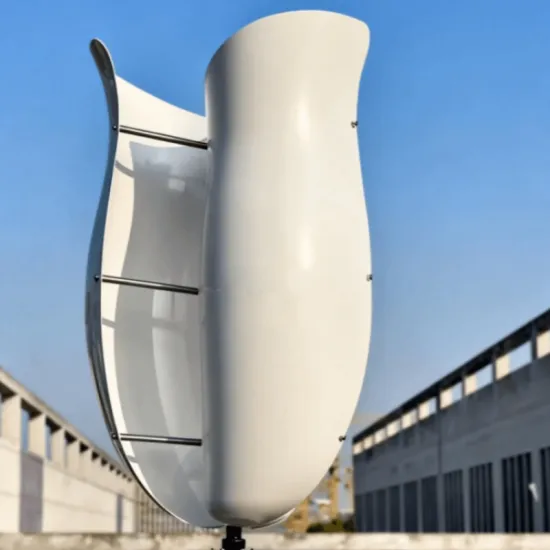

The Tulip vertical axis wind turbine captures wind efficiently even in low-wind areas. With an elegant compact look and quiet operation, it suits rooftops & yards for home, commercial and light industrial use, delivering reliable renewable power.

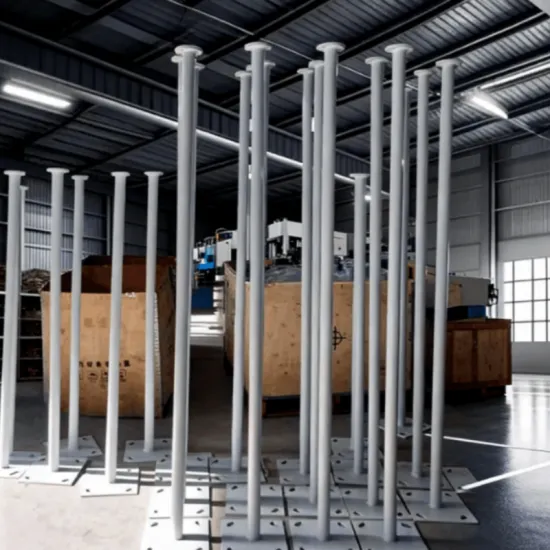

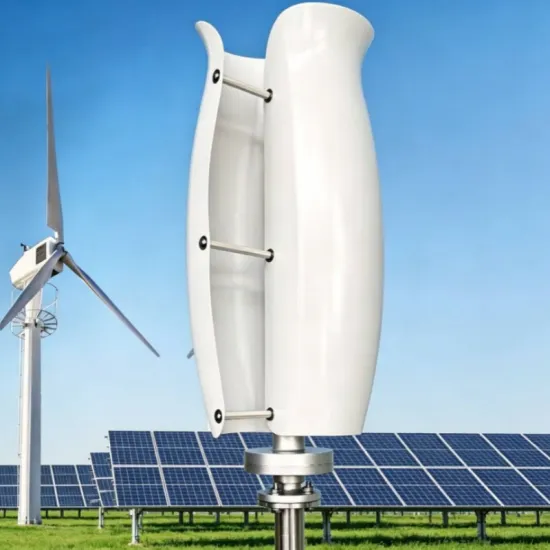

Its matched mounting pole is made of high-strength anti-corrosion steel. It provides stable long-term support, perfect for off-grid and wind-solar hybrid systems.
Product Features
Strong wind resistance
Excellent wind resistance, keeps running well in heavy winds.

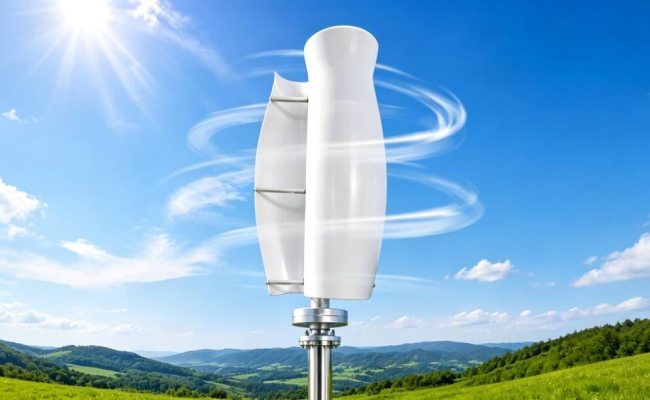

360°automatic wind-following
Full 360° automatic wind-following, always faces the wind for better power output
Wide Application Scenarios
Suitable for streetlight monitoring, landscape islands, and various other applications

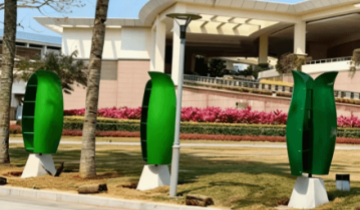

Application Cases

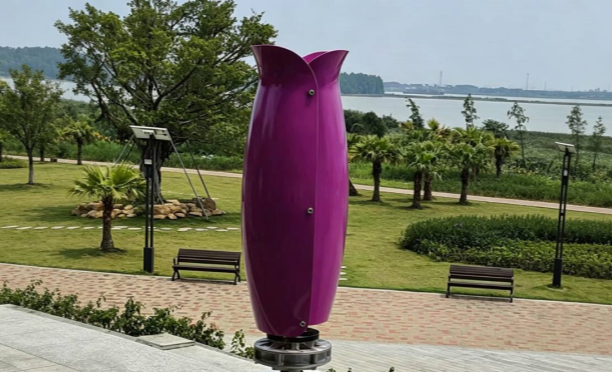

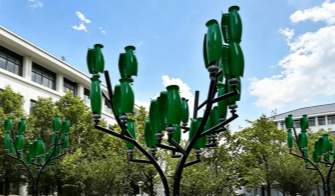

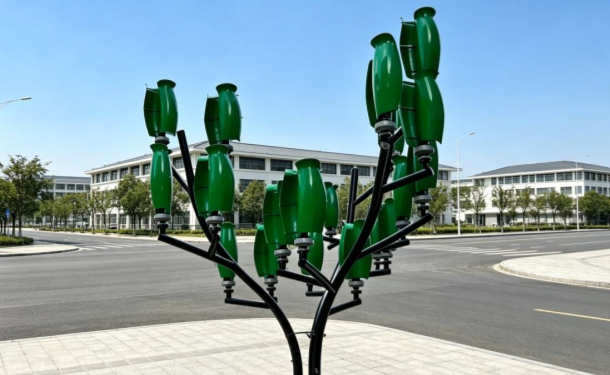

The tulip-shaped wind turbine is ideal for residential, urban, and off-grid applications, as well as scenarios like environmental monitoring, delivering quiet, reliable power even in low-wind conditions.
Technical Parameter
Rated Power | 100w | 200W | 600W | 1000W |
Rated Wind Speed | 11m/s | 11.5m/s | 11m/s | 12m/s |
Rated Voltage | 12/24V | 24/48V | ||
Start-up Wind Speed | ≤2m/s | |||
Rotor Diameter | 0.38m | 0.52m | 1m | |
Overall Height | 0.85m | 1.25m | 2.015m | |
Safe Wind Speed | 25 m/s | |||
Braking Method | Electromagnetic unloading | |||
Connection Method | Flange connection | |||
Generator | Three-phase AC magnetic levitation generator | |||
Blade Material | ABS | Reinforced fiberglass | ||
Number of Blades | 2 | |||
Operating Temperature | -20℃-60℃ | |||
Design Life | 25years | |||
Insulation Class | F | |||
Protection Rating | IP54 | |||
Weight | 7KG | 18.5KG | 50KG | |
Wind Turbine Power | Recommended Pole Height | Pole Diameter | Wall Thickness | Support Type |
300W – 500W | 3m – 6m | 60–76mm | 2.0–2.5mm | Free-standing / Optional guy wire |
600W – 1kW | 6m – 9m | 76–89mm | 2.5–3.0mm | Guy wire recommended |
2kW – 3kW | 9m – 12m | 89–114mm | 3.0–4.0mm | Guy wire required |
5kW | 12m – 18m | 114–140mm | 4.0–5.0mm | Reinforced + guy wire |
10kW | 18m – 24m | 140–219mm | 5.0–6.0mm | Tower structure (not simple pole) |
