Product Description

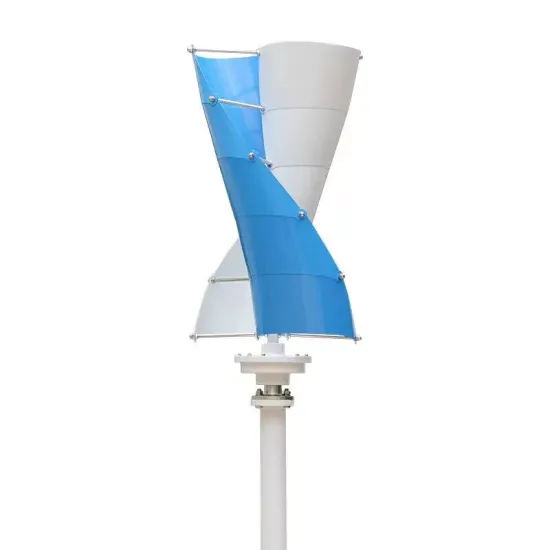

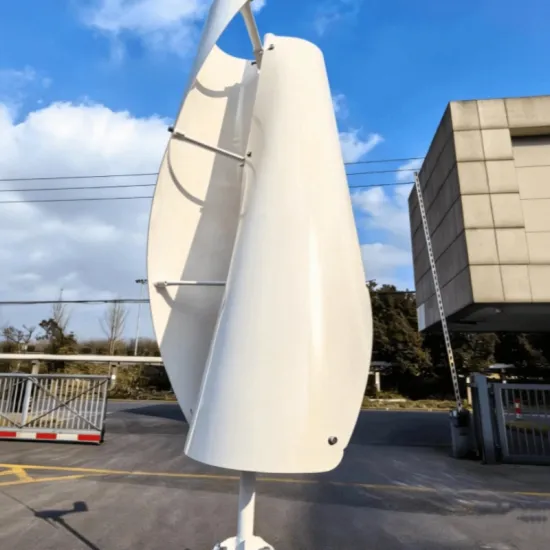

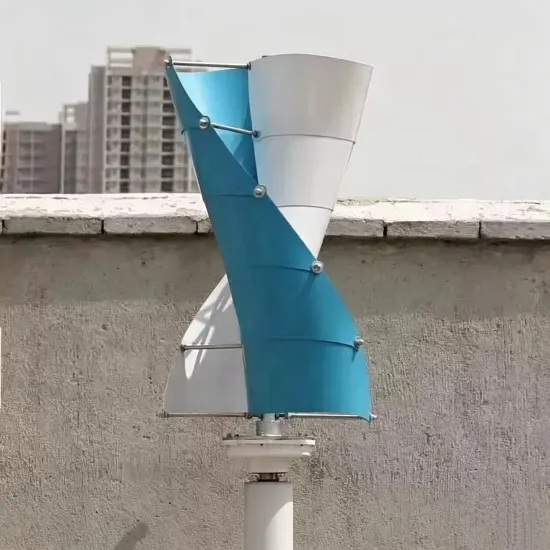

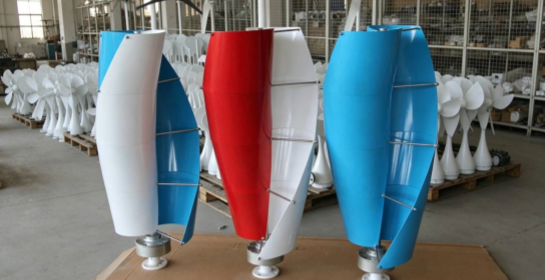

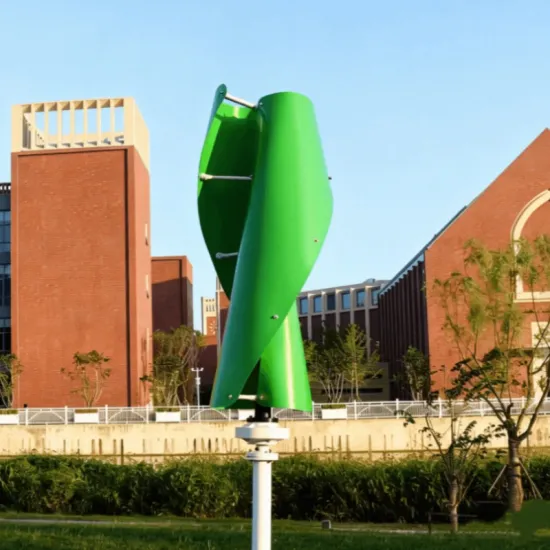

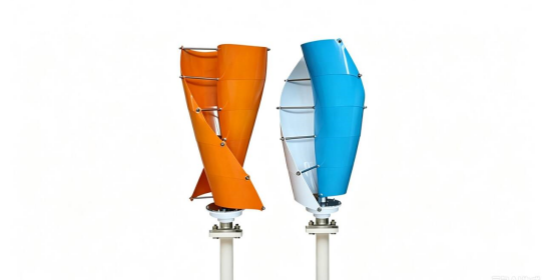

This helical spiral vertical axis wind turbine combines renewable power generation with modern aesthetics. Its twisted blades harvest wind from all directions with no yaw requirement, delivering stable operation under turbulent wind conditions, perfectly suited for complex urban environments. It offers a reliable and adaptable low-noise renewable energy solution.
The matched mounting pole provides solid, long-lasting support for small and medium wind generators. Constructed from high-strength steel with anti-corrosion surface treatment, it guarantees dependable service in outdoor conditions.

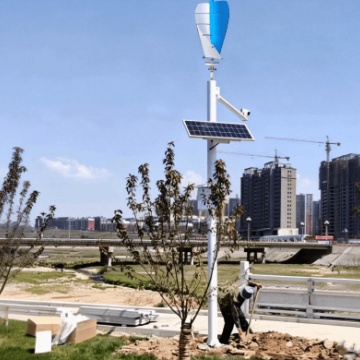

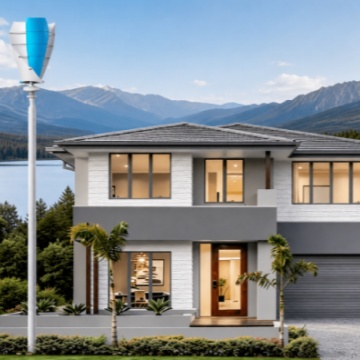

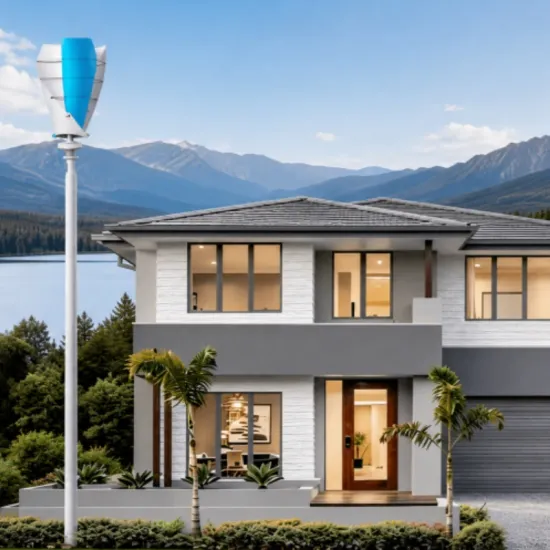

Ideal for off-grid power systems, residential projects and hybrid wind-solar power installations.
Product Features
Low start-up wind speed
Compact structure, easy maintenance
Low noise, low vibration
Product parameters
Parameter | JH-100 | JH-200 | JH-300 | JH-400 |
Rated Power | 100W | 200W | 300W | 400W |
Maximum Power | 130W | 220W | 310W | 410W |
Rated Voltage (V) | 12/24 | 12/24 | 12/24 | 12/24 |
Start-up Wind Speed | 1.5m/s | 1.5m/s | 2.0m/s | 2.0m/s |
Rated Wind Speed | 11m/s | |||
Safe Wind Speed | 45m/s | |||
Net Weight of Main Unit | 10kg | 10.5kg | 11kg | 12kg |
Rotor Diameter | 0.47m | |||
Number of Blades | 10 pieces | |||
Blade Material | Aluminum alloy | |||
Generator Type | Three-phase AC permanent magnet generator / permanent magnet levitation generator | |||
Braking Method | Electromagnetic | |||
Wind Direction Adjustment | Automatic wind direction adjustment | |||
Operating Temperature | -40℃ to 80℃ | |||
Wind Turbine Power | Recommended Pole Height | Pole Diameter | Wall Thickness | Support Type |
300W – 500W | 3m – 6m | 60–76mm | 2.0–2.5mm | Free-standing / Optional guy wire |
600W – 1kW | 6m – 9m | 76–89mm | 2.5–3.0mm | Guy wire recommended |
2kW – 3kW | 9m – 12m | 89–114mm | 3.0–4.0mm | Guy wire required |
5kW | 12m – 18m | 114–140mm | 4.0–5.0mm | Reinforced + guy wire |
10kW | 18m – 24m | 140–219mm | 5.0–6.0mm | Tower structure (not simple pole) |

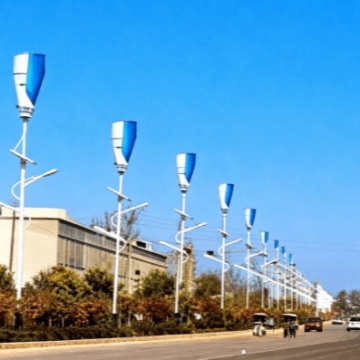

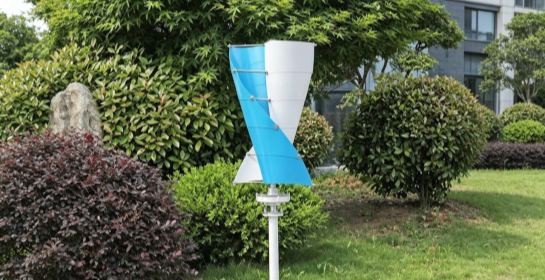

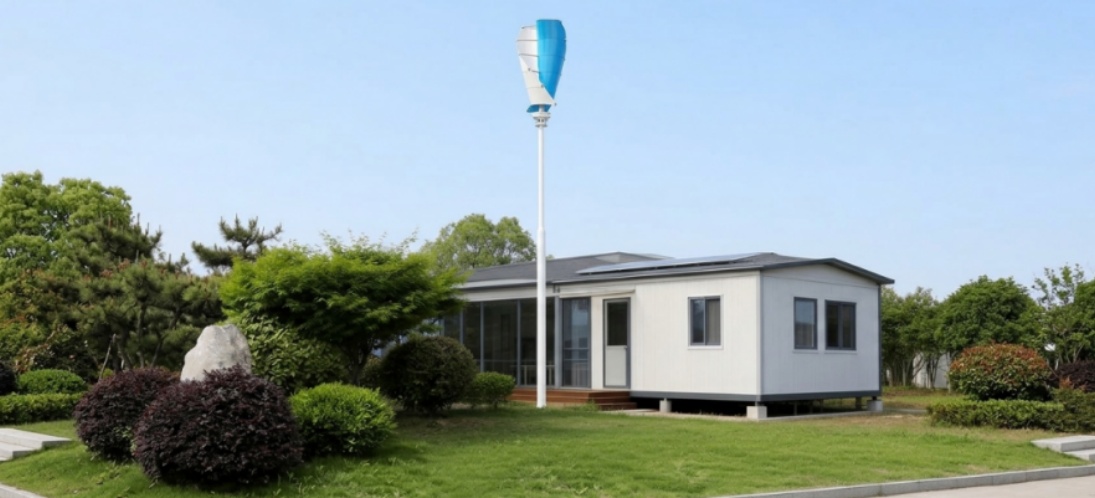

Application Scenarios
