Product Description

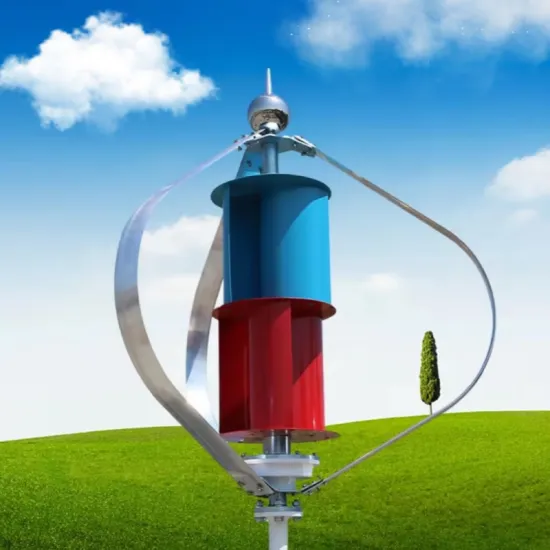

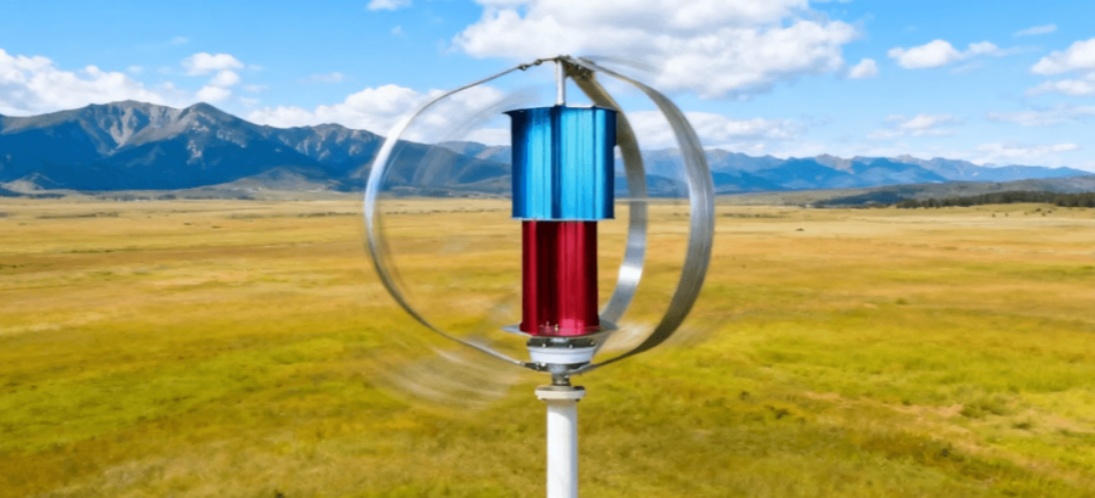

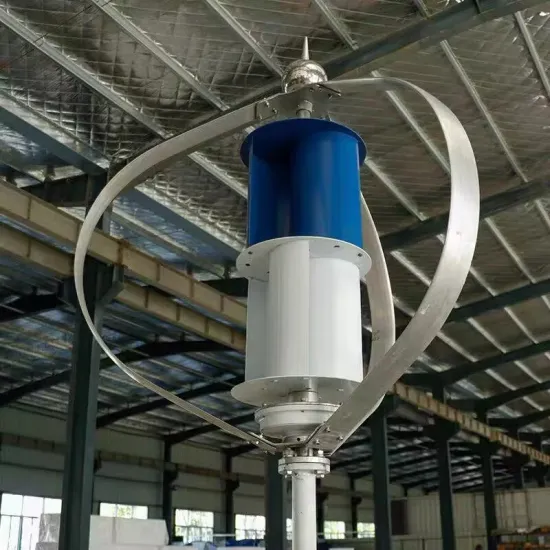

This Q-type vertical axis wind turbine achieves fast startup and stable power output under low wind conditions. Its vertical-axis design harvests wind omnidirectionally. It runs quietly with low vibration, and the modular weatherproof structure guarantees reliable and eco-friendly operation.
The matching mounting pole provides robust support. Constructed from high-strength anti-corrosion steel, it serves long-term outdoor applications, perfect for off-grid, residential and wind-solar hybrid power systems.
Product Features
Rare Earth Permanent Magnet Spherical Generator
Low starting torque delivers high power conversion efficiency, high power output and low energy loss.

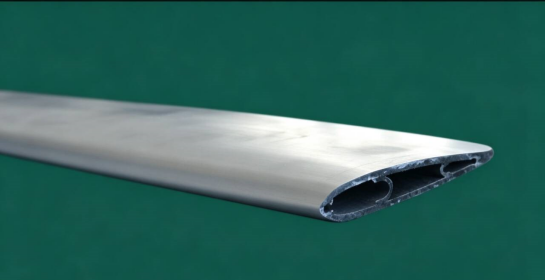

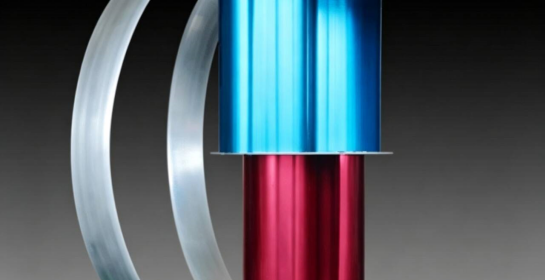

Premium Aluminum Alloy Blades
Excellent corrosion resistance and optimized wind resistance performance.
Low Operating Vibration
Low start-up wind speed, compact & aesthetic structure, low vibration and ultra-quiet running.

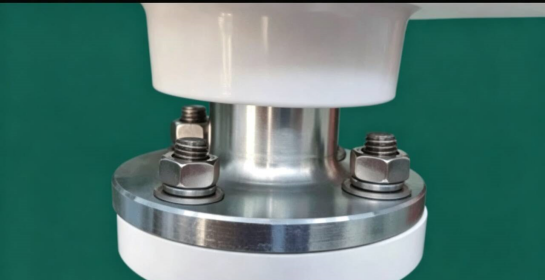

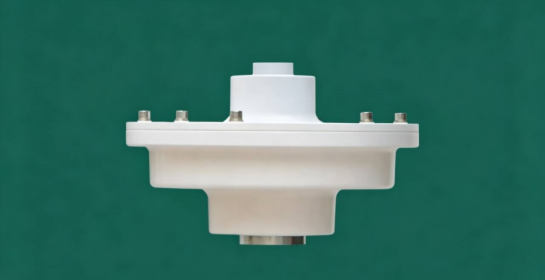

User-Friendly Flange Design
Ergonomic flange connection simplifies installation and maintenance work.

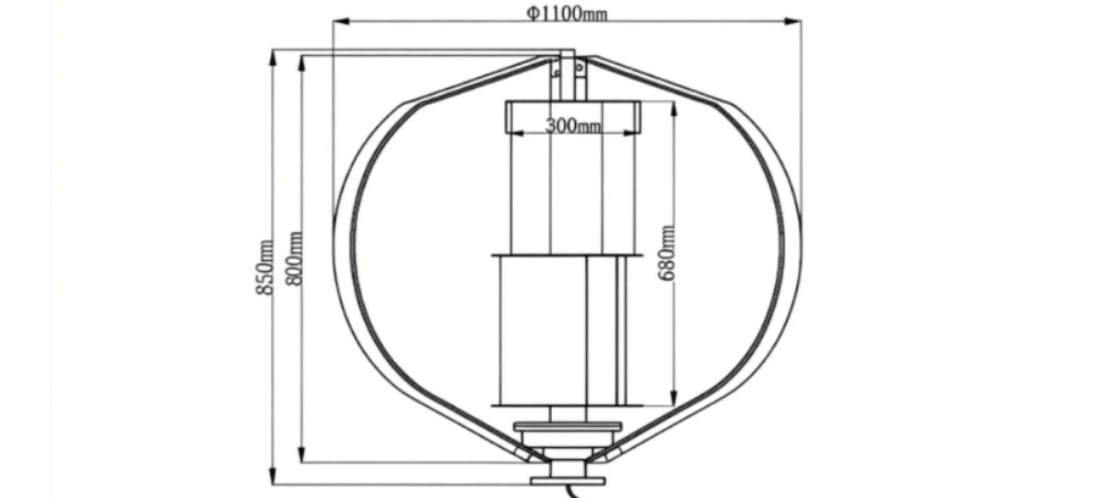

Structure Diagram
Product parameters
Rated Power | 100W | 200W | 300W |
Maximum Power | 130W | 220W | 310W |
Rated Voltage | 12V / 24V | ||
Start-up Wind Speed | 1.5m/s | ||
Rated Wind Speed | 10m/s | 11.5m/s | 13m/s |
Safe Wind Speed | 45m/s | ||
Net Weight of Main Unit | 12kg | 12.5kg | 13kg |
Rotor Diameter | 1.1m | ||
Number of Blades | 6 pieces | ||
Blade Material | Aluminum alloy | ||
Generator | Three-phase AC permanent magnet generator / permanent magnet levitation generator | ||
Braking Method | Automatic wind-seeking | ||
Operating Temperature | -40℃~80℃ | ||
Wind Turbine Power | Recommended | Pole Diameter | Wall Thickness | Support Type |
300W – 500W | 3m – 6m | 60–76mm | 2.0–2.5mm | Free-standing / Optional guy wire |
600W – 1kW | 6m – 9m | 76–89mm | 2.5–3.0mm | Guy wire recommended |
2kW – 3kW | 9m – 12m | 89–114mm | 3.0–4.0mm | Guy wire required |
5kW | 12m – 18m | 114–140mm | 4.0–5.0mm | Reinforced + guy wire |
10kW | 18m – 24m | 140–219mm | 5.0–6.0mm | Tower structure (not simple pole) |
Customer Case

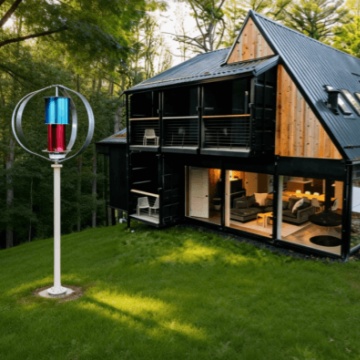

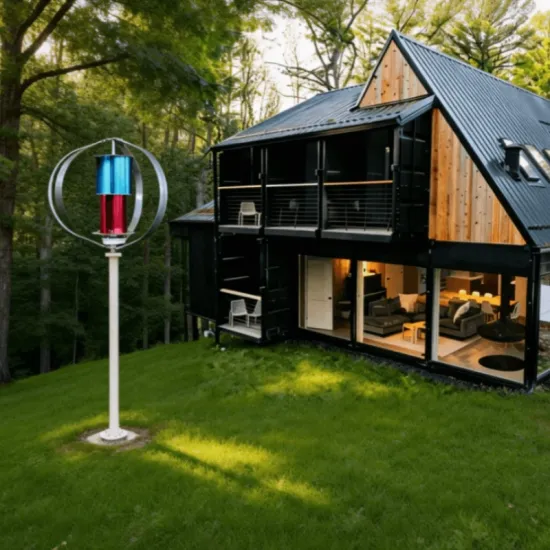

Residential

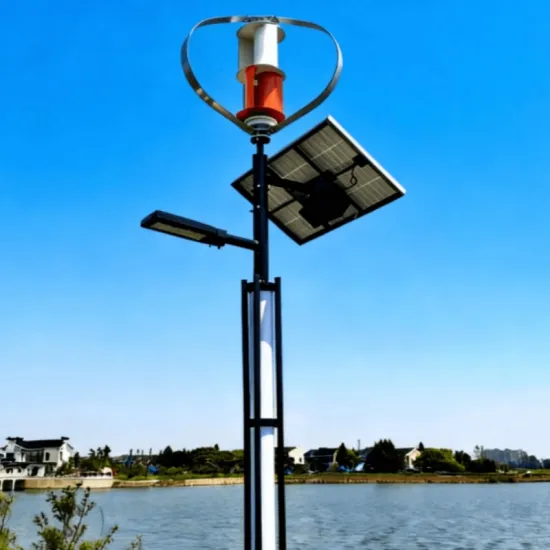

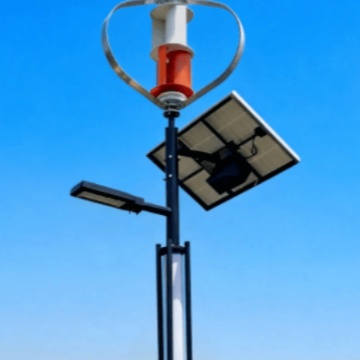

Streetlights
Landscape Islands
Key Advantages
1. Ultra-quiet operation with an ultra-low cut-in wind speed — maximizes annual generating hours while keeping noise-sensitive urban and residential sites compliant.
2. 360° self-orienting turbine automatically tracks wind direction in real time, capturing maximum energy with zero manual intervention or active control.
3. Advanced thermal management sustains stable, derating-free output even in sustained high-temperature operation, extending generator and electronics service life and cutting long-term maintenance costs.
4. Versatile plug-and-deploy compatibility across street lighting, surveillance, landscape islands and other off-grid or hybrid power scenarios.
