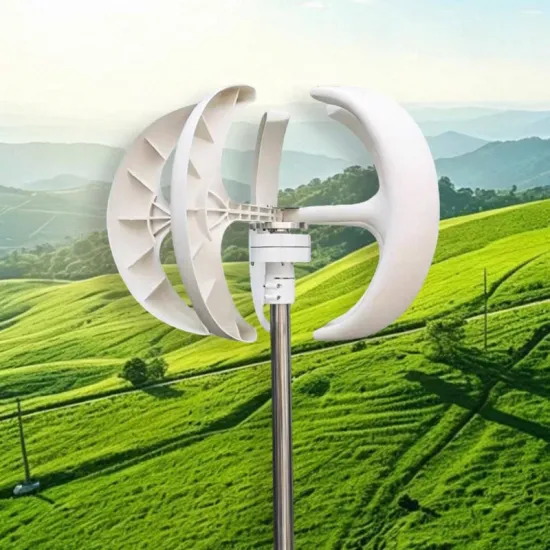

Product Description

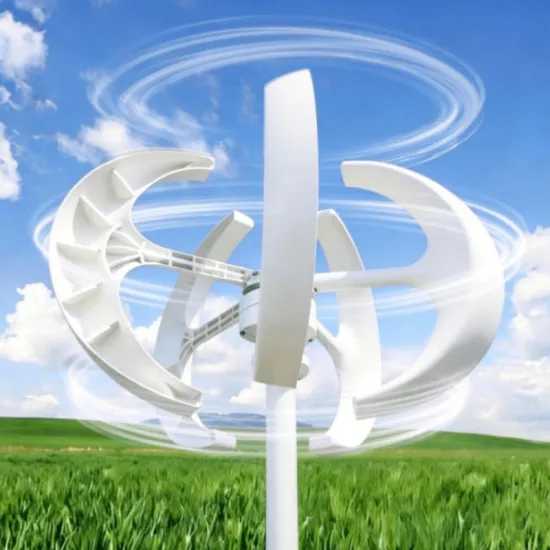

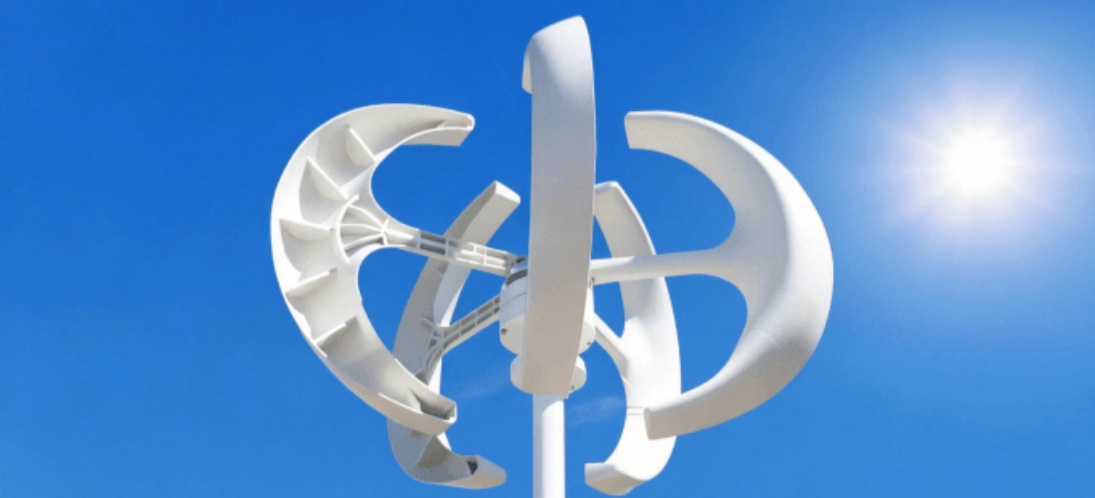

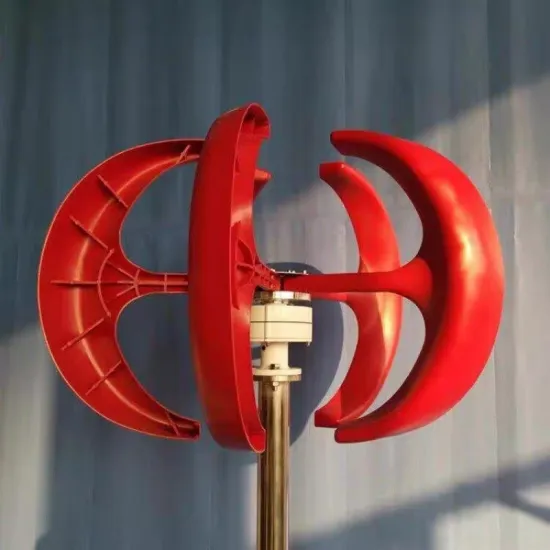

The VT Series Wind Turbine Generator integrates a three-phase AC permanent magnet generator with magnetic levitation technology, ensuring ultra-low cut-in wind speed and stable, maintenance-friendly operation. Its vertical axis design self-orients to changing wind directions with zero manual adjustment, maximizing energy capture across variable site conditions.

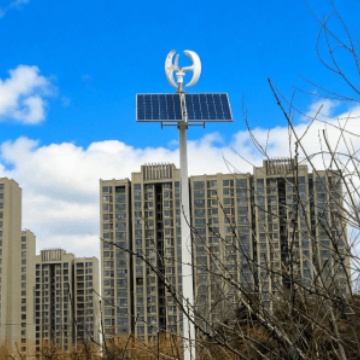

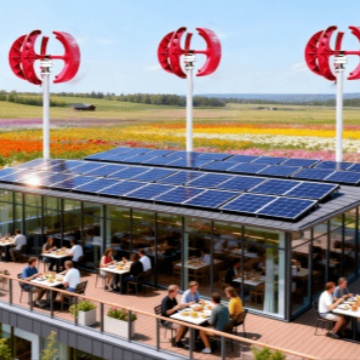

Delivered as a complete system with motor kit and lighting integration, it reliably powers lighting loads, battery storage, and small appliances — a turnkey power solution for street lighting, surveillance, landscape islands, off-grid sites, home distributed energy systems, and outdoor camping projects.
Product Features
Modular & Compact Design for Reduced Logistics Cost

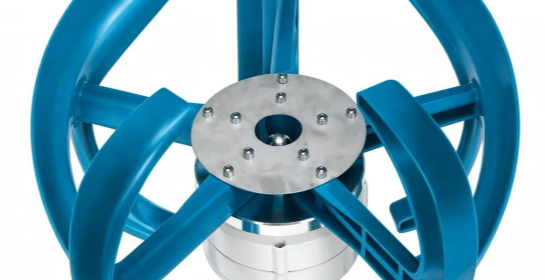

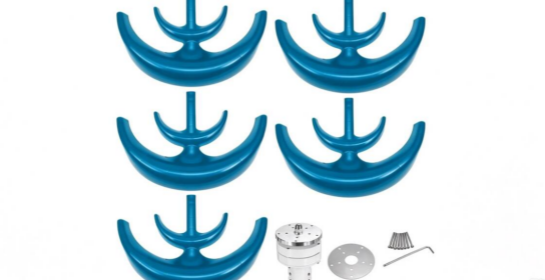

The detachable blade and generator design significantly reduces packaging volume and shipping costs, while simplifying inventory management and spare parts replacement for distributors.
High Structural Stability & Low Maintenance
Built with a low-center-of-gravity vertical axis and reinforced mechanical linkage, it minimizes operational vibration and component wear, drastically reducing long-term after-sales maintenance and warranty risks.

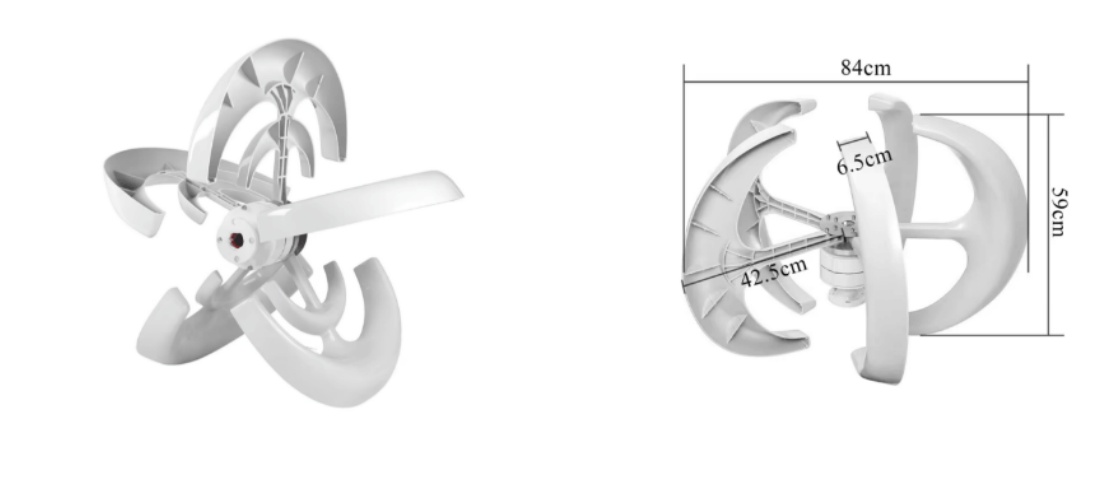

Dimensions
Product parameters
Model | VT300 | VT400 | VT500 | VT600 | VT800 | VT1000 |
Rated power | 300W | 400W | 450W | 600W | 800W | 1000W |
Max power | 350W | 350W | 500W | 650W | 850W | 1050W |
Rated voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V |
Start-up wind speed | 2m/s | 2m/s | 2m/s | 2m/s | 2m/s | 1.3m/s |
Rated wind speed | 12m/s | |||||
Survival wind speed | 45m/s | |||||
Net weight of main engine | 12kg | |||||
Number of blades | 5 pieces | 5 pieces | 5 pieces | 5 pieces | 5 pieces | 3 pieces |
Blades material | nylon fiber | |||||
Body material | nylon fiber | |||||
Generator | three phase AC permanent magnet generator / maglev generator | |||||
Control System | electromagnetic brake | |||||
Yaw Mode | automatic windward angle | |||||
Lubrication mode | self lubrication | |||||
Working temperature | -40℃-80℃ | |||||
Applications

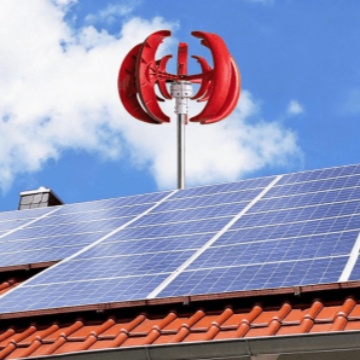

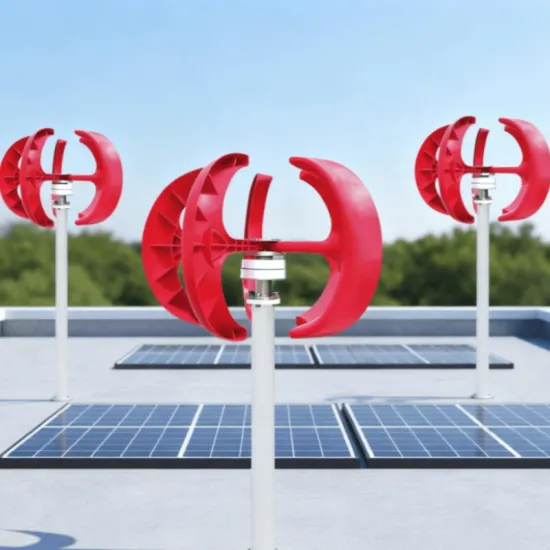

housing power solution
camping power supply
off-grid houses
Key Advantages
1. Low-noise operation, ideal for home and outdoor use;
2. Starts generating in light winds, high efficiency;
3. Aerodynamic design for maximum wind energy utilization;
4. Aluminum alloy and carbon steel body with triple-layer protection against corrosion and leakage;
5. Automatic wind tracking ensures stable power supply;
6. Waterproof and dustproof, suitable for residential and outdoor installation.
