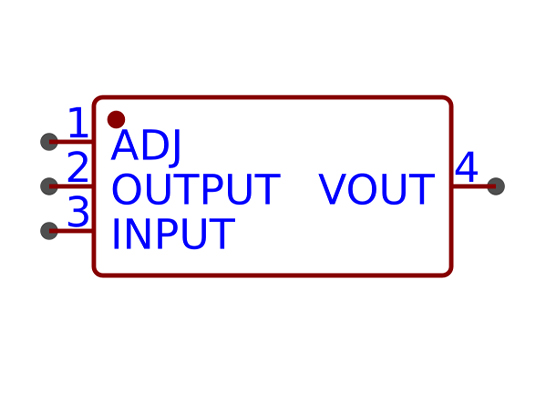

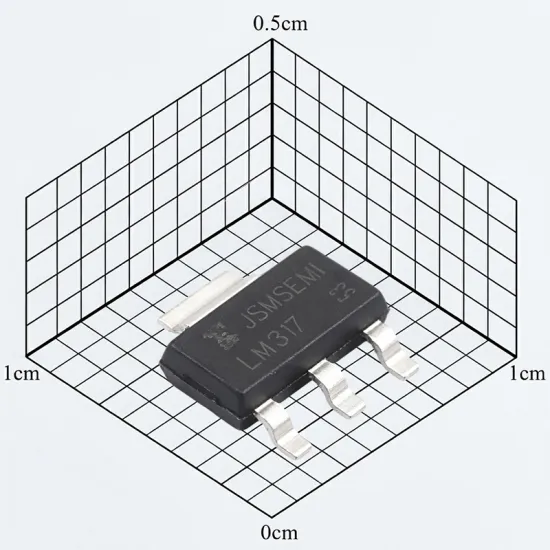

LM317AG-JSM
This regulator features internal short-circuit protection, thermal overload protection, and output SOA compensation with 1% output tolerance.
- Power Supply Rejection Ratio：75dB@(120Hz)
- Output voltage ：1.25V~32V
- Output current ：1.5A
- Output Polarity：Positive
- Operating Temperature：0℃~+125℃

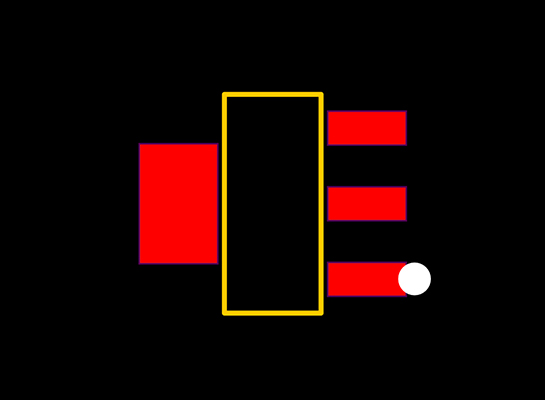

- Product packaging ：SOT-223
- Packaging Method ：Tape & Reel
- Gross weight of the product：0.234257(g)
USD 0.1009
28000
Supplier Information
Email：[email protected]
Tel：15670610275
