DS70 RO(RS485) / CO(CAN)
MS Series Motor Drives
Introduction
● High-precision alloy resistor current sensing with low temperature drift;
supports precise current measurement at voltages up to 24V
● CAN or RS485 bus communication; supports direct control via PC, MCU, PLC, industrial PC, Raspberry Pi, or Arduino
● High-performance 32-bit ARM Cortex-M0 core controller
● Real-time motor temperature monitoring
● Highly integrated three-phase full-bridge driver chip featuring low internal resistance and high current capability
● 12-bit/18-bit single-turn absolute magnetic encoder; requires only one-time calibration, with zero-point retention guaranteed
Product Features
Multiple control modes.
| Open-loop control mode | Closed-loop position control mode 2 (Multi-turn position mode & Direction + Speed) |
| Closed-loop speed control mode | Closed-loop position control mode 3 (Single-turn position mode & Direction) |
Closed-loop position control mode 1 (Multi-turn position mode & direction) | Closed-loop position control mode 4 (Single-turn position mode & Direction + Speed) |
Multiple control commands
| Read status command | Parameter modification command |

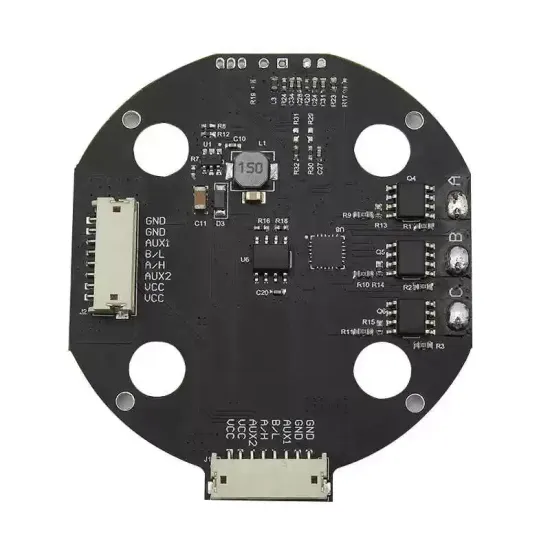

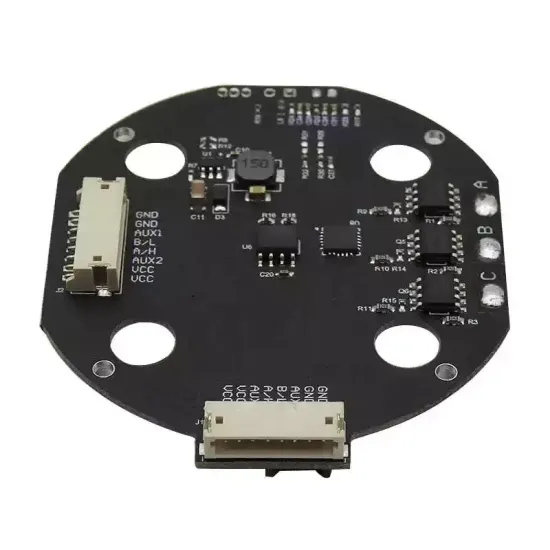

Driver Interface
| Interface | Note |
| V+ | Positive Power Supply |
| V+ | Positive Power Supply |
| N2 | NC2 (No Connection) |
| A/H | RS485-A or CAN-H |
| B/L | RS485-B or CAN-L |
| N1 | NC1 (No Connection) |
| V- | Negative Power Supply |
| V- | Negative Power Supply |
| T | UART Transmitter |
| R | UART Receiver |
| G | Signal GND |

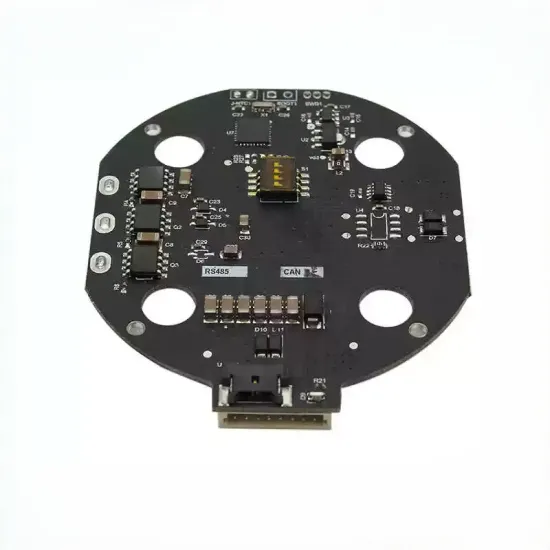

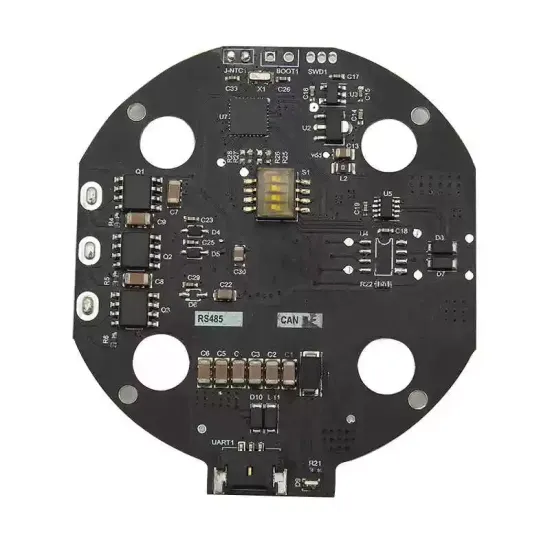

Communication Features
Bus Type: RS485 or CAN
Bus Interface Chip: MAX485 / TCAN334DCNR
RS485 Baud Rate: 9600 / 19200 / 38400 / 57600 / 115200 / 230400 / 460800 / 1 Mbps / 2 Mbps
CAN Baud Rate: 1 Mbps
Wiring Diagram
Connect 120Ω termination resistors at both ends of the bus.
Supports host-side parameter tuning, testing, and firmware upgrades
Supports direct control via PC, MCU, PLC, industrial PC, or Raspberry Pi

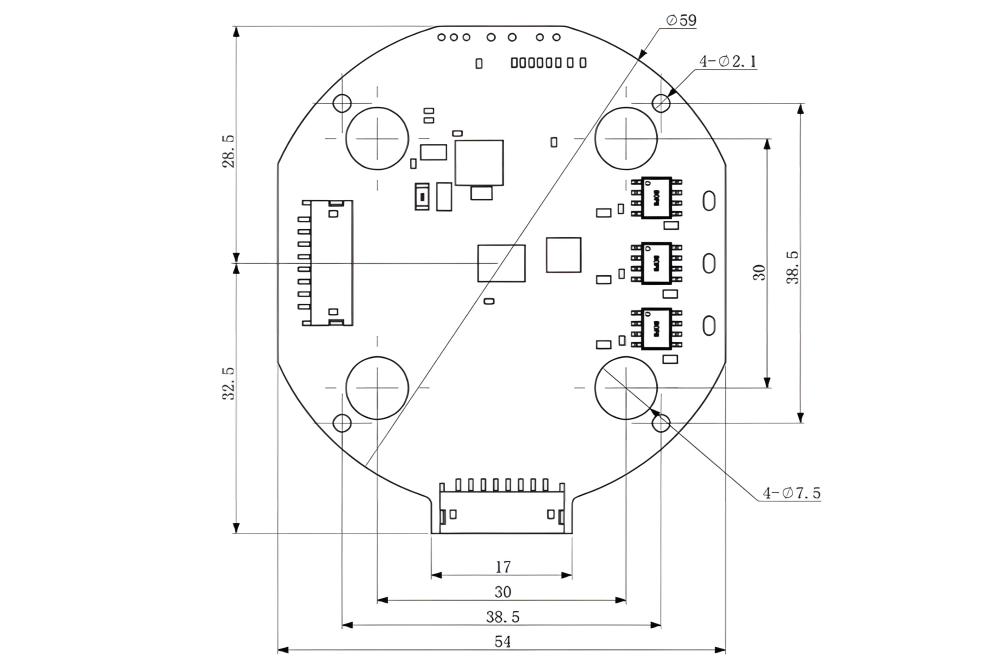

Product Size
Product Parameters
| Input Voltage | 7.4-24 V |
| Rated Output Current | 4A |
| Encoder Resolution | 12 bit or 18 bit |
| Connector Type | ZH1.5-6Pin |
| Communication Interface | CAN OR RS485 |
Product Application
This drive is designed for use with motors equipped with encoder magnets; please consult the manufacturer before use. The drive can be customized according to customer requirements.
| |
| Drive | |
| Encoder magnet | |
| Brushless DC motor | |
