Product description

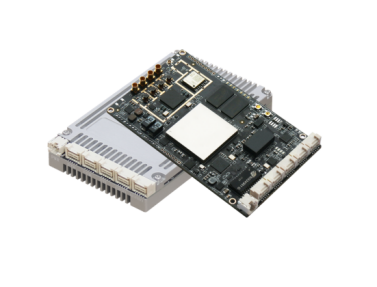

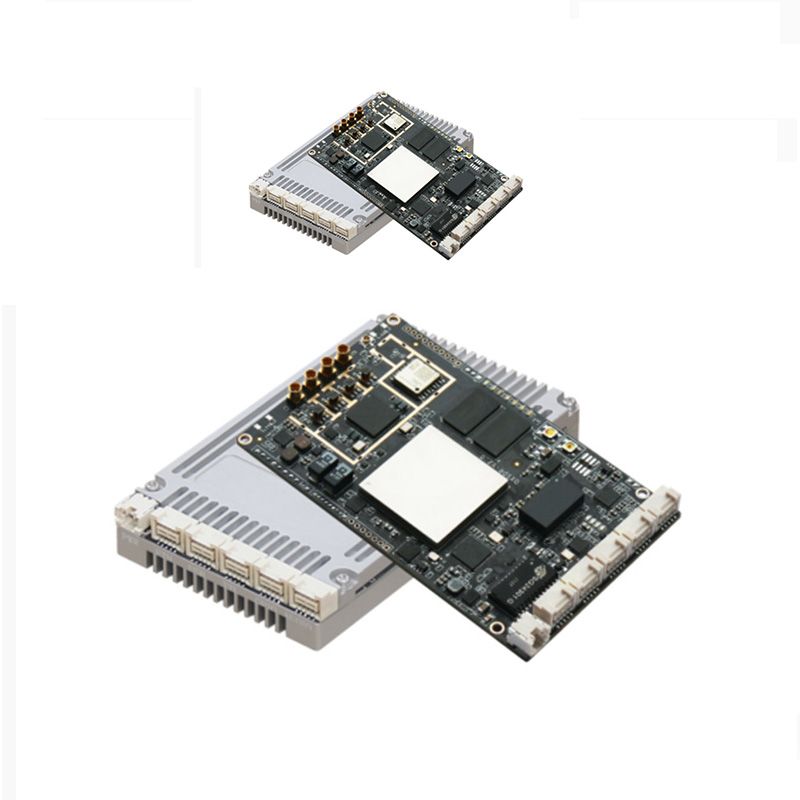

DF-20 is an SDR wireless ad hoc network module based on FPGA. Embedded in 256MB of memory and 32MB of flash memory, with a gigabit Ethernet port and a wireless speed of up to 160M, it is a lightweight MESH device that can be used to access special cameras or live broadcasts. It is very suitable for on-site situation collection and can be widely used in emergency communication in fields such as fire protection, armed police, and the military.

Product features

• Mesh networking frequency 1400MHz@4W

• Built in GPS Beidou

• The maximum speed can reach 160Mbps

• Barrier free transmission distance of 100-150 kilometers

• Supports cross frequency communication

• Supports 2.4Gwifi

• Scalable

Product parameters

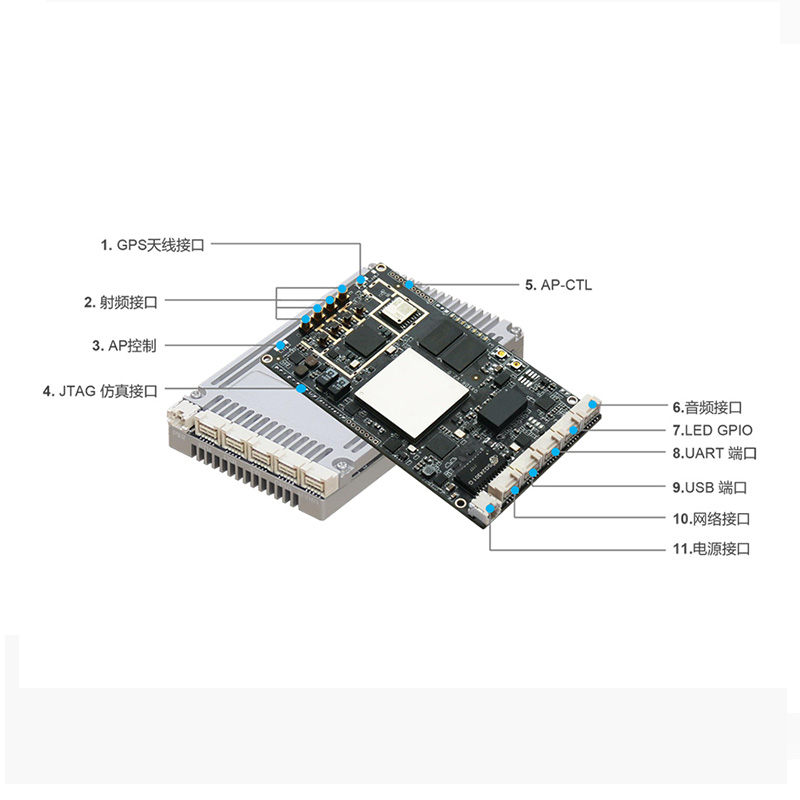

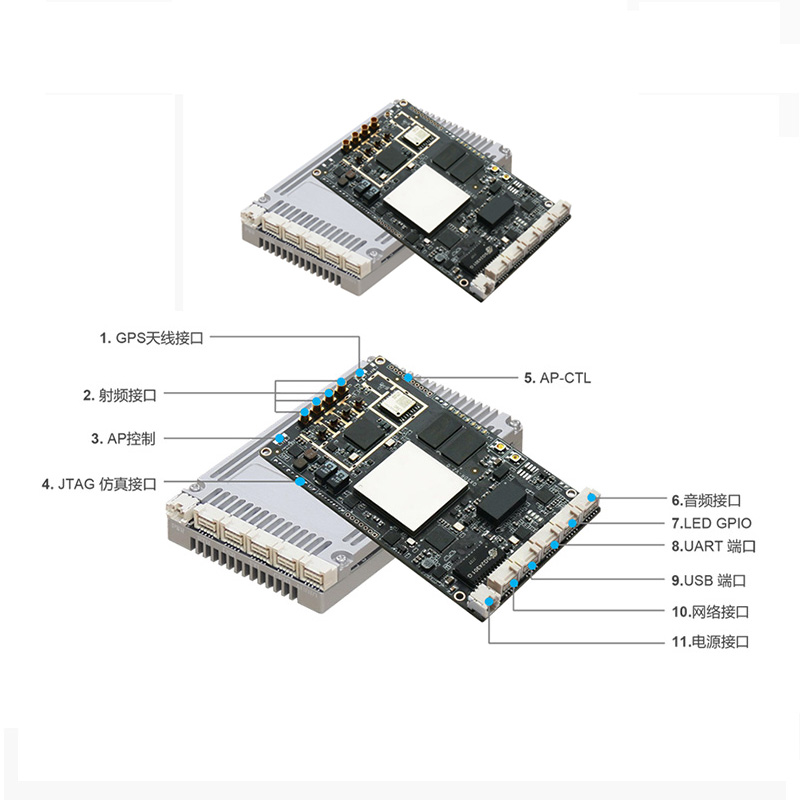

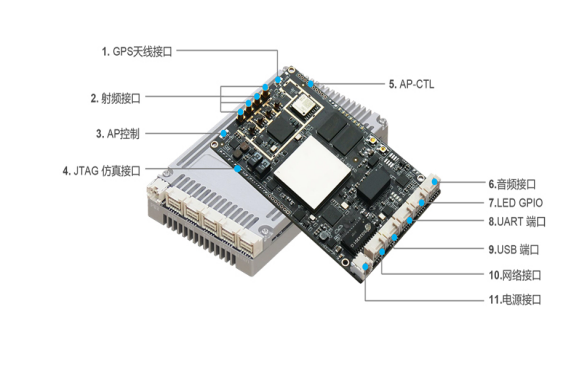

Connection diagram

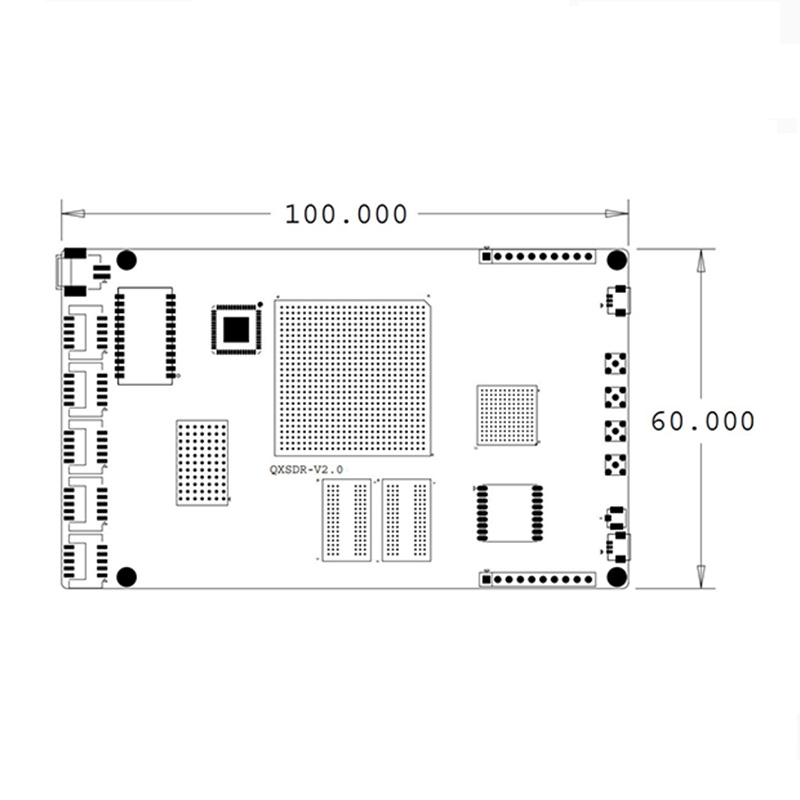

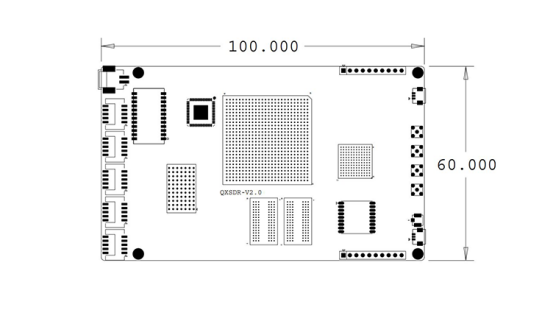

Product structure （mm）

Applications

•Emergency communication/emergency rescue command/emergency communication vehicle

• MESH self-organizing network/single frequency communication/military exercises

• Optoelectronic smart city/outdoor power, survey/airborne ship transmission

• Construction of urban patrol network/military exercises/unmanned aerial vehicle image transmission and data transmission

Service and technical support

1.Non human damage warranty for one year

2.All self-organizing network devices provide customized development for enterprises

3.Targeting industry customers, we can directly provide complete machine applications for customers to quickly occupy the market

4.Provide guidance on bare board and integration technology solutions for customers with certain integration capabilities, so that customers can quickly achieve product differentiation positioning.

5.We can provide comprehensive customization services for advanced users in terms of device appearance, functionality, and software.
