2.0kw servo motor, 3-phase AC servo motor and servo drive

2.0kw 130mm servo motor is used for CNC machine tool high speed, cost-effective three-phase AC servo motor and supporting servo drive

  • Model Number：SZGH-13200CC+SZGH-SD2026
  • Type：SERVO MOTOR
  • Frequency：2500rpm
  • Phase：Three-phase
  • Protect Feature：Explosion-proof
  • Efficiency：Ie 3

USD： 338

ablity：Monthly Output100

contact shop
  • Product Description
  • Product Params

Product Description

Product Overview

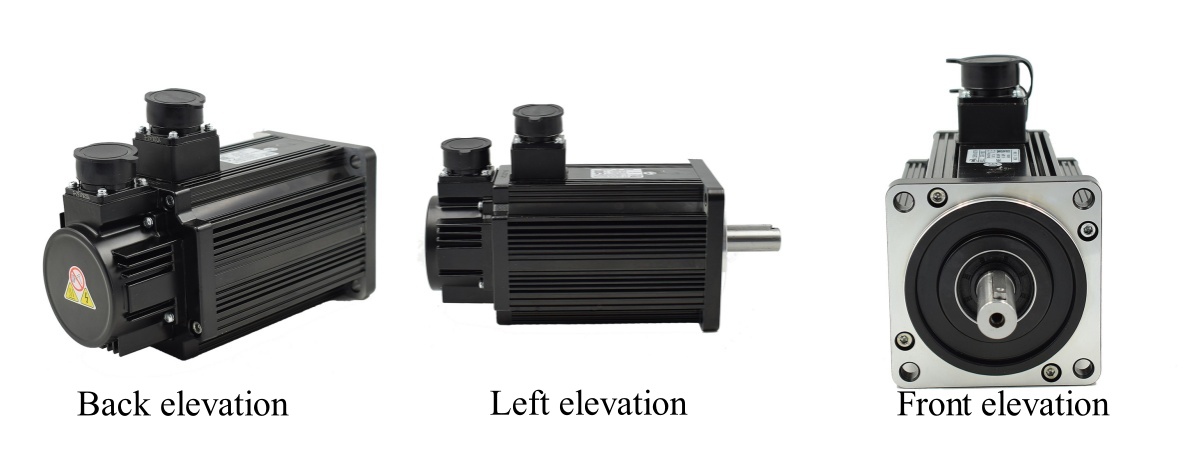

SZGH-13200CC is a popular model, 2.0KW AC servo motor, middle inertia , high rotation speed, with extremely high performance price ratio and use reliability.

SZGH-SD2026 is the matched driver,Can match with 1.0W to 3.8KW Servo Motor.



Product Features


COST-EFFECTIVE
MIDDLE INERTIA
HIGH ROTATION SPEED
SIMPLE CONTROL
SIMPLE INSTALLATION
LONG-TERM CONTINUOUS WORKING
MACHINERY REPAIR SHOPS
MANUFACTURING PLANT




Product Parameters

Model Number
SZGH-13200CC
Frame size (mm)
130
Rated Power (w)
1000
Torque (N.M)
Continuous
7.7
Peak22
Rated Speed (r/min)
2500
Rated Current (A)
7.5
Rated Voltage (V)
220
Rotor Inertia (kg.㎡x10-4)
15.3
Encoder Resolution (PPR)
Increment type
2500
Absolute type
17 bit
Motor Length (mm)
192
Brake motor (/T) Length
249
Diameter of Axle (mm)
22
Weight (kg)
10




Company Profile

Shenzhen Guanhong Automation CO.,LTD (Formerly known as 'Shenzhen Guanhong Automation Technology Co.,Limited(Built in 19 November 2010)') is one of the leading CNC & automatic company in China, specialized in designing projects, marketing, and oversea trading,having extensive experience in CNC package solution, Our focus has been on providing the high quality of Lathe CNC system, Milling CNC system, Engraving CNC system, Grinding & router CNC system, Motor & driver, Spindle servo motor & driver, Gear reducer.
We have a large number of customers across Asia, America, the Middle East, Europe, South America, and Africa. Specially we already built own business corporate group in Middle East market.



Sales And Service Network
