Stacking AGV
High-lift and large-load intelligent control system Automated three-dimensional warehouse AGV intelligent warehouse management system
- Load center：600mm
- Carrying wheel size：Ф82x 65mm
- Total length：2100mm
- Fork outer width：650mm
- Own weight：900kg
- Rated load：1500kg
USD： 53500
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

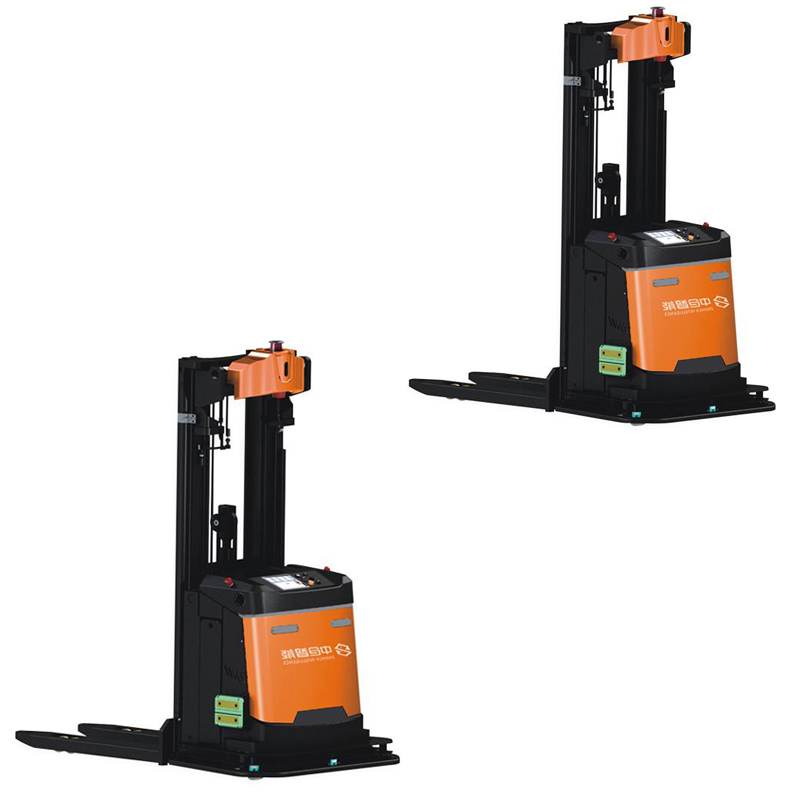

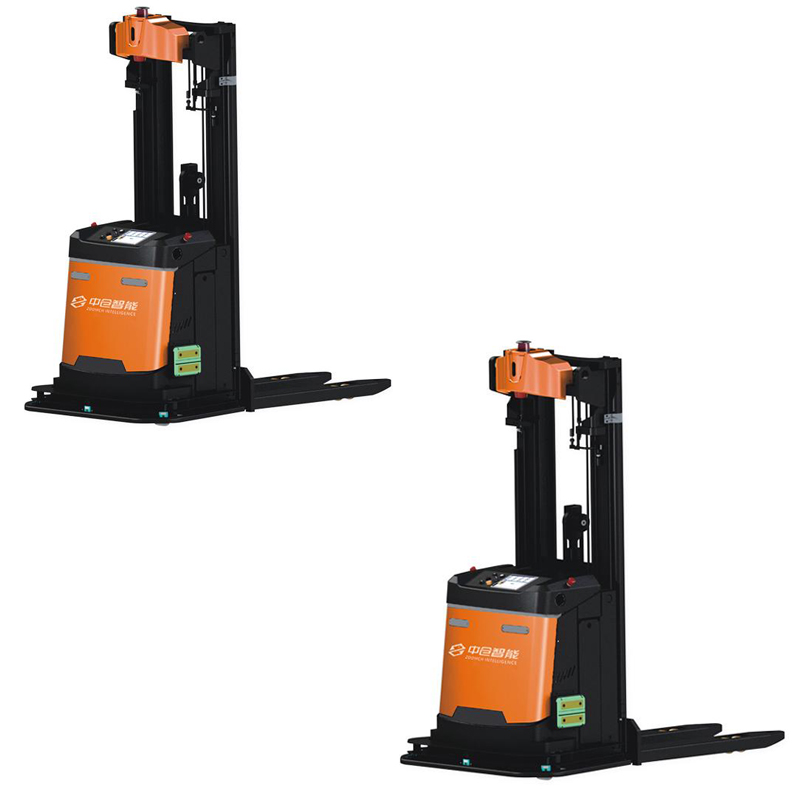

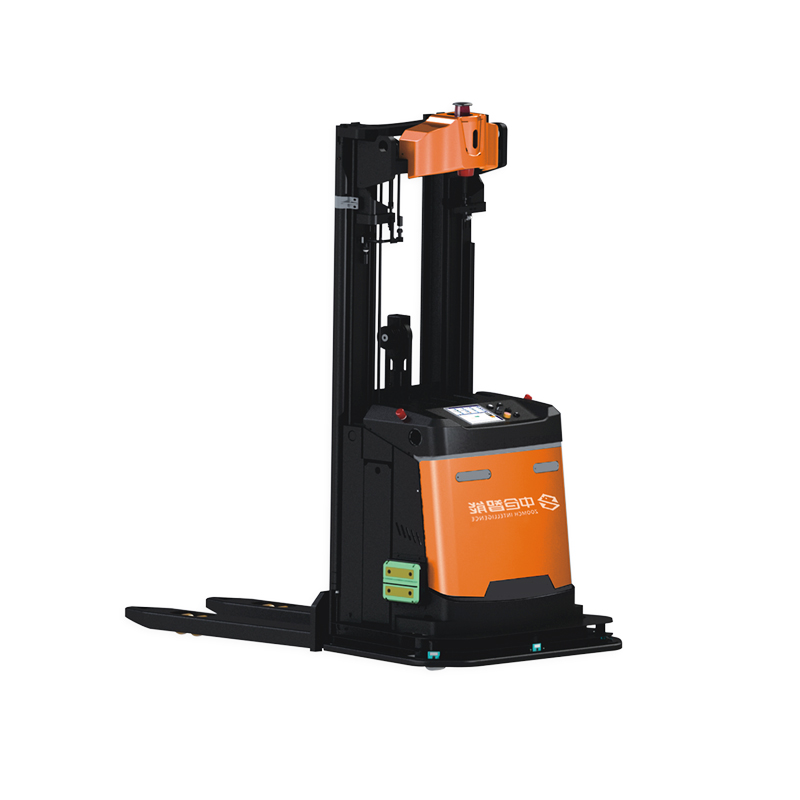

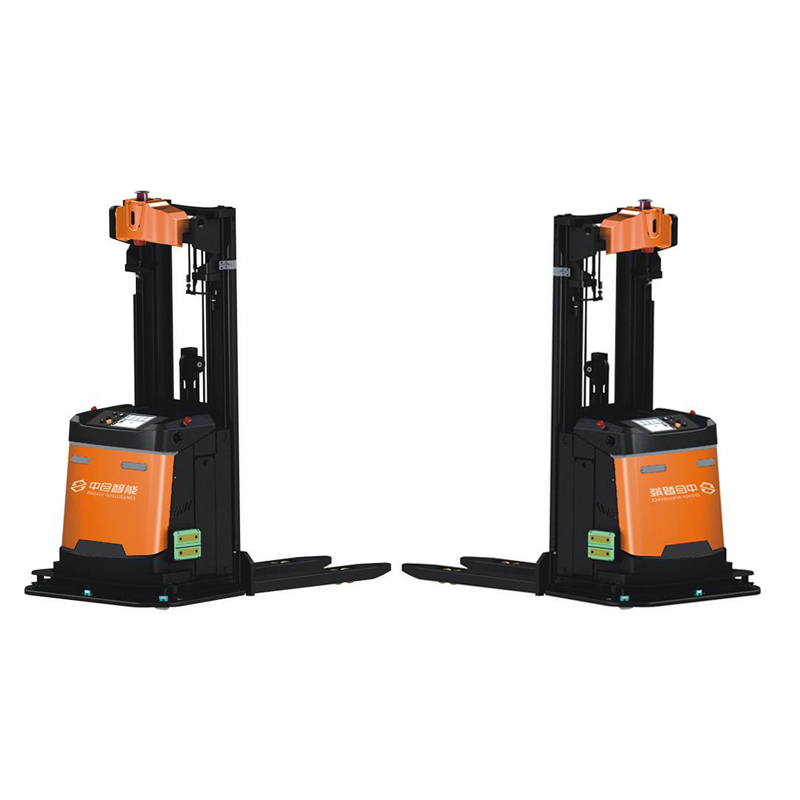

Stacking AGV
Say goodbye to the traditional bulky appearance. It is compact and can move freely in small spaces.
It has stable performance, reliable operation, automatic forklift/unloading of materials, and is widely used in pallet material transportation in logistics and warehousing centers.
Large lifting height, fast stacking, smooth operation, intelligent control system, and various operations at your will.
Product Parameters
| Drive form | Electric |
| Load center | 600mm |
| Carrying wheel size | Ф82x 65mm |
| Overall height (when the fork is at its lowest) | 2200mm |
| Total length | 2100mm |
| Fork outer width | 650mm |
| Lifting speed (full load/no load) | 178/300mm/s |
| Own weight | 900kg |
| Rated load | 1500kg |
| Number of wheels | 1x-2/2 |
| Fork size | 185/60/1150mm |
| Driving style | 激光引导 |
| Tire | 聚氨酯轮 |
| Balance wheel size | Ф125x50mm |
| Lifting height | 1600mm(可定制) |
| Overall width (with touch device) | 1000mm |
| Turning radius | 1700mm |
| Descending speed (full load/no load) | 140/140mm/s |
| Drive wheel size | Ф230x82mm |
| Fork height from the ground (minimum) | 85mm |
| Traveling speed (full load/unloaded) | 4.6/5.2km/h |
- Functions: laser navigation, automatic obstacle avoidance, anti-collision, emergency stop button, automatic charging
- Features: high lift, large load, products made of high-quality steel to ensure stability and reliability
- Purpose: Suitable for handling and stacking of Sichuan-shaped pallets and racks

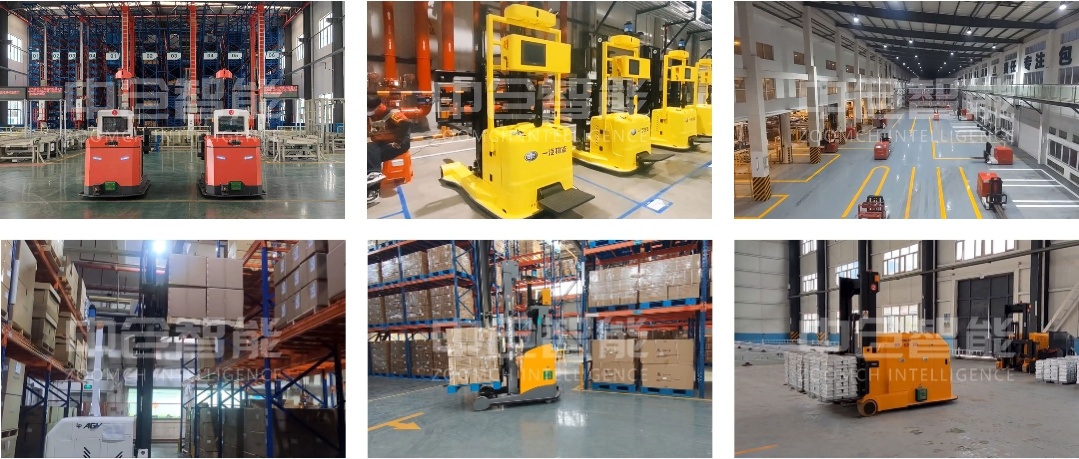

Applications
Note: Product prices do not include installation and debugging fees. This product requires on-site debugging.
Please contact the merchant for details.
