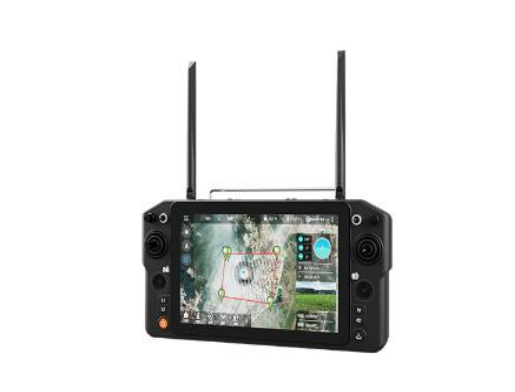

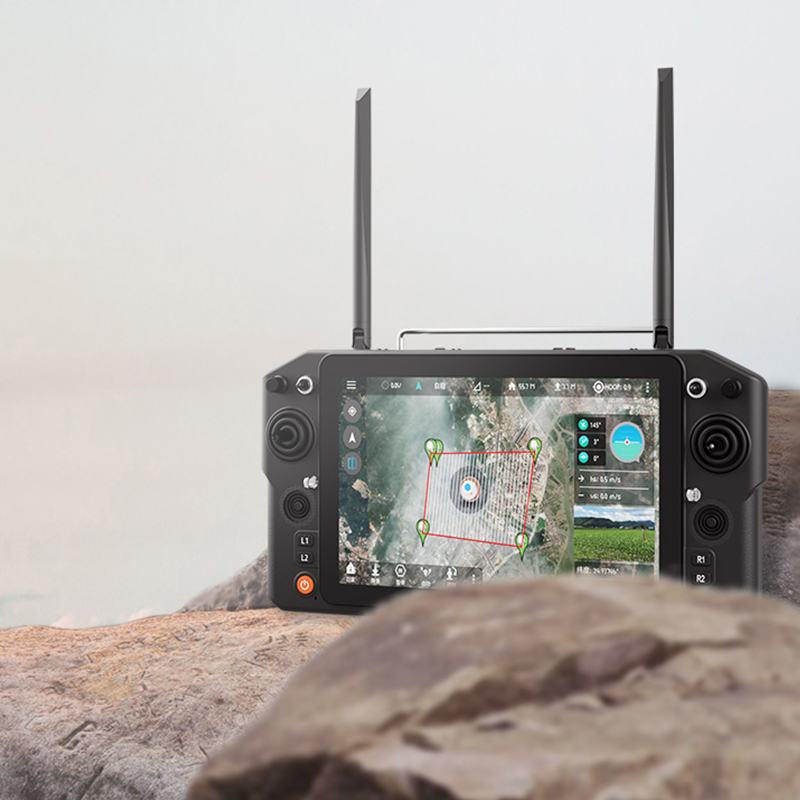

DF-H30 Remote Control
High tech dustproof, waterproof and wear-resistant image transmission remote control with a maximum distance of 50KM industrial grade remote control
USD： 950
ablity：Monthly Output300
- Product Description
- Product Params
Product Description
Product Description

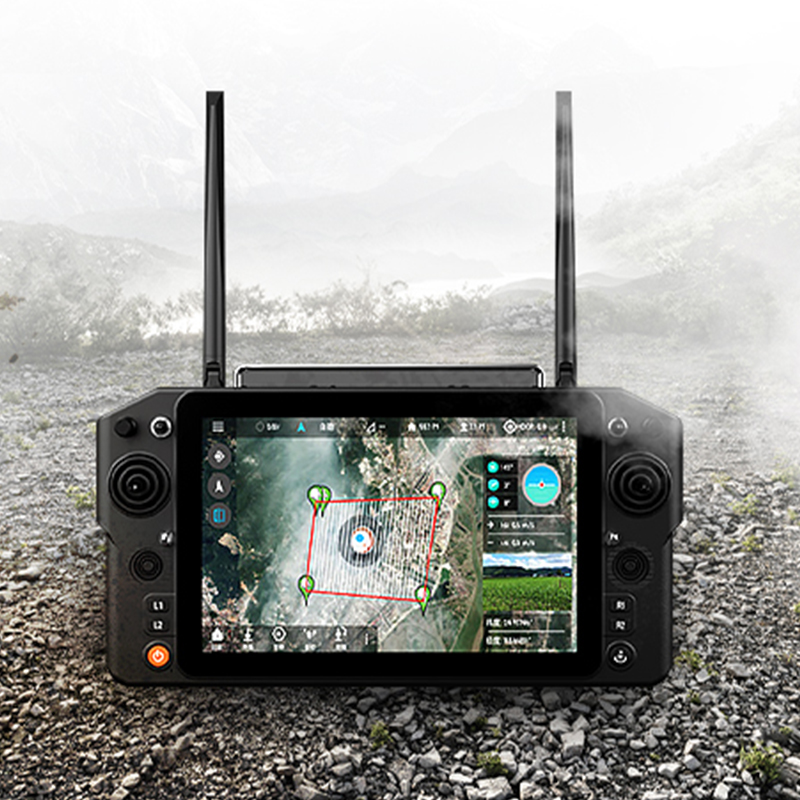

DF-CH30 remote control

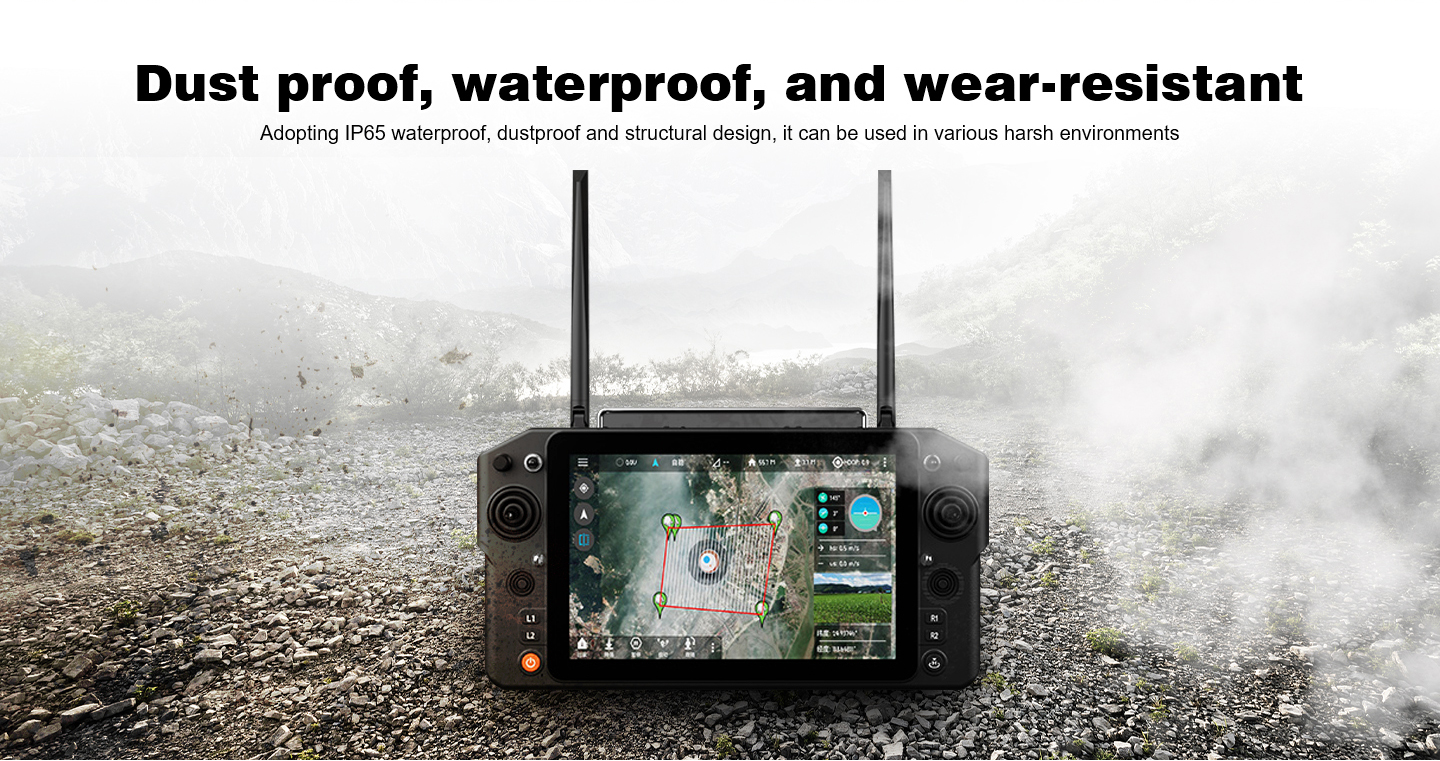

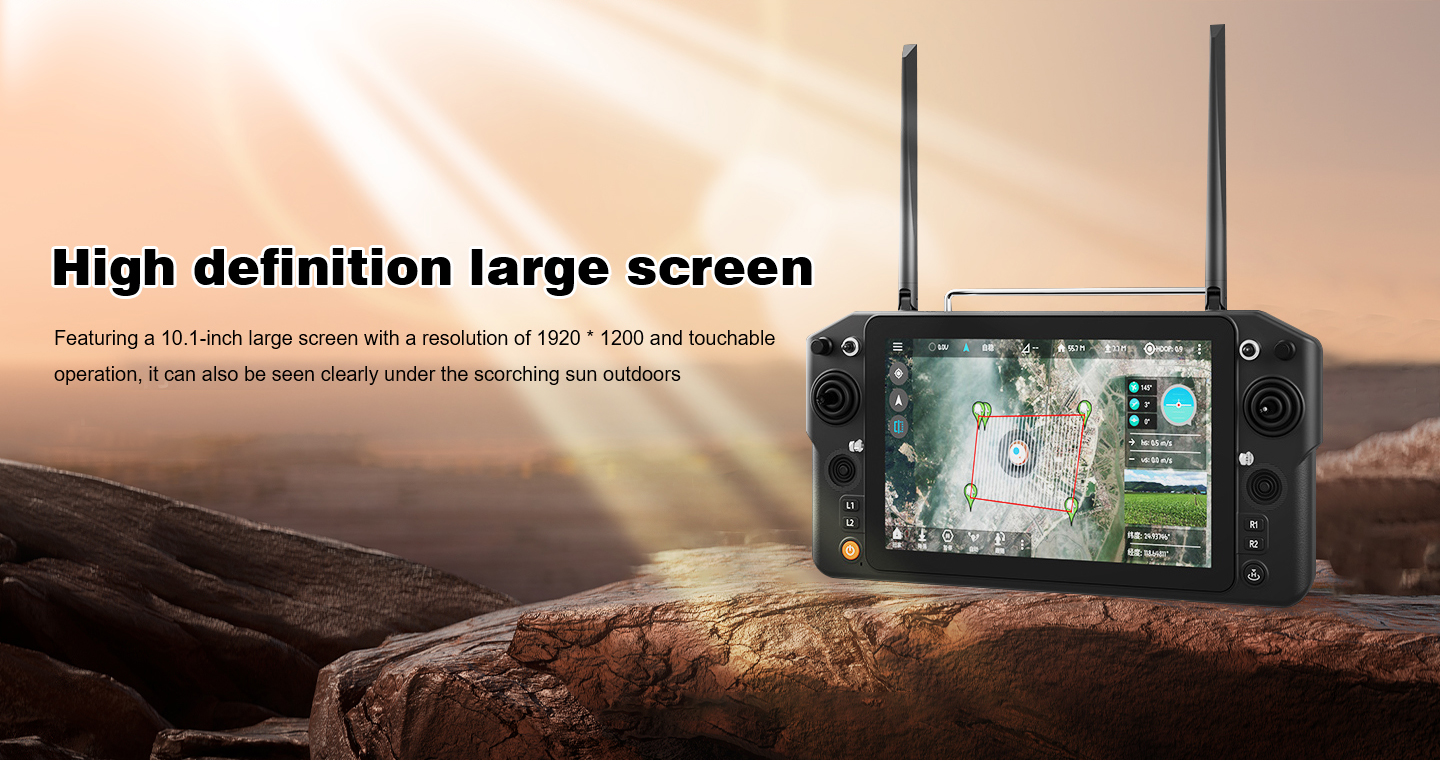

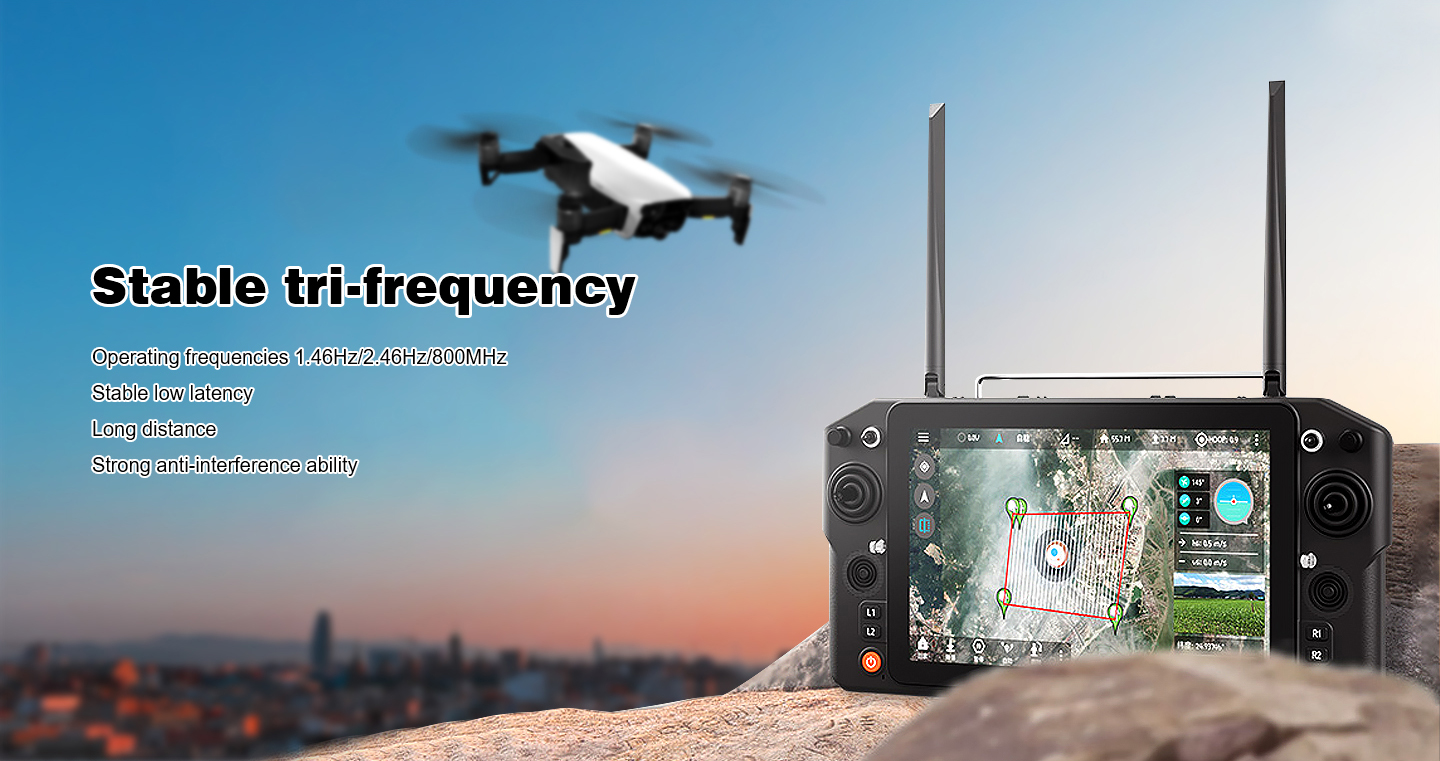

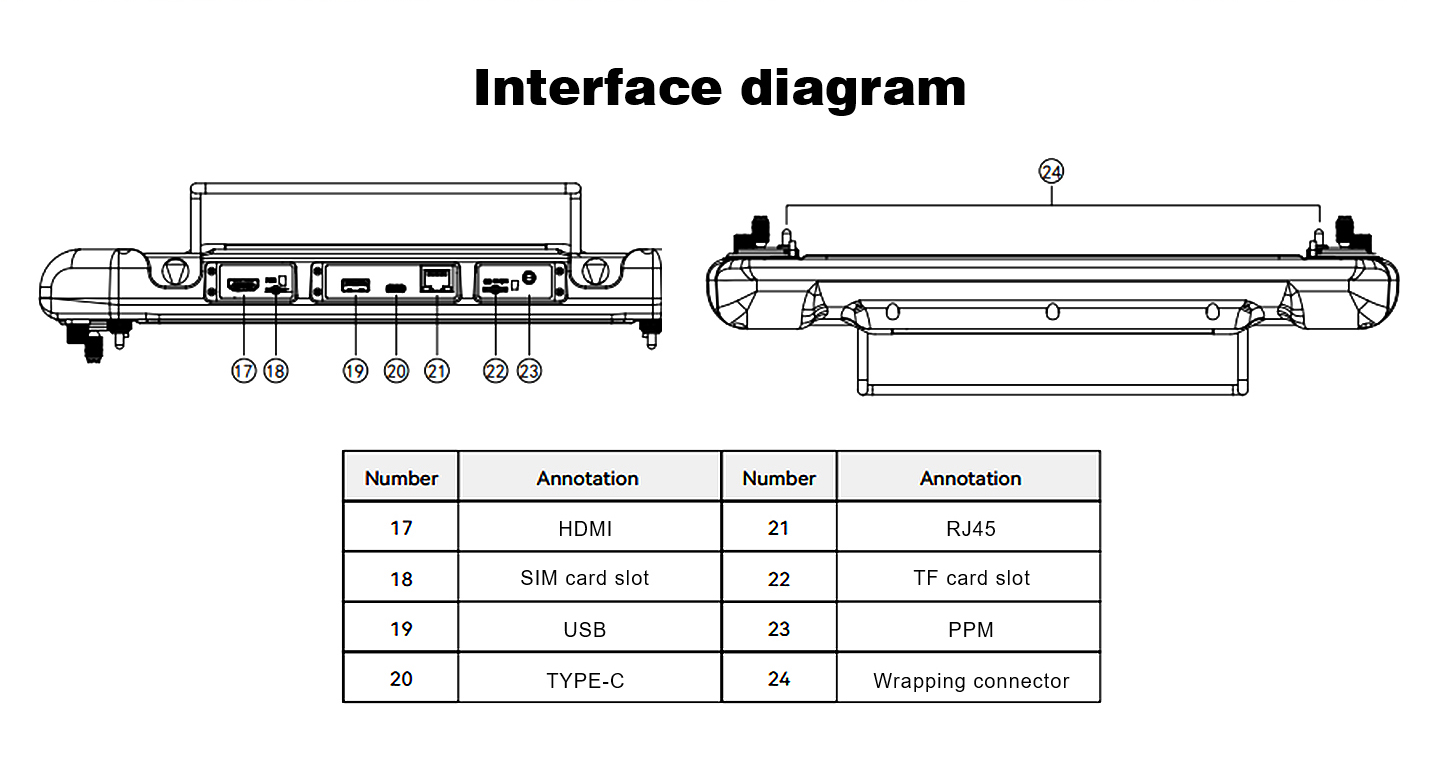

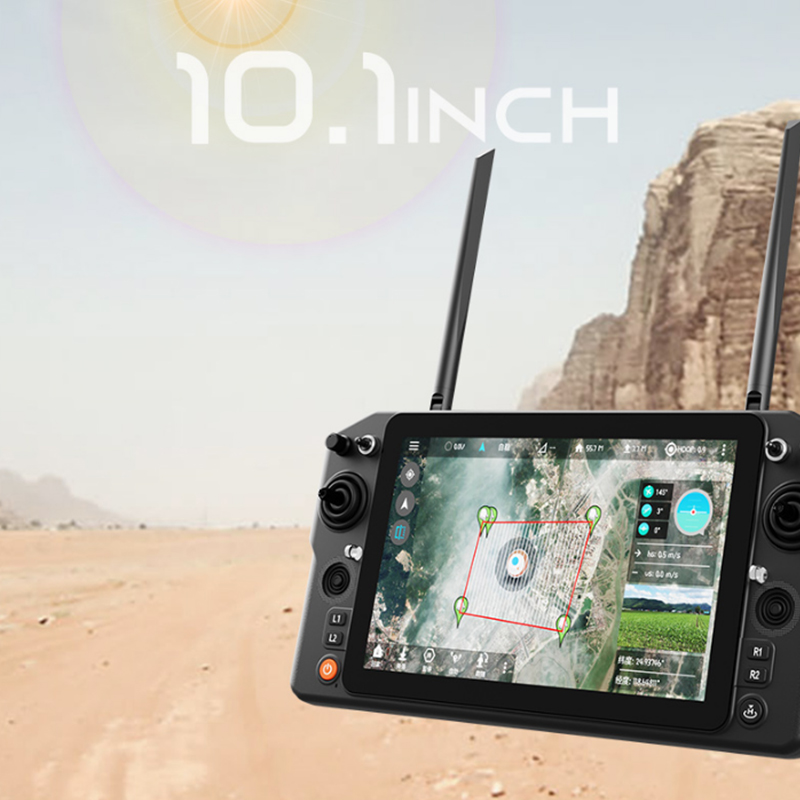

The DF-CH30 adopts a Qualcomm 660 processor and is equipped with an Android 9.1 embedded system. It has three operating frequencies of 1.4Ghz/2.4Ghz/800Mhz, making images clearer, with lower latency and strong anti-interference performance over long distances. It supports multiple interfaces such as USB, 4G card slots, LAN ports, audio, HDMI, TF, and TYPE-C, and also has a 10.1-inch high-definition industrial grade sunlight visual screen. It is dust-proof and wear-resistant, with high structural strength, and is suitable for various harsh environments. The maximum remote control distance for image transmission can reach 50km.
Product features
Product parameters
Model No. | DF-CH30 |
Working voltage | 4.2v(Battery built-in) |
Frequency | 800M/1.4G/2.4G |
Size | 346(L)*196.5(W)* 89.4(H)mm |
Endurance | 5 hours |
Update way | APP Update online |
Run memory | 4G |
Channels | 16 |
RF Power | 23dBm@CE/FCC |
Dynamic FM | supports frequency hopping across frequency bands |
Weight | 1.5kg |
Battery | 20000mA/H |
Charging port | TYPE-C |
Store memory | 64G |
Applications | Helicopter, fixed wing, multi-rotor, unmanned vehicle, unmanned boat, etc. |
