Product Description

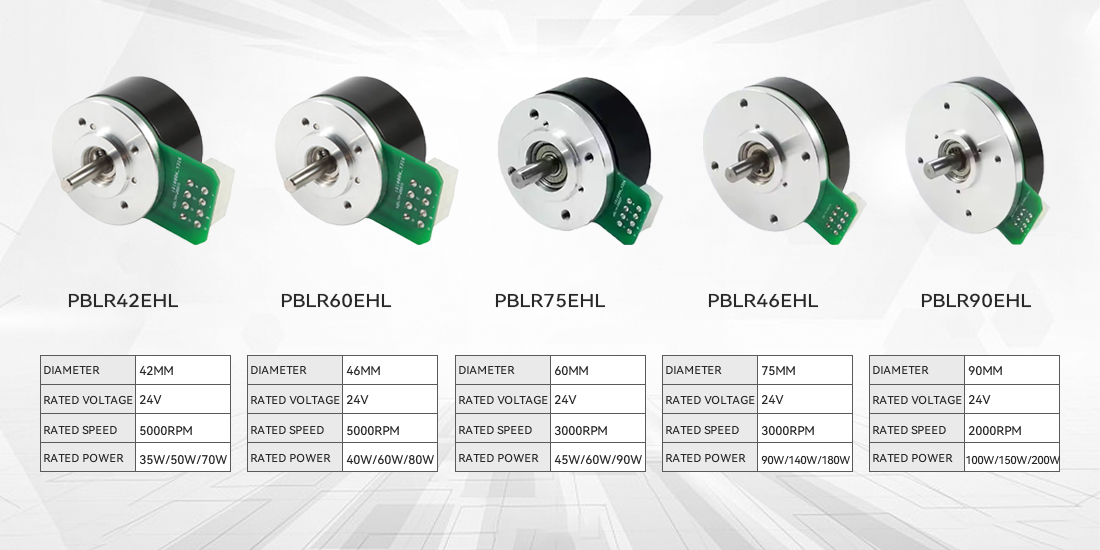

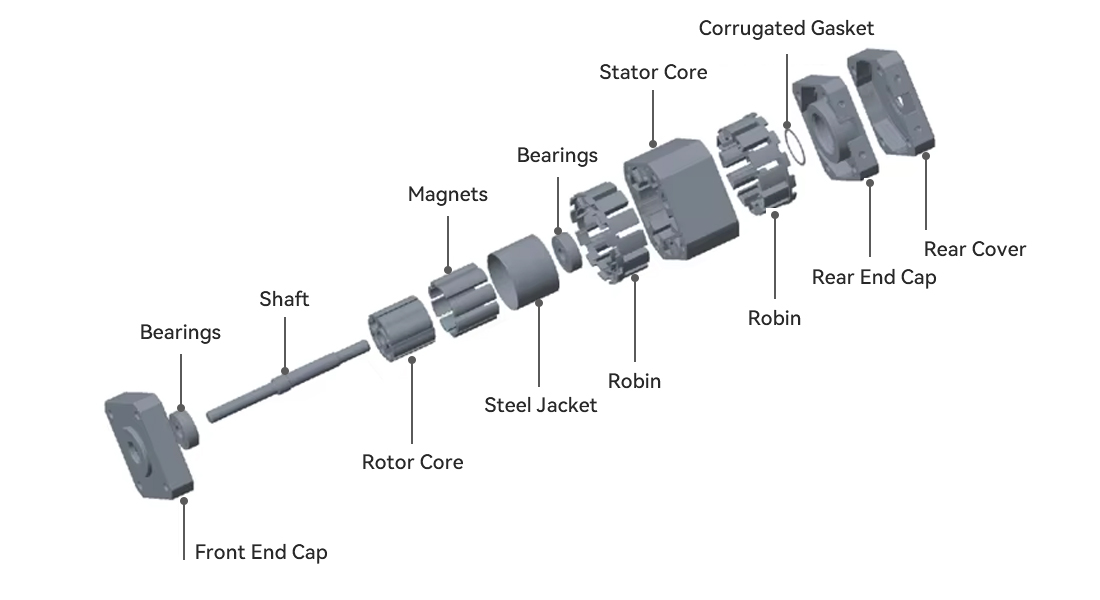

High-performance PBLR42mm - 90mm external rotor brushless motor series, the power choice
Functional Features
Exhibit high inertia characteristics
Achieve low-noise operation
Unleash high-torque power
Keep running at high speed
Product parameters
PBLR42EHL Series |
Outer Rotor BLDC Motor |
General Specification | Wiring Connection | ||||
Winding Type | Star/DeIta | Type | Color | Function | |
Hall Effect Angle | Electrical Angle of 120 degree | ||||
Radial Play | 0.02mm@450g | UL1007 | Red | Vcc | |
Axial Play | 0.08mm@450g | Yellow | Hu | ||
Max radiaI force | 20N,10mm From the fIange | Green | Hv | ||
Max axiaI force | 10N | Blue | Hw | ||
DieIectric Strerngth | 600VAC/1S | Black | GND | ||
Insulation Resistance | 100MΩ,500VDC | UL1007 | Yellow | Phase U | |
Ambient Temperature | -20℃~+50℃ | Green | Phase V | ||
Insulation Class | Class B | Blue | Phase W | ||
Electrical Specifications | ||||
Motor Model | Unit | PBLR42EHL243550 | PBLR42EHL245050 | PBLR42EHL247050 |
Number of Phase | / | 3 | ||
Number of Poles | / | 16 | ||
Rated Voltage | VDC | 24 | ||
Rated Speed | Rpm | 5000 | ||
Rated Torque | N.m | 0.06 | 0.1 | 0.13 |
Rated Power | W | 35 | 50 | 70 |
Rated Current | A | 2.2 | 3.2 | 4.4 |
Peak Current | A | 6.6 | 9.6 | 13.2 |
Peak Torque | N.m | 0.18 | 0.3 | 0.39 |
Rotor Inertia | kg.cm² | 0.13 | 0.23 | 0.33 |
Torque Constant | N.m/A | 0.03 | 0.03 | 0.03 |
Torque Constant | V/krpm | 2.8 | 2.8 | 2.8 |
Line-Line Resistance | Ω | 2 | 1.5 | 1 |
Line-Line Inductance | mH | 1.5 | 1 | 0.5 |
Length | mm | 21.3 | 26.3 | 31.3 |
Weight | kg | 0.12 | 0.18 | 0.24 |
PBLR46EHL Series |
Outer Rotor BLDC Motor |
General Specification | Wiring Connection | ||||
Winding Type | Star/DeIta | Type | Color | Function | |
Hall Effect Angle | Electrical Angle of 120 degree | ||||
Radial Play | 0.02mm@450g | UL1007 | Red | Vcc | |
Axial Play | 0.08mm@450g | Yellow | Hu | ||
Max radiaI force | 20N,10mm From the fIange | Green | Hv | ||
Max axiaI force | 10N | Blue | Hw | ||
DieIectric Strerngth | 600VAC/1S | Black | GND | ||
Insulation Resistance | 100MΩ,500VDC | UL1007 | Yellow | Phase U | |
Ambient Temperature | -20℃~+50℃ | Green | Phase V | ||
Insulation Class | Class B | Blue | Phase W | ||
Electrical Specifications | ||||
Motor Model | Unit | PBLR46EHL244050 | PBLR46EHL246050 | PBLR46EHL248050 |
Number of Phase | / | 3 | ||
Number of Poles | / | 16 | ||
Rated Voltage | VDC | 24 | ||
Rated Speed | Rpm | 5000 | ||
Rated Torque | N.m | 0.08 | 0.12 | 0.16 |
Rated Power | W | 40 | 60 | 80 |
Rated Current | A | 2.5 | 3.8 | 5.1 |
Peak Current | A | 7.5 | 11.4 | 15.2 |
Peak Torque | N.m | 0.24 | 0.36 | 0.48 |
Rotor Inertia | kg.cm² | 0.2 | 0.35 | 0.5 |
Torque Constant | N.m/A | 0.03 | 0.03 | 0.03 |
Torque Constant | V/krpm | 2.8 | 2.8 | 2.8 |
Line-Line Resistance | Ω | 1.5 | 0.9 | 0.4 |
Line-Line Inductance | mH | 1.3 | 0.8 | 0.3 |
Length | mm | 25.3 | 30.3 | 35.3 |
Weight | kg | 0.2 | 0.3 | 0.4 |
PBLR60EHL Series |
Outer Rotor BLDC Motor |
General Specification | Wiring Connection | ||||
Winding Type | Star/Delta | Type | Color | Function | |
Hall Effect Angle | Electrical Angle of 120 degree | ||||
Radial Play | 0.02mm@450g | UL1007 | Red | Vcc | |
Axial Play | 0.08mm@450g | Yellow | Hu | ||
Max radiaI force | 75N,10mm From the fIange | Green | Hv | ||
Max axiaI force | 15N | Blue | Hw | ||
DieIectric Strerngth | 600VAC/1S | Black | GND | ||
Insulation Resistance | 100MΩ,500VDC | UL1007 | Yellow | Phase U | |
Ambient Temperature | -20℃~+50℃ | Green | Phase V | ||
Insulation Class | Class B | Blue | Phase W | ||
Electrical Specifications | ||||
Motor Model | Unit | PBLR60EHL244530 | PBLR60EHL246030 | PBLR60EHL249030 |
Number of Phase | / | 3 | ||
Number of Poles | / | 16 | ||
Rated Voltage | VDC | 24 | ||
Rated Speed | Rpm | 3000 | ||
Rated Torque | N.m | 0.15 | 0.2 | 0.3 |
Rated Power | W | 45 | 60 | 90 |
Rated Current | A | 2.9 | 3.8 | 5.8 |
Peak Current | A | 8.7 | 11.4 | 17.4 |
Peak Torque | N.m | 0.45 | 0.6 | 0.9 |
Rotor Inertia | kg.cm² | 0.7 | 1 | 1.3 |
Torque Constant | N.m/A | 0.05 | 0.05 | 0.05 |
Torque Constant | V/krpm | 4.5 | 4.5 | 4.5 |
Line-Line Resistance | Ω | 0.7 | 0.45 | 0.2 |
Line-Line Inductance | mH | 0.25 | 0.15 | 0.1 |
Length | mm | 26.3 | 31.3 | 36.3 |
Weight | kg | 0.3 | 0.4 | 0.5 |
PBLR75EHL Series |
Outer Rotor BLDC Motor |
General Specification | Wiring Connection | ||||
Winding Type | Star/Delta | Type | Color | Function | |
Hall Effect Angle | Electrical Angle of 120 degree | ||||
Radial Play | 0.02mm@450g | UL1007 | Red | Vcc | |
Axial Play | 0.08mm@450g | Yellow | Hu | ||
Max radiaI force | 75N,10mm From the fIange | Green | Hv | ||
Max axiaI force | 15N | Blue | Hw | ||
DieIectric Strerngth | 600VAC/1S | Black | GND | ||
Insulation Resistance | 100MΩ,500VDC | UL1007 | Yellow | Phase U | |
Ambient Temperature | -20℃~+50℃ | Green | Phase V | ||
Insulation Class | Class B | Blue | Phase W | ||
Electrical Specifications | ||||
Motor Model | Unit | PBLR75EHL249030 | PBLR75EHL241430 | PBLR75EHL241830 |
Number of Phase | / | 3 | ||
Number of Poles | / | 16 | ||
Rated Voltage | VDC | 24 | ||
Rated Speed | Rpm | 3000 | ||
Rated Torque | N.m | 0.3 | 0.45 | 0.6 |
Rated Power | W | 90 | 140 | 180 |
Rated Current | A | 5.8 | 8.9 | 11.6 |
Peak Current | A | 17.4 | 26.7 | 34.8 |
Peak Torque | N.m | 0.9 | 1.35 | 1.8 |
Rotor Inertia | kg.cm² | 1.5 | 1.9 | 2.3 |
Torque Constant | N.m/A | 0.05 | 0.05 | 0.05 |
Torque Constant | V/krpm | 4.5 | 4.5 | 4.5 |
Line-Line Resistance | Ω | 0.5 | 0.4 | 0.3 |
Line-Line Inductance | mH | 0.2 | 0.1 | 0.05 |
Length | mm | 26.3 | 31.3 | 36.3 |
Weight | kg | 0.5 | 0.7 | 0.9 |
PBLR90EHL Series |
Outer Rotor BLDC Motor |
General Specification | Wiring Connection | ||||
Winding Type | Star/Delta | Type | Color | Function | |
Hall Effect Angle | Electrical Angle of 120 degree | ||||
Radial Play | 0.02mm@450g | UL1007 | Red | Vcc | |
Axial Play | 0.08mm@450g | Yellow | Hu | ||
Max radiaI force | 110N,10mm From the fIange | Green | Hv | ||
Max axiaI force | 45N | Blue | Hw | ||
DieIectric Strerngth | 600VAC/1S | Black | GND | ||
Insulation Resistance | 100MΩ,500VDC | UL1007 | Yellow | Phase U | |
Ambient Temperature | -20℃~+50℃ | Green | Phase V | ||
Insulation Class | Class B | Blue | Phase W | ||
Electrical Specifications | ||||
Motor Model | Unit | PBLR90EDL241020 | PBLR90EDL241520 | PBLR90EDL242020 |
Number of Phase | / | 3 | ||
Number of Poles | / | 24 | ||
Rated Voltage | VDC | 24 | ||
Rated Speed | Rpm | 2000 | ||
Rated Torque | N.m | 0.5 | 0.75 | 1 |
Rated Power | W | 100 | 150 | 200 |
Rated Current | A | 6.4 | 9.6 | 12.8 |
Peak Current | A | 19.2 | 28.8 | 38.4 |
Peak Torque | N.m | 1.5 | 2.25 | 3 |
Rotor Inertia | kg.cm² | 3 | 4 | 5 |
Torque Constant | N.m/A | 0.08 | 0.08 | 0.08 |
Torque Constant | V/krpm | 7.5 | 7.5 | 7.5 |
Line-Line Resistance | Ω | 0.4 | 0.25 | 0.15 |
Line-Line Inductance | mH | 0.3 | 0.25 | 0.2 |
Length | mm | 26.3 | 31.3 | 36.3 |
Weight | kg | 0.6 | 0.8 | 1 |
Application wiring diagram
Application
It is widely applied in fields such as industrial robots, electric forklifts, crawling robots, medical equipment, smart household appliances, smart garbage sorting bins, AGV carts, and smart turnstiles.
