S-400 underwater robot
Flexible four-push layout, 4-hour ultra-long standby, single-function gripper, lightweight and portable S-400 underwater robot
- Size：500 x 310 x 270 mm
- Weight in air：9.5kg
- Load capacity：1.3kg
- Working depth：300m
USD： 10705
ablity：Monthly Output200
- Product Description
- Product Params
Product Description

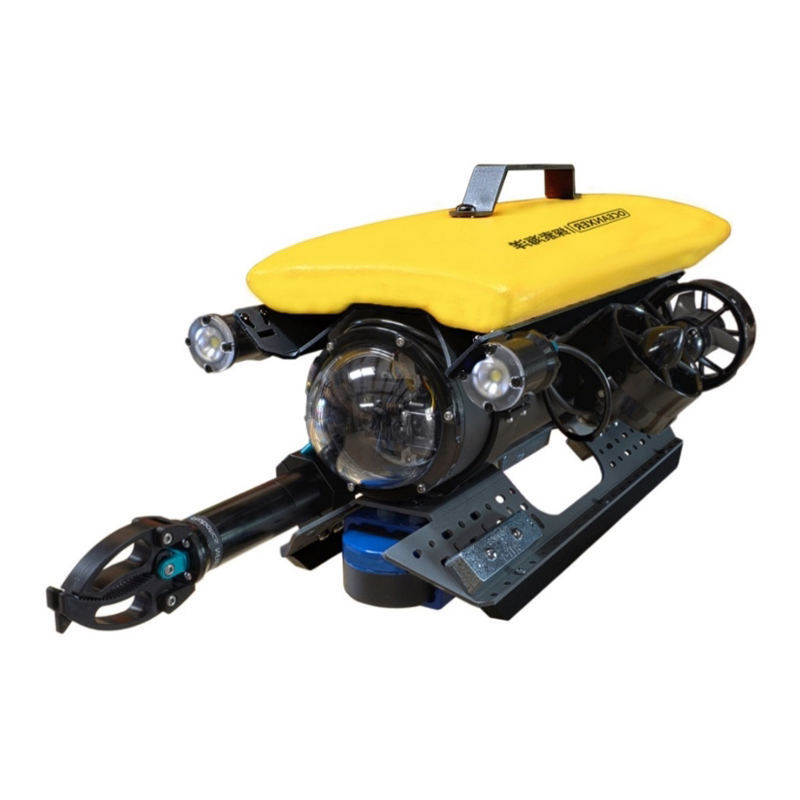

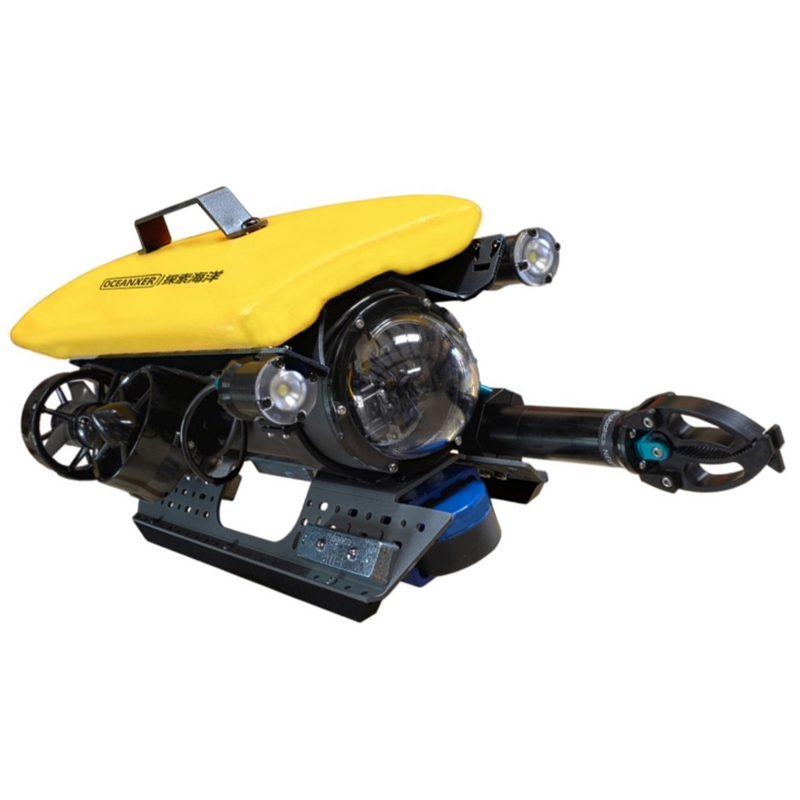

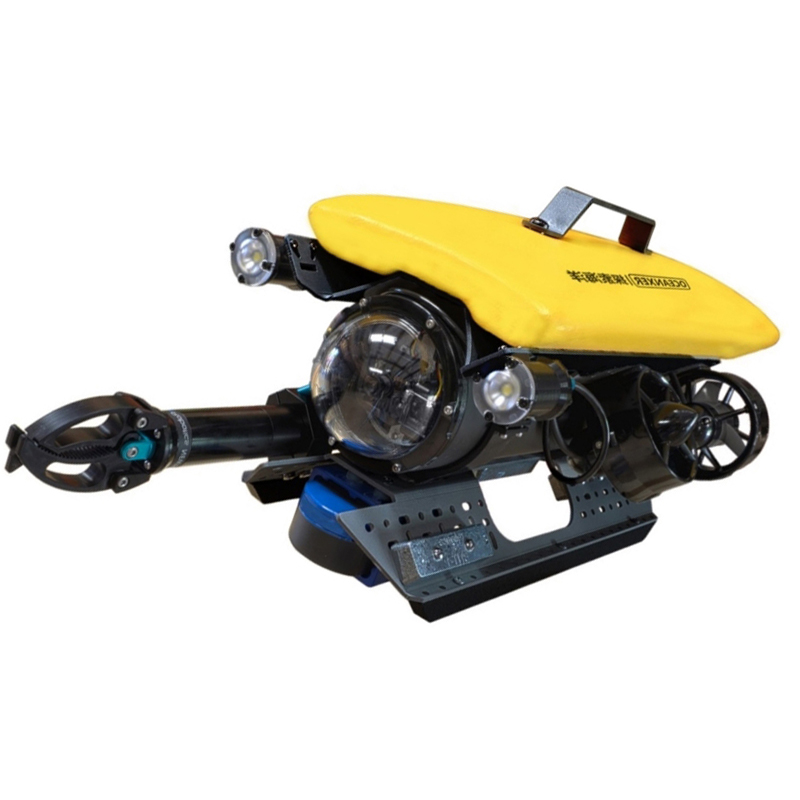

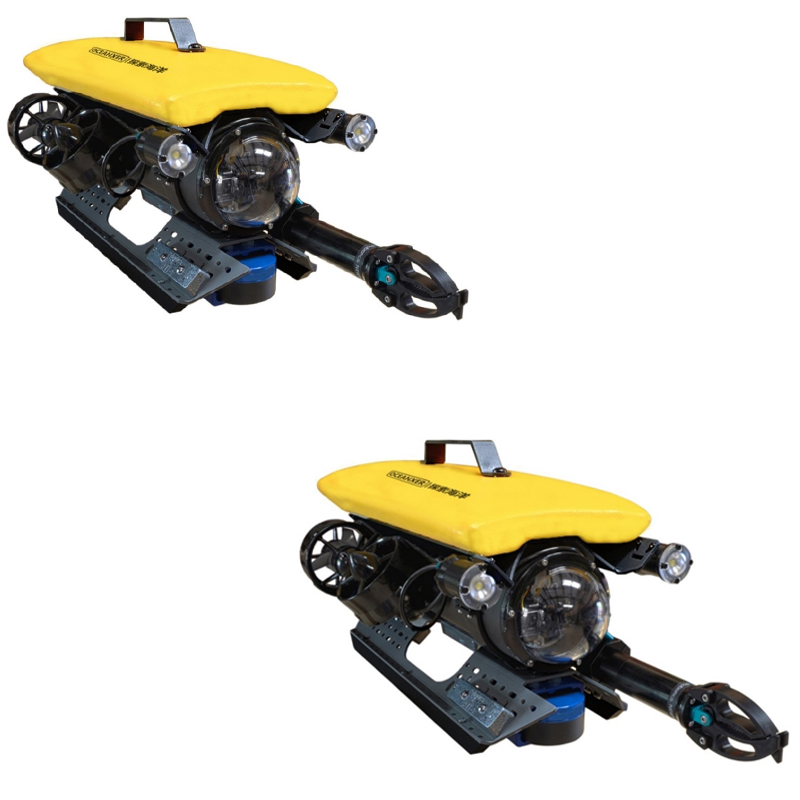

S-400 underwater robot
S-400 underwater robot has a rated working depth of 300 meters. Equipped with two 1500 lumen ultra-bright LED lights. Uses brushless DC submersible thrusters. Discovery Ocean designed a control system around this thruster layout to maximize power and movement flexibility. The system is equipped with a 1080p, 0.001lux low-light high-resolution digital camera with a tilting pan/tilt function. The standard package is equipped with 100 meters of high tensile strength zero-buoyancy cable and comes with a cable storage winch. Equipped with 10.1-inch console.
The ROV body includes
——4 sets of 350W brushless DC thrusters
——1 1080P PTZ camera
——2 sets of 1500 lumens high-brightness LED lights
——1 single-function underwater robotic arm
Product parameters
ROV-S400 underwater robot
| Mechanical parameters | Size | 500 x 310 x 270 mm |
| Weight in air | 9.5kg | |
| Load capacity | 1.3kg | |
| Working depth | 300m | |
| Thruster thrust (single) | 6.5 kgf@max |
| Electrical parameters | Operating Voltage | 16.8V |
| Camera sensitivity | 0.01lux |
Zero buoyancy cable
| Mechanical parameters | Length | 100m |
| Tensile strength | 150kg | |
| Buoyancy in sea water | Slightly neutral |
| Electrical parameters | Communication line | 2 twisted pairs |
Ground station
| Mechanical parameters | Size | 550x430x230mm |
| High brightness screen | 19 inches |
| Electrical parameters | Operating Voltage | 12V |
| Operating system | Win10 | |
| Storage | 516G(SSD) |
Optional accessories
| ——Multi-beam imaging sonar | ——Multi-degree-of-freedom robotic arm |
Application areas
