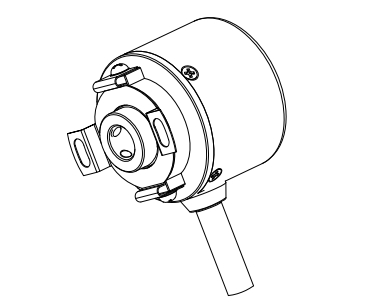

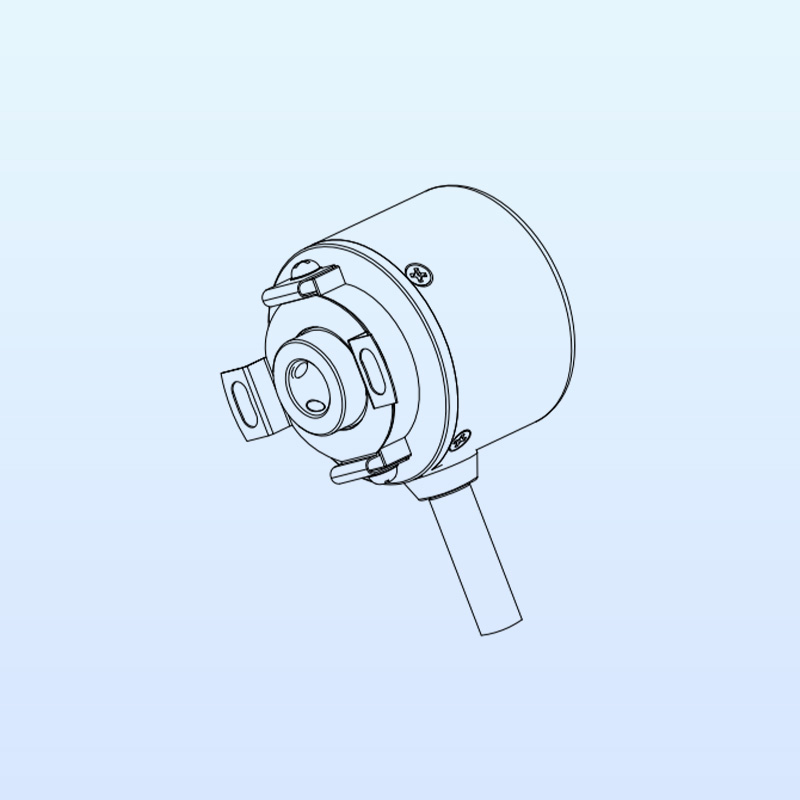

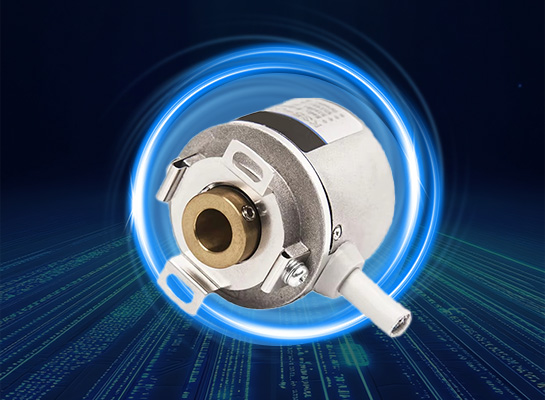

Product Description
The K35 incremental photoelectric encoder is a miniaturized encoder for blind hole shafts. It is compact, sturdy and highly safe. It is widely used in servo motors and industrial automation fields.
Product Features |
|
Product parameters
Project | Basic parameters | |
Dimensions | Outer diameter: 35mm | |
Thickness:35mm | ||
Shaft diameter: 6mm/8mm/10mm | ||
Pulse | 50;60;100;200;250;256;300;360;400;450;500;512;600;1000;1024;1200;2000;2048;2500; 4096;5000 | |
Output phase | A,B,Z or A- B- Z-U,V,W | |
Power supply voltage | DC5V & DC8-30V | |
Output mode | Radial Cable | |
Output type | NPN/PNP (open collector output) | |
Voltage output | ||
Push-pull output | ||
Differential output | Long-line driver (TTL) | |
Long-line driver (HTL) | ||
Wire-saving type | ||
Ambient temperature | Working temperature: -20~+85° (non-condensing) | |
Storage temperature: -25~+90° (non-condensing) | ||
Ambient humidity | Working and storage: 35~85%RH (non-condensing) | |
Protection level | IP50 | |
Maximum speed | 5000rpm | |
Line length | 500mm | |
Casing | Die-cast aluminum alloy | |
Packing method | Carton | |
Weight | 100g | |
Certificate | CE | |
Instructions
1. Selection guide

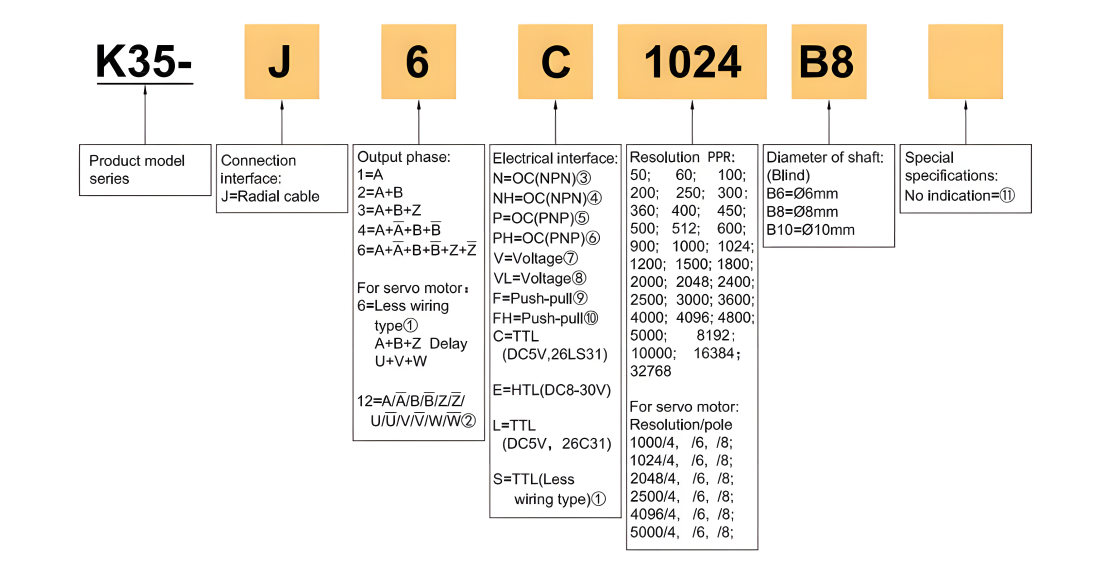

Model composition (selection parameters)
Notes
①. Wire-saving mode dedicated to servo motors, 6 signal lines,
lags behind
Electrical interface TTL, DC5V
②. Dedicated to servo motors, 12 signal lines,
,Electrical interface TTL, DC5V.
③⑤⑧⑨. The resolution selection is recommended to be below 5000PPR, and the Z-phase signal is valid at a low level.
④⑥⑦⑩. The resolution selection is recommended to be below 5000PPR, and the Z-phase signal is valid at a high level.
⑩. No indication means the cable length is 0.5m. If the length needs to be changed, C+number, up to 100m (indicated by C100)
2. Output mode

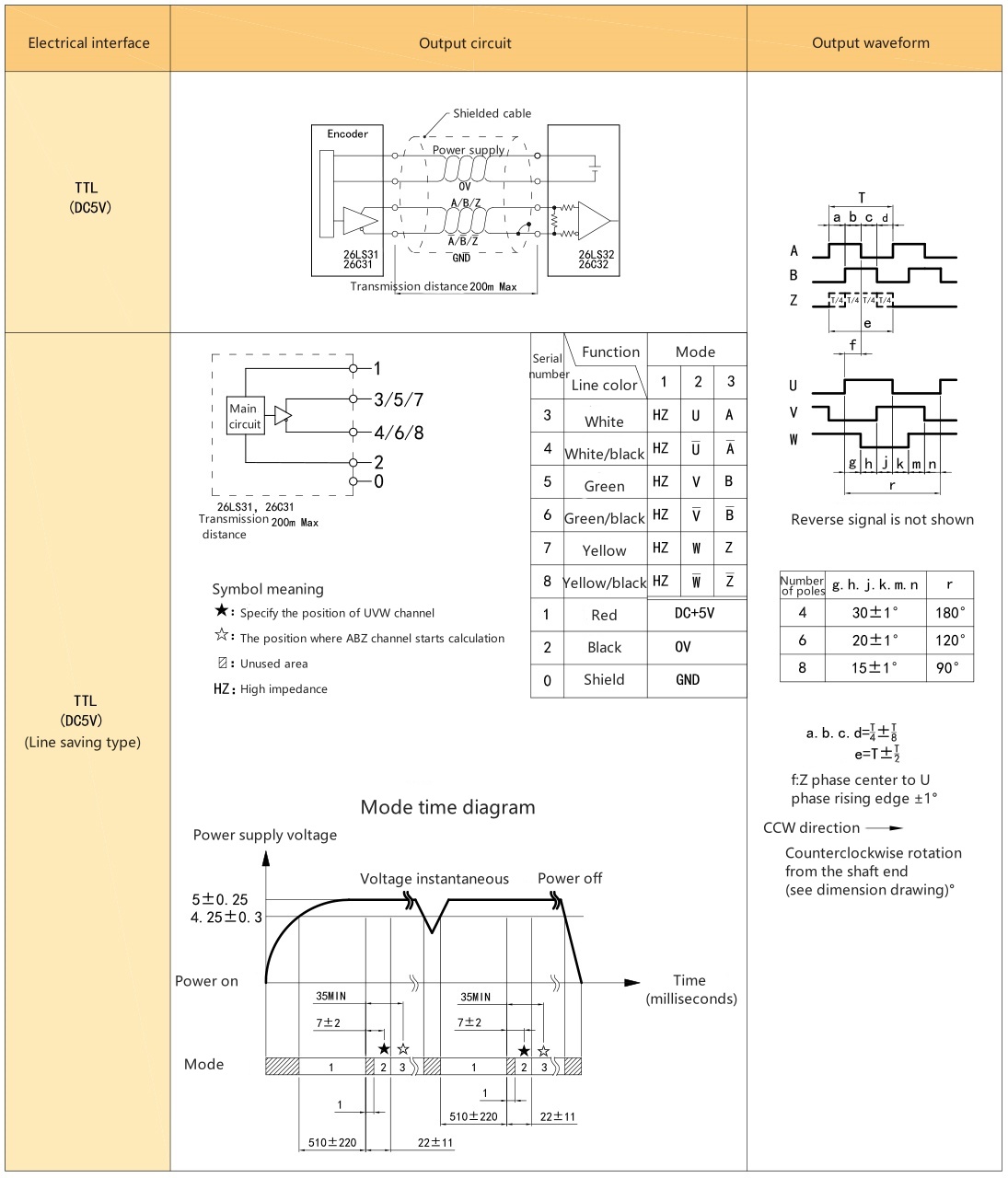

2.1Incremental signal
2.2For servo motor only (with u. v. w)
3. Electrical parameters
Project | Output method | |||||||
OC | Voltage | Push-pull | TTL | HTL | HTL | |||
Supply voltage | DC+5V±5% ; DC8-30V±5% | DC+5V±5% | DC8-30V±5% | |||||
Current consumption | 100mA Max | 120mA Max | ||||||
Allowable ripple | ≤3% rms | |||||||
Maximum response frequency | 100KHz | 200KHz | 300KHz | |||||
Output capacity | Output | Inflow | ≤30mA | Load resistance 2.2K | ≤30mA | ≤±20mA | ≤±50mA | |
Outflow | — | ≤10mA | ||||||
Output | "H" | — | — | ≥[(power supply voltage)-2.5V] | ≥2.5V | ≥Vcc-3 VDC | ||
"L" | ≤0.4V | ≤0.7V(20mA or less) | ≤0.4V（30mA） | ≤0.5V | ≤1 VDC | |||
Load voltage | ≤DC30V | — | — | |||||
Rise and fall time | 2us or less (wire length: 2m) | 1μs or less (wire length: 2m) | ≤100ns | |||||
Insulation withstand voltage | AC500V/60s | |||||||
Insulation impedance | 10MΩ | |||||||
Duty cycle | 45%~55% | |||||||
Reverse polarity protection | ✔ | |||||||
Short circuit protection | — | ✔① | ||||||
A.B Phase Difference | 90°±10° (at low frequency) | |||||||
90°±20° (at high frequency)） | ||||||||
Delay action time ② | — | |||||||
Shielded wire | Encoder body not connected | |||||||
Note: ① Short circuit with another cable or GND, the maximum allowed time is 30 seconds. | ||||||||
4. Mechanical specifications
Project | Parameter |
Shaft diameter | Φ6mm, Φ8mm, Φ10mm (optional) |
Starting torque | 5.9×10⁻³ N・m or less |
Moment of inertia | 1×10⁻⁶ kg・m² or less |
Allowable shaft force | Radial 30N; Axial 20N |
Maximum allowable speed | ≤5000 rpm |
Bearing life | Rated load 1.5×10⁹, 100,000 hours at 2500RPW |
Housing | Aluminum alloy |
Weight | Approx.100g |
5. Environmental parameters
Project | Parameter |
Ambient temperature | Operating: -20~+85°C (repeated bending cable: -10°C); Storage: -20~+90°C |
Ambient humidity | Operating/Storage: 35~85% RH (non-condensing) |
Vibration (durability) | Amplitude 0.75mm, 5~55Hz, 2h each in three axes |
Shock (durability) | 490m/s², 11ms, 3 times each in X/Y/Z directions |
Protection level | IP50 |
6. Wiring table
6.1 OC/voltage/push-pull
Supply voltage | Incremental signal | ||||
Line color | Red | Black | White | Green | Yellow |
Function | Up | OV | A | B | Z |
6.2 TTL/HTL/Cash-saving
Supply voltage | Incremental signal | |||||||
Line color | Red | Black | White | White / Black | Green | Green/Black | Yellow | Yellow/Black |
Function | Up | OV | A+ | A- | B+ | B- | Z+ | Z- |
Twisted Pair | ||||||||
*For the functional status in wire saving mode, refer to the functional mode wiring table of the output circuit.
6.3Dedicated for servo motor
Supply | Incremental signal | |||||||||||||
Line color | Red | Black | White | White / | Green | Green/ | Yellow | Yellow/ | Blue | Blue/ | Gray | Gray/ | Pink | Pink/ |
Function | Up | OV | A+ | A- | B+ | B- | Z+ | Z- | U+ | U- | V+ | V- | W+ | W- |
Twisted Pair | ||||||||||||||

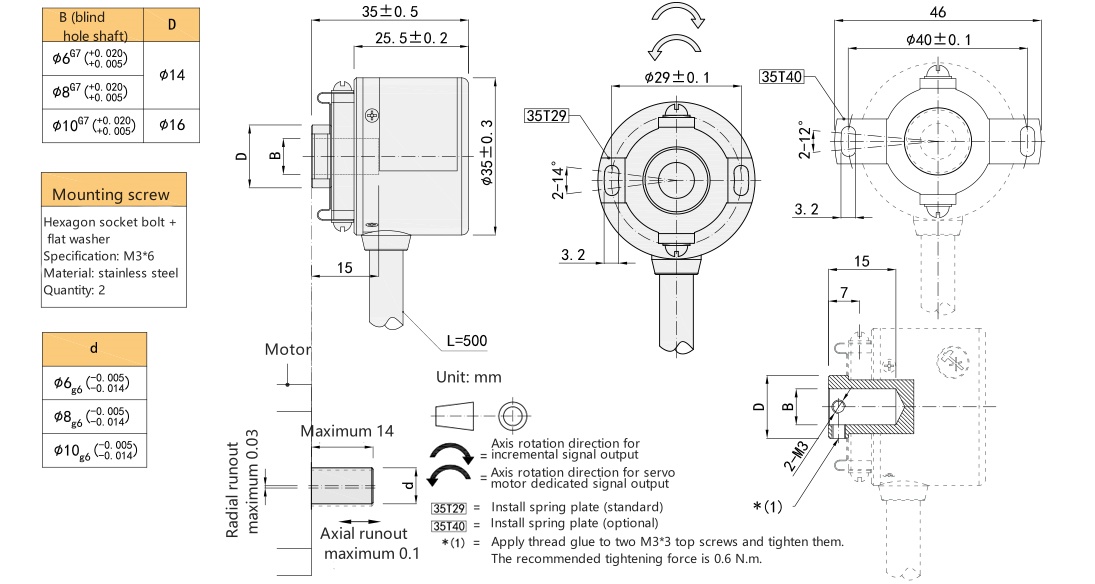

7. Basic dimensions

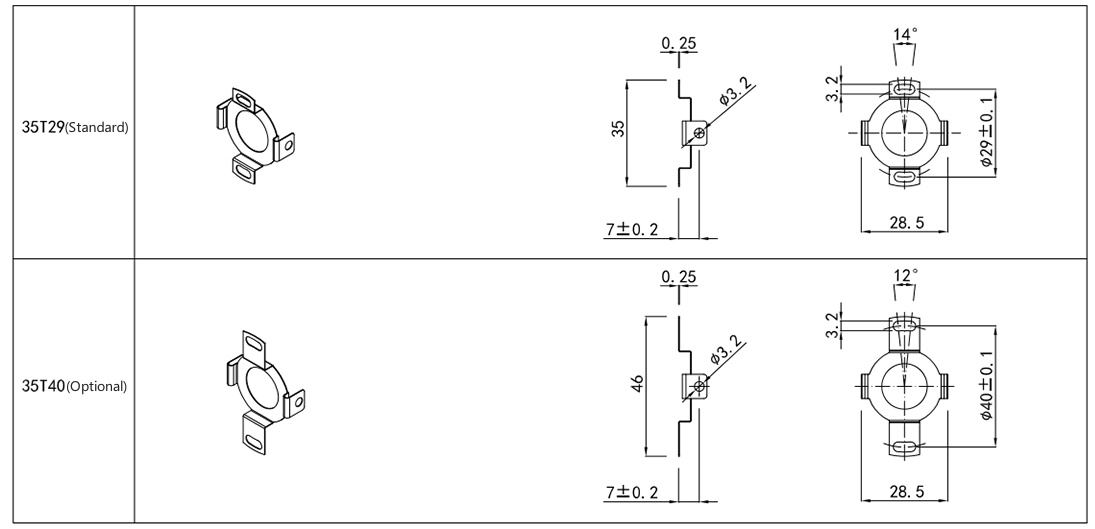

8.Accessories (spring plate installation option)
9. Precautions
9.1Regarding vibration
The vibration added to the rotary encoder often causes pulse errors, so you should pay attention to the installation location. The more pulses per revolution, the narrower the slot interval of the grating, and the more susceptible it is to vibration. When rotating at low speed or stopping, the vibration added to the shaft or body causes the grating to shake, which may cause pulse errors.

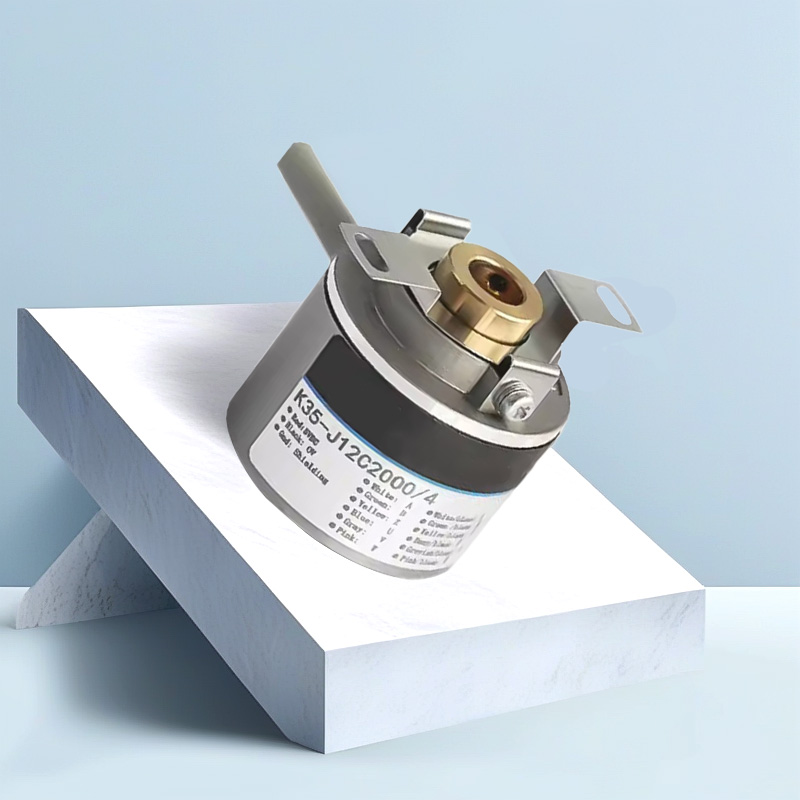

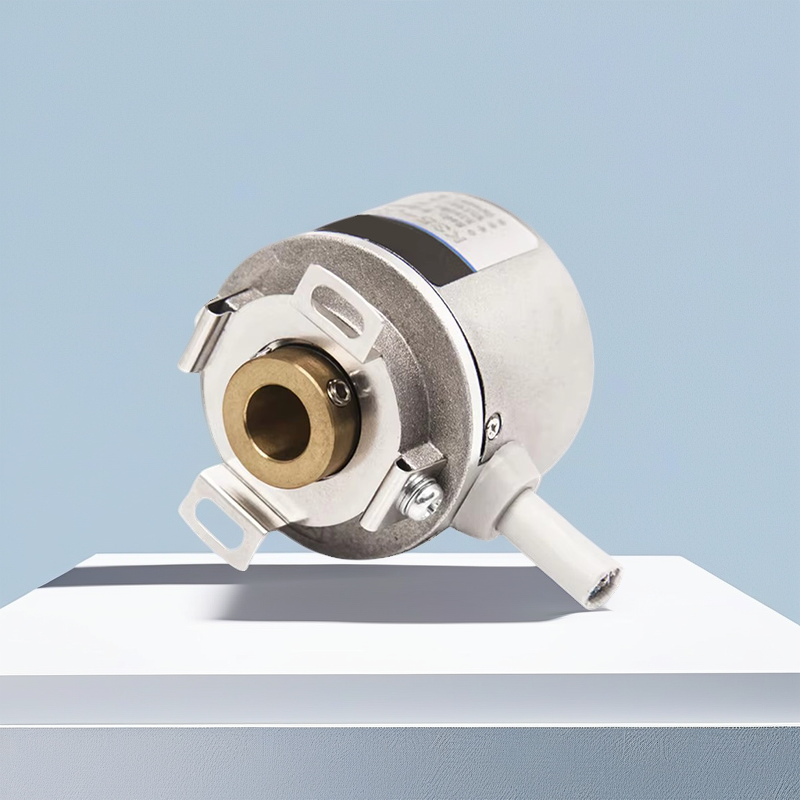

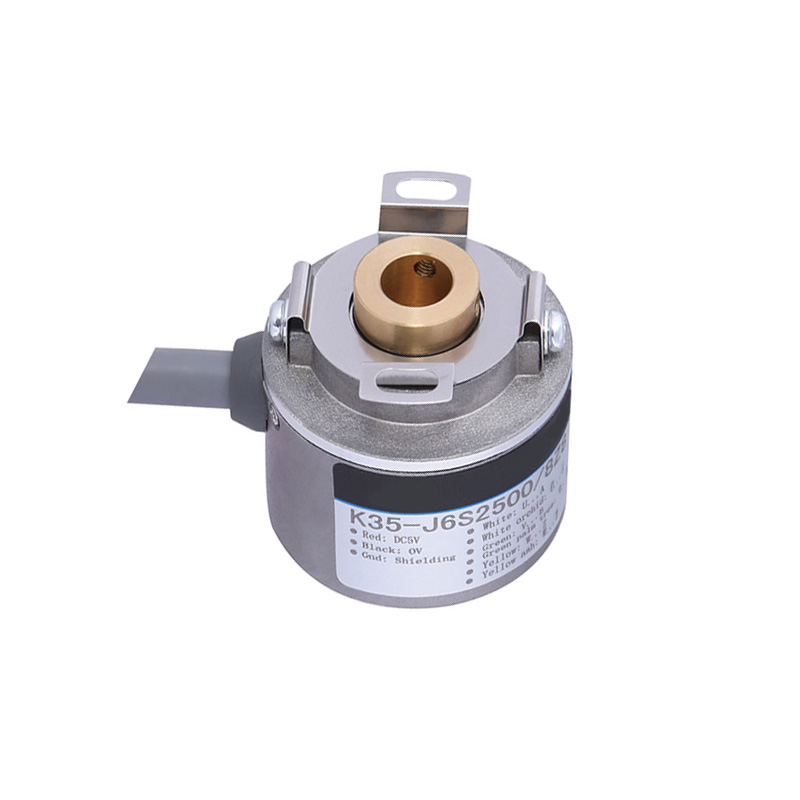

Product Display
Photoelectric induction, optical path adjustment duty cycle
Patented mechanical structure, shaft is not easy to pull out
Flexible spring plate, reduce mechanical damage
Independent grating code disk, high frequency resolution
Multiple electrical interfaces, no impact on accuracy
Wide voltage anti-interference, with reverse connection protection

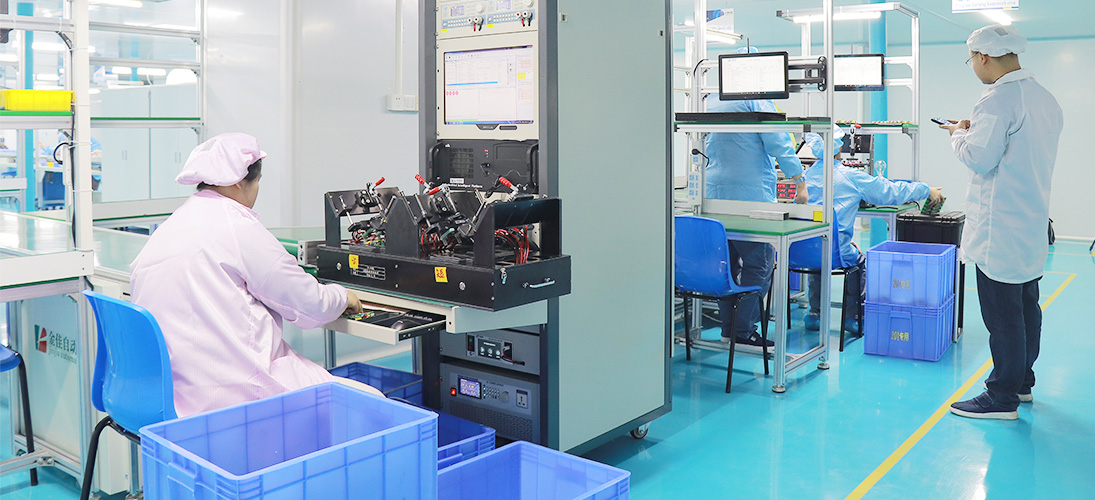

Quality Control
The quality of encoders is directly related to the stability and reliability of industrial automation systems. We have built a full-process quality control system, strictly screening suppliers from raw material procurement to ensure that the performance of core components meets standards; in the production process, we use high-precision equipment and standardized processes, and cooperate with online detection technology for real-time monitoring; in the finished product stage, we conduct rigorous tests such as high and low temperature, electromagnetic compatibility, and life aging to eliminate performance risks. Each encoder has passed multiple quality inspection levels, and its excellent quality has laid a solid foundation for intelligent manufacturing, providing customers with long-term and stable use guarantees.
Application Cases
The K35 encoder is a miniaturized blind hole shaft design with a compact and sturdy structure. It is suitable for automation fields such as servo motors, elevators, and CNC. It can accurately feedback motor rotation data through non-contact photoelectric principles. A variety of electrical interfaces are compatible with different systems to help achieve high-precision motion control.
Service
I. Precautions for using the encoder
Places where the ambient temperature does not exceed the storage temperature; places where the relative humidity does not exceed the storage humidity; places where the temperature changes sharply and fogging occurs; places close to corrosive gases and flammable gases; places away from dust, salt, and metal powder; places where water, oil, and medicines are used; places where excessive vibration and impact will be transmitted to the body
II. Precautions for installing the encoder
Electrical components must not be subjected to overvoltage and other phenomena. Please conduct an electrostatic assessment of the setting environment, etc. Do not bring the motor power line close to the encoder; the FG line of the motor and the FG of the mechanical device must be reliably grounded; due to shielding The wire is not connected to the encoder body. Please make sure that the shielded wire is effectively connected to the ground at the user end.
III. Precautions on wiring
When used under the specified power supply voltage, please pay attention to the power supply voltage amplitude drop caused by the long wiring; please do not use the encoder wire and other power wires in the same pipe or bundle them in parallel; please use twisted pair wires for the signal wire and power wire of the encoder wire; please do not apply excessive force to the encoder harness, there will be a risk of disconnection
IV. About encoder warranty
Within twelve months after purchasing our company's products, users can get free warranty when they use them correctly according to the instructions,warning signs and other precautions and cause failures.
