The DDSM series 10-29mm brushless torque motor is driven by a sine wave, featuring high precision and low noise

The DDSM series 10-29mm brushless torque motor is driven by a sine wave, featuring high precision and low noise

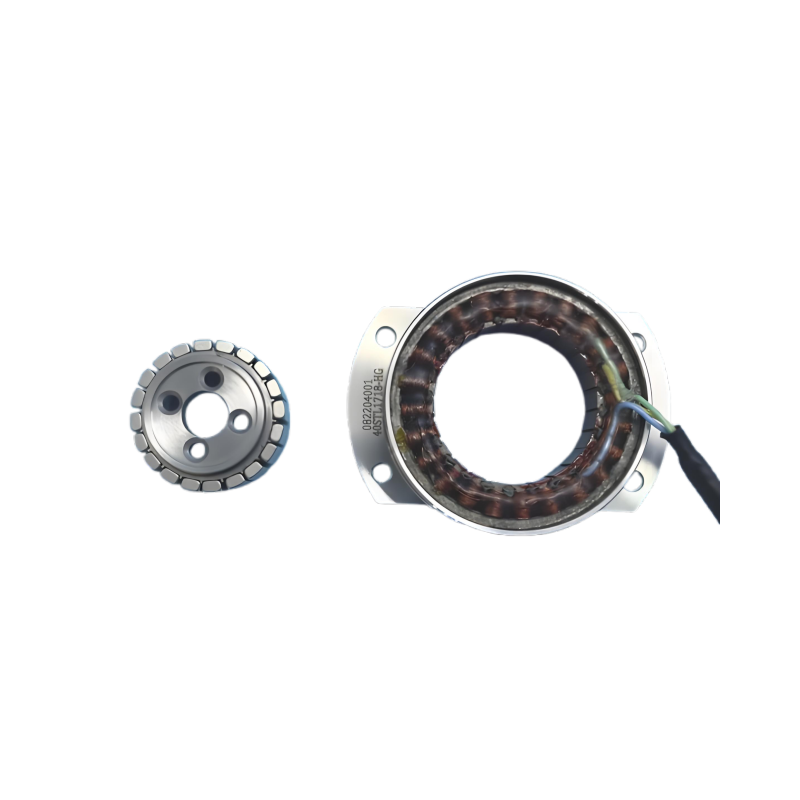

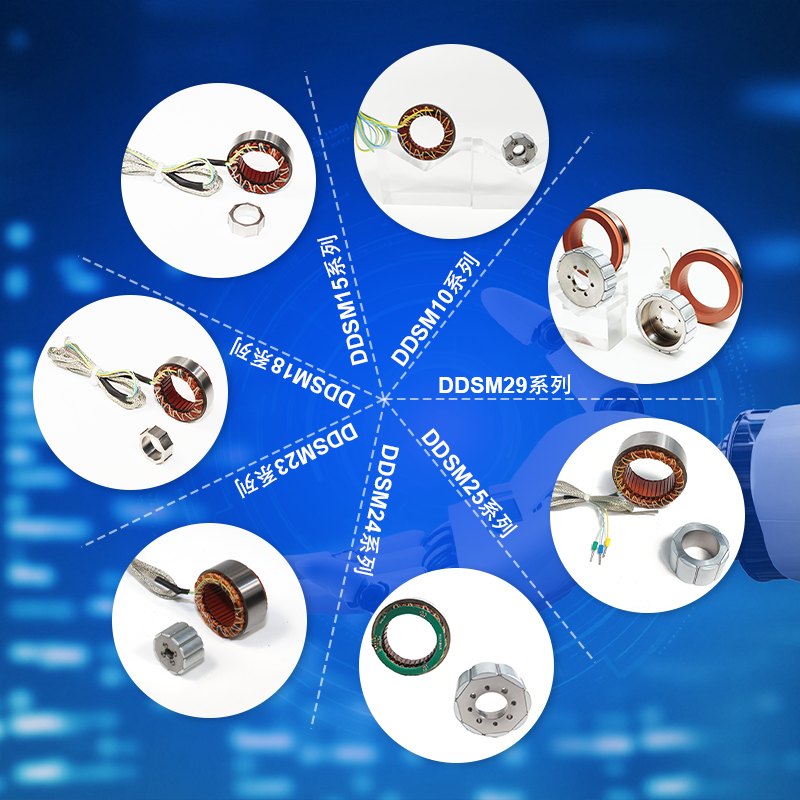

Model :
DDSM10 series
DDSM15 series
DDSM18 series
DDSM23 series
DDSM24 series
DDSM25 series
DDSM29 series

USD: 295-736

ablity:Monthly Output3000

contact shop

Product Description






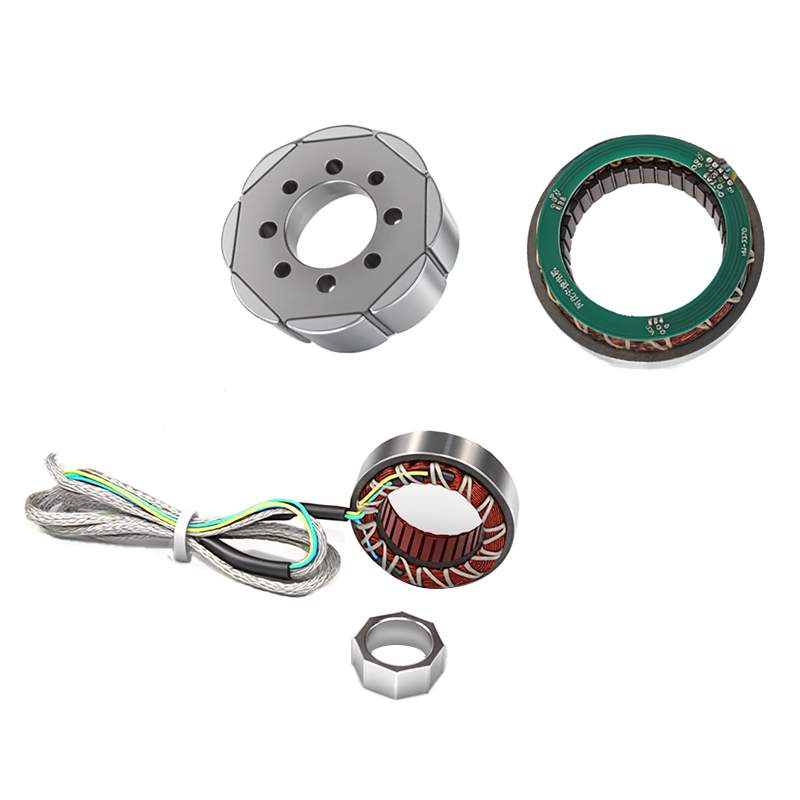

  DDSM series

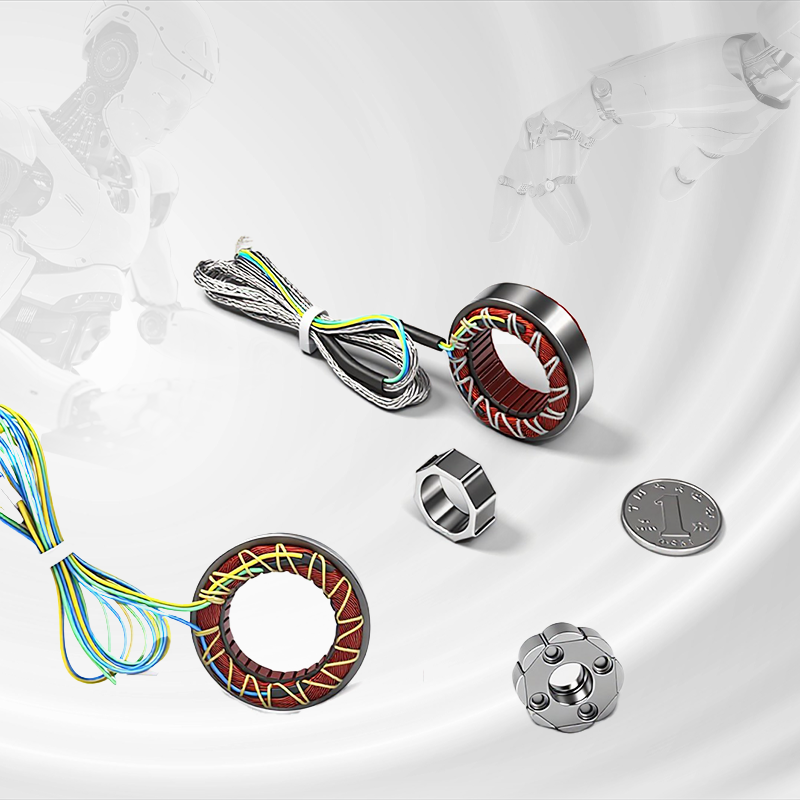

  10-29mm brushless torque motors


         ●Sine wave drive

         ●Accuracy ±0.1°

         ●Noise <35dB

         ●Maintenance-free for life

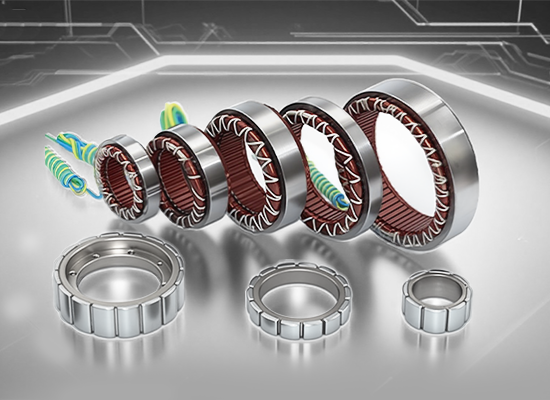

The DDSM series of sinusoidal brushless torque motors (also known as DD motors or sinusoidal brushless DC direct drive motors) come in a variety of thicknesses and torque ranges. They are easy to install, have excellent performance, and a long service life. We can provide customers with proprietary customized solutions. Unlike brushed DC torque motors, the DDSM series sinusoidal brushless torque motors have no brush wear, no commutation spark interference, and have greatly improved reliability and service life. This series of products is applicable to various high-precision platforms, optical turrets, tank turrets, unmanned aerial vehicle pods, medical equipment, underwater robots, high-precision CNC machine tools, industrial robot systems, intelligent agriculture, factory automation and other occasions.

Functional Features

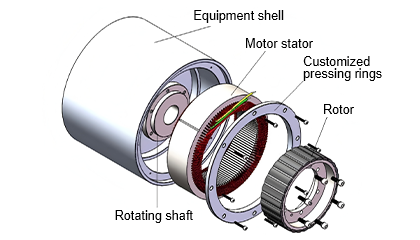

This structural design of the motor has the following prominent advantages:

Natural cooling does not require external heat dissipation equipment

Seamless connection with equipment enhances system accuracy

It can be combined with mainstream servo drivers to form a servo system with strong adaptability and superior low-speed performance

It offers a variety of stacking thicknesses and torque ranges, and the core stacking thicknesses can be customized

It adopts advanced electromagnetic design, which can achieve the maximum torque density and reduce the volume and size of the motor

The rotation is very smooth, the cogging effect is very small, and the total harmonic distortion (THD) is very low

It has a wide range of operating speeds and fast acceleration

Application

This series of products is applicable to various high-precision platforms, optical turrets, tank turrets, unmanned aerial vehicle pods, medical equipment, underwater robots, high-precision CNC machine tools, industrial robot systems, intelligent agriculture, factory automation and other occasions.

Model Description

Model naming method
























DD

S

M

(H)

































Sensor (R/A/I)











































Special design code: Combination of numbers or letters











































A-Z (Different performances of the same model motor)











































Core length (stacking thickness) such as: 01 is 10mm, 04 is 40mm











































Frame number, indicated by a number, such as 65











































Hall element (optional)











































Motor











































Sine wave











































Direct Drive






















Product parameters

DDSM10 series sinusoidal brushless DC torque motor

Type

Peak Standstill

Max.no-load

Cont.Standstill

Moment of inertia
Kg.cm2

Iron heart
 L(mm)

Torque

Current

Voltage

Torque

Current

Voltage

N.M

A

V

r/min

N.m

A

V

±12.5%

±12.5%

±10%

±12.5%

±12.5%

DDSM10-005A

0.022

1. 1

24

10000

0.01

0.5

11

0.0017

5

DDSM10-005B

0.024

2

12

8500

0.01

0.8

5

0.0017

5

DDSM10-005C

0.038

2.75

24

15000

0.01

0.75

6.6

0.0017

5

DDSM10-005D

0.017

0.65

28

9000

0.01

0.38

17

0.0017

5

DDSM10-008A

0.055

2.55

24

10000

0.014

0.65

6.15

0.002

8

DDSM10-008B

0.065

6. 1

12

10000

0.014

1.3

2.6

0.002

8

DDSM10-008C

0.03

1

24

6500

0.014

0.45

11.2

0.002

8

DDSM10-008D

0.055

2.25

28

10000

0.014

0.56

7

0.002

8

DDSM10-013A

0. 14

7

24

10500

0.022

1. 1

3.8

0.0028

13

DDSM10-013B

0. 14

13.5

12

10000

0.022

2. 1

1.9

0.0028

13

DDSM10-013C

0.068

1.9

24

6000

0.022

0.65

8.3

0.0028

13

DDSM10-013D

0. 11

4

28

9000

0.022

0.8

5.6

0.0028

13

If you need to change the operating voltage of the motor, increase or decrease the motor speed, or increase or decrease the torque, please contact the technical personnel for specific details.

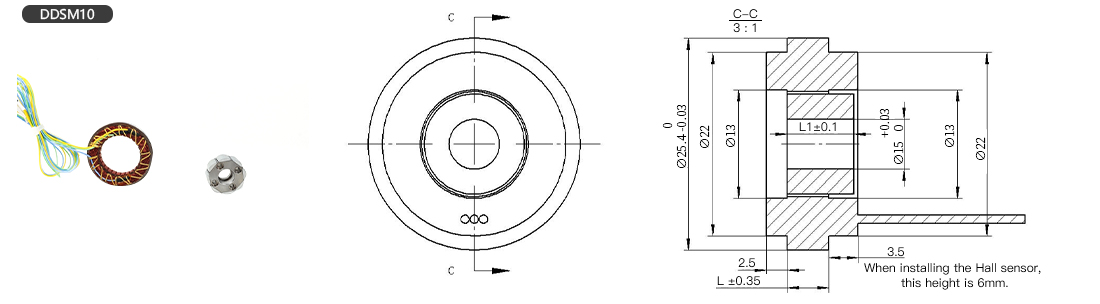

DDSM10  the series of sinusoidal brushless DC torque motors with separate packaging have no Hall effect

When the motor needs to be equipped with Hall plates, the Hall plates are installed at the winding outlet end, and the height is increased by 4.5mm

Model

L(mm)

L1No Hall

L1There is Hall.

DDSM10-005XX

5

8

13

DDSM10-008XX

8

10

16

DDSM10-013XX

13

16

21

DDSM15  series sinusoidal brushless DC torque motor

Type

Peak Standstill

Max.no-load

Cont.Standstill

Moment of inertia
Kg.cm2

Iron heart
 L(mm)

Torque

Current

Voltage

Torque

Current

Voltage

N.M

A

V

r/min

N.m

A

V

±12.5%

±12.5%

±10%

±12.5%

±12.5%

DDSM15-005A

0.14

4.5

15

4200

0.05

1.6

5

0.011

5

DDSM15-005B

0.19

5.7

28

7500

0.05

1.5

7.5

0.011

5

DDSM15-005C

0.19

5.3

24/27

6000

0.05

1.4

6.4

0.011

5

DDSM15-005D

0.21

11.7

12

6000

0.05

2.8

2.9

0.011

5

DDSM15-005E

0. 14

2.8

28

4500

0.05

1

10

0.014

5

DDSM15-008A

0.18

2.5

24/27

3000

0.08

1.2

11

0.014

8

DDSM15-008B

0.28

5.75

28

5000

0.08

1.6

7.9

0.0.14

8

DDSM15-008C

0.25

9.4

12

4000

0.08

3

3.9

0.014

8

DDSM15-008D

0.25

4.7

24/27

4000

0.08

1.5

7.8

0.014

8

DDSM15-013A

0.32

3.9

24/27

2400

0. 11

1.3

8.5

0.0218

13

DDSM15-013B

0.28

2.5

28

2100

0.11

1

11.5

0.0218

13

DDSM15-013C

0.4

6.6

24/27

3300

0. 11

1.7

6.3

0.0218

13

DDSM15-013D

0.18

1.35

28

1700

0. 11

0.75

16.3

0.0218

13

DDSM15-013E

0.3

2.35

48

2800

0. 11

0.85

17.6

0.0218

13

If you need to change the operating voltage of the motor, increase or decrease the motor speed, or increase or decrease the torque, please contact the technical personnel for specific details.

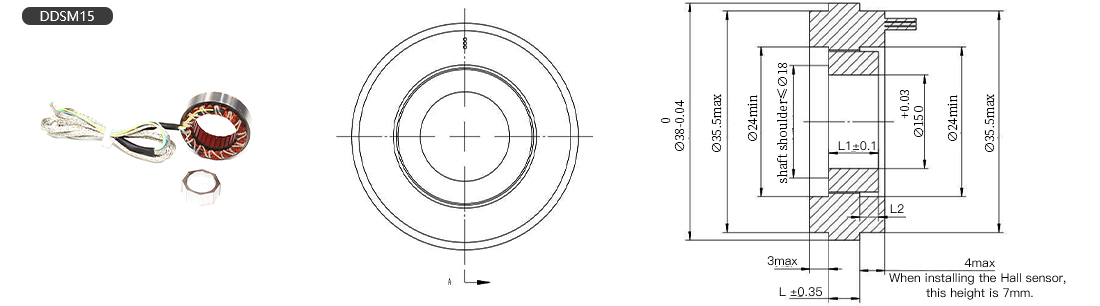

DDSM15 the profile drawing of the series of sinusoidal brushless DC torque motors in the assembled type

When Hall elements are installed, the winding height at the outlet end increases by 3mm

DDSM18  series sinusoidal brushless DC torque motor

Type

Peak Standstill

Max.no-load

Cont.Standstill

Moment of inertia
Kg.cm2

Iron heart
 L(mm)

Torque

Current

Voltage

Torque

Current

Voltage

N.M

A

V

r/min

N.m

A

V

±12.5%

±12.5%

±10%

±12.5%

±12.5%

DDSM18-008A

0.27

2.3

24/28

1630

0. 1

0.85

8.8

0.0245

8

DDSM18-008B

0.39

4.8

24/28

2360

0. 1

1.25

6.3

0.0245

8

DDSM18-008C

0.23

1

48

1600

0. 1

0.43

21.3

0.0245

8

DDSM18-008D

0.45

3.35

48

2800

0. 1

0.75

10.9

0.0245

8

DDSM18-016A

0.5

1.78

48

1300

0.18

0.6

16.2

0.049

16

DDSM18-016B

0.45

2.35

24/28

1000

0.18

0.95

9.9

0.049

16

DDSM18-016C

0.85

4.6

48

2000

0.18

1

10.5

0.049

16

DDSM18-016D

0.7

5.6

24/28

1500

0.18

1.44

6.5

0.049

16

DDSM18-024A

1. 1

4.5

48

1500

0.32

1.3

13. 1

0.075

24

DDSM18-024B

1. 1

9

24

1500

0.32

2.6

6

0.075

24

DDSM18-024C

0.75

2

48

1000

0.32

0.86

21. 1

0.075

24

DDSM18-024D

0.88

4.5

24

1000

0.32

1.65

9.5

0.075

24

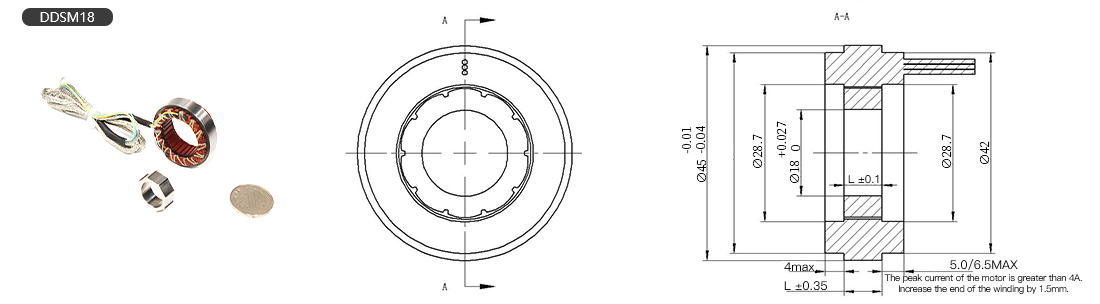

DDSM18 the profile drawing of the series of sinusoidal brushless DC torque motors in the assembled type

DDSM23  series sinusoidal brushless DC torque motor

Type

Peak Standstill

Max.no-load

Cont.Standstill

Moment of inertia
Kg.cm2*10-5

Iron heart
 L(mm)

Torque

Current

Voltage

Torque

Current

Voltage

N.M

A

V

r/min

N.m

A

V

±12.5%

±12.5%

±10%

±12.5%

±12.5%

DDSM23-01A

0.75

13.8

24/27

3600

0.15

2.8

4.9

0.5

10

DDSM23-01B

0.7

6.43

48

3600

0.16

1.5

11.2

0.5

10

DDSM23-01C

0.6

6

27

2300

0.15

1.5

10.2

0.5

10

DDSM23-01D

0.3

1.7

24/27

1200

0.15

0.85

12

0.5

10

DDSM23-02A

1.74

24

24/27

2700

0.3

4.2

4.2

1.01

20

DDSM23-02B

1.64

11.3

48

2700

0.3

2. 1

8.9

1.01

20

DDSM23-02C

0.82

5.7

24/27

1350

0.32

2.2

9.3

1.01

20

DDSM23-02D

0.75

2.6

48

1350

0.35

1.2

22. 1

1.01

20

DDSM23-02F

0.5

2.5

24/27

900

0.4

2

19

1.01

20

DDSM23-035A

2.42

40

12

1620

0.6

10

3

2.18

35

DDSM23-035B

2.3

19.2

24/27

1620

0.6

5

6.2

2.18

35

DDSM23-035C

1.9

13.2

24/27

1350

0.6

4.15

7.54

2.18

35

DDSM23-035D

1.8

6.2

48

1350

0.6

2.07

16

2.18

35

If you need to change the operating voltage of the motor, increase or decrease the motor speed, or increase or decrease the torque, please contact the technical personnel for specific details.

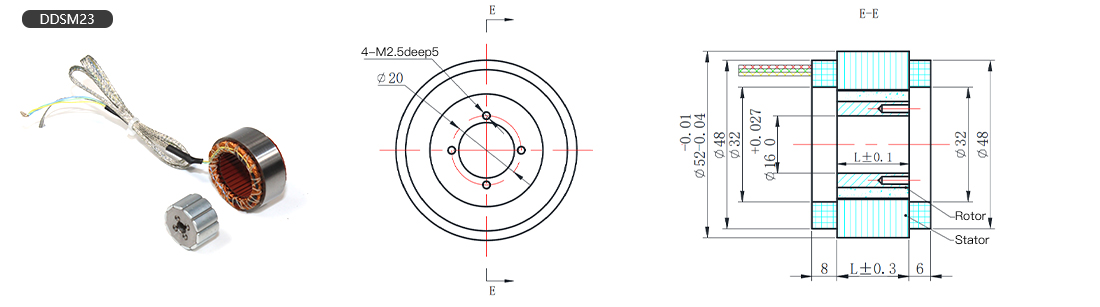

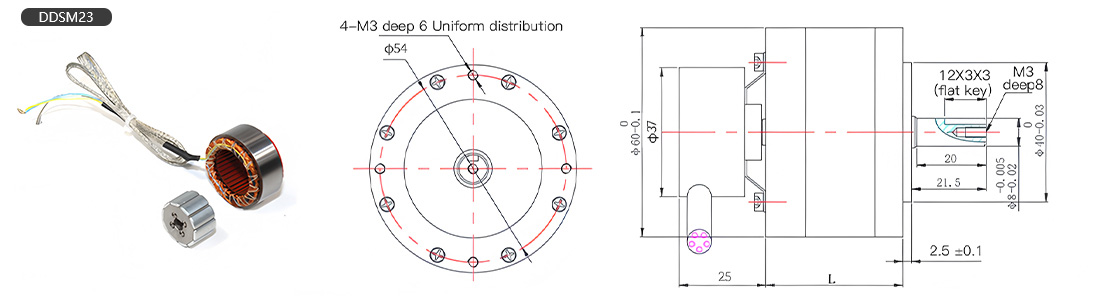

DDSM23 the profile drawing of the series of sinusoidal brushless DC torque motors in the assembled type

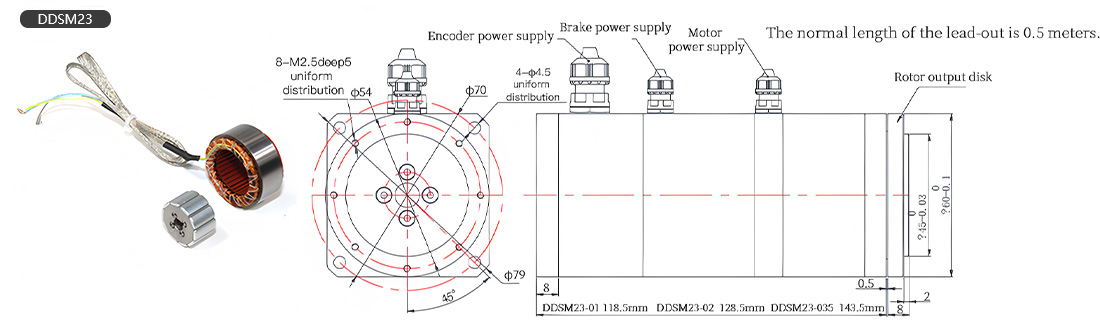

DDSM23  direct drive end face disc type output shape drawing

DDSM23  direct drive end face disc type output shape drawing

Model

L(mm)

DDSM23-01XX-A(I)

39.5

DDSM23-02XX-A(I)

49.5

DDSM23-035XX-A(I)

64.5

DDSM24  series sinusoidal brushless DC torque motor

Type

Peak Standstill

Max.no-load

Cont.Standstill

Moment of inertia
Kg.cm2*10-5

Iron heart
 L(mm)

Torque

Current

Voltage

Torque

Current

Voltage

N.M

A

V

r/min

N.m

A

V

±12.5%

±12.5%

±10%

±12.5%

±12.5%

DDSM24-01A

0.45

1.8

28

1000

0.225

0.9

14

1..48

10

DDSM24-01B

0.66

4

28

1500

0.22

1.35

9.35

1.48

10

DDSM24-01C

0.9

7.5

28

2000

0.23

1.92

7.2

1.48

10

DDSM24-01D

0.64

3

36

1500

0.22

1.04

12.4

1.48

10

DDSM24-02A

1

3

28

750

0.6

1.8

16.8

3.07

20

DDSM24-02B

1.35

2.5

48

800

0.65

1.2

20.6

3.07

20

DDSM24-02C

1.88

8.6

24/27

1000

0.65

3

8.4

3.07

20

DDSM24-02D

1.75

4.3

48

1000

0.7

1.6

19. 1

3.07

20

DDSM24-02E

1.3

2.5

48

800

0.65

1.25

24

3.07

20

DDSM24-03A

2.89

7

48

1050

1.05

2.6

18

4.68

30

DDSM24-03B

2

3.8

48

800

1.08

2. 1

26

4.68

30

DDSM24-03C

1.4

3.4

24/27

500

1.08

2.55

18.5

4.68

30

DDSM24-03D

1.5

4.5

24/27

600

1.08

3.24

17.3

4.68

30

DDSM24-03E

1.68

2.2

48

580

1.05

1.4

30

4.68

30

DDSM24-04A

2.5

6.6

28

650

1.25

3.3

14

5.87

40

DDSM24-04B

3

5.7

48

800

1.25

2.4

20

5.87

40

DDSM24-04C

3

8.9

28

750

1.25

3.7

11.7

5.87

40

DDSM24-04D

4.5

21.6

24/27

1000

1.25

6

6.7

5.87

40

If you need to change the operating voltage of the motor, increase or decrease the motor speed, or increase or decrease the torque, please contact the technical personnel for specific details.

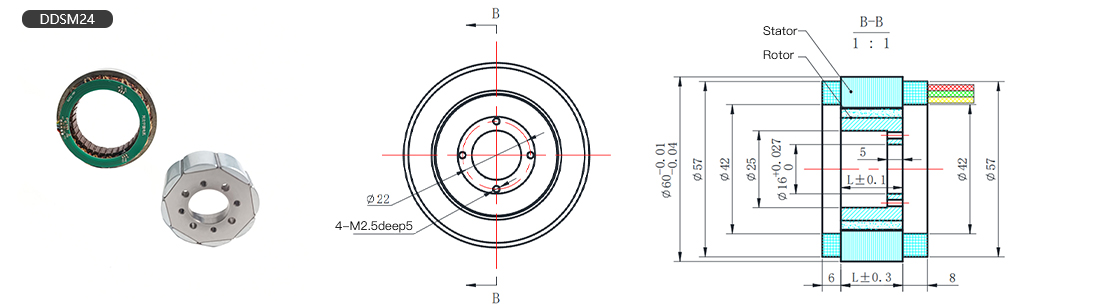

DDSM24 the profile drawing of the series of sinusoidal brushless DC torque motors in the assembled type

DDSM25  series sinusoidal brushless DC torque motor

Type

Peak Standstill

Max.no-load

Cont.Standstill

Moment of inertia
Kg.cm2*10-5

Iron heart
 L(mm)

Torque

Current

Voltage

Torque

Current

Voltage

N.M

A

V

r/min

N.m

A

V

±12.5%

±12.5%

±10%

±12.5%

±12.5%

DDSM25-01A

0.7

4

24/27

1050

0.26

1.5

8.8

1..48

10

DDSM25-01B

0.66

2.27

48

1500

0.22

0.75

15.83

1.48

10

DDSM25-01C

0.69

5.35

24/27

1650

0.23

1.8

8.13

1.48

10

DDSM25-01D

0.83

7.48

24/27

2000

0.22

2

6.41

1.48

10

DDSM25-02A

0.86

1.86

24/27

425

0.66

1.3

18.5

3.07

20

DDSM25-02B

1.5

2.8

48

800

0.65

1.2

20.6

3.07

20

DDSM25-02C

1.88

8.6

24/27

1000

0.65

3

8.4

3.07

20

DDSM25-02D

1.75

4.3

48

1000

0.7

1.6

19. 1

3.07

20

DDSM25-02E

1.3

2. 1

48

660

0.65

1

22.7

3.07

20

DDSM25-03A

2.4

3.68

48

660

1.05

1.6

22.8

4.68

30

DDSM25-03B

3.85

8.8

48

1000

1.08

2.5

13.6

4.68

30

DDSM25-03C

1.9

4.4

24/27

500

1.08

2.5

13.6

4.68

30

DDSM25-03D

1.5

2.8

24/27

400

1.08

2

17.3

4.68

30

DDSM25-04A

3.7

1.86

220

1000

1

0.5

59

5.87

40

DDSM25-04B

2.49

6.3

24/27

570

1

2.5

9.6

5.87

40

DDSM25-04C

2.28

3

48

570

1.15

1.5

24.3

5.87

40

DDSM25-04D

4.5

21.6

24/27

1000

1.27

6

6.7

5.87

40

If you need to change the operating voltage of the motor, increase or decrease the motor speed, or increase or decrease the torque, please contact the technical personnel for specific details.

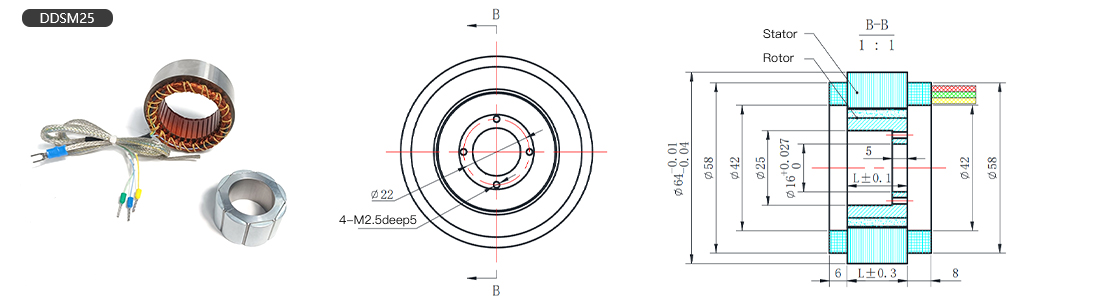

DDSM25  the profile drawing of the series of sinusoidal brushless DC torque motors in the assembled type

DDSM29  series sinusoidal brushless DC torque motor

Type

Peak Standstill

Max.no-load

Cont.Standstill

Moment of inertia
Kg.cm2*10-5

Iron heart
 L(mm)

Torque

Current

Voltage

Torque

Current

Voltage

N.M

A

V

r/min

N.m

A

V

±12.5%

±12.5%

±10%

±12.5%

±12.5%

DDSM29-006A

0.6

2

28

850

0.26

0.9

12.8

3.6

6

DDSM29-006B

0.65

2

28

731

0.26

0.8

9. 1

3.6

6

DDSM29-006C

1

5

28

1200

0.26

1.35

7.3

3.6

6

DDSM29-006D

1.2

4.5

48

1500

0.26

0.9

11.7

3.6

6

DDSM29-01A

0.9

2.35

28

600

0.42

1

12.2

5.4

10

DDSM29-01B

1.6

6.8

28

1000

0.42

1.8

7.4

5.4

10

DDSM29-01C

1.6

3.8

48

1000

0.42

1

12.8

5.4

10

DDSM29-01D

2.4

8.9

48

1500

0.42

1.5

8.2

5.4

10

DDSM29-02A

3.4

8.7

28

650

1

2.65

8.5

9.2

20

DDSM29-02B

4

13.3

28

800

1

3.35

7.25

9.2

20

DDSM29-02C

4

7.5

48

800

1

2

13

9.2

20

DDSM29-02D

1.7

1.65

48

400

1

1

29

9.2

20

DDSM29-03A

3.2

3.2

48

400

1.5

1.5

22.5

12.8

30

DDSM29-03B

3.5

5.6

28

400

1.5

2.4

12.3

12.8

30

DDSM29-03C

5.2

13

28

600

1.5

3.6

7.8

12.8

30

DDSM29-03D

5.2

7.5

48

600

1.5

2.2

13.9

12.8

30

If you need to change the operating voltage of the motor, increase or decrease the motor speed, or increase or decrease the torque, please contact the technical personnel for specific details.

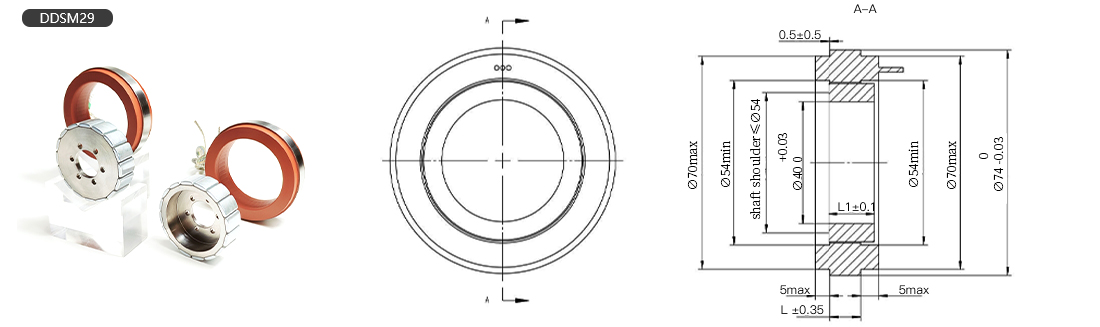

DDSM29  the profile drawing of the series of sinusoidal brushless DC torque motors in the assembled type

Assembly drawing

Assembly schematic diagram of the split-type direct drive motor:

1. Install the rotating shaft on the equipment casing, and the main shaft and the equipment casing are supported by bearings.
2. Install the stator on the stop mouth of the equipment shell and press it tightly with the stator pressure ring.
3. Insert the rotor into the inner hole of the stator, and at the same time, take care to protect the stator. Connect and fix the rotor to the shaft with connecting bolts.
4. Rotate the rotor by hand to check if it rotates smoothly and if there is any scraping. Under normal conditions, the motor rotor should rotate smoothly. If there is abnormal resistance, please check if there is any sweeping phenomenon.
5. In harsh environments, a casing should be designed for the motor to provide protection.

All models can be customized according to the customer's requirements for voltage, torque and speed indicators.
Performance indicators and appearance diagram of sinusoidal brushless DC torque motor

Custom Process

Demand communication

Scheme design

Sample production

Mass production

After-sales service

Technical support

Service

Dedicated service, along the way

Warranty worry-free, extended repair, often return to promote optimization, peace of mind choice, all in control.

    Online customer service         Efficient logistics              Deliver on time             Quality Assurance       Technical maintenance     Manufacturer support

After-sale guarantee

After-sales service: We provide comprehensive after-sales technical support, if you encounter any problems in the process of use, the professional after-sales engineer team will respond quickly, through telephone, mail or remote assistance, to provide you with detailed solutions. We also provide regular return visits to our products to understand how they are used and to collect your feedback in order to continuously optimize our products and services. In addition, in strict accordance with the quality assurance policy, we provide free repair or replacement services for products with quality problems during the warranty period, so that you have no worries.

Recommended products

The DDSM series 10-29mm brushless torque motor is driven by a sine wave, featuring high precision and low noise

The DDSM series 10-29mm brushless torque motor is driven by a sine wave, featuring high precision and low noise

collect:0

The Y series DC frameless torque motor features high torque, high precision, compact design and low cost

The Y series of DC frameless torque motors are preferred for robot medical equipment and industrial automation servo systems

collect:0

The WK series high-torque large hollow outer rotor frameless brushless DC motor is used for robot joint drive

WK series external rotor frameless motors | High Torque direct drive | Zero backlash | Modular customization | High dynamic response for robots/aerospace applications

collect:0

Frameless motor torque type S series brushless servo motor

Frameless structure motor, using direct drive technology, large shaft aperture design, low cogging effect

collect:0
