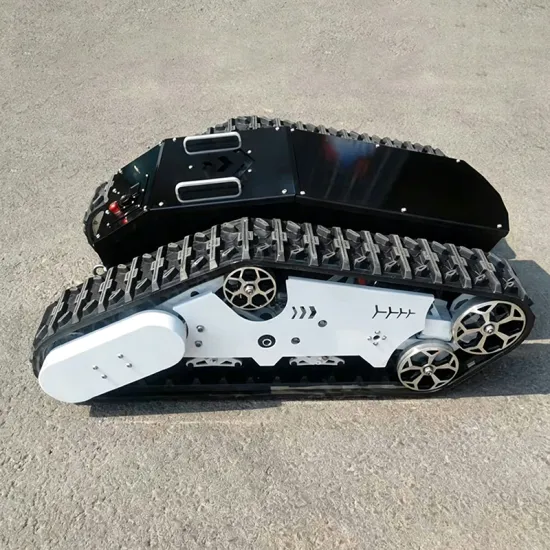

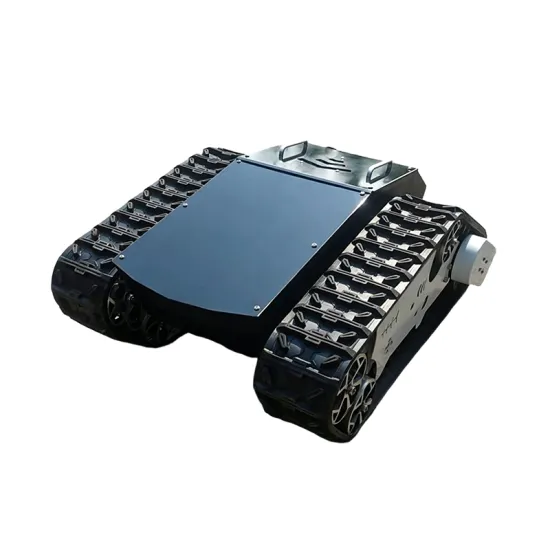

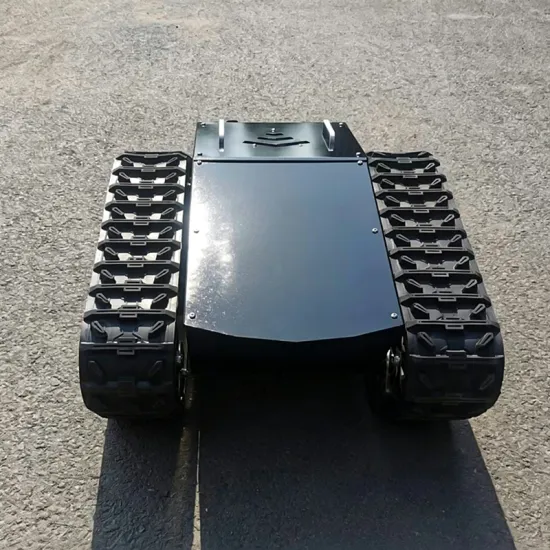

Product Description

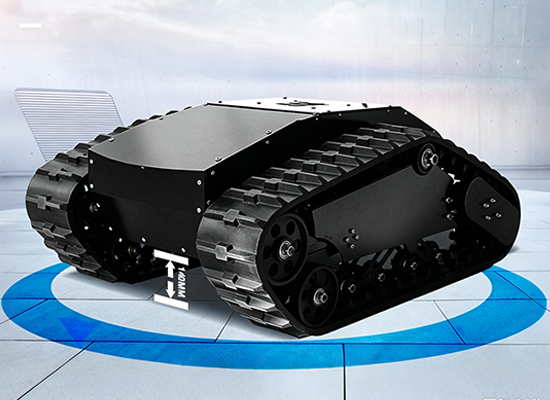

Ground clearance over 115 mm
Best-in-class passability
The highest-performance chassis in its class
Built for superior passability and off-road performance

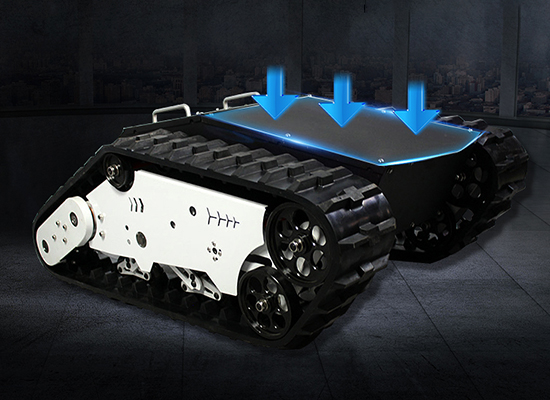

Carrying 100kg load

it can reach any rough area, even across 45°slope.

75% ground touch length

excellent crossing ability.

Superior-grip track tread design

Reliable performance in demanding operations, with excellent hill passability and climbing ability

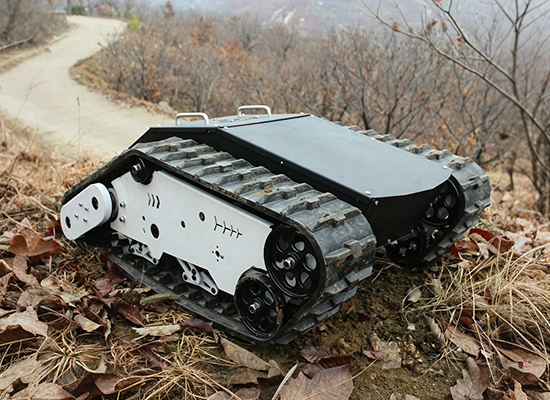

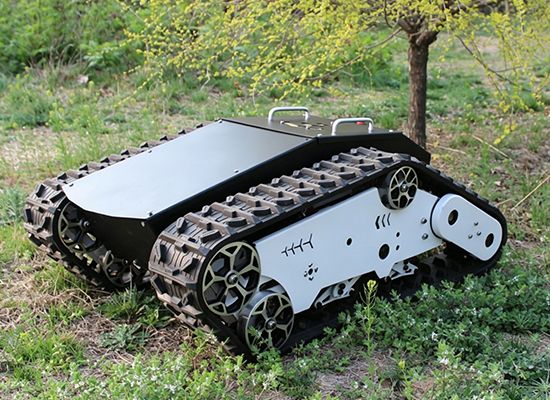

Strong ground adaptability

suitable for a wide range of terrain conditions, it can reach any rough area

Product parameters

Item	Data	Item	Data
Body Material	304 Stainless Steel Skin, Galvanized Square Tube	Dimension	1020*750*405mm
Track Material	Quality Rubber Embedded with Kovlar Fiber	Internal Size (Excluding Battery)	320*240*160mm
Self Weight	120KG	Max. Load Weight	100KG
Motor	Kane Motor 110BL03	Ground clearance	115mm
Track Width	150mm	Max. span	300mm
Drive Wheel Diameter	160mm	Rated Torque	60NM
Wheel Material	Aluminium	Ground Contact Length	74cm
Reduction Ratio	1:7.5	Reducer	NMRV50
Surface Treatment	Sprayed / Partially Painted	Running Speed	6KM/H
Climbing	30°, can climb stairs	Power	1000W*2

Service

Services
1 year warranty for main parts	During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
Spare Parts	most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
Operation and Maintenance	we will offer you detailed operation manual, ensuring you can use it perfectly.
Online support	Video technical support
Online Service	your question will be answer within 24 hours during working days, 48 hours during holiday.

FAQ：

1.Does your machine have great quality and favorable price?

Sure,we offer good quality and cheap price products.

2.How is your service?

We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.

3.How about the MOQ?

1 set.

4.What's the warranty of machine?

One year warranty for main machine.

5.When the machine can be shipped?

Within 3-5 working days after receiving full payment.
