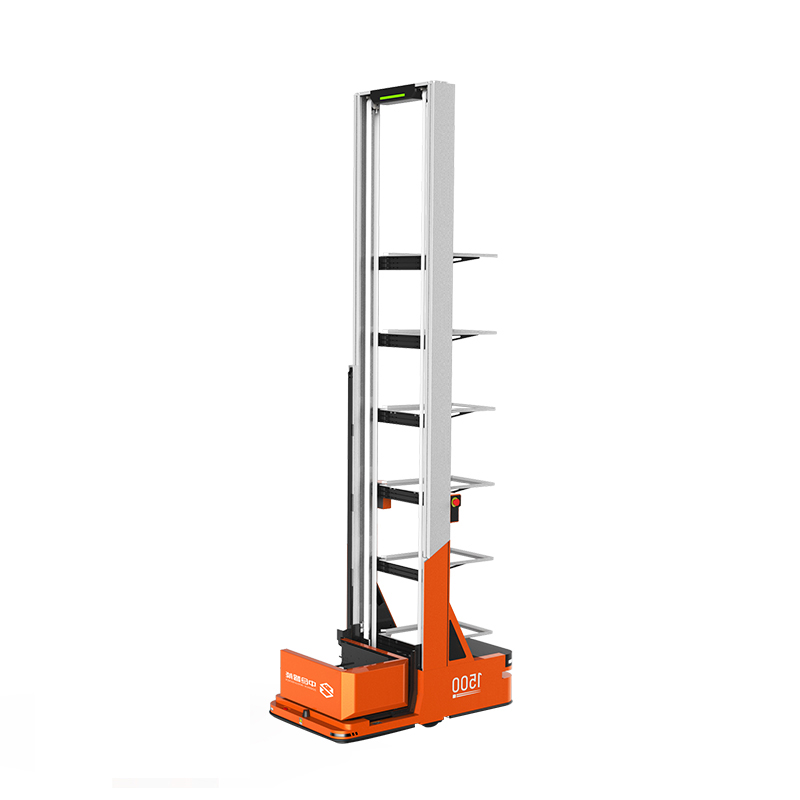

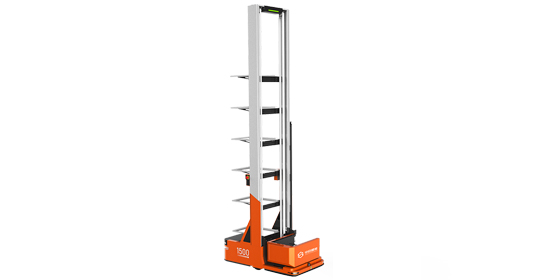

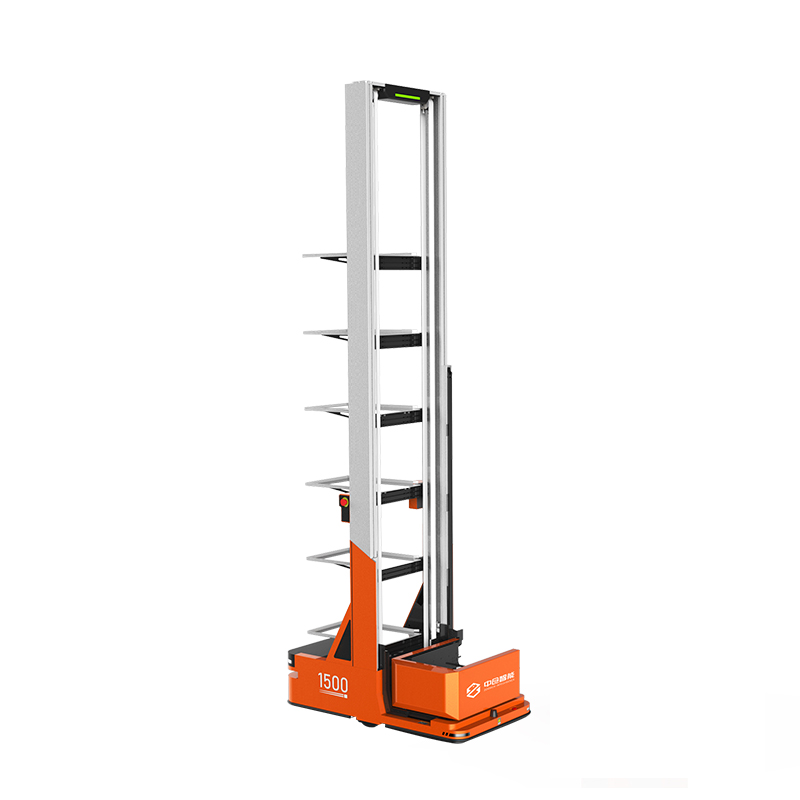

Product Description

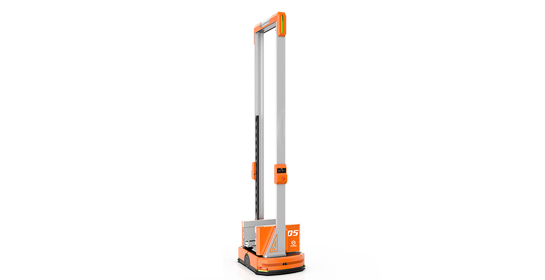

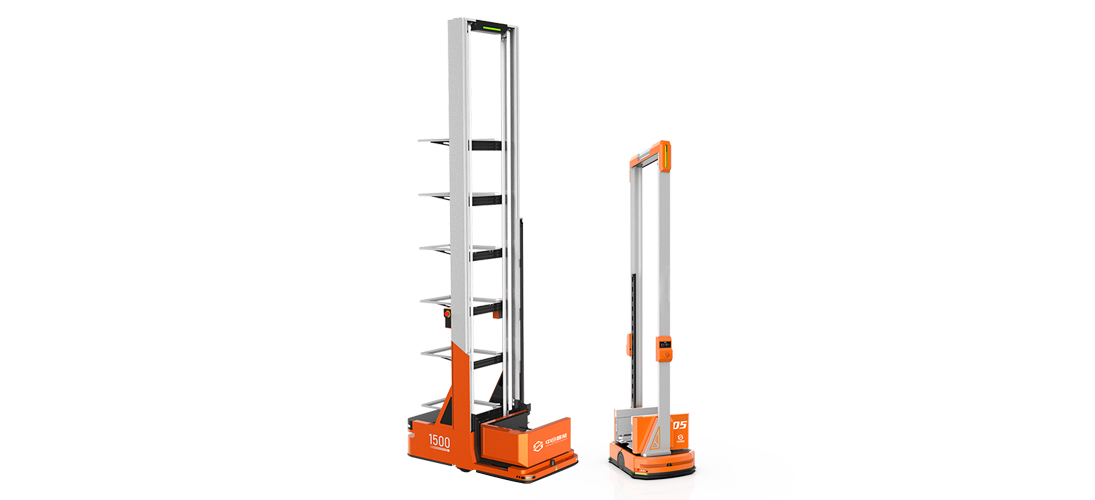

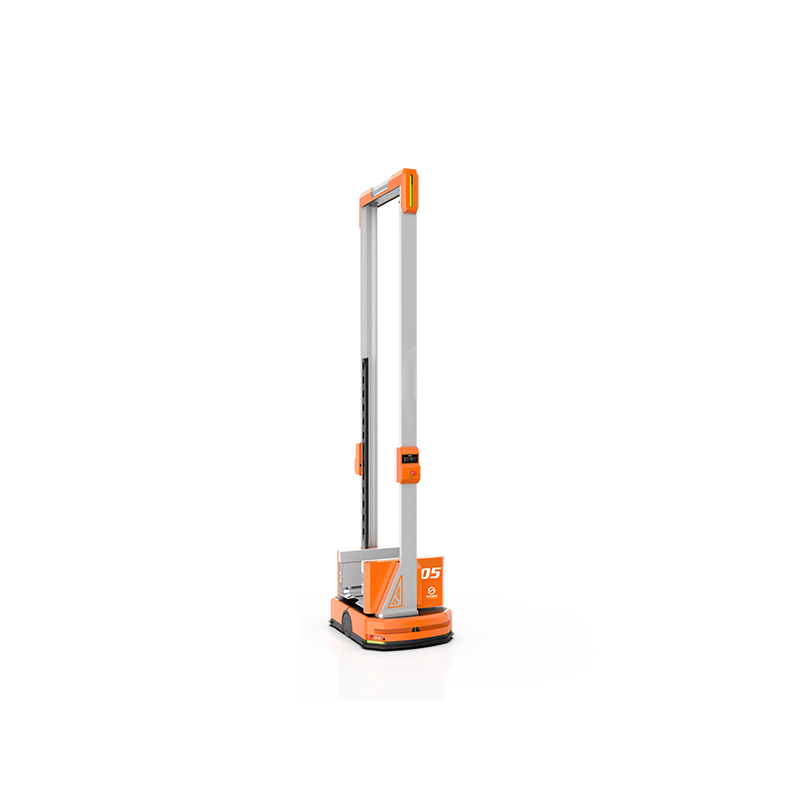

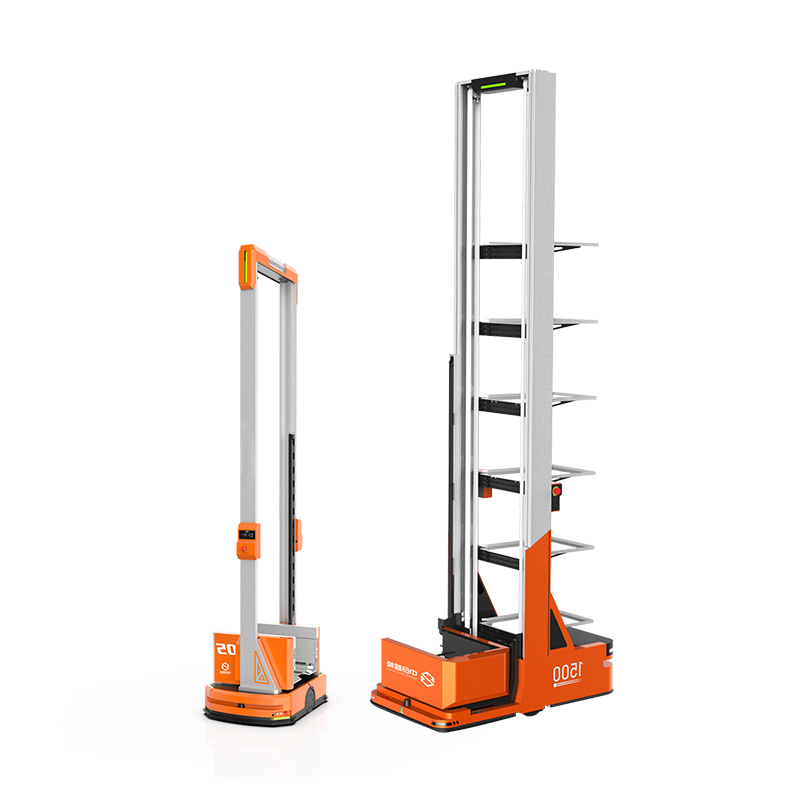

The bin-type AGV is an unmanned transport vehicle with automated navigation, mainly used to transport and carry various types of bins, material boxes or goods in environments such as factories, warehouses or production lines.
The bin-type AGV uses its own mechanical structure to carry bins. Generally, there is an automatic lifting device on the top, which can accurately locate and insert the slot at the bottom of the bin or grab the bin with a suction cup or other device. After the bin is carried to the specified location, it can be accurately placed on a shelf or workbench.
Product Features
Flexible motion control, speed up to 1.5m/s; supports forward, backward, and in-situ rotation.
Narrow aisle bidirectional operation + height lifting function, fully utilize space and improve storage capacity.
Accurate storage and handling of multiple material boxes, reduce ineffective running and improve efficiency. With built-in material box picking and placing tools, it can realize automatic and unmanned material box handling.
Good product adaptability: can be customized to support the pick-up and placement of material boxes of different sizes and materials.
Multiple safety protections: front/rear laser obstacle avoidance, collision bar, emergency stop button, sound alarm and other safety protections.
Good human-computer interaction: equipped with a touch screen, which can display vehicle and task information in real time; supports manual control of various actuators, etc. Maintenance-free lithium battery, intelligent power management, low-power autonomous charging, to achieve 7*24 hours of uninterrupted operation.
Product parameters
| Parameter name | Parameter Value | Parameter name | Parameter Value |
|---|---|---|---|
| Dimensions | 1730*950*4565 mm | Rated load of vehicle (Q) | 30*7kg or 50*5kg |
| Running speed | 0~1500mm/s | Rotation diameter | 1850 mm |
| Navigation function | QR code (optional laser slam) | Positioning accuracy | ±10 mm |
| Pick-up height | 280-4000 mm | Applicable material box size | (400~600)*400*(120~420)mm |
| Battery capacity | 48V/44AH | Weight (including battery) | 820 kg |
| Minimum channel width | 1100 mm | Battery life | 6~8 hours |

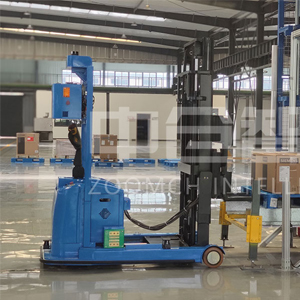

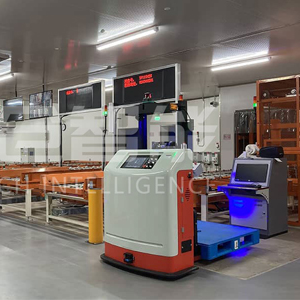

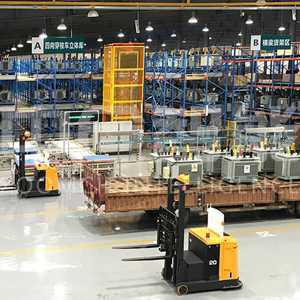

Customer Case
A manufacturing plant project in Shanghai
A food project in Shanghai
A material project in Anhui
Product Certificate
Service
Professional team
Core algorithm of mobile robots with independent intellectual property rights
Rich experience in unmanned projects in the automation industry
Peace of mind service
1. 24-hour service hotline
2. Reasonable price of accessories, open complaint hotline, public service standards
3. 100% free of charge for services within the scope of the three guarantees, reasonable charges for services beyond the warranty period
4. Time-limited guarantee for troubleshooting
5. Regular free inspection and maintenance during the three-guarantee period
6. Lifetime maintenance of products
Transport
We are committed to providing you with safe and efficient transportation services. During the transportation of products, we use professional packaging materials to ensure that the products are protected from bumps and damage. Whether it is land transportation or air transportation, we work with reliable logistics partners to monitor the transportation status in real time to ensure that the products are delivered to you on time and in good condition.
