Product Description

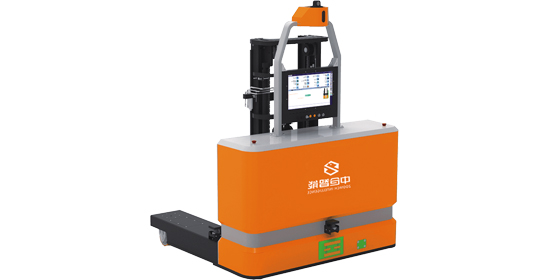

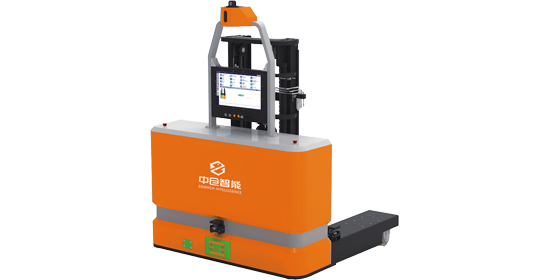

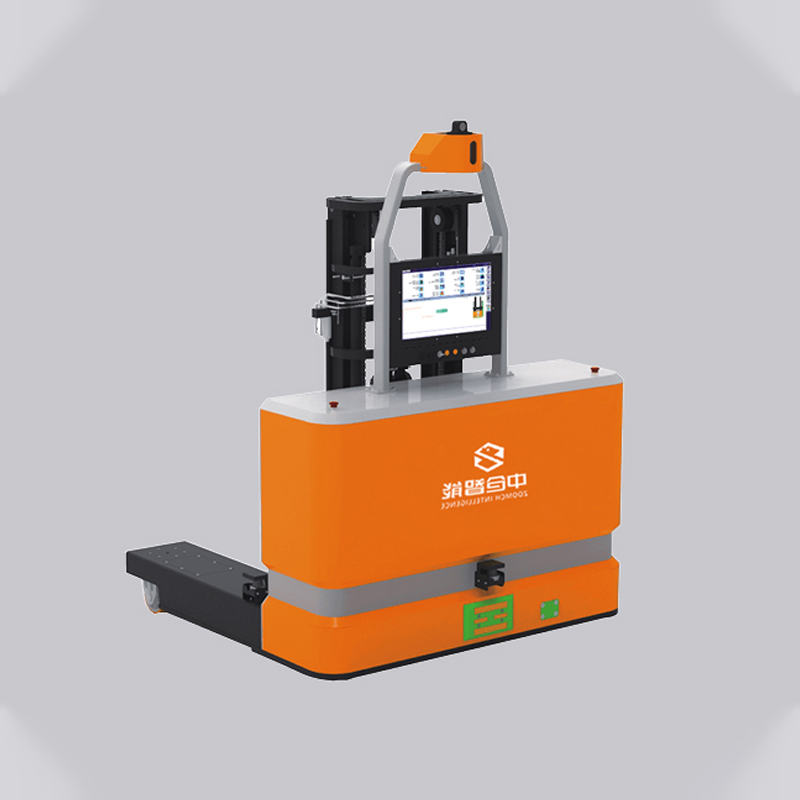

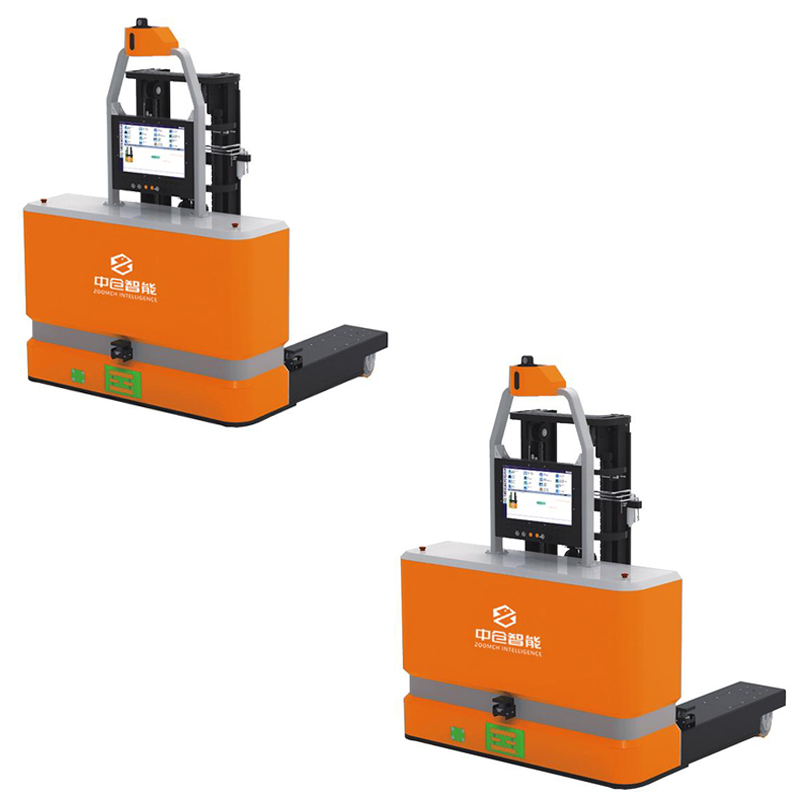

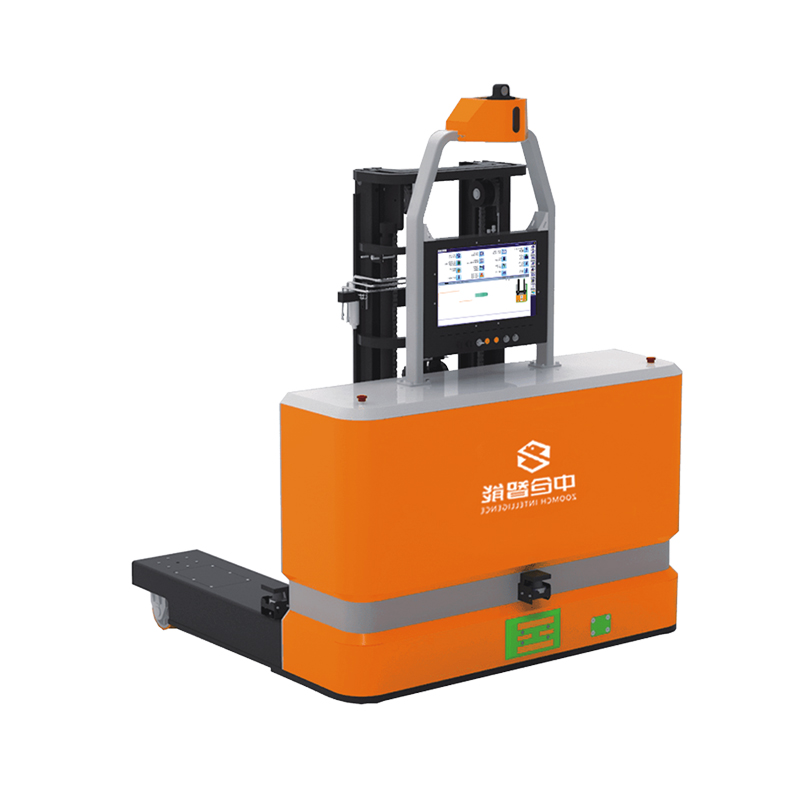

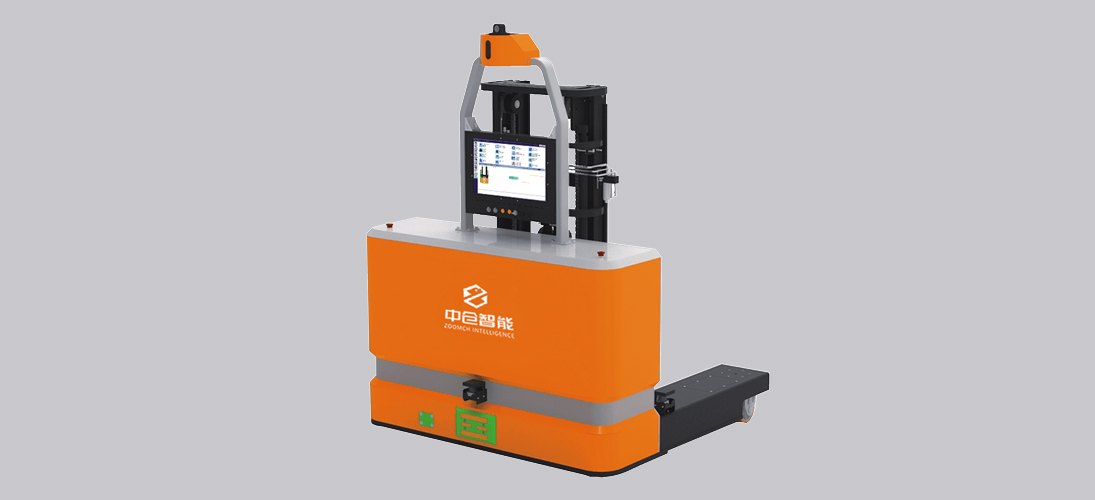

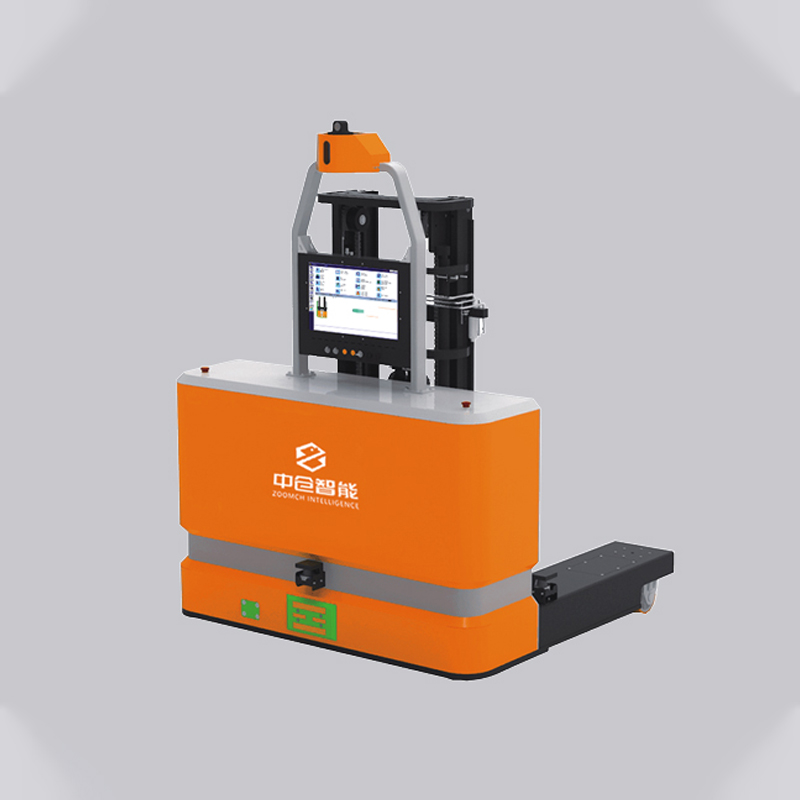

Omnidirectional AGV
Suitable for stacking in narrow aisles and has the function of multi-directional travel, so it is more suitable for forking long goods within 3-10 meters in length, such as metal profiles, plates, glass plates, pipes, etc.
Product Features
Function
Laser navigation, visual detection, obstacle detection, anti-collision edge, emergency stop button, automatic charging, voice prompt, sound and light alarm
Features
Omnidirectional movement, large load, high stability
Application
Suitable for handling and stacking of long materials
Strong load capacity and adaptability
The design of omnidirectional AGV fully considers the material handling needs of different enterprises and has excellent load capacity. Whether it is the batch transportation of small parts or the handling of heavy raw materials and large equipment components, there are corresponding models of omnidirectional AGVs to choose from.At the same time, it can adapt to various types of cargo platforms and material carriers.
Product parameters
| Parameter name | Parameter value | Parameter name | Parameter value |
|---|---|---|---|
| Drive form | Electric | Navigation | Laser |
| Load center | 600mm | Overall height (at lowest forks) | 2460mm |
| Overall length | 2060mm | Overall width (with touch device) | 1845mm |
| Fork outer width | 700mm (adjustable) | Lifting speed (full load/no load) | 120mm/s / 130mm/s |
| Load rating | 1500kg | Number of wheels | 5 |
| Fork size | 1070/100/35mm | Driving style | Laser-guided automatic/remote control |
| Tire | Polyurethane | Braking distance | 500mm |
| Lifting height | 4500mm(customizable) | Pick-up and unloading channel (1200*1200mm pallet): | 2450mm |
| Descent speed (full/unloaded) | 130mm/s / 110mm/s | Travel speed (full/unloaded) | 1m/s / 1.5m/s (adjustable) |
| Typical charge/run time | 2h/8h |

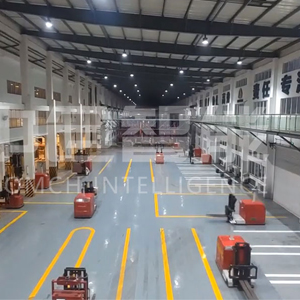

Customer Case
A copper plant project in Jiangxi
An electronic project in Nanning
A material warehouse project in Shanghai
Product Certificate
Service
We have an experienced and highly professional team. Whether you are only interested in omnidirectional AGV products or have detailed application scenarios and requirements, our experts can provide you with comprehensive and accurate information. They will have a deep understanding of your company's production process, material handling needs, and budget. Based on this information, we recommend the most suitable omnidirectional AGV model and configuration plan for you.
Transport
Efficient and safe transportation, worry-free guarantee throughout the journey
We attach great importance to the transportation of products and are committed to creating an excellent transportation experience for you, ensuring that the products you purchase can be delivered safely and on time. We have established long-term and stable cooperative relationships with major well-known logistics companies, covering various modes of transportation such as land, air, and sea transportation. Each mode of transportation is planned and dispatched by professional logistics personnel to ensure the optimal transportation route and the highest efficiency.
