Product Description
The KoraBeam series is the latest generation of obstacle-avoiding lidar released by Ritchlight. The detection distance is 0-50m, which meets the needs of commercial scenarios such as robots, AGVs, and unmanned vehicles, as well as industrial scenarios such as security protection and early warning, dangerous area monitoring, and driving area detection. Unlike other single-line liDAR, the KoraBeam series is able to output switching information through I/O, making it easy for users to get started quickly.
Product parameters
| KoraBeam 1 | KoraBeam 1s | KoraBeam 1L | |||
|---|---|---|---|---|---|
| Scanning principle | Principle of ranging | Scanning principle | Principle of rangin | Scanning principle | Principle of rangin |
| One-dimensional rotating mirror | dTOF | One-dimensional rotating mirror | dTOF | One-dimensional rotating mirror | dTOF |
| Measurement accuracy | Sweep frequency | Measurement accuracy | Sweep frequency | Measurement accuracy | Sweep frequency |
| +2cm | 10Hz 15Hz 20HZ 25Hz 30Hz | +2cm | 10Hz 15Hz 20Hz 25Hz 30Hz | +2cm | 10Hz 15Hz 20HZ 25Hz 30Hz |
| Anti-ambient light | Dot frequency | Anti-ambient light | Dot frequency | Anti-ambient light | Dot frequency |
| 100000LuX | 22.5KHz | 100000Lux | 22.5KHz | 100000Lux | 22.5KHz |
| Class of protection | Horizontal field Angle | Class of protection | Horizontal field Angle | Class of protection | Horizontal field Angle |
| IP66.IP67(selectable) | 270° | IP66.IP67(selectable) | 270° | IP66.IP67(selectable) | 270° |
| Detection range | Detection range | Detection range | |||
| ≥20m(70%reflectance) ≥10m(10%reflectance)≥3m(1.8%reflectance) | ≥10m(70%reflectance)≥ 5m(10%reflectance)≥2m(1.8%reflectance) | ≥40m(70%reflectance) ≥20m(10%reflectance)≥4m(1.8%reflectance) | |||
| Horizontal angular resolution | Horizontal angular resolution | Horizontal angular resolution | |||
| 0.16°0.24°0.32°0.4° 0.48° | 0.16°0.24°0.32°0.4° 0.48° | 0.16°0.24°0.32°0.4° 0.48° | |||
Technological Innovation

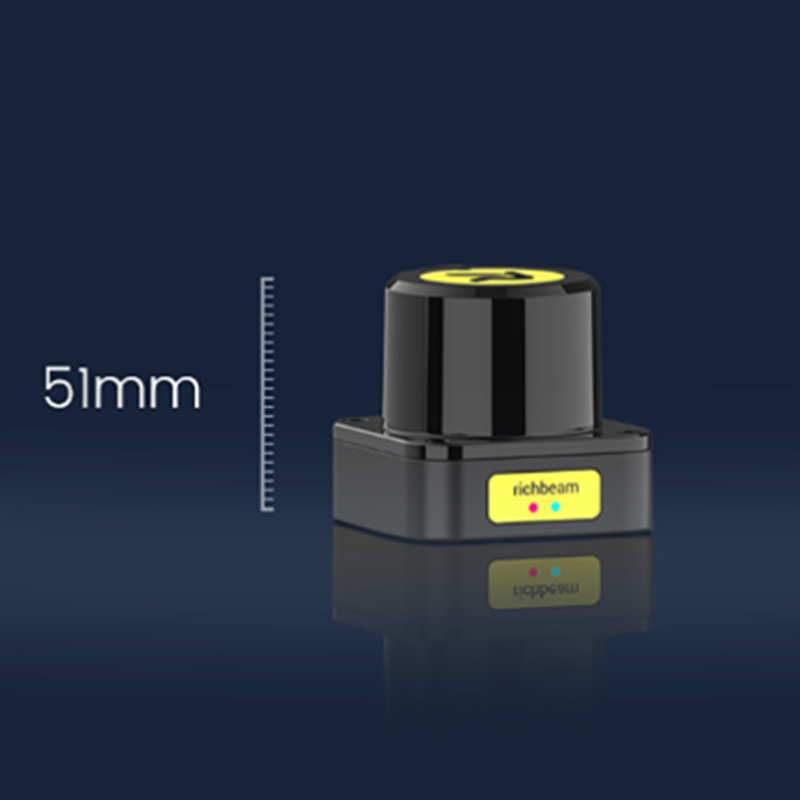

Through innovative independent research and development, the Lidar chip technology is closely combined with the platform design of the detector, and the excellent industrial structure integration technology has achieved a revolutionary breakthrough of smaller and lighter products. Small and lightweight body, compact interior, clever design, compared to the Lakibeam series, Korabeam volume is reduced by 45%, weight 85g, only the size of an egg, easy for users to install. Users can freely set different alarm areas according to the actual use of the environment, and excellent data sampling and point cloud performance can provide very reliable data support for collision warning.
Product Display
With a maximum scanning speed of 30Hz, it can quickly feedback the obstacle information in the area within 33ms and make alarm action in time.
Low false alarm rate
Built-in self-developed core filtering algorithm, minimize the false alarm caused by light, weather, temperature and other factors.
Reliability and mass production delivery guarantee
We have a production base in Suzhou, covering an area of nearly 3000 square meters, equipped with advanced production facilities and automated processes to ensure that we can quickly respond to delivery needs of all sizes from fine customization to high volume production.
Support RS485-MODBUS protocol, users can access PLC to adjust radar parameters; Support Bluetooth/wireless connection, the user can directly configure the radar obstacle avoidance area without wiring,
Although small and lightweight, it still maintains strong detection capabilities and powerful data sampling capabilities to capture rich and complete object details.
Quality Control
- Calibration equipment accuracy: Use high-precision calibration equipment and instruments to calibrate and calibrate Lidar, such as high-precision rangefinder, Angle meter, etc., and regularly calibrate and maintain the calibration equipment to ensure its accuracy and accuracy.
- Calibration methods and processes: Develop scientific and reasonable calibration methods and processes, and carry out calibration and calibration work in strict accordance with standard operating procedures to ensure the consistency and reliability of calibration results. For example, the range measurement of lidar is calibrated by multiple points, and the Angle measurement is calibrated in all directions.
- Calibration data recording and traceability: All data generated in the calibration process are recorded and saved in detail, and calibration data files are established in order to trace and query the quality status of products, and provide data support for subsequent quality improvement.
Application Cases
common application areas:
• In the field of autonomous driving: high-precision positioning combined with high-precision maps, LiDAR can realize high-precision positioning of vehicles through the identification and matching of the characteristics of the surrounding environment, and determine the accurate position of vehicles in the map, thus providing a reliable basis for the path planning and navigation of autonomous driving.
• Robot field: navigation and determination, industrial robots, service robots, warehousing and logistics robots, etc., can use LiDAR to obtain information about the surrounding environment, achieve autonomous navigation and accurate positioning, so as to accurately move to the target position in a complex environment and complete various tasks, such as material handling, cleaning, inspection, etc.
• Intelligent transportation field: traffic flow monitoring, liDAR installed above the road or on the side of the road can monitor the flow, speed and density of vehicles on the road in real time, providing accurate data support for traffic management departments to better traffic signal control, congestion relief and traffic planning.
Cooperative partner
Service
- Installation and commissioning: Assist customers in the installation and commissioning of LiDAR to ensure the normal operation of the equipment. Lidar technical support includes product installation, commissioning and other services to help customers better use and maintain products
- Use training: Provide product use training for customers, so that customers can master the operation methods and precautions of LiDAR, use the equipment correctly, and extend the service life of the equipment.
- Question consultation and answer: When customers encounter problems in the process of use, they can consult the after-sales technical support team at any time, and the technical staff will answer questions in time to provide solutions.
- Remote assistance: Provide remote technical support to customers through telephone, email, online customer service, etc., to help customers solve some simple problems and quickly restore equipment operation.
