Product Description
K50A This product is widely used in automatic control, automatic measurement, remote control, computer technology, etc.
The maximum pulse number of the product can reach 6000 pulses, and special requirements can be customized.
Optoelectronic devices have high reliability, long life, strong anti-interference ability, and a wide operating temperature range.
Product parameters
Mechanical parameters
| Maximum speed(r/min) | Starting torque (25℃)(NM) | Maximum axial load (N) | Moment of Inertia(kgm²) | Weight(kg) | |
|---|---|---|---|---|---|
| Radial | Axial | ||||
| 6000 | 1*10-3 | 50 | 30 | 4*10-7 | ≤0.28 |
Electrical parameters
| Output form | Power supply voltage DC(V) | Current consumption (mA) | Output voltage(V) | Rise time (ns) | Fall time (ns) | Response frequency (kHz) | |
|---|---|---|---|---|---|---|---|
| VH | VL | ||||||
| E(voltage output) | 5±0.25 | ≤80 | >3.5 | ≤0.7 | ≤500 | ≤100 | 0-300 |
| 8-26 | ≤120 | >VCC-2.5 | ≤0.7 | ≤500 | ≤100 | 0-300 | |
| 10-30 | |||||||
| 12 | |||||||
| F(Complementary output) | 5±0.25 | ≤80 | >3.5 | ≤0.7 | ≤500 | ≤100 | 0-300 |
| 8-26 | ≤120 | >VCC-2.5 | ≤0.7 | ≤500 | ≤100 | 0-300 | |
| 10-30 | |||||||
| 12 | |||||||
| C (collector open circuit output) | 5±0.25 | ≤60 | >VCC-2.5 | ≤0.7 | ≤500 | ≤100 | 0-300 |
| 8-26 | |||||||
| 10-30 | |||||||
| 12 | |||||||
| L (Long line drive output) | 5±0.25 | ≤100 | >3.5 | ≤0.7 | ≤200 | ≤200 | 0-300 |
| A (wide voltage long line drive output) | 8-26 | ≤60 | >VCC-2.5 | ≤0.7 | ≤500 | ≤100 | 0-300 |
| 10-30 | |||||||
| 12 | |||||||
Wiring Instructions
| Cable color | Red | Black | Green | Brown | White | Grey | Yellow | Orange | Shield |
|---|---|---|---|---|---|---|---|---|---|
| E(voltage output) | Vcc | 0V | A | B | Z | G | |||
| F(Complementary output) | Vcc | 0V | A | B | Z | G | |||
| C (open circuit output) | Vcc | 0V | A | B | Z | G | |||
| L, A (drive output) | Voc | 0V | A | A/ | B | B/ | Z | Z/ | G |

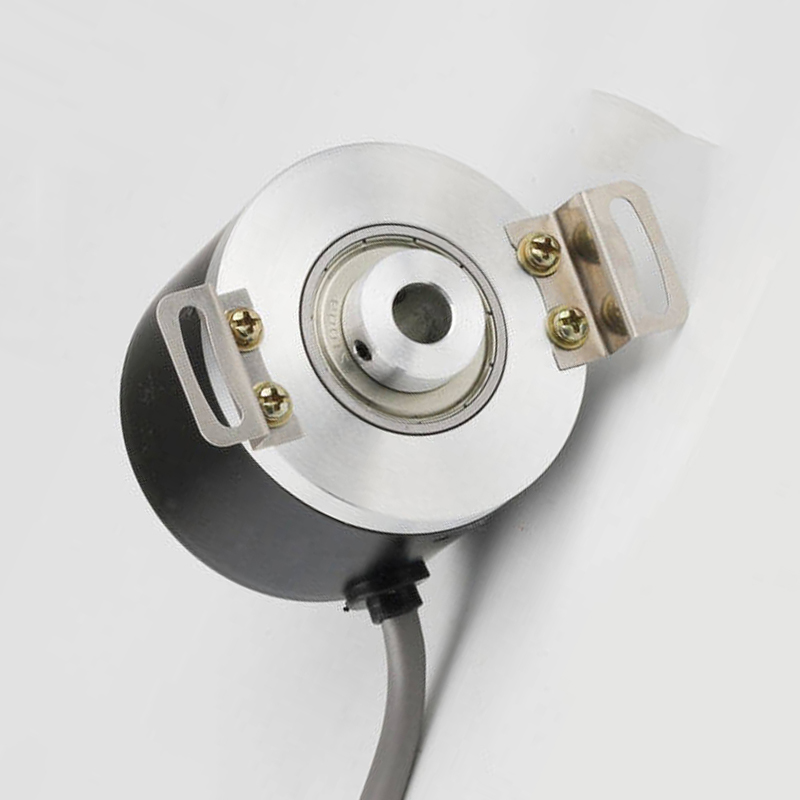

Product Display
- High resolution: It can accurately measure the rotation angle of the motor and distinguish small angle changes. High resolution allows the encoder to provide accurate position feedback information for the motor control system, which helps to achieve high-precision motion control. For example, in CNC machine tools, precision instruments and other equipment with high position accuracy requirements, K50A can accurately feedback the position of the motor to ensure the processing accuracy and operation accuracy of the equipment.
Strong anti-interference ability: During the operation of the motor, there may be various electromagnetic interference sources around, such as the electromagnetic field of other electrical equipment, the electromagnetic radiation of the motor itself, etc. The K50A encoder has good anti-interference ability and can stably output accurate signals in complex electromagnetic environments, ensuring that the control system can correctly receive and process the feedback information of the encoder and ensure the normal operation of the motor.
Size & Interface
Application Cases
In the grand scene of modern industrial production, incremental motor encoders are widely used. For example, in the field of CNC machine tools, it is installed on the motor shaft to provide pulse signals for the precise movement of the tool and the precise positioning of the workbench, ensuring the processing accuracy of complex parts at the micron level; in the automated logistics and transportation system, the incremental motor encoder located at the conveyor belt motor can accurately control the speed and start and stop positions, so that the package can flow accurately in the storage, sorting and transportation links; when industrial robots assemble automotive parts, the encoder installed on the joint motor shaft provides real-time feedback information, accurately directs the movement of the robot arm, achieves millimeter-level assembly accuracy, and ensures production quality and efficiency.
