MK-ROBOT multi-modal mobile robot platform industry application new starting point
1, indoor and outdoor full scene application body size, support Ackerman steering, differential steering, multi-state fast switching design, easy control of lightweight, modular mobile robot platform created for industry application developers.
2, modular robot platform high-strength non-bearing body with multi-mode patented technology modular installation method defines the industry standard

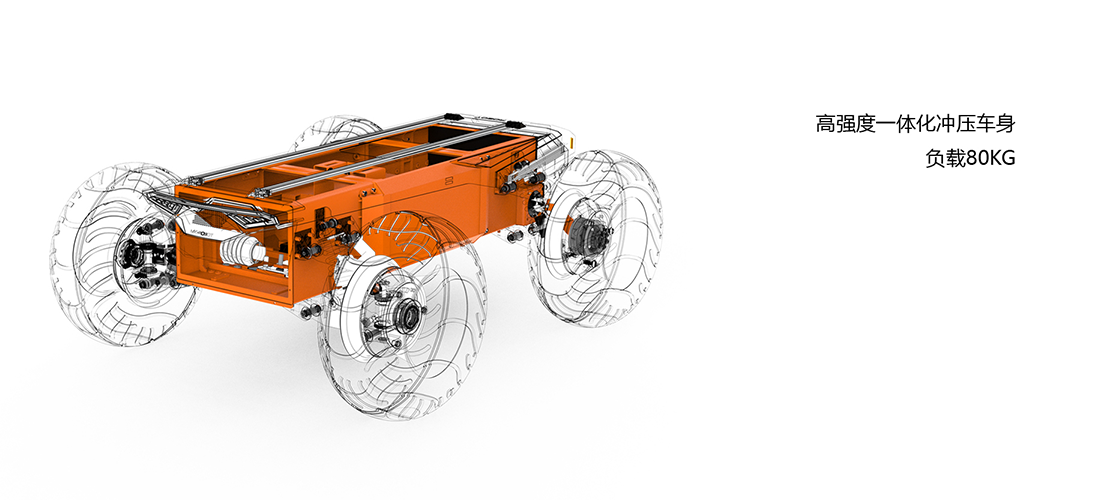

3, high strength integrated stamping body load 80KG
4, high-precision suspension adjustment to meet high and low temperature humid heat, vibration and other harsh environment applications
5, VCU comprehensive security protection system 20 security protection strategies, wire control chassis operation process in a high-precision control state perfect system architecture design and first-class drive management algorithm and accurate control strategy.
Product Features
- Steering by wire/Integrated EPS with high accuracy and stability
- Steering-by-wire system technical standard, tire end steering accuracy 0.5°
- Steering fatigue wear test 50000 cycles
- Controller fatigue test 125,000 cycles, 7750,000 current cycles
EC-BOX(Electrical control box)
Modular EC-Box sets the whole vehicle electrical appliances, simplifying the complex. Modular, efficient maintenance and upgrade of vehicle gauge electrical components high temperature working firmware support remote online upgrade, continuous update function and improvement
battery-box
Modular quick disassembly design, support a variety of scenarios to expand the application
Meet all kinds of operating environments from -20° to 60°.
Structure Diagram
Product parameters
| name | argument | name | argument |
|---|---|---|---|
| dimension | 970*740*350MM | Chassis dead weight | 71KG |
| battery | 48V/18AH | Communication protocol | CAN |
| Design load | 80KG | Operating speed | 9.7KM/H |
| wheelbase | 600MM | Driving wheel diameter | 324MM |
| Remote control distance | 100M | Maximum Angle of climb | 10° |
| Class of protection | IP42 | Operating temperature | -20°-60° |
| Obstacle clearance height | 70MM | Span width | 200MM |
| Structural form | Front Ackermann steering, rear dual motor differential drive | suspend | Front and rear double fork arm independent suspension |
| Charging mode | The 48V/5A charger is charged manually | External power supply | 48V/10A-24V/15A-12V/15A |
| Parking/braking mode | Electromagnetic power loss parking, motor parking | range | 25KM (full load) /35KM (no load) |
