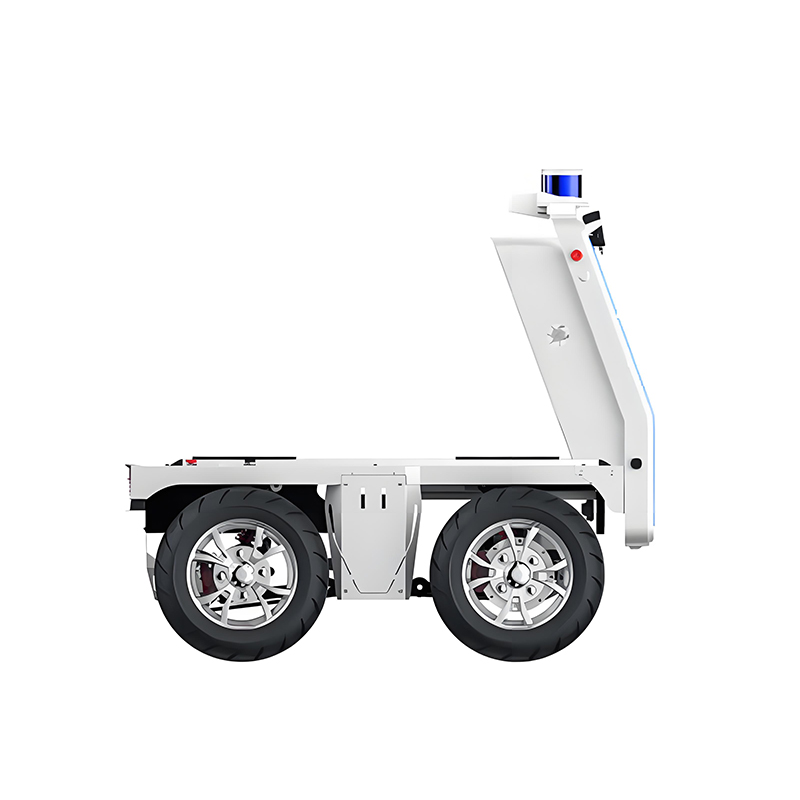

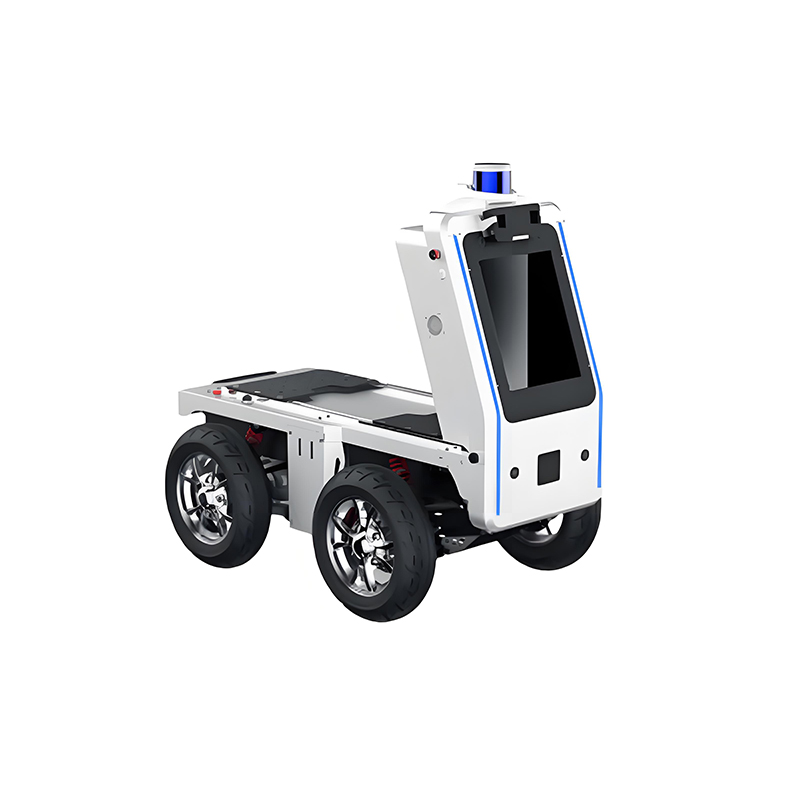

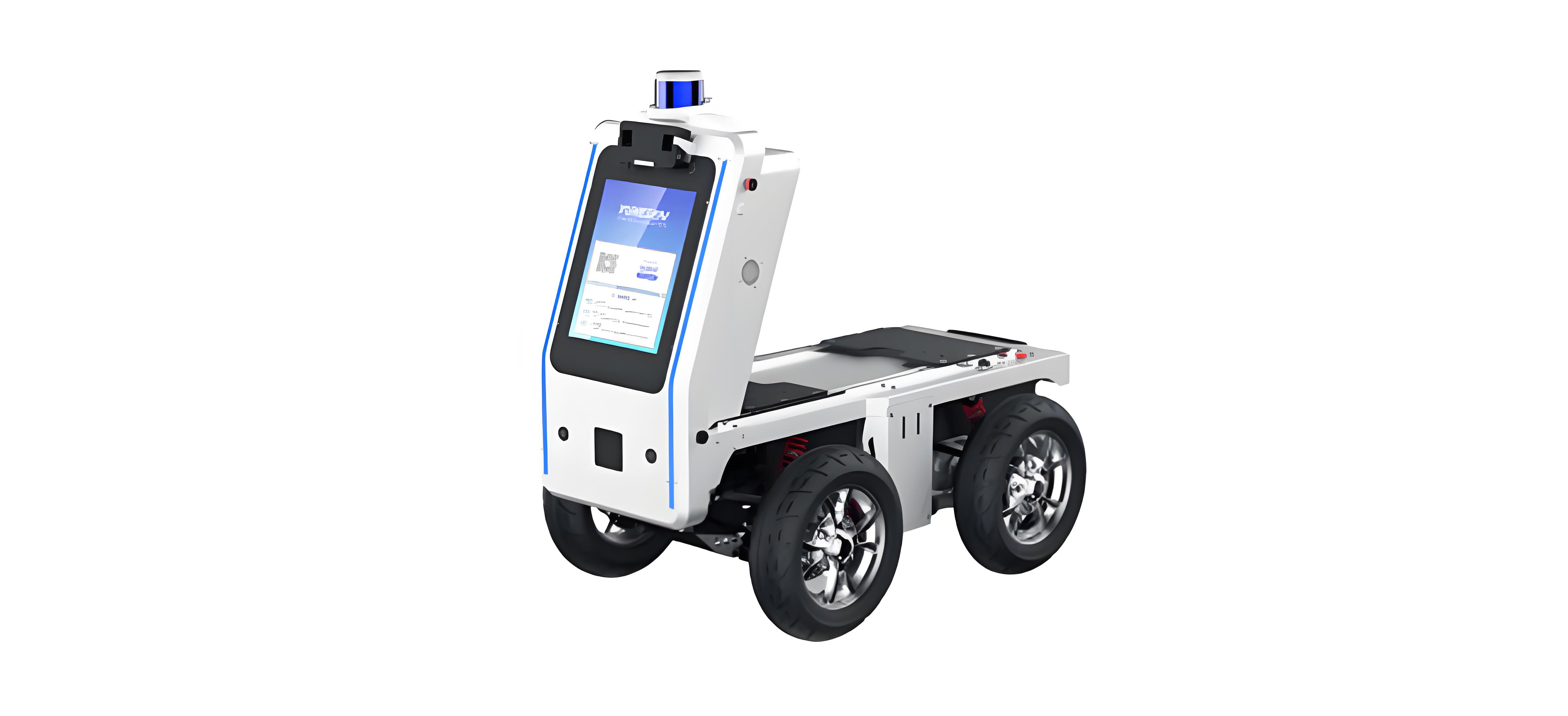

Product Description
AUTO ROBO autonomous navigation robot platform builds a full-scene application modular robot platform, supporting the integration of various applications to provide a professional and reliable autonomous navigation robot platform for different industries such as: education, scientific research, real estate, tourism, retail, logistics, security, environmental sanitation, industry and agriculture. The autonomous navigation robot platform has the functions of modular mapping, positioning, autonomous navigation, path planning, autonomous obstacle avoidance, autonomous obstacle circling, etc. It has a lightweight vehicle level modular drive platform, quick disassembly application load module, and L4 level closed scene autonomous navigation. Based on artificial intelligence autonomous navigation level full matrix algorithm self-optimization and upgrade capability, support all-weather, multi-scenario application.
Product Features

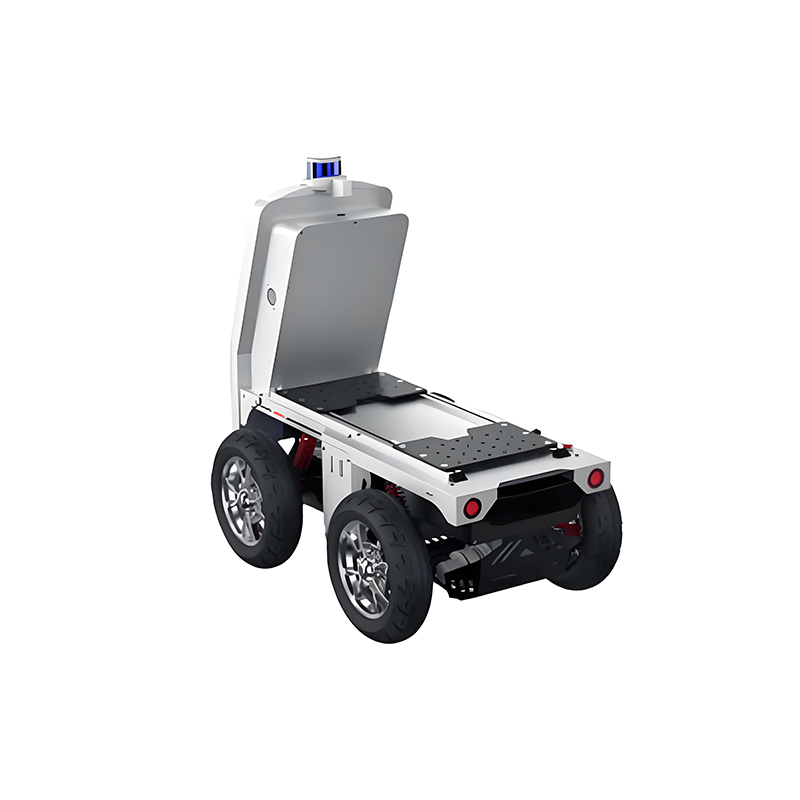

- Quick-disconnecting application load module
- Level L4 closed scene autonomous navigation
- Matrix algorithm self-optimization upgrade ability
- All-weather operation

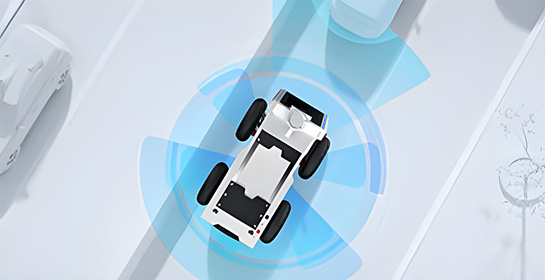

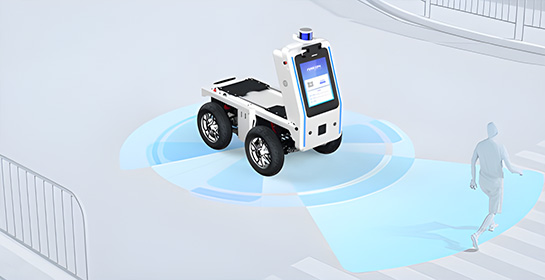

- Multi-sensor fusion sensing obstacle avoidance
- Centimeter-level high-precision mapping and positioning capability

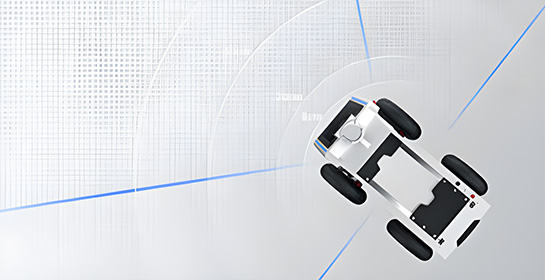

Map construction: Accurate 2D/3D environment map construction, accurate positioning: centimeter-level positioning accuracy. Autonomous navigation: Plan reasonable paths from point to point. Path planning: The APP directly draws the expected path. Intelligent obstacle routing: actively generate local obstacle routing path Autonomous charging: Given the charging task, independently complete the charging docking. Fixed point setting: Multiple task points and charging points can be set.

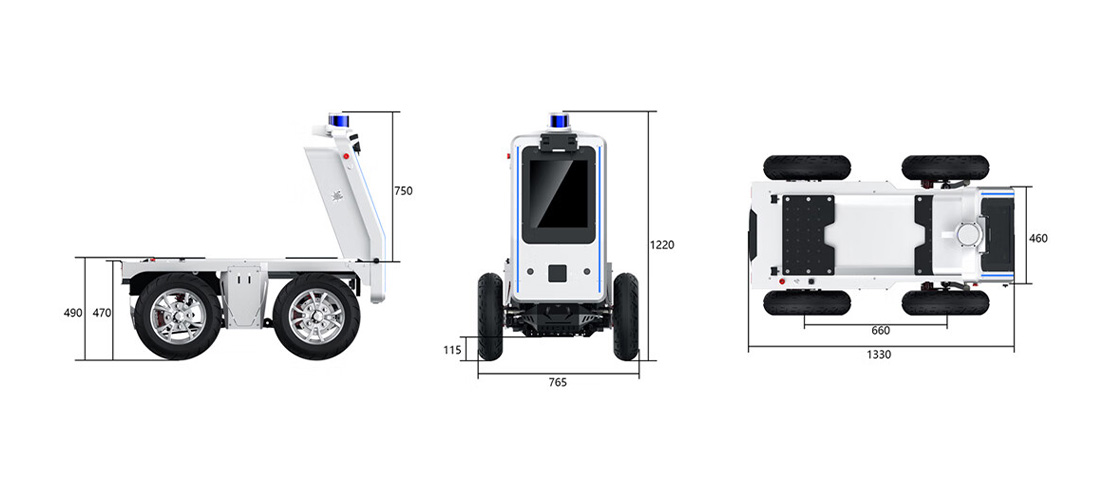

Structure Diagram
Product parameters
| name | argument |
|---|---|
| Design size | 1330*765*1220mm |
| Structural form | Forward rear-drive Ackermann steering |
| suspend | Integral bridge suspension |
| wheelbase | 660mm |
| Wheel track | 645mm |
| diameter | 420mm |
| Drive motor | 500W, brushless DC |
| battery | 48V/20AH |
| Charging time | ≤4h |
| Number of LiDAR lines | 16 |
| Lidar ranging capability | 150m |
| Braking mode | Motor braking |
| Parking mode | Electromagnetic lock |
| Vertical load | 100kg |
| Operating speed | 8km/h |
| range | 20km |
| Maximum Angle of climb | Full load 10° |
| Class of protection | IP44 |
| Communication protocol | CAN2.0 B |
| Charging mode | The 48V/5A charger is charged manually |
| Industria computer | CPU inteli7 Memory 32GB/ Hard disk 512GB |
| Navigation accuracy | ±5cm |
