Product Description

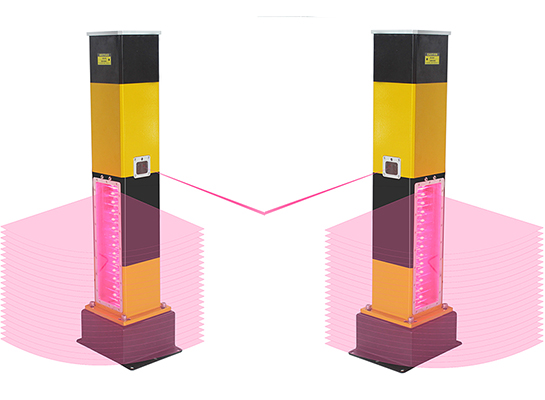

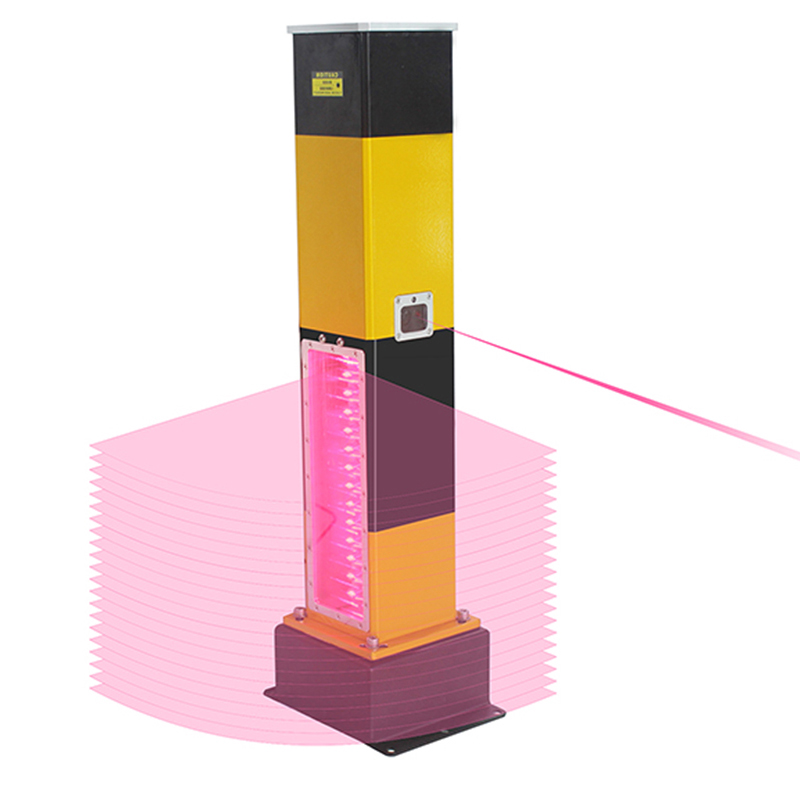

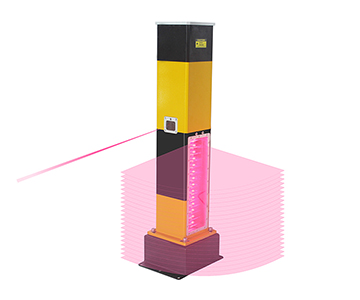

FS-ITS5/A laser full protective pile in dark light and no traffic signal lights to the intersection, when someone or a car across the road when the red laser automatically opened and projected on the zebra crossing 30cm high, when the pedestrian passed by the driver can see the pedestrian leg or the outline of the car is projected in red and moving across the road, to remind the driver to slow down to protect pedestrians.
Product parameters
| item | index |
|---|---|
| Model number | FS-ITS5/A |
| Laser effective detection distance | 10m (walkway width) |
| Beam synchronization distance | 30m (highway width) |
| Response time | 10 ms |
| Detection laser source | 905nm invisible infrared light; Luminous power ≤1mW; |
| In line with the "Laser eye safety" (GB7247.1-2001) class I | |
| Projected laser light source | 650nm visible red light; Luminous power ≤5mW; |
| In line with the "Laser eye safety" (GB7247.1-2001) class III | |
| Laser projection range | Length × width × height: 30m×10m×0.3m |
| Equipment power supply | 220V; Power consumption < 20W (solar power supply system available) |
| Automatic switch | Automatically power on when the light is dark, automatically turn on the laser projection when there are pedestrians passing by, |
| Delay 1-300 seconds (can be set) automatic shutdown | |
| Overall dimension | Length × width × height: 130mm×130mm×730mm(including base height 90mm) |
| Ambient temperature and humidity | -40℃ -+ 50℃ below 85%RH |
| Store ambient temperature and humidity | -45℃ -+ 55℃ Below 85%RH |
| EMC specification | EN 61326-1:2013 EN 61326-2-3:2013 |
| Design service life | Use under standard conditions, 10 years |
| Housing material | Aluminium alloy |
Product Display
Now the number of motor vehicles is increasing, pedestrians are the vulnerable groups in the traffic, once there is a traffic accident, the harm to pedestrians is difficult to predict, especially in the vast rural areas, many national and provincial roads with high speed limits and can not be closed management, pedestrian crossings are many, to the night less people, car fast sight is not good more prone to traffic accidents, At this time, the role of pedestrian laser fuzzy pile (laser pile) highlights its importance.
Through the accumulation of more than five years of experience in the actual use of lasers in intelligent transportation, Fashi LiDAR successfully developed a safety warning system dedicated to sidewalk laser imaging in 2019. Its principle of action and products have 12 patented technologies, and through the Ministry of Public Security authority certification and in a number of field installation tests, it is easy to install, imaging stable and reliable, long service life, is the best safety protection device for sidewalks.
Quality Control
- Optical component
For the laser in the laser emission module, the parameters such as wavelength accuracy and output power stability need to be strictly tested. For example, the deviation of the wavelength may affect the accurate reception and resolution of the light reflected by the liDAR on the target object, and the wavelength deviation is generally required to be controlled within a very small range, such as ±5nm.
The quality of the optical lens is also crucial. The curvature accuracy of the lens, the surface flatness and the transmittance of different wavelengths of laser light are all carefully tested. Any small flaw, such as a scratch or uneven curvature on the lens surface, can cause the laser to scatter or focus inaccurately, thus affecting the detection accuracy of the liDAR. The transmittance is generally required to reach more than 90% in a specific band.
- Electronic component
The chip on the circuit board is the "brain" of the lidar, and when conducting quality control, it is necessary to ensure that the performance of the chip meets the design requirements. For example, to test whether its data processing speed can meet the needs of liDAR to acquire and process large amounts of point cloud data in real time. At the same time, it is also necessary to check the stability of the chip in different temperature environments, because the lidar may generate heat during the working process, and the chip performance must be stable within a certain temperature range (such as -40 ℃ -85 ℃).
The parameter accuracy of capacitors, resistors and other discrete components can not be ignored. The deviation range between the nominal value and the actual value of these components should be controlled within a certain limit, such as the resistance value deviation of the resistance does not exceed ±1%, to ensure the normal operation of the circuit and the accuracy of signal transmission.
Cooperative partner
Service
Product customization services: According to the special needs of different customers, the performance parameters of Lidar (such as detection distance, angular resolution, scanning frequency, etc.), dimensions, installation methods, etc., are customized. For example, for space-constrained UAV application scenarios, customized miniaturized and lightweight liDAR.
Product upgrade services: Regularly provide customers with LiDAR software and hardware upgrade services. Software upgrades can optimize data processing algorithms, improve data quality and device performance; Hardware upgrades can replace more advanced parts, enhance the detection capability of the device, and so on. For example, the signal processing chip of Lidar will be upgraded to improve the speed and accuracy of data transmission.
