2845 coreless DC motor
This type of 2845 coreless DC motor will offer a good specification with continuous high power and torque, high precision, reliable control, low vibration and noise on power tools and can provide a good user experience. We can make custom shafts and holes in the front cover. This type of 2845 coreless DC motor can completely replace the DC motor from Europe. Most importantly, we can customize the motor parameters for our customers, which will give full play to the advantages of the product, shorten the delivery time and save costs for our customers.
Product parameters
| Motor parameter | Motor type | ||||
|---|---|---|---|---|---|
| name | unit | XBD28450 6058GT- 30102 | XBD28451 2062GT- 30102 | XBD28452 4064GT- 30102 | XBD28454 8060GT- 30102 |
| Rated voltage | V/DC | 6 | 12 | 24 | 48 |
| Rated speed | rpm | 5336 | 5394 | 5568 | 6090 |
| Rated current | A | 0.67 | 0.8 | 0.59 | 0.29 |
| Rated torque | mi | 6.09 | 14.3 | 20.33 | 18.56 |
| No-load speed | rpm | 5800 | 6200 | 6400 | 7000 |
| No-load current | mA | 45 | 25 | 16 | 10 |
| Maximum efficiency | % | 85.4 | 87.5 | 88.3 | 87 |
| Rotational speed | rpm | 5394 | 5828 | 5984 | 6545 |
| Electric current | A | 0.588 | 0.384 | 0.301 | 0.152 |
| torque | mNm | 5.3 | 6.6 | 10.2 | 9.3 |
| Maximum power | W | 11.6 | 17.9 | 26.2 | 26.2 |
| Rotational speed | rpm | 2900 | 3100 | 3200 | 3500 |
| Electric current | A | 3.9 | 3 | 2.2 | 1.1 |
| torque | mNm | 38.1 | 55 | 78.2 | 71.4 |
| Locked-rotor current | A | 7.8 | 6 | 4.4 | 2.2 |
| Locked-rotor moment | mNm | 76.2 | 110 | 156.4 | 142.8 |
| Motor impedance | Ω | 0.77 | 2 | 5.45 | 21.82 |
| Inductive reactance of motor | mH | 0.053 | 0.16 | 0.55 | 2.1 |
| Torque constant | mNm/A | 9.82 | 18.41 | 35.68 | 65.18 |
| Speed constant | rpm/V | 966.7 | 516.7 | 266.7 | 145.8 |
| Revolution/torque constant | rpm/mNm | 76.1 | 56.4 | 40.9 | 49 |
| Mechanical time constant | ms | 6.66 | 6.28 | 4.78 | 6 |
| Rotor inertia | gcm2 | 8.35 | 11.47 | 11.16 | 11.69 |
Technological Innovation
Hollow cup brush motor is a kind of DC motor. Its core component, the rotor, is an empty core cup-shaped structure, which is the origin of its name. The motor contains a brush and a commutator, the brush is mainly used to transfer the current from the external power supply to the motor, and the commutator is used to change the direction of the current during the operation of the motor to ensure that the motor continues to rotate stably.
Product Display
Low torque ripple
The torque ripple during the operation of the motor is relatively small. This is because the distribution of the hollow cup winding is more uniform, and the electromagnetic force change in the magnetic field is relatively smooth, making the motor output torque more stable, able to provide a more stable power for the load, and performing well in equipment with high torque stability requirements, such as high-precision PTZ motors.
Small size and light weight
The overall structure of the brush motor is compact, and the hollow cup shape of the rotor and the lighter material (such as copper, etc.) make the weight and volume of the motor have advantages. This makes it widely used in devices with strict space and weight restrictions, such as small drones and portable medical devices.

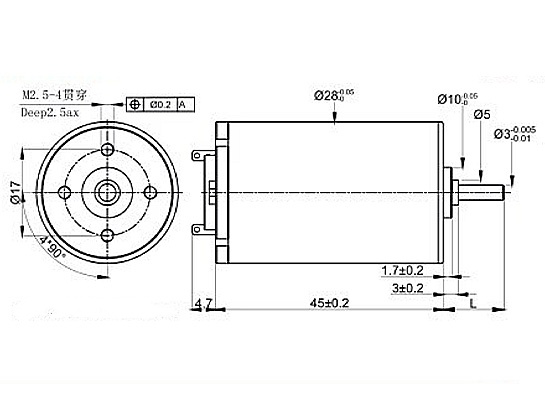

Size & Interface
